Wiring diagram of soldered points/Z connector sleeves - PE00.19-P-2600-97FBF

Code:	Designation:	Position:
A0	Use of wiring diagrams	48L
K40/8	Engine fuse and relay module	9L
K40/8	Engine fuse and relay module	18L
K40/8	Engine fuse and relay module	35L
K40/8f102	Fuse 102	7L
K40/8f102	Fuse 102	17L
K40/8f102	Fuse 102	33L
N3/9	CDI control unit	4L
N3/9	CDI control unit	13L
N3/9	CDI control unit	30L
U406	Valid for diesel engine 626	1F
U561	Valid for Delphi system	28F
U562	Valid for Bosch system	11F
U948	Valid for diesel engine 651	11F
U948	Valid for diesel engine 651	27F
X25/7	Engine compartment/frame floor assembly electrical connector	6G
X25/7	Engine compartment/frame floor assembly electrical connector	16G
X25/7	Engine compartment/frame floor assembly electrical connector	32G
X26	Interior and engine wiring harness electrical connector	40G
X26	Interior and engine wiring harness electrical connector	26G
Y130	Engine oil pump valve	25L
Y74	Pressure regulator valve	22L
Y94	Quantity control valve	26L
Y94	Quantity control valve	39L
Z7/47z1	Circuit 87/1 connector sleeve	26A
Z7/5z1	Circuit 87 connector sleeve	25H

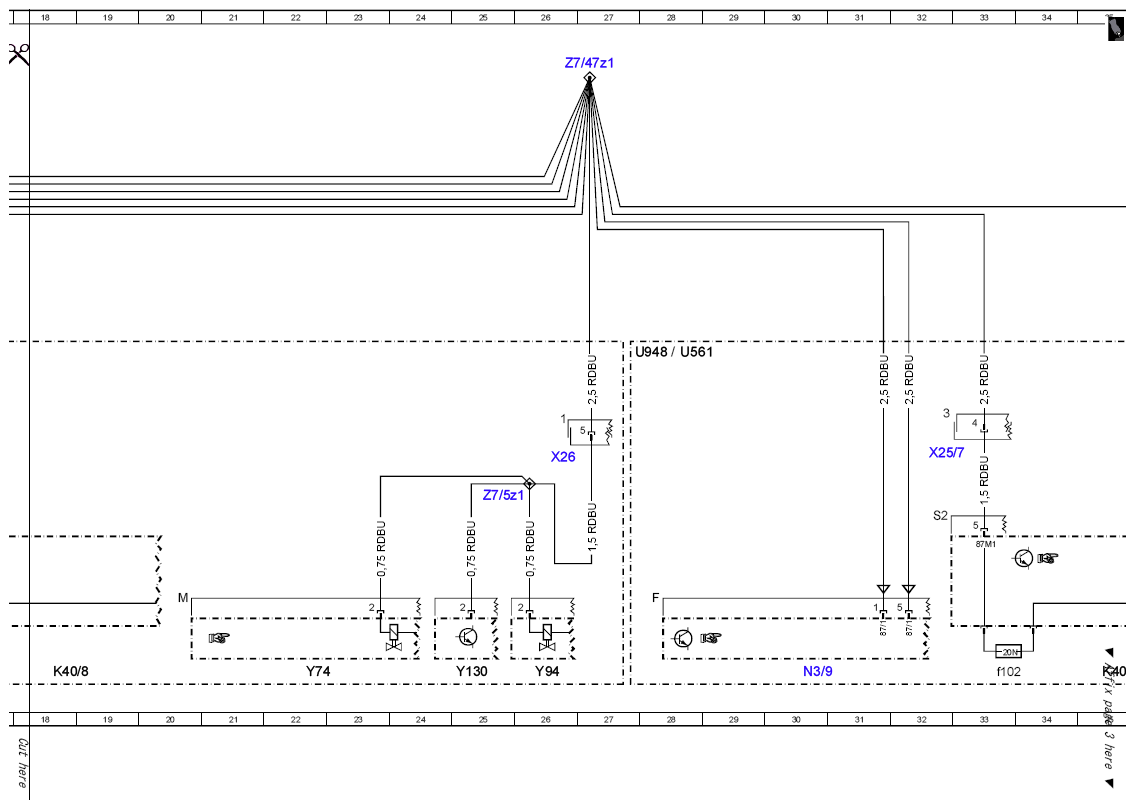

Fig 1: Soldered Points/Z Connector Sleeves Wiring Diagram (1 Of 3)

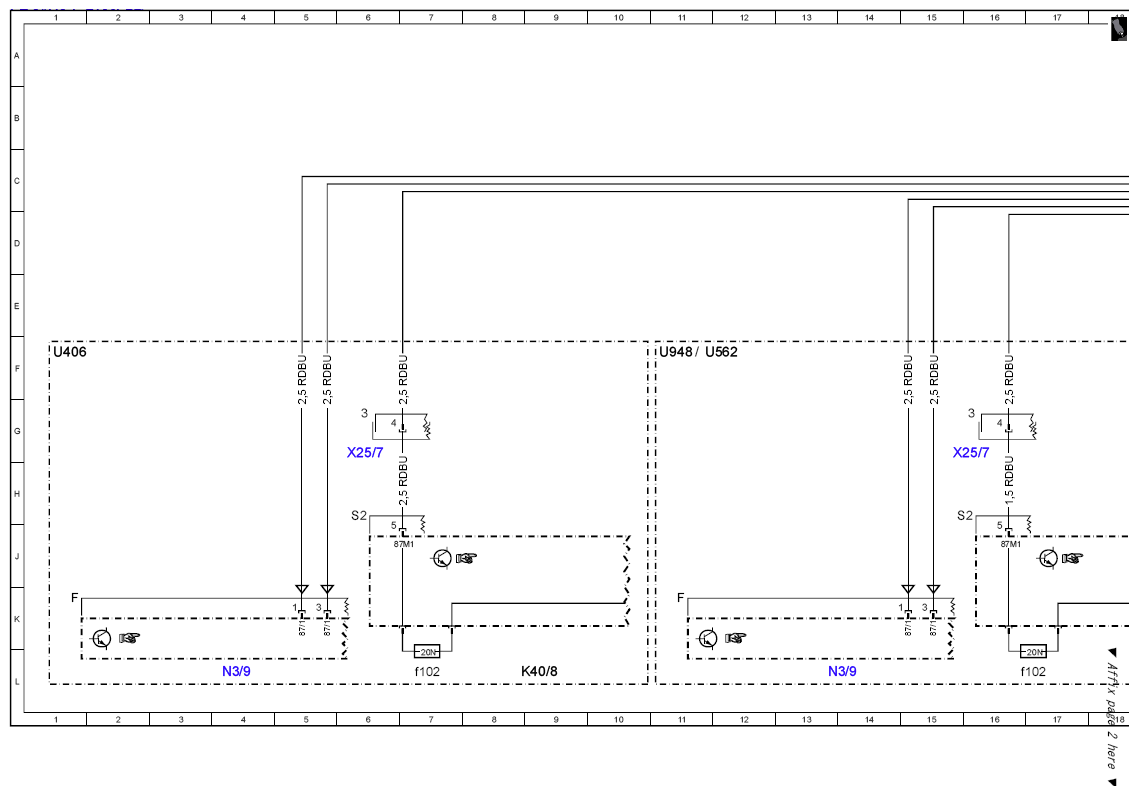

Fig 2: Soldered Points/Z Connector Sleeves Wiring Diagram (2 Of 3)

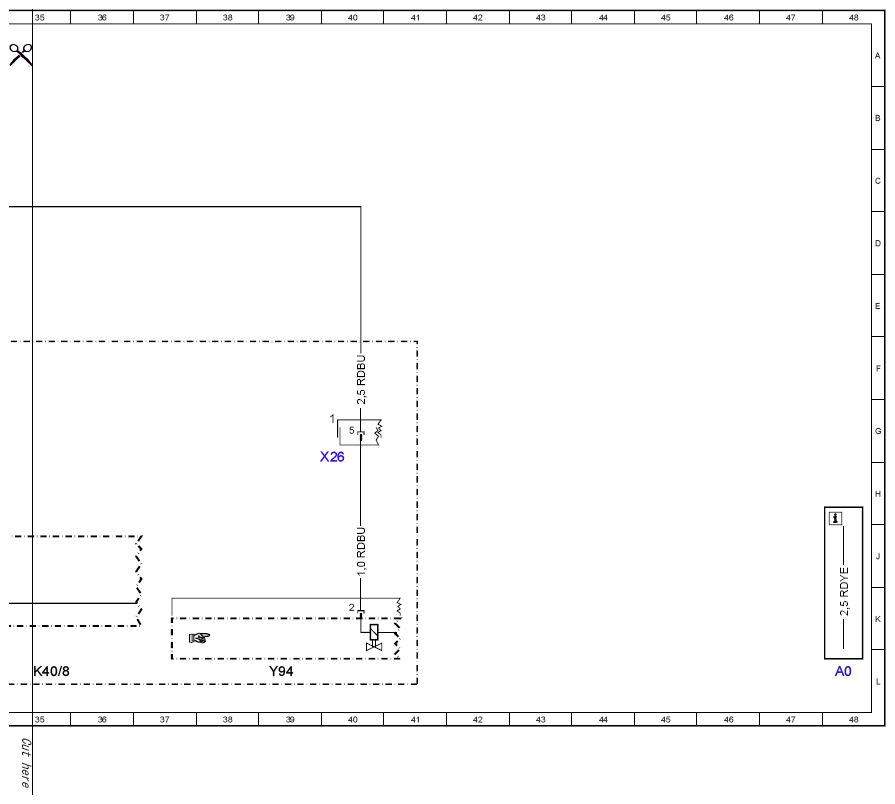

Fig 3: Soldered Points/Z Connector Sleeves Wiring Diagram (3 Of 3)
