| A0 |
Use of wiring diagrams |
80L |
| A32 |
AC housing |
43L |
| A6 |
Stationary heater unit |
14L |
| A9/5 |
Electric refrigerant compressor |
19L |
| B31 |
Air quality sensor |
23L |
| Code 228 |
Stationary heater |
12F |
| Code 580 |
Air conditioning |
64H |
| Code 581 |
THERMOTRONIC automatic air conditioning |
21H |
| Code 581 |
THERMOTRONIC automatic air conditioning |
1F |
| Code 581 |
THERMOTRONIC automatic air conditioning |
53H |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
16F |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
16F |
| Code P21 |
AIR-BALANCE package |
38H |
| Code P21 |
AIR-BALANCE package |
7F |
| M16/11 |
Left A-pillar air distribution actuator motor |
31L |
| M16/12 |
Right A-pillar air distribution actuator motor |
35L |

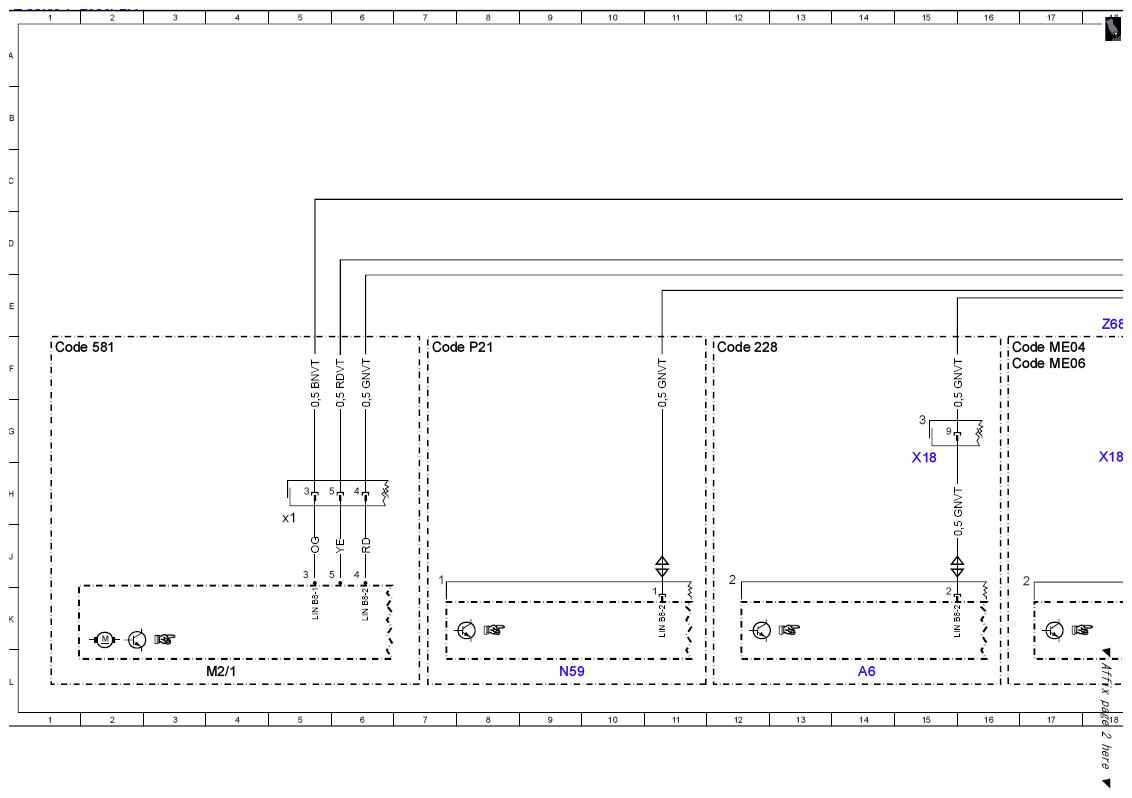

| M2/1 |
Rear blower motor |
4L |

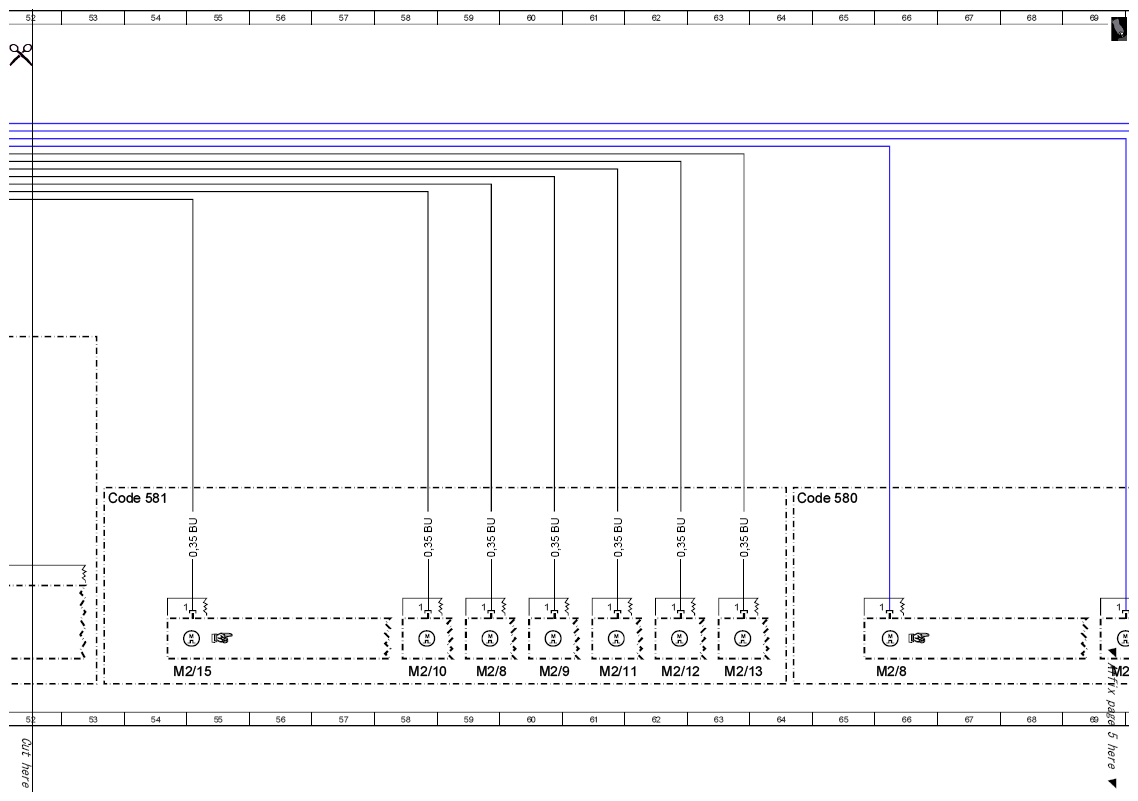

| M2/10 |
Rear blend air flap actuator motor |
58L |
| M2/11 |
Left footwell vent/center air vent/side air vent and rear vent flap actuator motor |
61L |
| M2/12 |
Right footwell vent/center air vent and side air vent flap actuator motor |
62L |
| M2/13 |
Fresh air/ram air/air recirculation flap actuator motor |
63L |
| M2/13 |
Fresh air/ram air/air recirculation flap actuator motor |
70L |
| M2/14 |
Defroster/footwell/center air vent flap actuator motor |
71L |

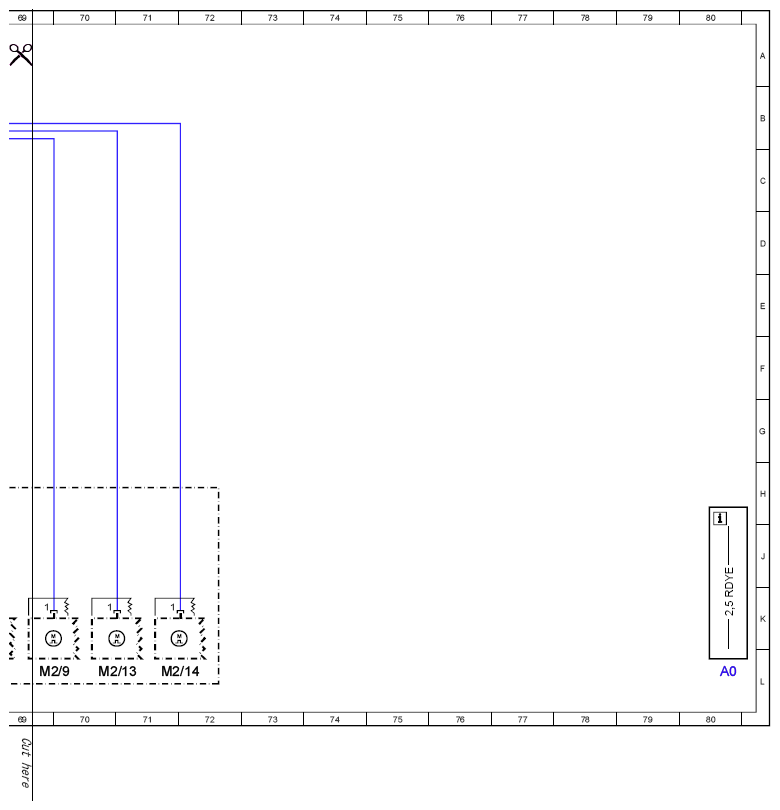

| M2/15 |
Defroster vent flap actuator motor |
54L |
| M2/1x1 |
Rear blower motor electrical connector |
5H |
| M2/8 |
Left blending air flap actuator |
59L |
| M2/8 |
Left blending air flap actuator |
66L |
| M2/9 |
Right blending air flap actuator |
60L |
| M2/9 |
Right blending air flap actuator |
69L |

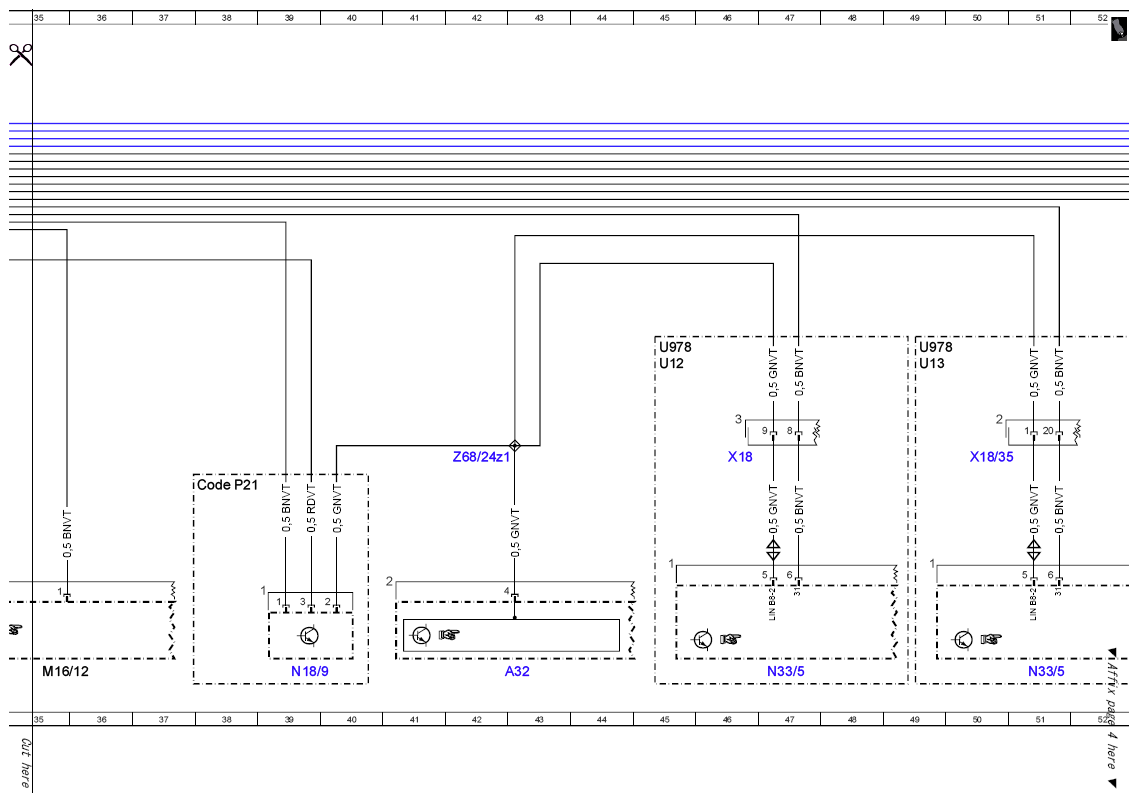

| N18/9 |
Driver side air vent ionizer |
39L |
| N22/1 |
Climate control unit |
27L |
| N33/5 |
High-voltage PTC heater |
47L |
| N33/5 |
High-voltage PTC heater |
51L |
| N59 |
Perfume atomizer generator |
9L |
| U12 |
Valid for left-hand drive vehicles |
45F |
| U13 |
Valid for right-hand drive vehicles |
49F |
| U978 |
Valid for hybrid drive |
45F |
| U978 |
Valid for hybrid drive |
49F |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
15H |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
46G |

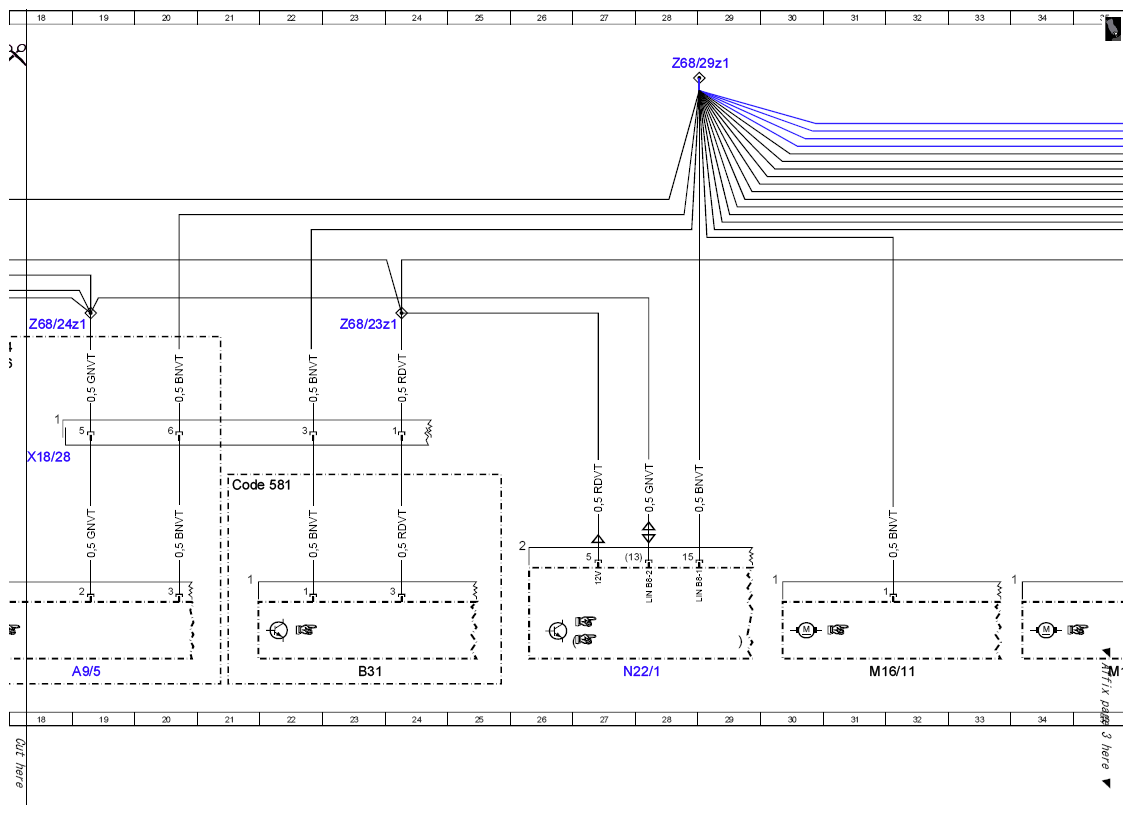

| X18/28 |
Left cockpit/engine compartment electrical connector |
18G |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
50G |
| Z68/23z1 |
Connector sleeve, 12V climate control LIN 2 |
23E |
| Z68/24z1 |
Connector sleeve, data line for climate control LIN 2 |
18E |
| Z68/24z1 |
Connector sleeve, data line for climate control LIN 2 |
42G |
| Z68/29z1 |
Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 |
28A |
