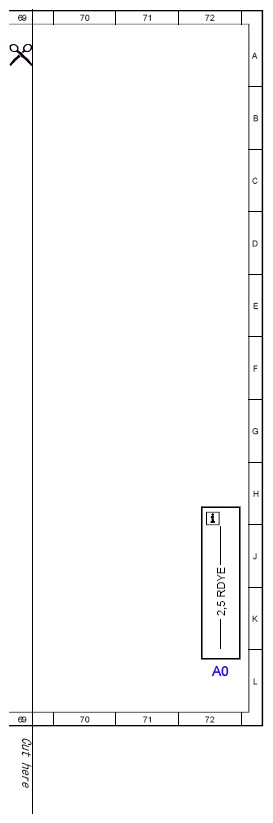

| A0 |
Use of wiring diagrams |
72L |
| Code 2U1 |
Radiator shutters |
16F |
| Code 301 |
Smoker's package |
48D |
| Code 5U3 |
AIRPANEL |
15A |
| Code 875 |
Heated windshield washer system |
34A |
| Code 876 |
Interior lights package |
53D |
| E1 |
Left front lamp unit |
41A |
| E20/18 |
Front center console cup holder ambiance illumination |
57L |
| H2 |
Left fanfare horn |
43L |
| H2/1 |
Right fanfare horn |
23L |
| K40/8 |
Engine fuse and relay module |
5L |
| K40/8 |
Engine fuse and relay module |
38L |
| K40/8f120 |
Fuse 120 |
3L |
| K40/8kJ |
CPC relay |
7L |
| M2/37 |
Radiator trim flap actuator motor |
20A |
| M4/7 |
Fan motor |
13L |
| M43/6 |
Low temperature circuit circulation pump 1 |
32L |
| M43/6 |
Low temperature circuit circulation pump 1 |
12A |
| M43/6 |
Low temperature circuit circulation pump 1 |
27A |
| M43/7 |
Low temperature circuit circulation pump 2 |
30L |
| M43/7 |
Low temperature circuit circulation pump 2 |
27L |
| M45 |
Coolant circulation pump |
32A |
| M87 |
Radiator shutters actuator motor |
18L |
| N10/6 |
Front SAM control unit |
64L |
| N127 |
Drivetrain control unit |
8A |
| R2/11 |
Spray nozzle hose heater |
37A |
| R3 |
Front cigarette lighter with ashtray illumination |
50L |
| R3 |
Front cigarette lighter with ashtray illumination |
60L |
| U1018 |
Valid for gasoline engine 276 |
25J |
| U1018 |
Valid for gasoline engine 276 |
31J |
| U165 |
Valid for AMG |
29J |
| U165 |
Valid for AMG |
10A |
| U165 |
Valid for AMG |
25A |
| U2037 |
Valid for spark ignition engine 274 with hybrid drive |
25J |
| U358 |
Valid without code (301) Smoker's package |
45D |
| U362 |
Valid for gasoline engine 274 |
31J |
| U362 |
Valid for gasoline engine 274 |
1A |
| U39 |
Valid for gasoline engine 177 |
29J |
| U39 |
Valid for gasoline engine 177 |
10A |
| U39 |
Valid for gasoline engine 177 |
25A |
| U406 |
Valid for diesel engine 626 |
31J |
| U561 |
Valid for Delphi system |
9G |
| U948 |
Valid for diesel engine 651 |
8G |
| U948 |
Valid for diesel engine 651 |
25J |
| U948 |
Valid for diesel engine 651 |
31J |
| U978 |
Valid for hybrid drive |
29A |
| W2 |
Right front ground point (at lamp unit) |
25L |
| W9 |
Left front ground point (at lamp unit) |
41L |
| X138/1 |
Front center console electrical connector |
57G |
| X25/7 |
Engine compartment/frame floor assembly electrical connector |
2D |
| X58/1 |
Vehicle interior power outlet |
46L |
| X58/18 |
Right rear center console 12V socket |
55L |

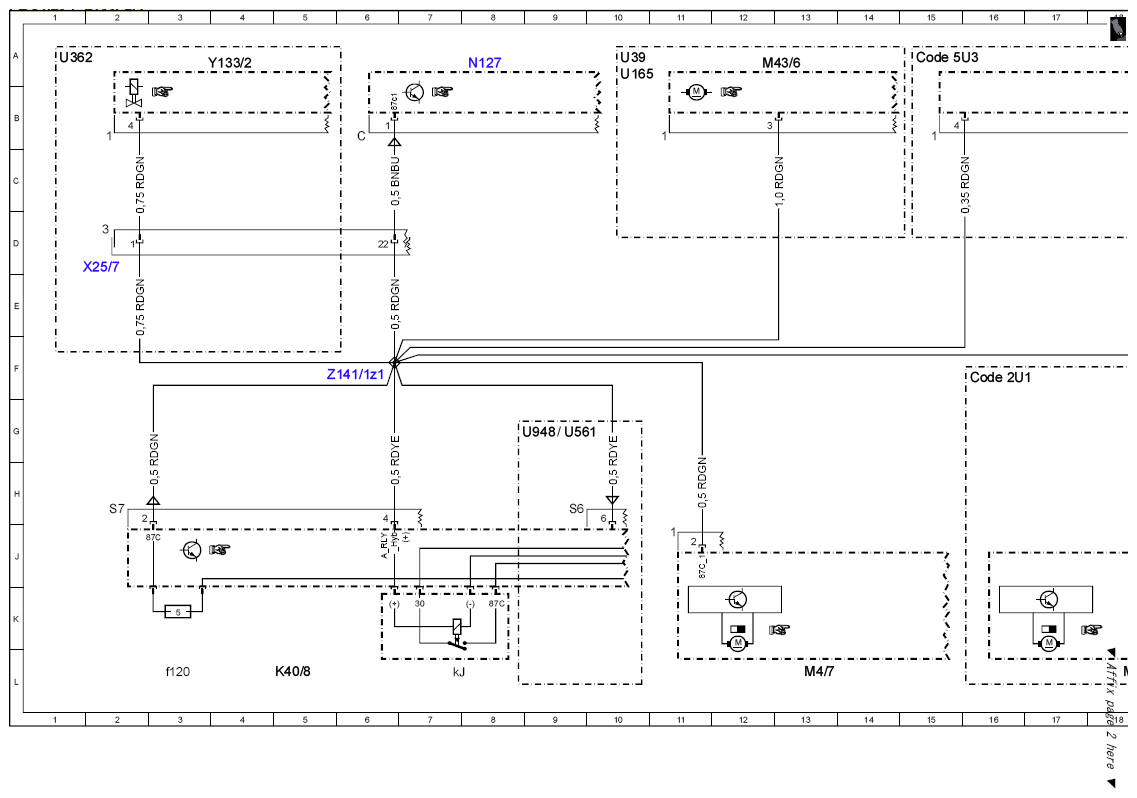

| Y133/2 |
Battery coolant pump switchover valve |
4A |
| Z141/1z1 |
Circuit 87 C1 connector sleeve |
6F |

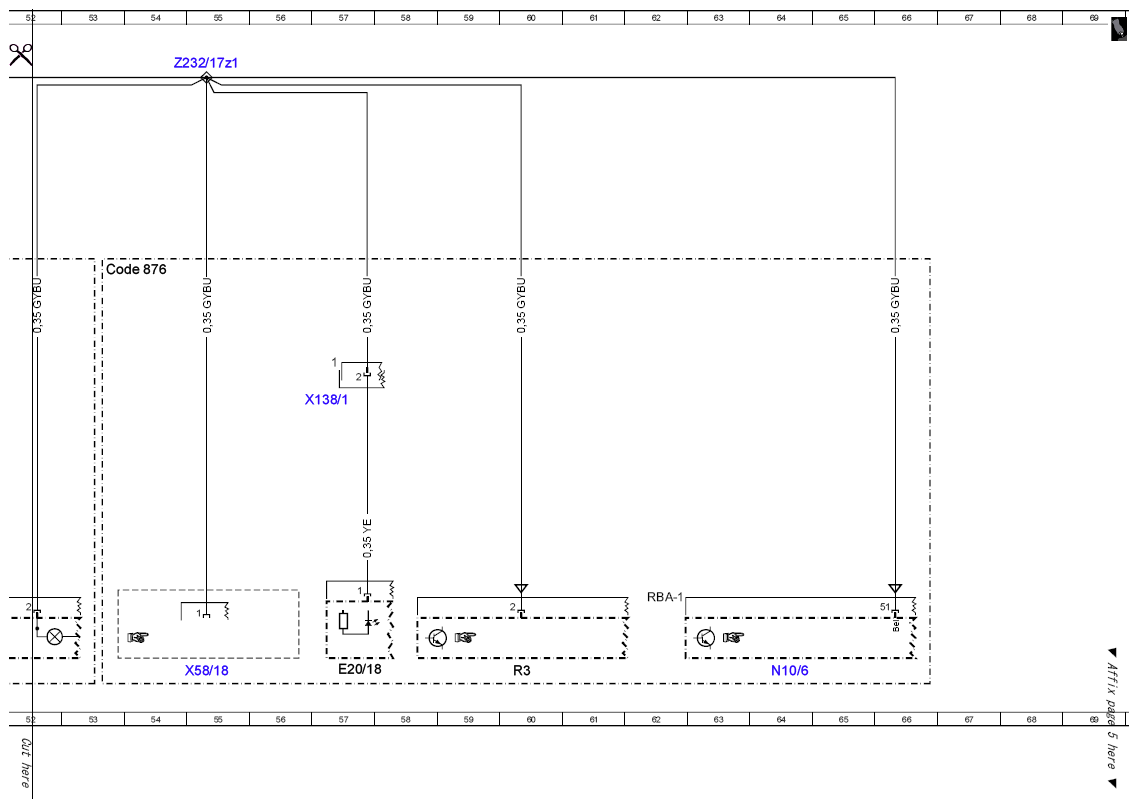

| Z232/17z1 |
Center console ambiance illumination connector sleeve (yellow) |
55A |

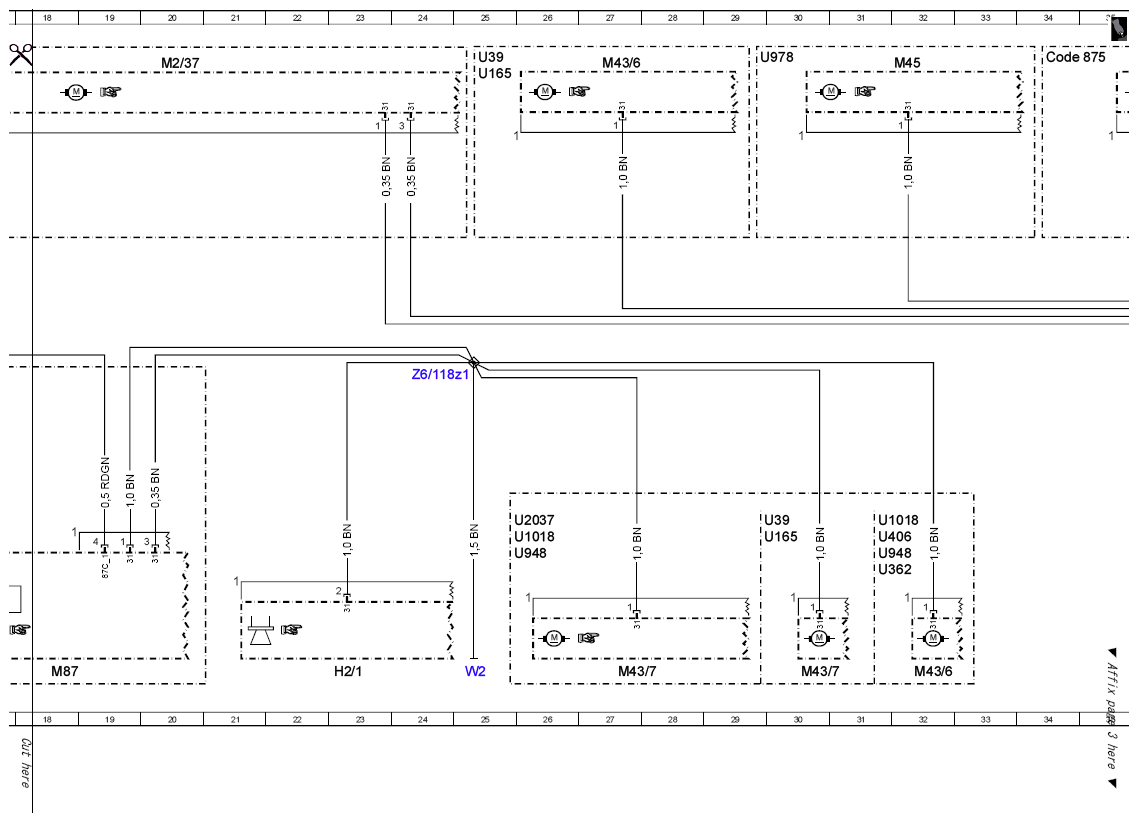

| Z6/117z1 |
Left front ground point connector sleeve (on lamp unit) |
40F |

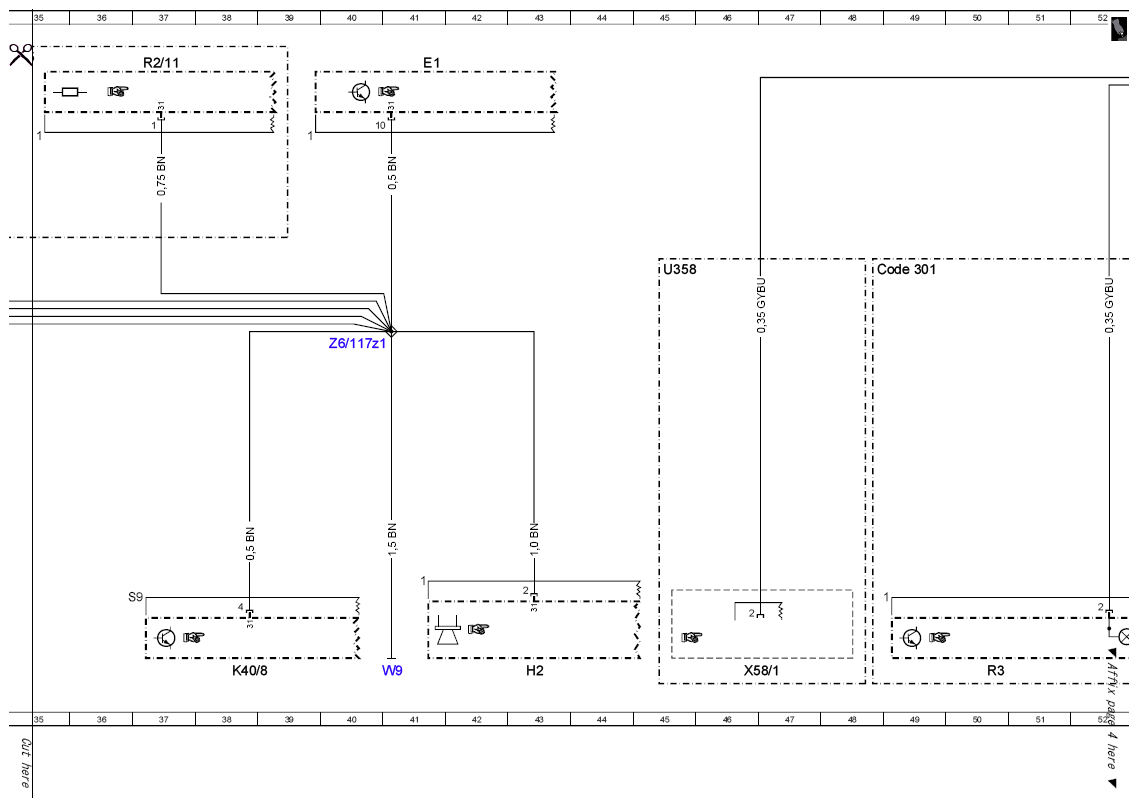

| Z6/118z1 |
Right front ground line connector sleeve (in wiring harness) |
24F |
