| A0 |
Use of wiring diagrams |
48L |
| CAN B |
Interior CAN |
3K |
| CAN B |
Interior CAN |
6K |
| CAN B |
Interior CAN |
10K |
| CAN B |
Interior CAN |
23K |
| CAN B |
Interior CAN |
35K |
| CAN B |
Interior CAN |
39K |
| CAN B |
Interior CAN |
31K |
| CAN B |
Interior CAN |
27K |
| CAN B |
Interior CAN |
18K |
| CAN B |
Interior CAN |
14K |
| Code 241 |
All-electric front passenger seat with memory (left) |
1E |
| Code 241 |
All-electric front passenger seat with memory (left) |
13E |
| Code 242 |
All-electric front passenger seat with memory (right) |
1E |
| Code 242 |
All-electric front passenger seat with memory (right) |
9E |
| Code 275 |
Memory package |
1E |
| Code 275 |
Memory package |
5E |
| Code 275 |
Memory package |
17E |
| Code 409 |
Multicontour seat package |
1F |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
29E |
| Code 882 |
Interior protection and tow-away protection |
29E |
| Code 889 |
KEYLESS-GO |
1F |

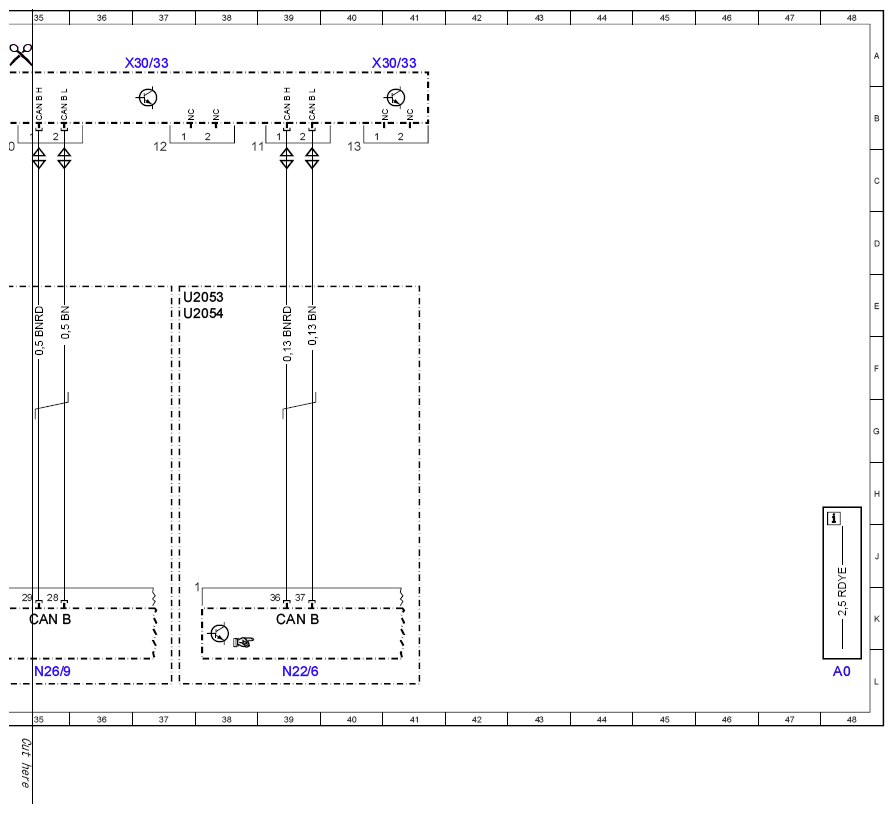

| N22/6 |
Rear control unit |
39L |
| N26/14 |
Special vehicle multifunction control unit (SVMCU [MSS]) |
27L |
| N26/3 |
ATA [EDW]/towing sensor/interior motion sensor control unit |
31L |
| N26/9 |
Special-purpose vehicle multifunction control unit |
35L |
| N32/1 |
Driver seat control unit |
6L |
| N32/1 |
Driver seat control unit |
18L |
| N32/2 |
Front passenger seat control unit |
10L |
| N32/2 |
Front passenger seat control unit |
14L |

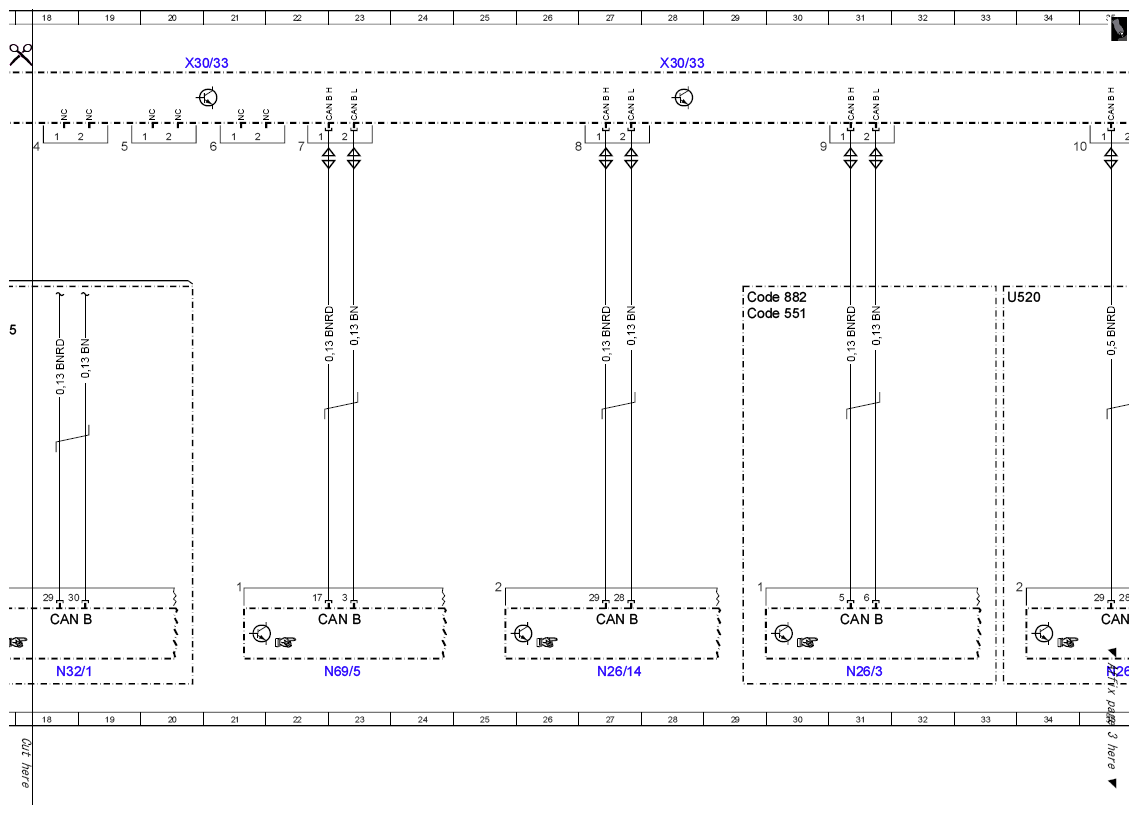

| N69/5 |
KEYLESS-GO control unit |
23L |
| U12 |
Valid for left-hand drive vehicles |
5E |
| U13 |
Valid for right-hand drive vehicles |
13E |
| U2053 |
Valid for model 205.3 |
37E |
| U2054 |
Valid for model 205.4 |
37E |
| U520 |
Valid for taxi |
33E |

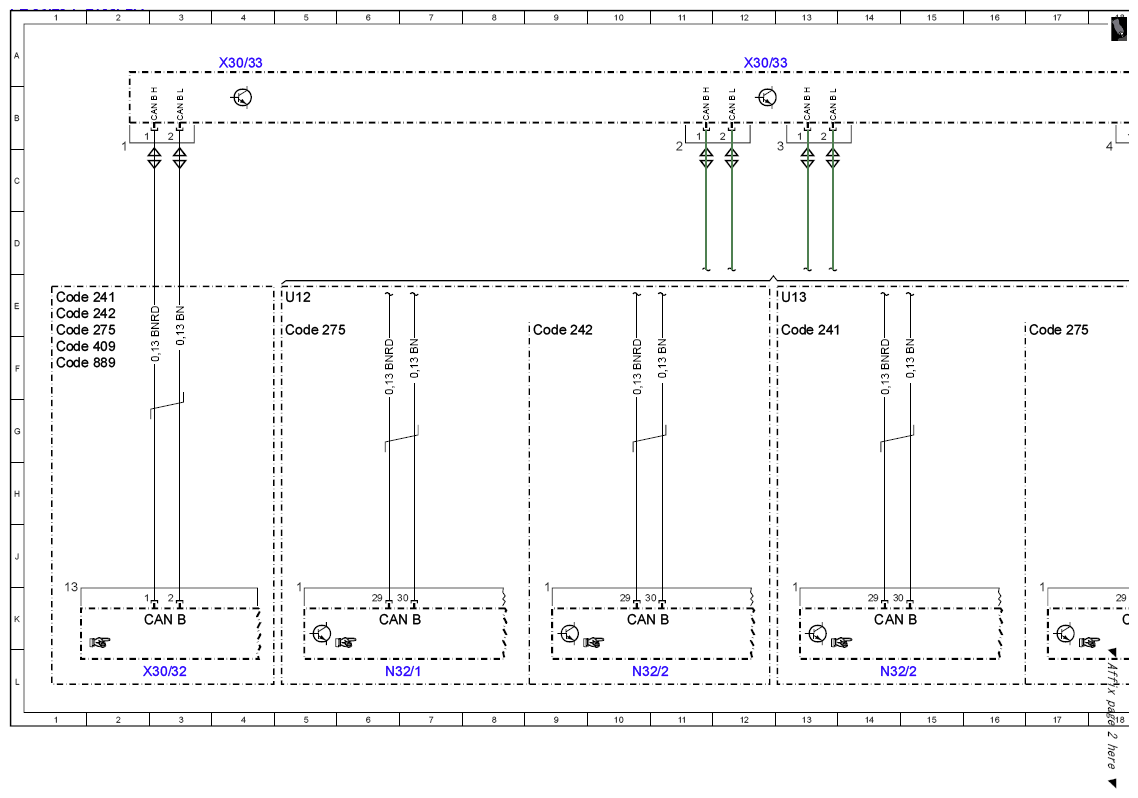

| X30/32 |
Left interior CAN (CAN B) potential distributor electrical connector |
3L |
| X30/33 |
Right interior CAN (CAN B) potential distributor electrical connector |
4A |
| X30/33 |
Right interior CAN (CAN B) potential distributor electrical connector |
20A |
| X30/33 |
Right interior CAN (CAN B) potential distributor electrical connector |
41A |
| X30/33 |
Right interior CAN (CAN B) potential distributor electrical connector |
28A |
| X30/33 |
Right interior CAN (CAN B) potential distributor electrical connector |
37A |
| X30/33 |
Right interior CAN (CAN B) potential distributor electrical connector |
12A |
