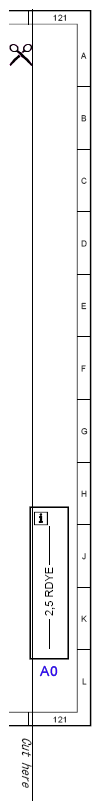

| A0 |
Use of wiring diagrams |
121L |

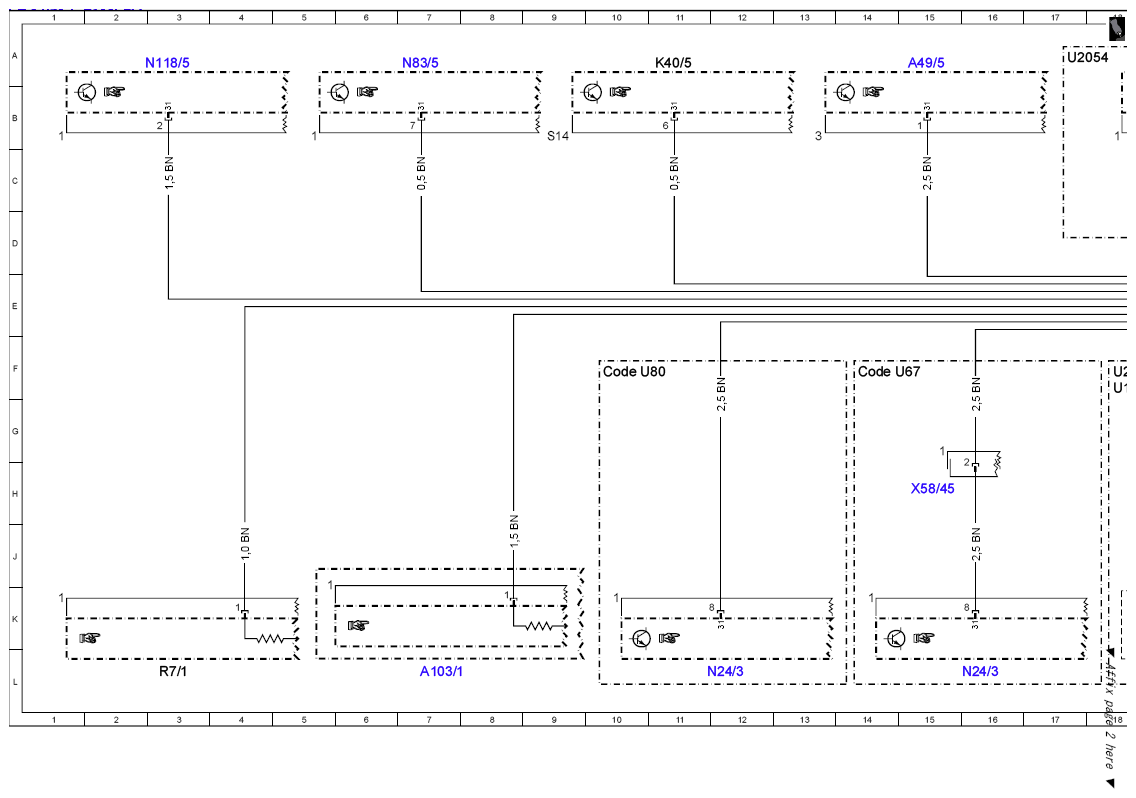

| A103/1 |
AdBlue® tank module |
7L |
| A49/5 |
Radio data transmission two-way radio |
15A |

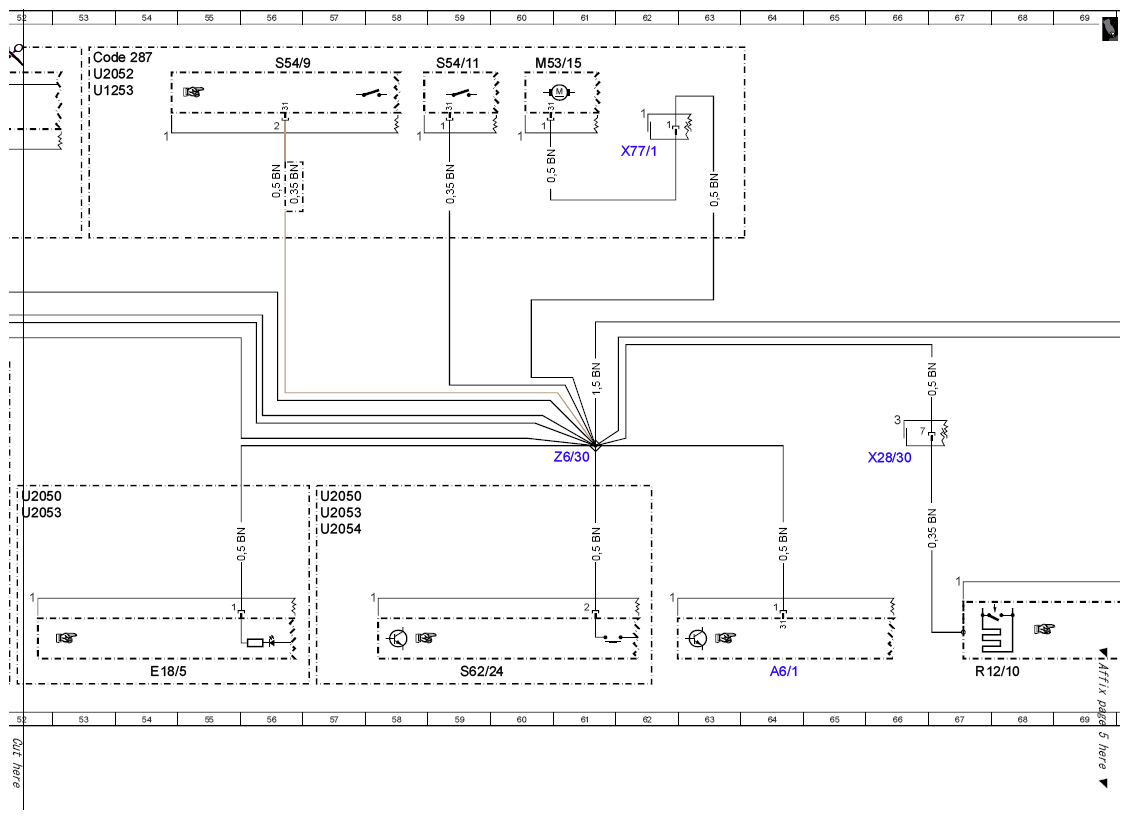

| A6/1 |
Stationary heater radio remote control receiver |
64L |

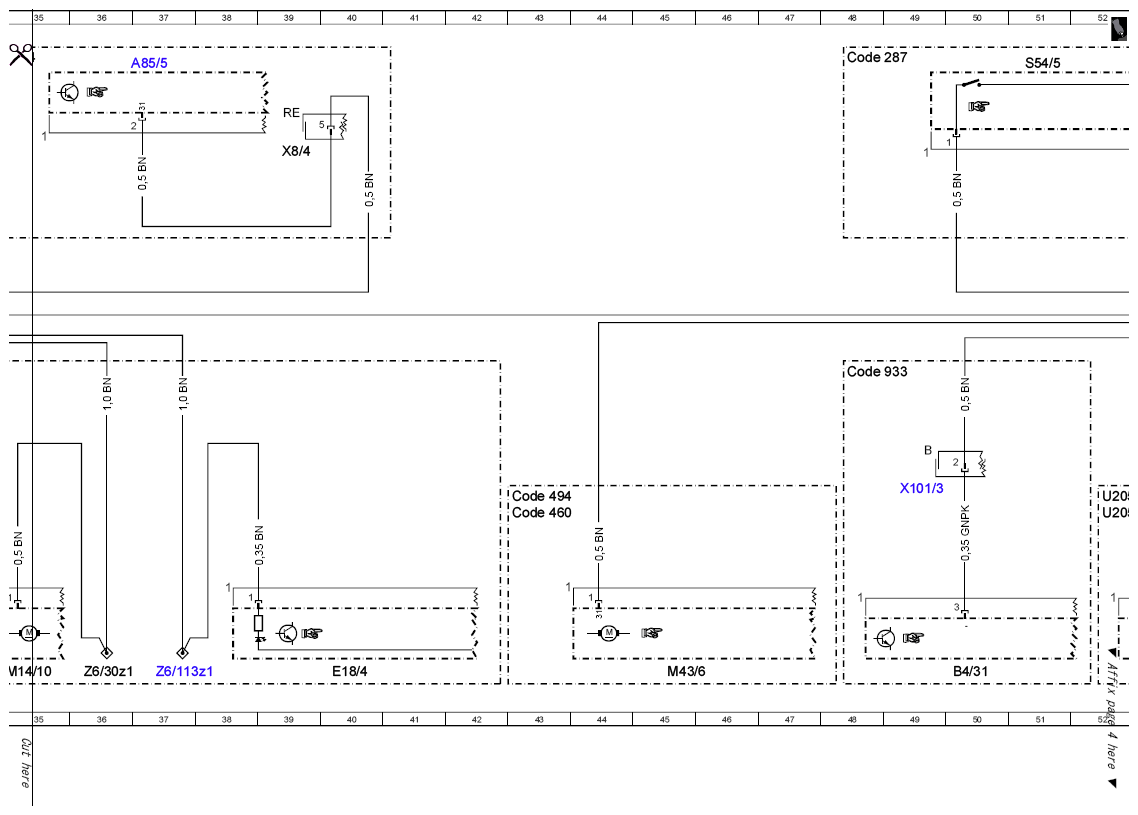

| A85/5 |
Trunk lid/liftgate lock |
37A |
| B4/31 |
Fuel quality sensor |
50L |

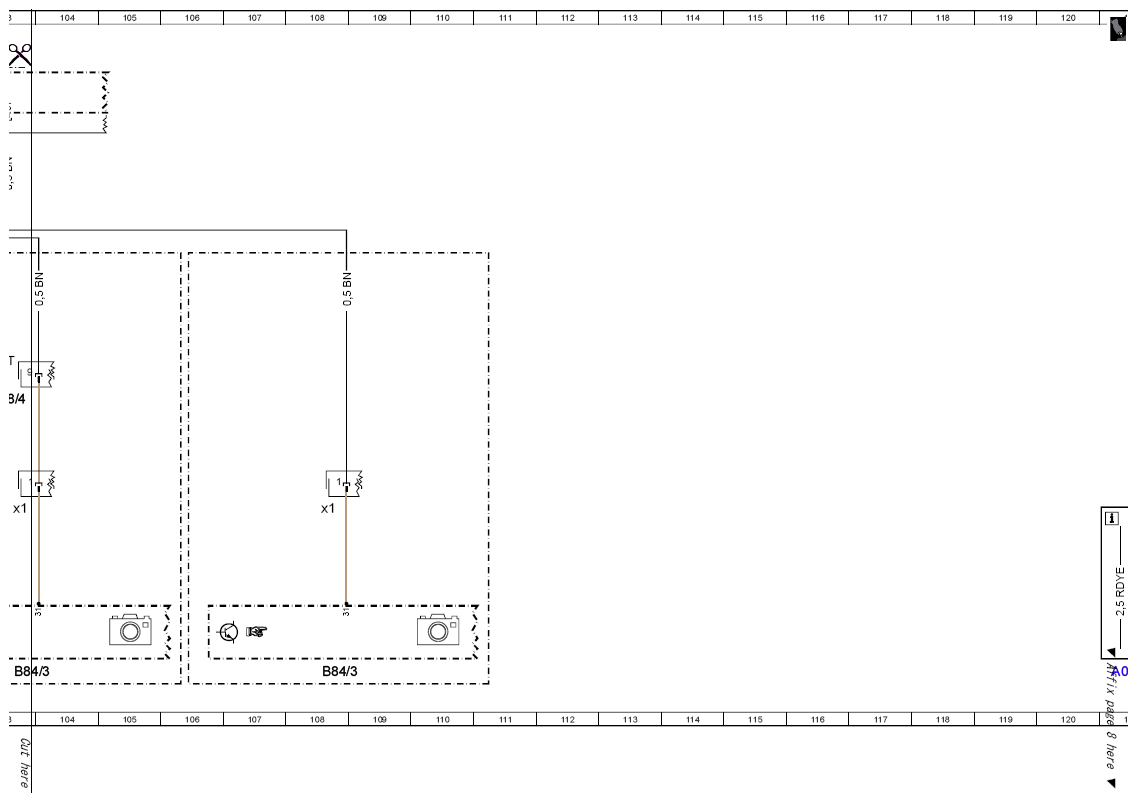

| B84/3 |
Backup camera |
103L |
| B84/3 |
Backup camera |
108L |
| B84/3x1 |
Reversing camera electrical connector 1 |
103H |
| B84/3x1 |
Reversing camera electrical connector 1 |
108H |
| Code 287 |
Through-loading feature |
48A |
| Code 287 |
Through-loading feature |
53A |
| Code 460 |
Canada version |
43H |
| Code 494 |
USA version |
43H |
| Code 933 |
Flexible Fuel Vehicle |
48F |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
97F |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
92F |
| Code U67 |
230 V socket in interior compartment |
14F |
| Code U80 |
115V (AC) power socket |
10F |

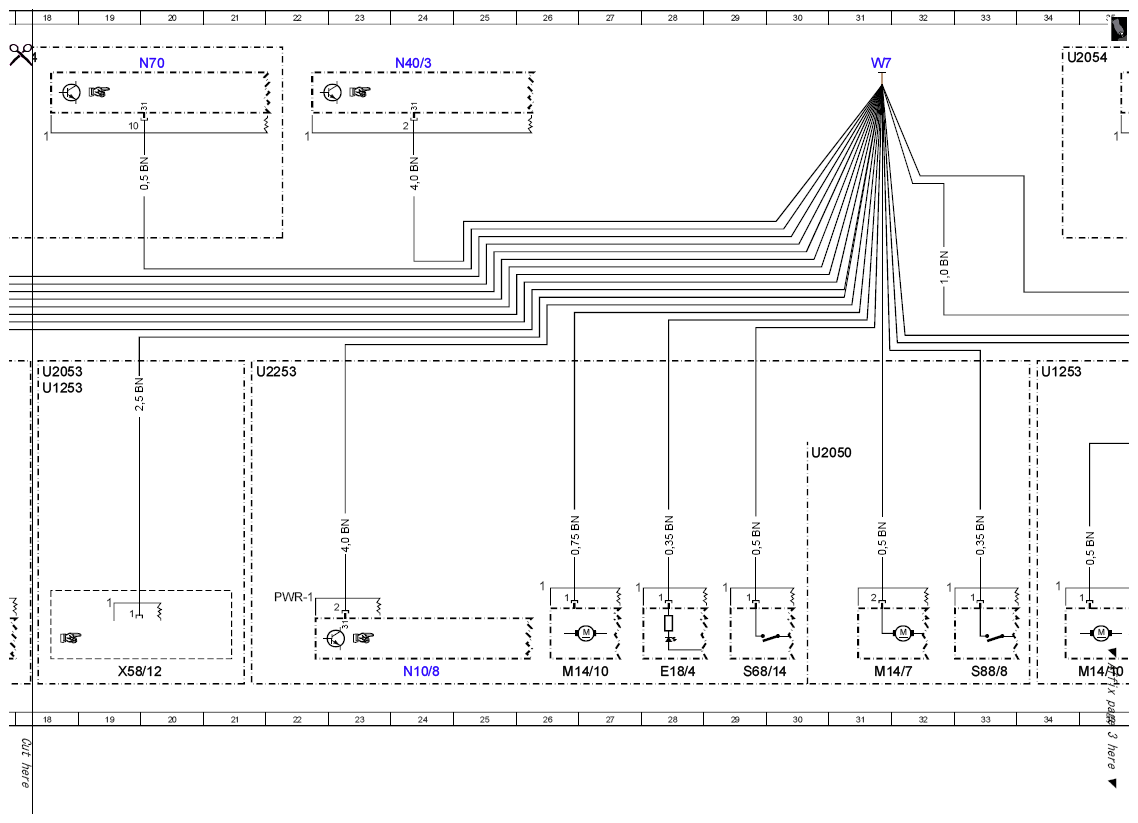

| E18/4 |
Right luggage compartment lamp |
28L |
| E18/4 |
Right luggage compartment lamp |
40L |
| E18/5 |
Left luggage compartment lamp |
54L |
| K40/5 |
Rear fuse and relay module |
11A |

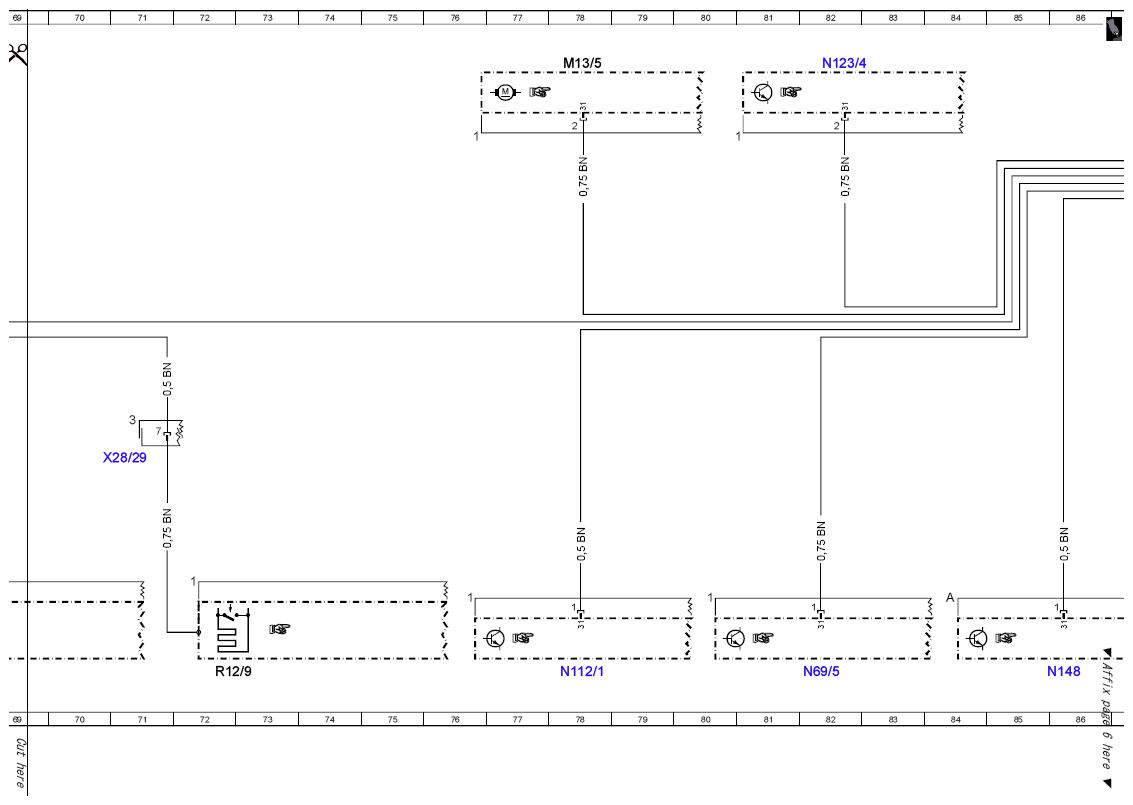

| M13/5 |
Coolant circulation pump |
78A |
| M14/10 |
Tank cap central locking actuator |
26L |
| M14/10 |
Tank cap central locking actuator |
35L |
| M14/7 |
Trunk lid/liftgate central locking motor |
31L |
| M43/6 |
Low temperature circuit circulation pump 1 |
45L |
| M53/15 |
Left rear backrest release actuator |
60A |
| N10/8 |
Rear SAM control unit |
24L |
| N112/1 |
Telematics services communication module |
78L |
| N118/5 |
AdBlue® control unit |
3A |
| N123/4 |
Emergency call system control unit |
82A |
| N148 |
360° camera control unit |
86L |
| N24/3 |
DC/AC converter control unit |
12L |
| N24/3 |
DC/AC converter control unit |
16L |
| N40/3 |
Sound system amplifier control unit |
24A |

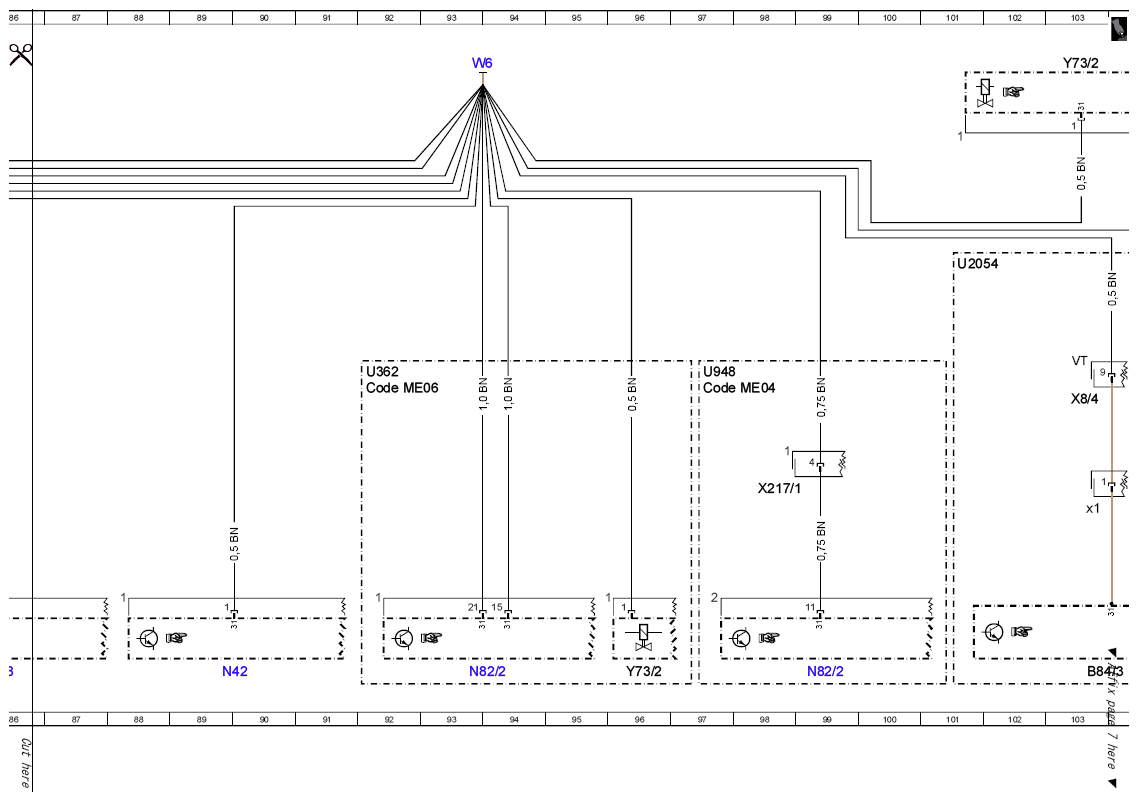

| N42 |
Camera cover control unit |
89L |
| N69/5 |
KEYLESS-GO control unit |
82L |
| N70 |
Overhead control panel control unit |
20A |
| N82/2 |
Battery management system control unit |
93L |
| N82/2 |
Battery management system control unit |
99L |
| N83/5 |
Charger |
7A |
| R12/10 |
Front passenger sidebag squib |
67L |
| R12/9 |
Driver sidebag squib |
72L |
| R7/1 |
AdBlue® pressure line heating element |
3L |
| S54/11 |
Left rear backrest release button |
59A |
| S54/5 |
Left rear backrest inclination switch |
51A |
| S54/9 |
Left luggage compartment rear backrest release button |
56A |
| S62/24 |
Trailer hitch release switch |
59L |
| S68/14 |
Center rear seat belt buckle switch |
29L |
| S88/8 |
Trunk lid/liftgate external operation switch |
33L |
| U1253 |
Valid for model 253 |
34F |
| U1253 |
Valid for model 253 |
18F |
| U1253 |
Valid for model 253 |
53B |
| U2050 |
Valid for model 205.0 |
57H |
| U2050 |
Valid for model 205.0 |
30G |
| U2050 |
Valid for model 205.0 |
52H |
| U2052 |
Valid for model 205.2 |
53A |
| U2053 |
Valid for model 205.3 |
57H |
| U2053 |
Valid for model 205.3 |
18F |
| U2053 |
Valid for model 205.3 |
52H |
| U2054 |
Valid for model 205.4 |
57J |
| U2054 |
Valid for model 205.4 |
17A |
| U2054 |
Valid for model 205.4 |
34A |
| U2054 |
Valid for model 205.4 |
101D |
| U2253 |
Not valid for model series 253 |
21F |
| U362 |
Valid for gasoline engine 274 |
92F |
| U948 |
Valid for diesel engine 651 |
97F |
| W6 |
Left wheel arch trunk ground point |
93A |
| W7 |
Right wheelhouse trunk ground point |
31A |
| X101/3 |
Left rear frame floor assembly/underfloor electrical connector |
49H |
| X217/1 |
Battery management system electrical connector |
98H |
| X28/29 |
Driver airbag electrical connector |
71H |
| X28/30 |
Front passenger airbag electrical connector |
66H |
| X58/12 |
Luggage compartment socket |
19L |
| X58/45 |
230V socket connecting point |
15H |
| X77/1 |
Left rear backrest release actuator electrical connector |
62C |
| X8/4 |
Trunk lid/liftgate electrical connector |
39C |
| X8/4 |
Trunk lid/liftgate electrical connector |
103G |
| Y73/2 |
Low-temperature circuit switchover valve 2 |
96L |
| Y73/2 |
Low-temperature circuit switchover valve 2 |
103A |
| Z6/113z1 |
Rear seat ground point connector sleeve |
37L |
| Z6/30 |
Circuit 31 connector sleeve |
61G |
| Z6/30z1 |
Circuit 31 connector sleeve |
36L |
