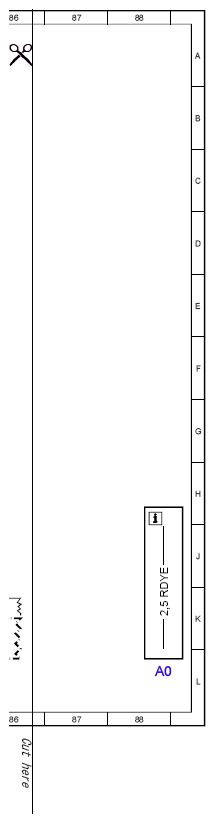

| A0 |
Use of wiring diagrams |
88L |
| A85/5 |
Trunk lid/liftgate lock |
11L |
| B44/3 |
Left rear interior protection sensor |
26A |
| Code 401 |
Seat climate control for driver and front passenger |
40F |
| Code 401 |
Seat climate control for driver and front passenger |
44F |
| Code 483 |
Dynamic handling package 2.0 incl. ADS+ |
36H |
| Code 489 |
AIR BODY CONTROL |
36H |
| Code 873 |
Seat heater for driver and front passenger |
40F |
| Code 873 |
Seat heater for driver and front passenger |
44F |
| Code 882 |
Interior protection and tow-away protection |
6A |
| Code 882 |
Interior protection and tow-away protection |
23A |
| E21 |
Center stop lamp |
72L |
| E21x1 |
Center brake lamp electrical connector |
71H |
| E3/1 |
Inner left rear lamp unit |
15A |
| E3/1 |
Inner left rear lamp unit |
14L |
| E4/1 |
Inner right rear lamp unit |
17L |
| E4/1 |
Inner right rear lamp unit |
18A |
| M6/4 |
Tailgate wiper motor |
9L |
| N10/6 |
Front SAM control unit |
31A |
| N10/6 |
Front SAM control unit |
76L |
| N25/4 |
Front passenger seat heater control unit |
46L |
| N25/5 |
Driver seat heater control unit |
42L |
| N32/1 |
Driver seat control unit |
29L |
| N32/2 |
Front passenger seat control unit |
33L |
| N37/4 |
NOx sensor control unit |
63L |

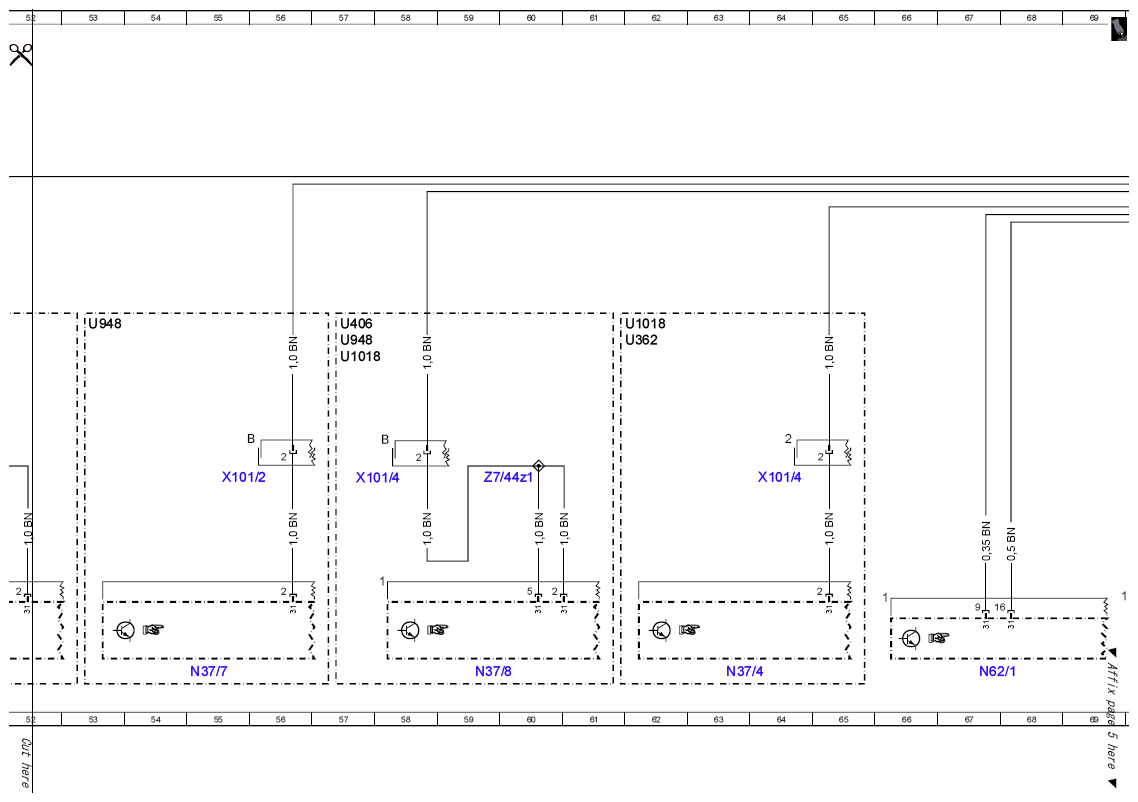

| N37/5 |
Left nitrogen oxides control unit |
51L |
| N37/7 |
NOx sensor control unit downstream of diesel particulate filter |
55L |
| N37/8 |
NOx sensor control unit downstream of SCR catalytic converter |
59L |

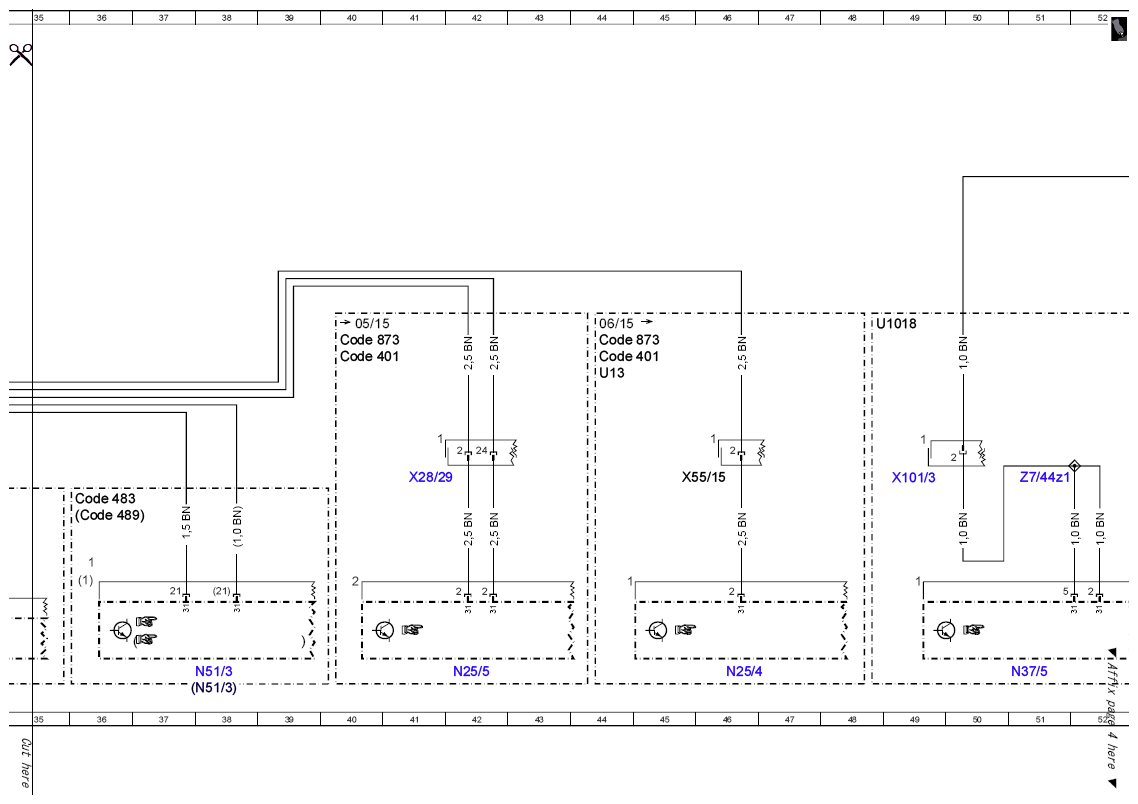

| N51/3 |
AIR BODY CONTROL control unit |
38L |
| N51/3 |
AIR BODY CONTROL control unit |
38L |
| N62 |
Parking system control unit |
80L |
| N62/1 |
Radar sensors control unit |
67L |
| N69/3 |
Left rear door control unit |
24L |
| N69/4 |
Right rear door control unit |
84L |
| R1 |
Rear window heater |
9A |
| S22/1 |
Driver seat partially electric seat adjustment switch |
21L |

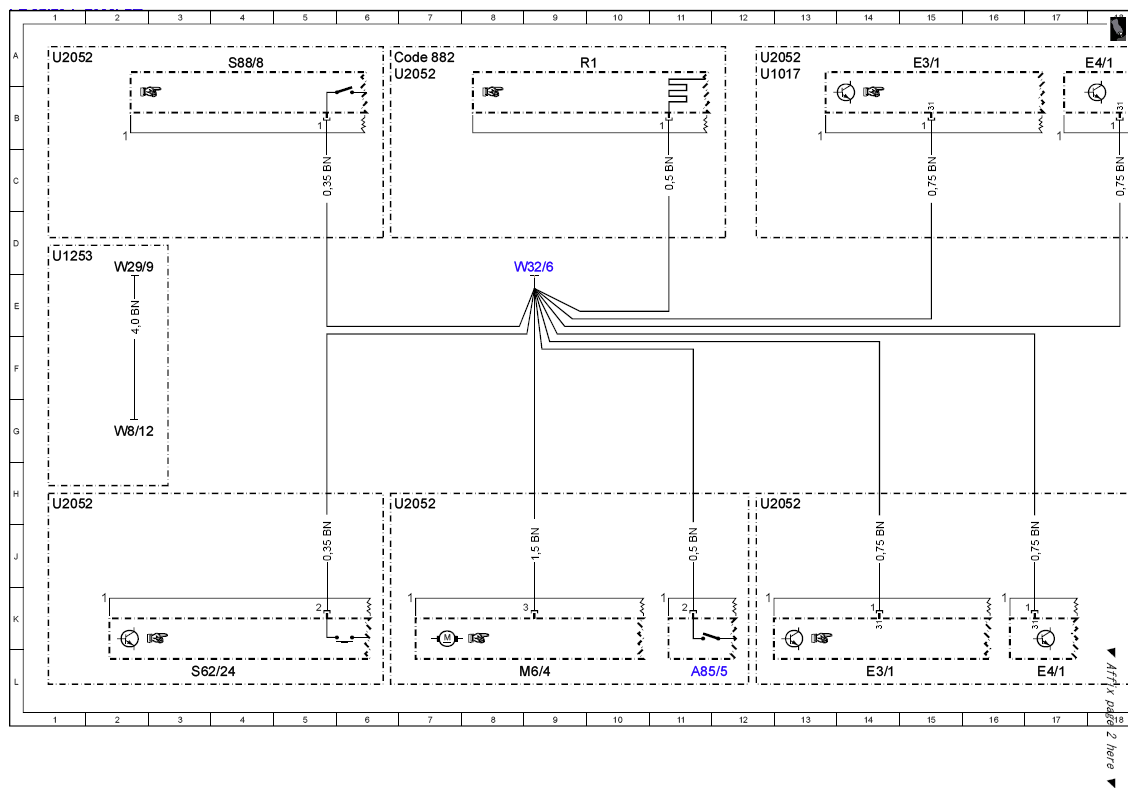

| S62/24 |
Trailer hitch release switch |
3L |
| S88/8 |
Trunk lid/liftgate external operation switch |
4A |
| U1017 |
Valid for lamp unit (LED) |
12A |
| U1018 |
Valid for gasoline engine 276 |
57F |
| U1018 |
Valid for gasoline engine 276 |
48E |
| U1018 |
Valid for gasoline engine 276 |
61E |
| U12 |
Valid for left-hand drive vehicles |
27H |
| U12 |
Valid for left-hand drive vehicles |
28A |
| U1253 |
Valid for model 253 |
1D |
| U13 |
Valid for right-hand drive vehicles |
31H |
| U13 |
Valid for right-hand drive vehicles |
74H |
| U13 |
Valid for right-hand drive vehicles |
44F |
| U2052 |
Valid for model 205.2 |
1H |
| U2052 |
Valid for model 205.2 |
1A |
| U2052 |
Valid for model 205.2 |
6H |
| U2052 |
Valid for model 205.2 |
6A |
| U2052 |
Valid for model 205.2 |
12A |
| U2052 |
Valid for model 205.2 |
12H |
| U362 |
Valid for gasoline engine 274 |
61F |
| U406 |
Valid for diesel engine 626 |
57E |
| U948 |
Valid for diesel engine 651 |
57F |
| U948 |
Valid for diesel engine 651 |
53E |
| W29/9 |
Right D-pillar ground point |
2D |
| W32/6 |
Right liftgate ground connection |
9D |

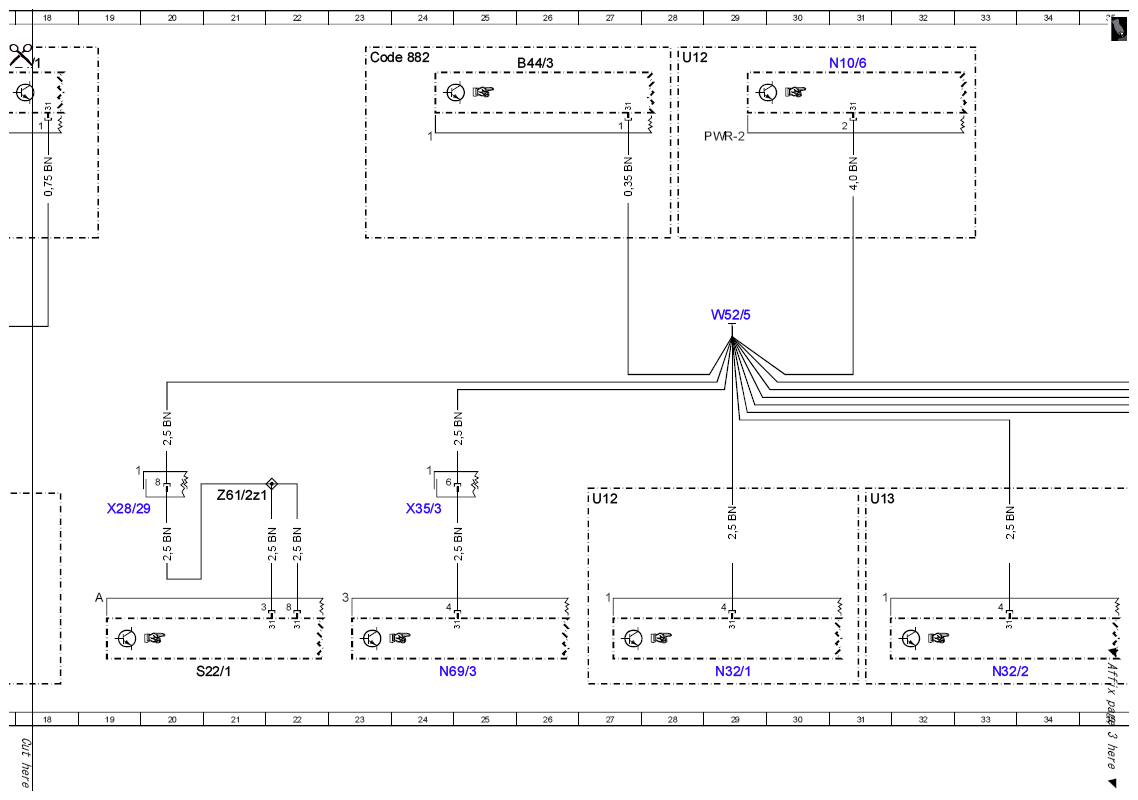

| W52/5 |
Left center longitudinal member ground point |
29E |

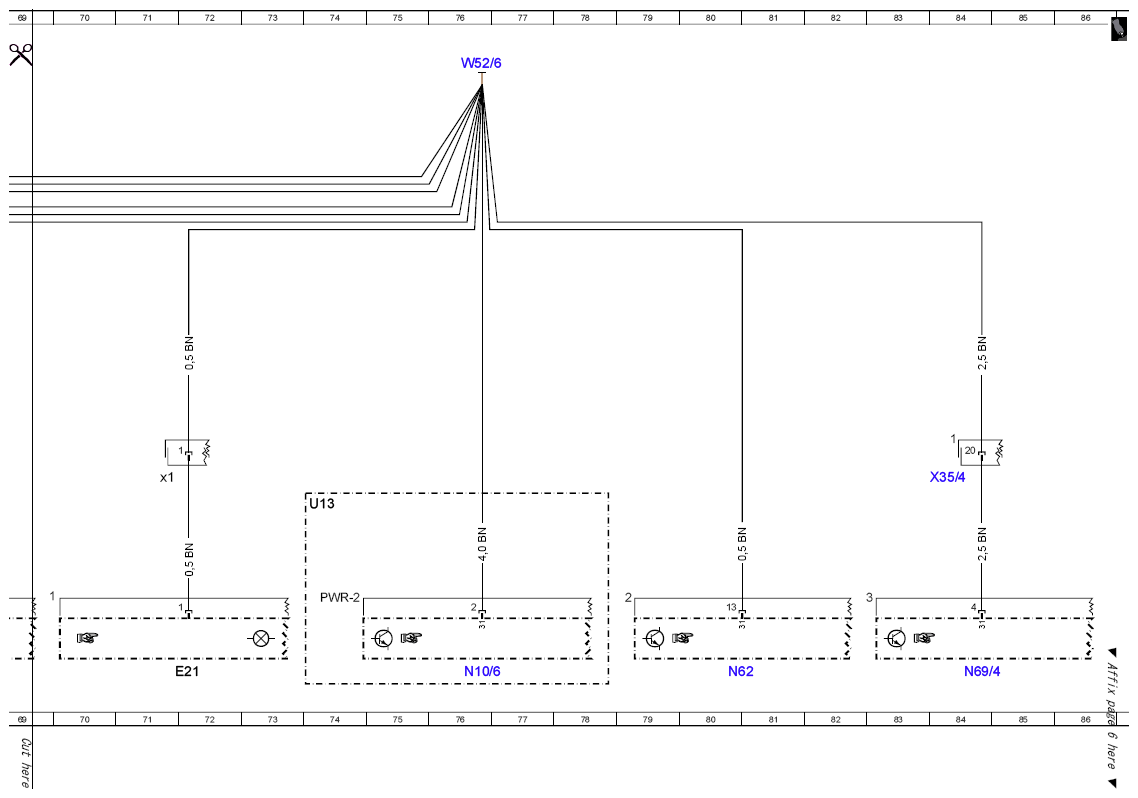

| W52/6 |
Right center longitudinal member ground point |
76A |
| W8/12 |
Upper right liftgate ground point |
2G |
| X101/2 |
Right front frame floor assembly/underfloor electrical connector |
55H |
| X101/3 |
Left rear frame floor assembly/underfloor electrical connector |
49H |
| X101/4 |
Right rear frame floor assembly/underfloor electrical connector |
58H |
| X101/4 |
Right rear frame floor assembly/underfloor electrical connector |
64H |
| X28/29 |
Driver airbag electrical connector |
19H |
| X28/29 |
Driver airbag electrical connector |
41H |
| X35/3 |
Left rear door electrical connector |
24H |
| X35/4 |
Right rear door electrical connector |
84H |
| X55/15 |
Left seat separation point |
46H |
| Z61/2z1 |
Left front seat circuit 31 connector sleeve |
21H |
| Z7/44z1 |
Sensor ground connector sleeve |
51H |
| Z7/44z1 |
Sensor ground connector sleeve |
60H |
