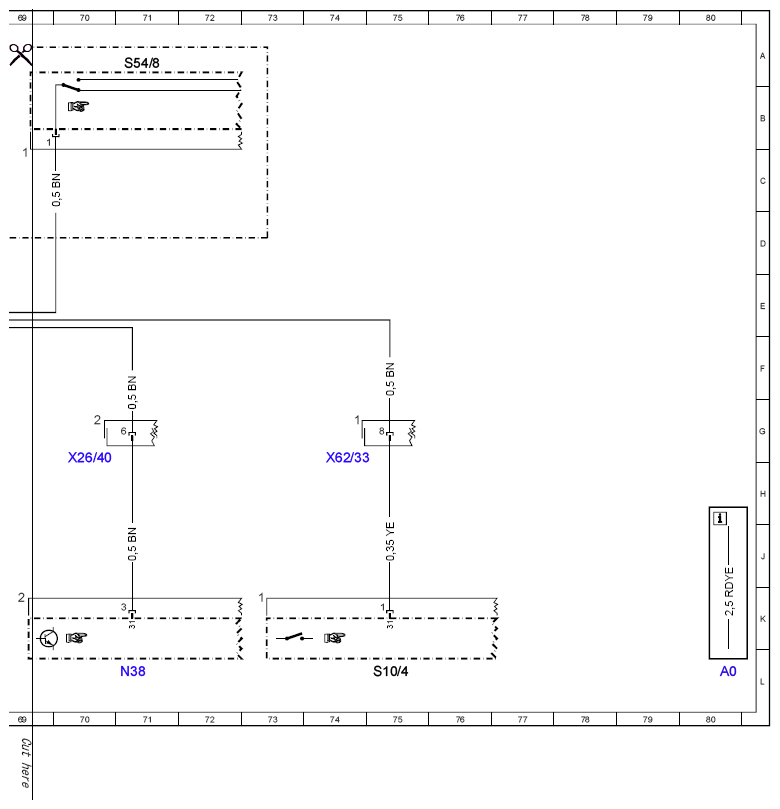

| A0 |
Use of wiring diagrams |
80L |

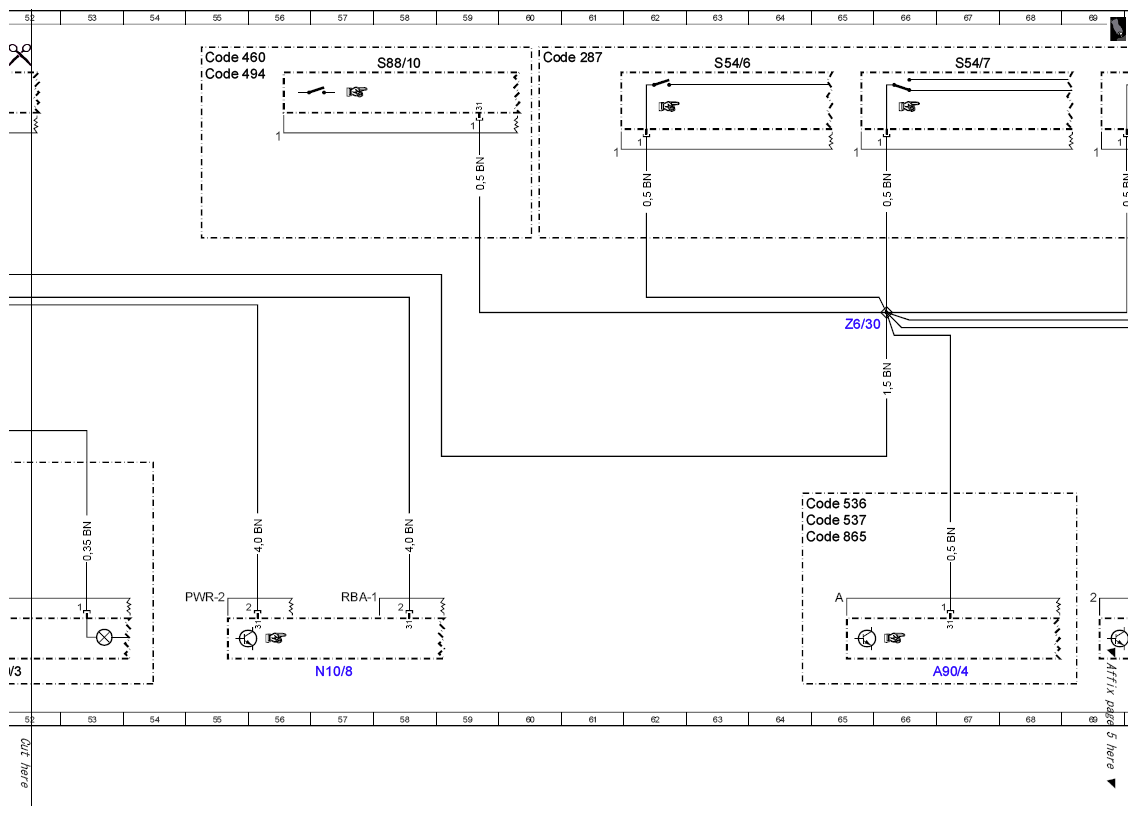

| A90/4 |
Tuner unit |
67L |

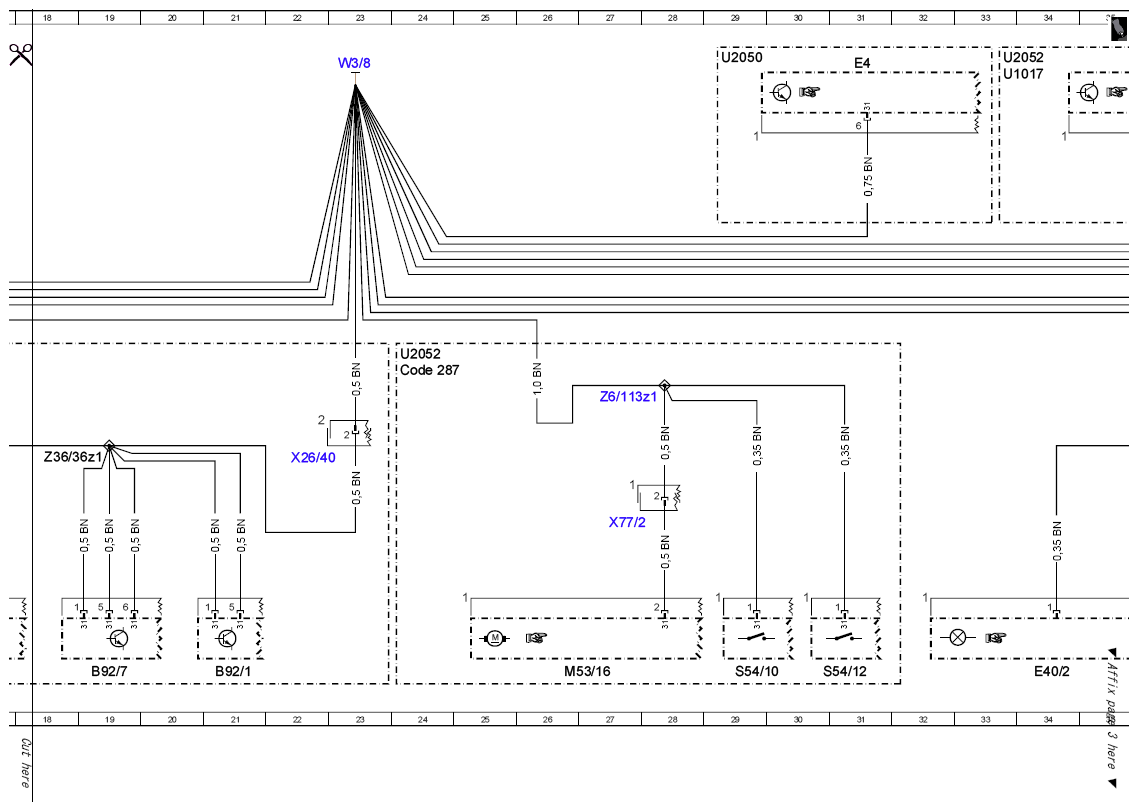

| B92/1 |
Center rear bumper radar sensor |
21L |

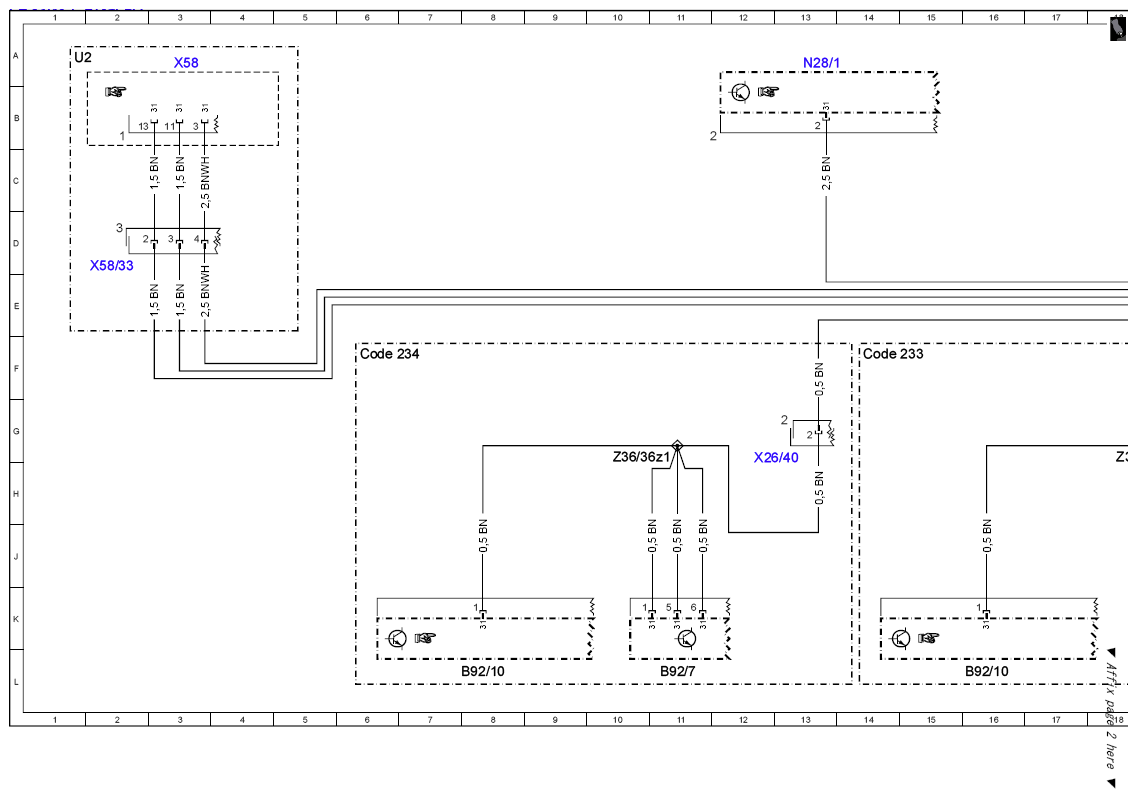

| B92/10 |
Left outer rear bumper radar sensor |
8L |
| B92/10 |
Left outer rear bumper radar sensor |
16L |
| B92/7 |
Right outer rear bumper radar sensor |
11L |
| B92/7 |
Right outer rear bumper radar sensor |
19L |
| Code 233 |
AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS |
14F |
| Code 234 |
Blind Spot Assist (BSM) |
6F |
| Code 287 |
Through-loading feature |
24F |
| Code 287 |
Through-loading feature |
60A |
| Code 460 |
Canada version |
55A |
| Code 494 |
USA version |
55A |
| Code 536 |
SIRIUS satellite radio |
64H |
| Code 537 |
Digital radio |
64J |
| Code 865 |
TV tuner |
64J |
| E19/1 |
Left license plate lamp |
39L |
| E19/2 |
Right license plate lamp |
43L |

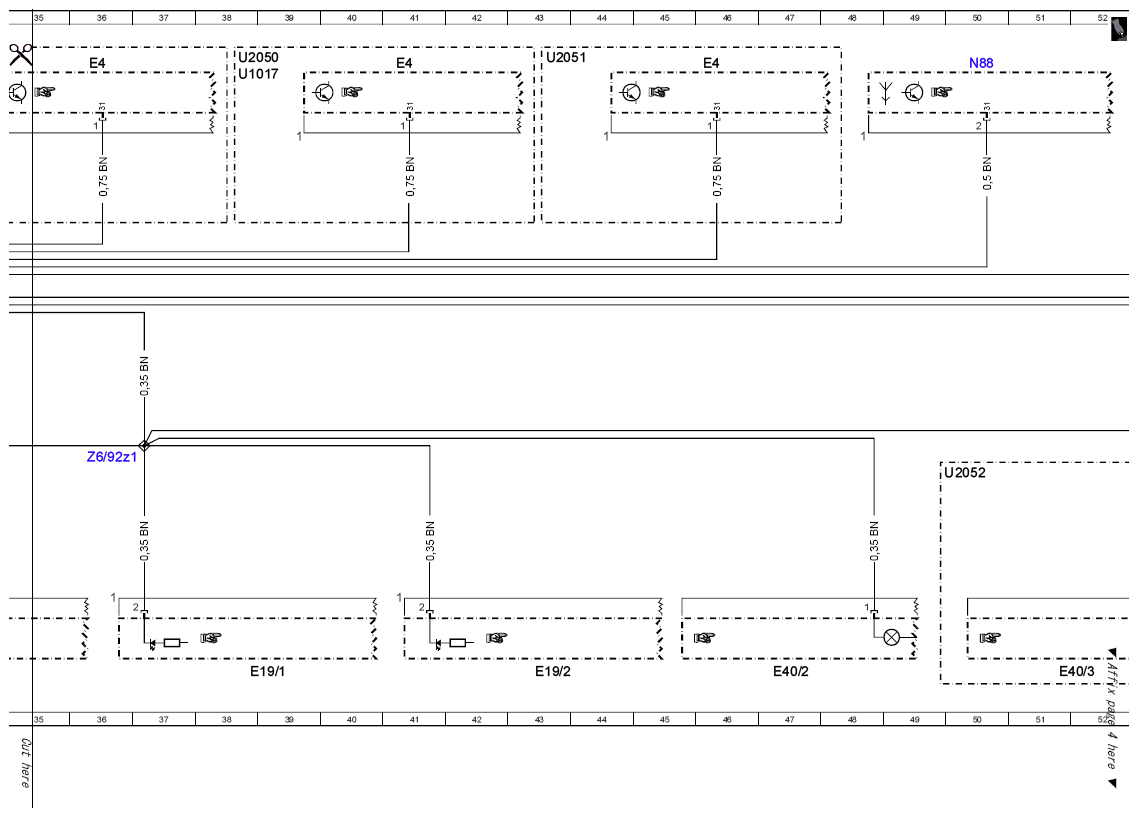

| E4 |
Right rear lamp unit |
31A |
| E4 |
Right rear lamp unit |
36A |
| E4 |
Right rear lamp unit |
41A |
| E4 |
Right rear lamp unit |
46A |
| E40/2 |
Left trunk lid/liftgate ambient lamp and warning lamp |
47L |
| E40/2 |
Left trunk lid/liftgate ambient lamp and warning lamp |
34L |
| E40/3 |
Right trunk lid/liftgate ambient lamp and warning lamp |
51L |
| M53/16 |
Right rear backrest release actuator |
26L |
| N10/8 |
Rear SAM control unit |
57L |
| N28/1 |
Trailer recognition control unit |
13A |
| N38 |
Rear switching module |
71L |
| N88 |
Tire pressure monitor control unit |
50A |
| S10/4 |
Right rear brake wear sensor |
75L |
| S54/10 |
Right luggage compartment rear backrest release button |
29L |
| S54/12 |
Right rear backrest release button |
31L |
| S54/6 |
Right rear backrest inclination switch |
63A |
| S54/7 |
Left rear backrest lock switch |
67A |
| S54/8 |
Right rear backrest lock switch |
71A |
| S88/10 |
Trunk lid emergency opening switch |
58A |
| U1017 |
Valid for lamp unit (LED) |
33A |
| U1017 |
Valid for lamp unit (LED) |
38A |
| U2 |
Not valid for USA |
1A |
| U2050 |
Valid for model 205.0 |
29A |
| U2050 |
Valid for model 205.0 |
38A |
| U2051 |
Valid for model 205.1 |
43A |
| U2052 |
Valid for model 205.2 |
24F |
| U2052 |
Valid for model 205.2 |
33A |
| U2052 |
Valid for model 205.2 |
49H |
| W3/8 |
Right rear wheel well ground point |
23A |
| X26/40 |
Rear frame floor assembly/bumper electrical connector |
22H |
| X26/40 |
Rear frame floor assembly/bumper electrical connector |
13H |
| X26/40 |
Rear frame floor assembly/bumper electrical connector |
70H |
| X58 |
Trailer socket |
3A |
| X58/33 |
Vehicle interior/trailer hitch electrical connector |
2D |
| X62/33 |
Rear axle electrical connector, right distributor |
74H |
| X77/2 |
Right rear backrest release actuator electrical connector |
27J |
| Z36/36z1 |
Rear bumper circuit 31 connector sleeve |
10G |
| Z36/36z1 |
Rear bumper circuit 31 connector sleeve |
18G |
| Z6/113z1 |
Rear seat ground point connector sleeve |
27G |
| Z6/30 |
Circuit 31 connector sleeve |
65E |
| Z6/92z1 |
Trunk lid ground line connector sleeve |
36G |
