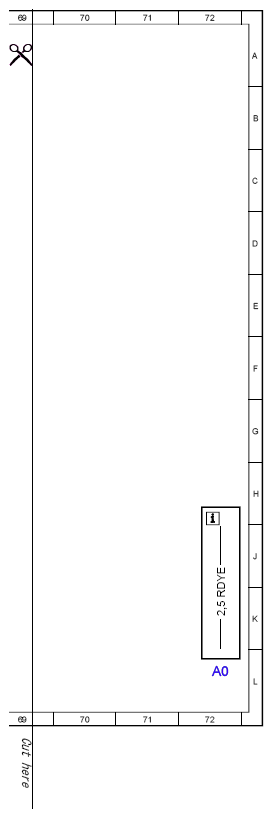

| A0 |
Use of wiring diagrams |
72L |
| B16/10 |
High-pressure exhaust gas recirculation temperature sensor |
35L |
| B37 |
Accelerator pedal sensor |
61L |
| F32/3 |
Engine compartment prefuse box |
3L |
| K40/8 |
Engine fuse and relay module |
7L |
| K40/8 |
Engine fuse and relay module |
8A |
| M5/1 |
Windshield washer system pump |
12L |
| M6/1 |
Wiper motor |
3A |
| N3/10 |
ME-SFI [ME] control unit |
16L |
| N3/10 |
ME-SFI [ME] control unit |
31L |
| N3/9 |
CDI control unit |
49L |
| N3/9 |
CDI control unit |
53L |
| N3/9 |
CDI control unit |
57L |
| R4 |
Spark plugs |
39L |
| R4 |
Spark plugs |
42L |
| R4 |
Spark plugs |
43L |
| R4 |
Spark plugs |
44L |

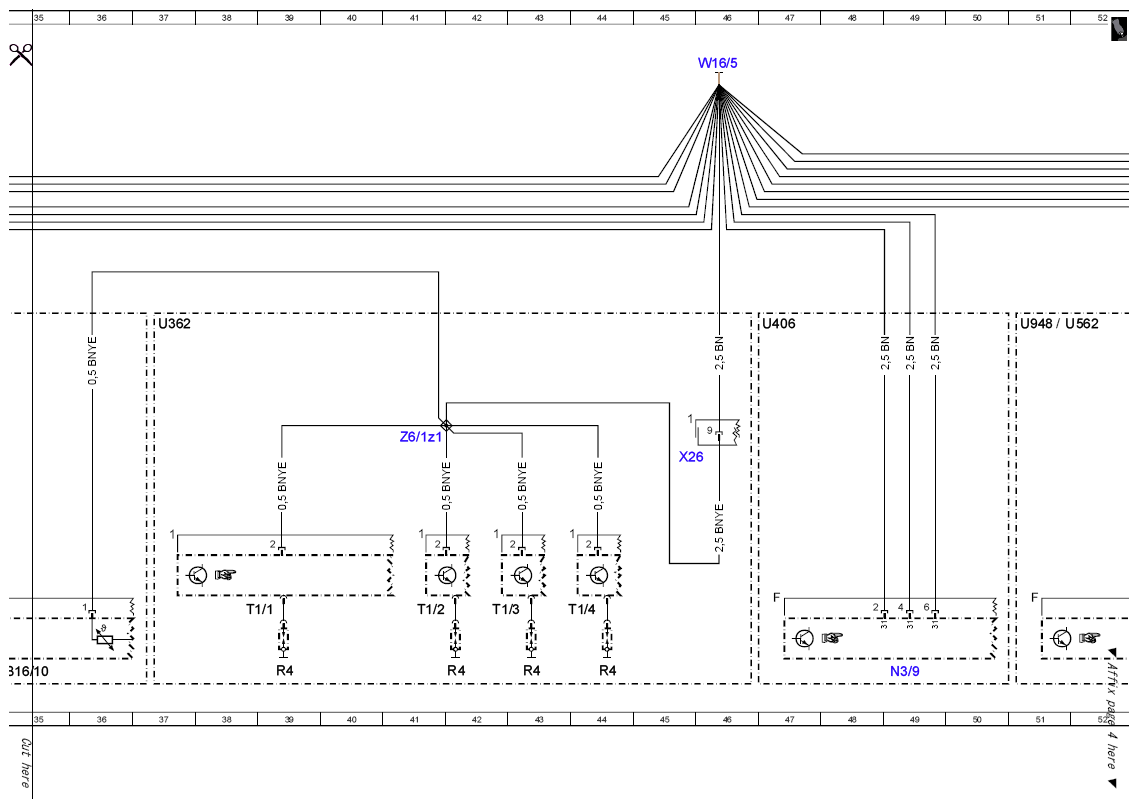

| T1/1 |
Cylinder 1 ignition coil |
25L |
| T1/1 |
Cylinder 1 ignition coil |
38K |
| T1/2 |
Cylinder 2 ignition coil |
26L |
| T1/2 |
Cylinder 2 ignition coil |
41K |
| T1/3 |
Cylinder 3 ignition coil |
27L |
| T1/3 |
Cylinder 3 ignition coil |
42K |
| T1/4 |
Cylinder 4 ignition coil |
20L |
| T1/4 |
Cylinder 4 ignition coil |
44K |

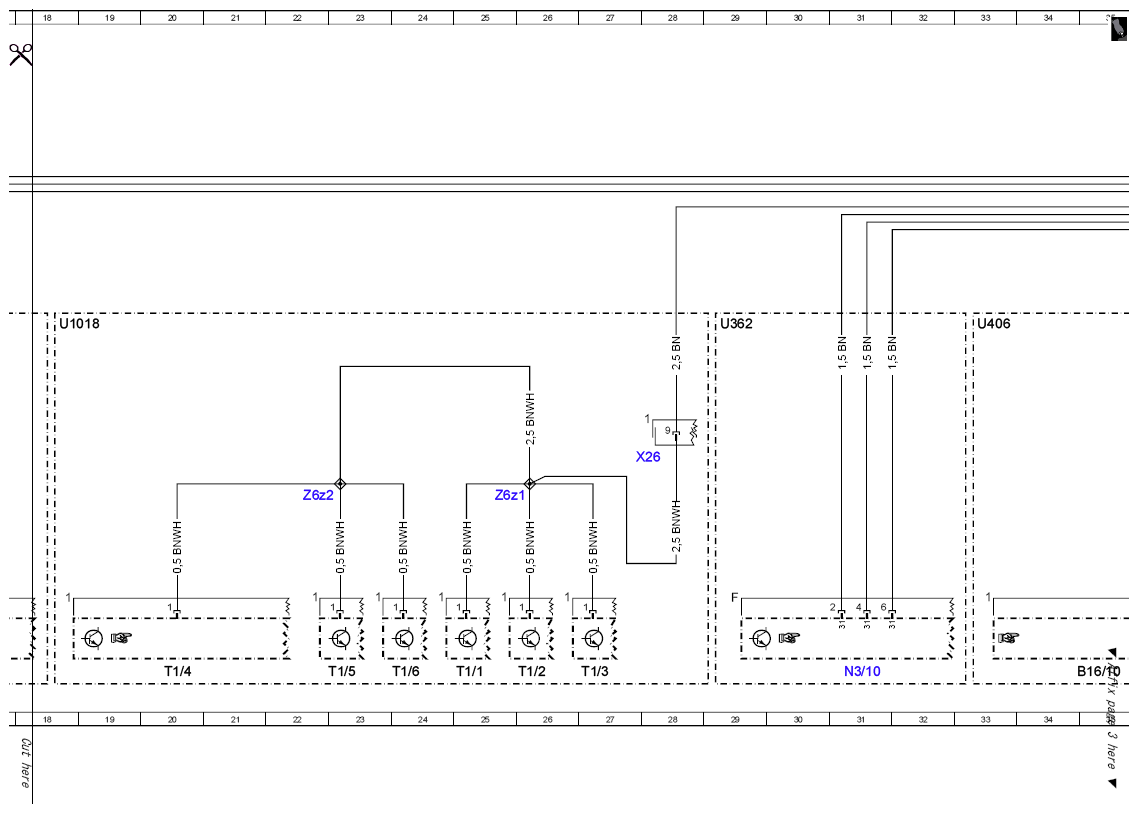

| T1/5 |
Cylinder 5 ignition coil |
23L |
| T1/6 |
Cylinder 6 ignition coil |
24L |
| U1018 |
Valid for gasoline engine 276 |
18E |
| U1018 |
Valid for gasoline engine 276 |
14E |
| U12 |
Valid for left-hand drive vehicles |
1A |
| U12 |
Valid for left-hand drive vehicles |
5H |
| U362 |
Valid for gasoline engine 274 |
29E |
| U362 |
Valid for gasoline engine 274 |
37E |
| U406 |
Valid for diesel engine 626 |
47E |
| U406 |
Valid for diesel engine 626 |
33E |
| U561 |
Valid for Delphi system |
56E |
| U561 |
Valid for Delphi system |
63E |
| U562 |
Valid for Bosch system |
51E |
| U948 |
Valid for diesel engine 651 |
51E |
| U948 |
Valid for diesel engine 651 |
55E |
| U948 |
Valid for diesel engine 651 |
63E |
| U978 |
Valid for hybrid drive |
1H |
| U978 |
Valid for hybrid drive |
59F |

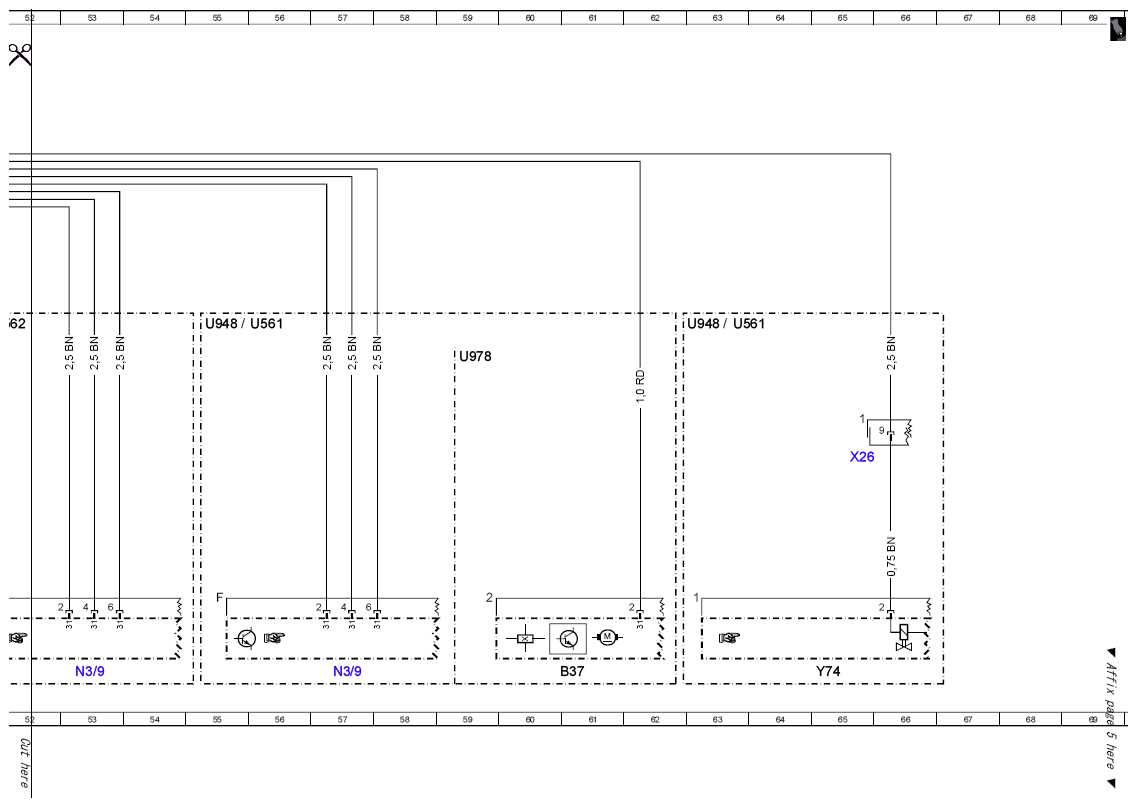

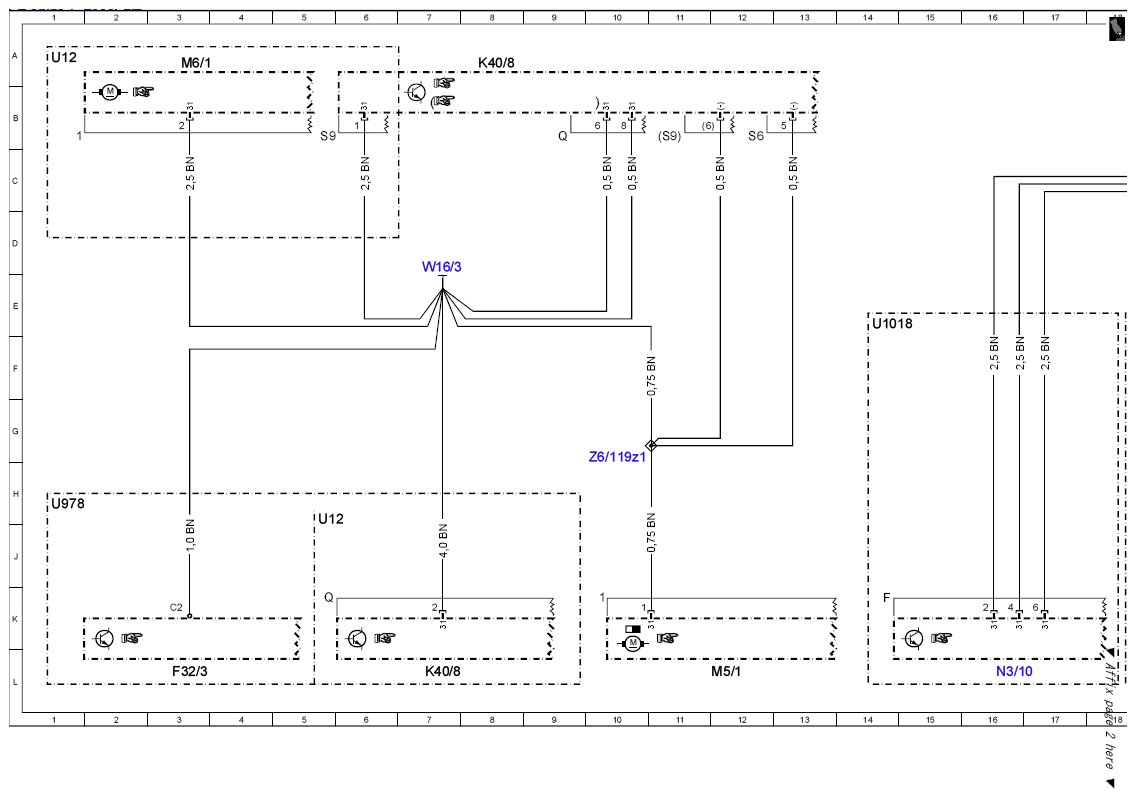

| W16/3 |
Left major assembly compartment ground point |
7D |
| W16/5 |
Left major assembly compartment electronics ground point |
46A |
| X26 |
Interior and engine wiring harness electrical connector |
28G |
| X26 |
Interior and engine wiring harness electrical connector |
45G |
| X26 |
Interior and engine wiring harness electrical connector |
65G |
| Y74 |
Pressure regulator valve |
65L |
| Z6/119z1 |
Left engine ground connection connector sleeve |
10G |
| Z6/1z1 |
Ground line connector sleeve |
41G |
| Z6z1 |
Circuit 31 connector sleeve |
25H |
| Z6z2 |
Circuit 31 connector sleeve |
22H |
