| A0 |
Use of wiring diagrams |
80L |
| B4/4 |
Purging pressure sensor |
26L |
| B76/1 |
Condensation sensor for fuel filter with heating element |
12L |
| C8 |
Park pawl capacitor |
51L |
| Code 221 |
Fully electric driver seat adjustment without memory without electric head restraint adjustment |
28E |
| Code 222 |
Electrically adjustable right front seat |
28E |
| Code 242 |
All-electric front passenger seat with memory (right) |
28E |
| Code 275 |
Memory package |
28F |
| Code 421 |
9G-TRONIC |
49E |
| Code 427 |
7G-TRONIC |
49E |
| Code 460 |
Canada version |
24F |
| Code 494 |
USA version |
24E |
| Code 965 |
Electrical preinstallation for taxi and rental car |
40E |
| Code 9U1 |
|
45E |
| Code B03 |
ECO start/stop function |
1K |
| Code B03 |
ECO start/stop function |
49E |
| Code E64 |
|
45E |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
58E |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
54E |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
58E |
| Code P65 |
Seating comfort package |
28F |

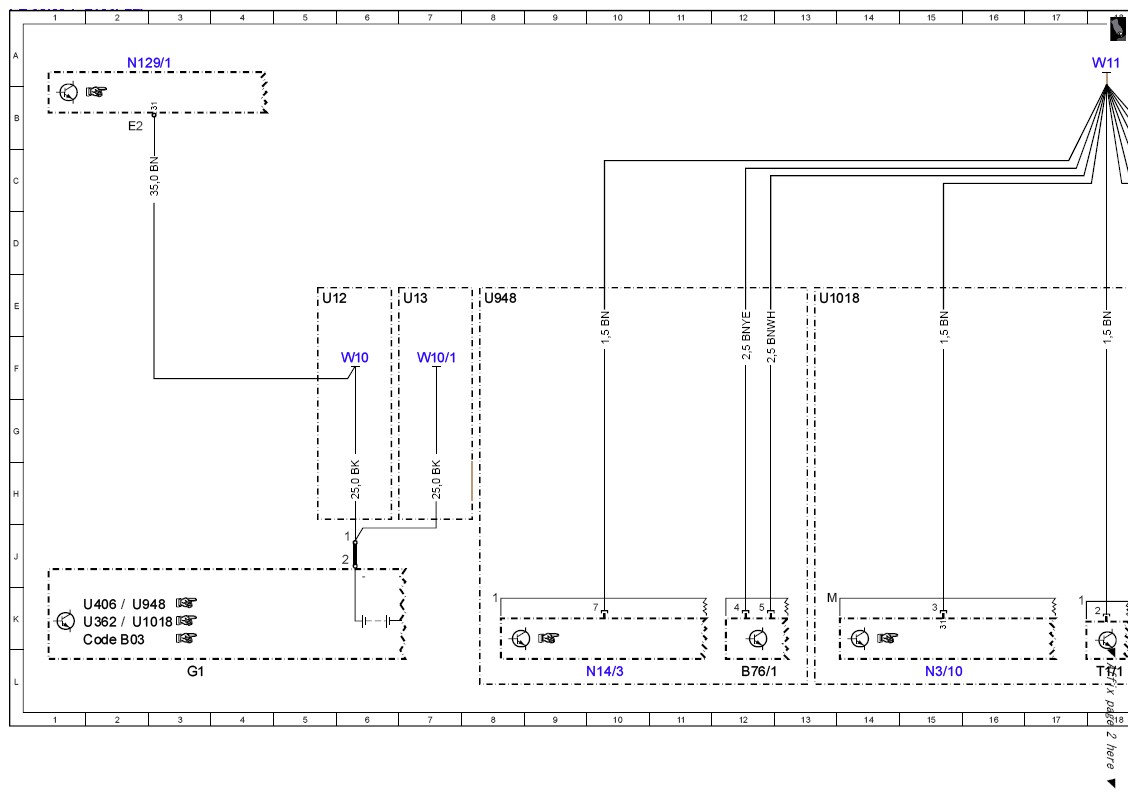

| G1 |
On-board electrical system battery |
3L |
| G1/13 |
ECO start/stop function additional battery |
64L |
| G1/13 |
ECO start/stop function additional battery |
55L |
| K114 |
ECO start/stop function additional battery relay |
61L |
| N129/1 |
Power electronics control unit |
2A |
| N14/3 |
Glow output stage |
10L |
| N167 |
E-Call Russia (GLONASS) control unit |
47L |
| N167x1 |
E-Call Russia (GLONASS) control unit electrical connector 1 |
47H |
| N3/10 |
ME-SFI [ME] control unit |
15L |

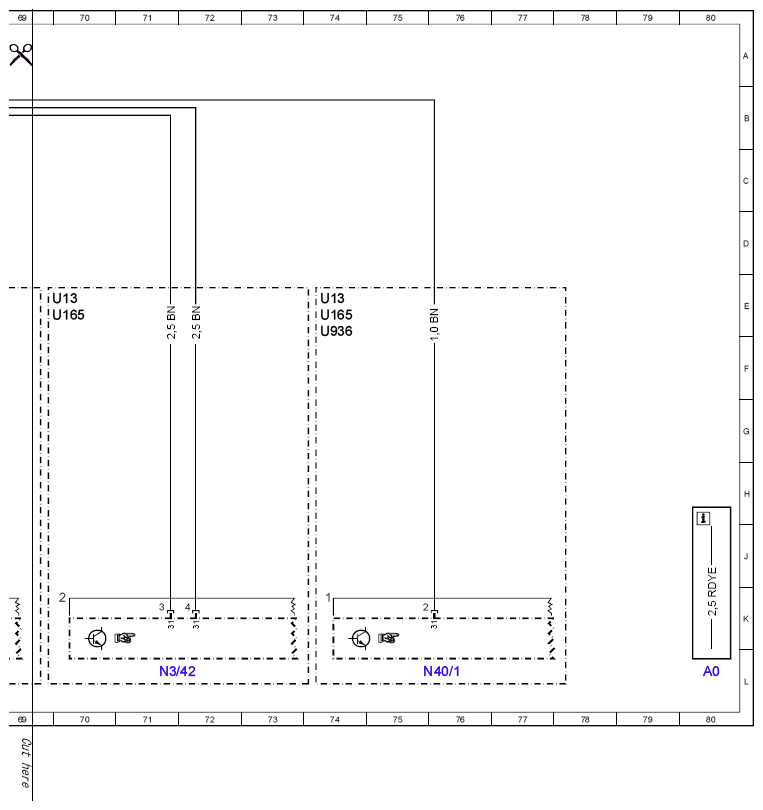

| N3/42 |
Active engine mounts control unit |
71L |
| N32/23 |
Driver seat lumbar support adjustment control unit |
30L |
| N32/24 |
Front passenger seat lumbar support adjustment control unit |
36L |
| N40/1 |
Engine sound control unit |
76L |
| S93/2 |
Two-way radio switch |
42L |

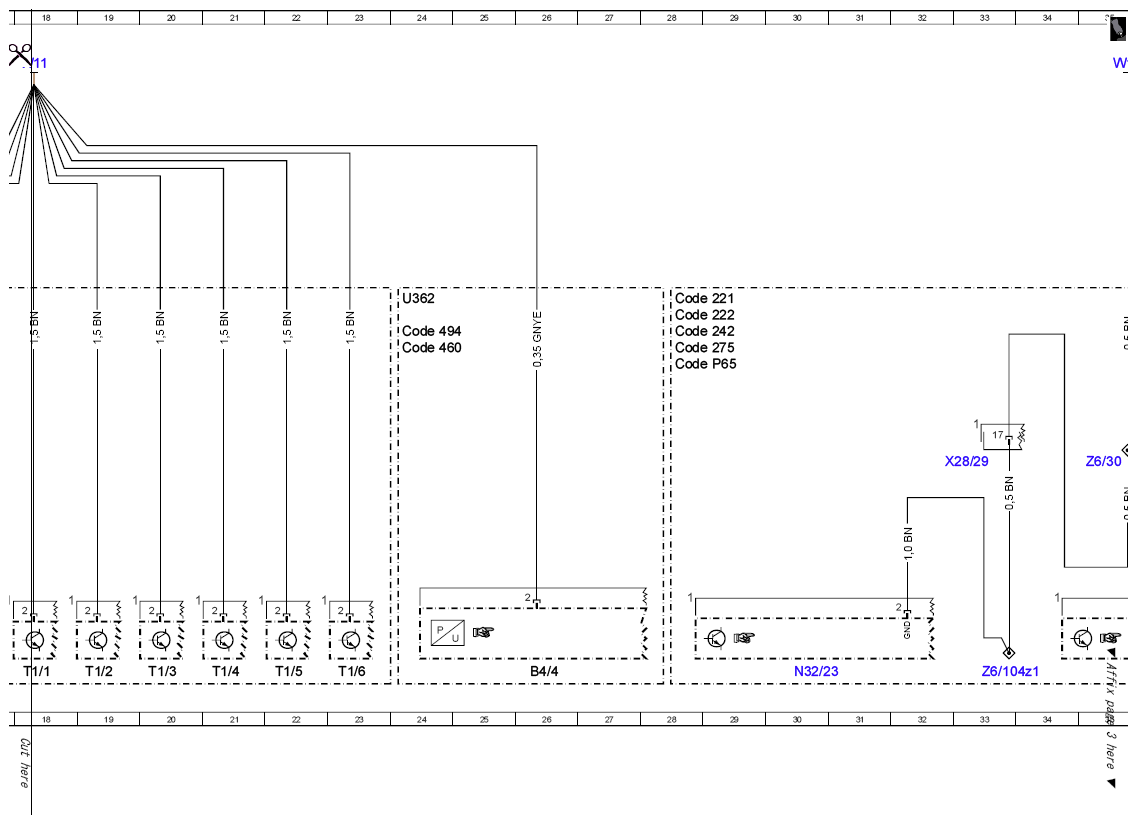

| T1/1 |
Cylinder 1 ignition coil |
18L |
| T1/2 |
Cylinder 2 ignition coil |
19L |
| T1/3 |
Cylinder 3 ignition coil |
20L |
| T1/4 |
Cylinder 4 ignition coil |
21L |
| T1/5 |
Cylinder 5 ignition coil |
22L |
| T1/6 |
Cylinder 6 ignition coil |
23L |
| U1018 |
Valid for gasoline engine 276 |
2K |
| U1018 |
Valid for gasoline engine 276 |
13E |
| U12 |
Valid for left-hand drive vehicles |
5E |
| U12 |
Valid for left-hand drive vehicles |
65E |
| U13 |
Valid for right-hand drive vehicles |
7E |
| U13 |
Valid for right-hand drive vehicles |
58F |
| U13 |
Valid for right-hand drive vehicles |
69E |
| U13 |
Valid for right-hand drive vehicles |
74E |
| U165 |
Valid for AMG |
69E |
| U165 |
Valid for AMG |
74E |
| U362 |
Valid for gasoline engine 274 |
1K |
| U362 |
Valid for gasoline engine 274 |
24E |
| U406 |
Valid for diesel engine 626 |
1K |
| U936 |
|
74E |
| U948 |
Valid for diesel engine 651 |
2K |
| U948 |
Valid for diesel engine 651 |
8E |
| W10 |
Battery ground point |
6F |
| W10/1 |
Battery ground point |
7F |
| W11 |
Combustion engine ground point |
18A |

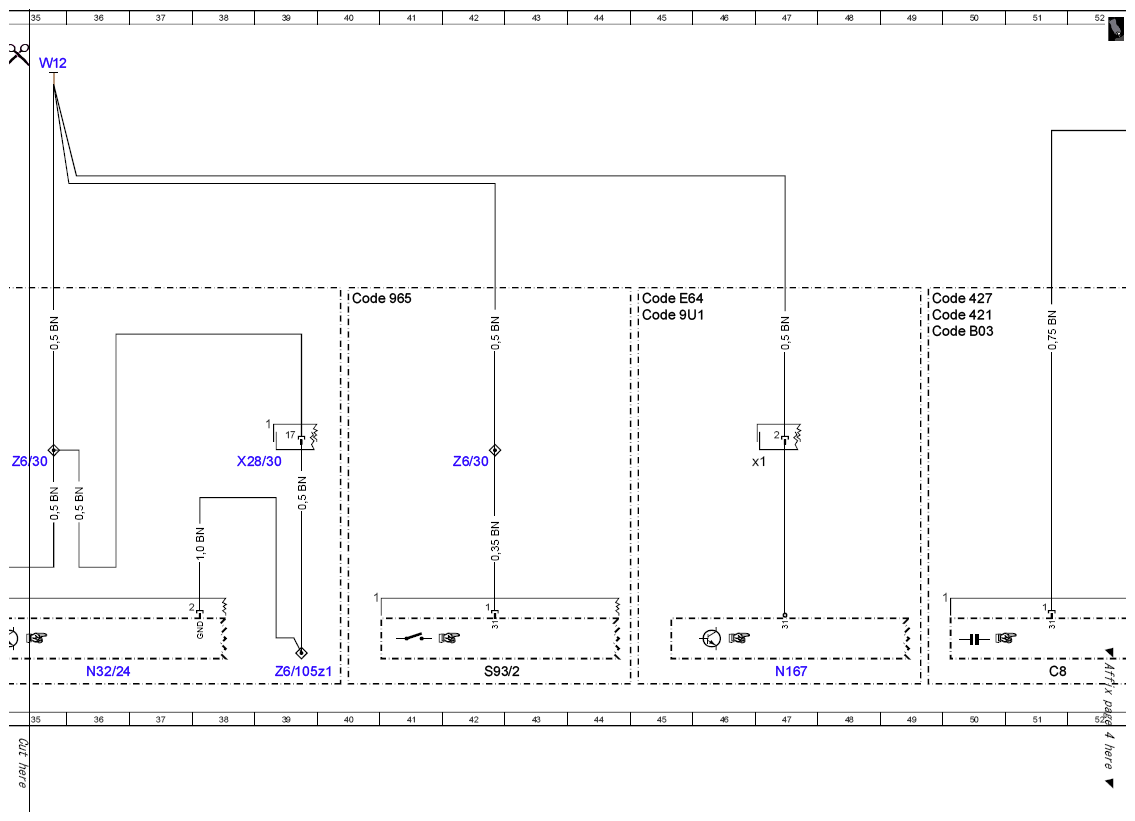

| W12 |
Ground point (center console) |
35A |

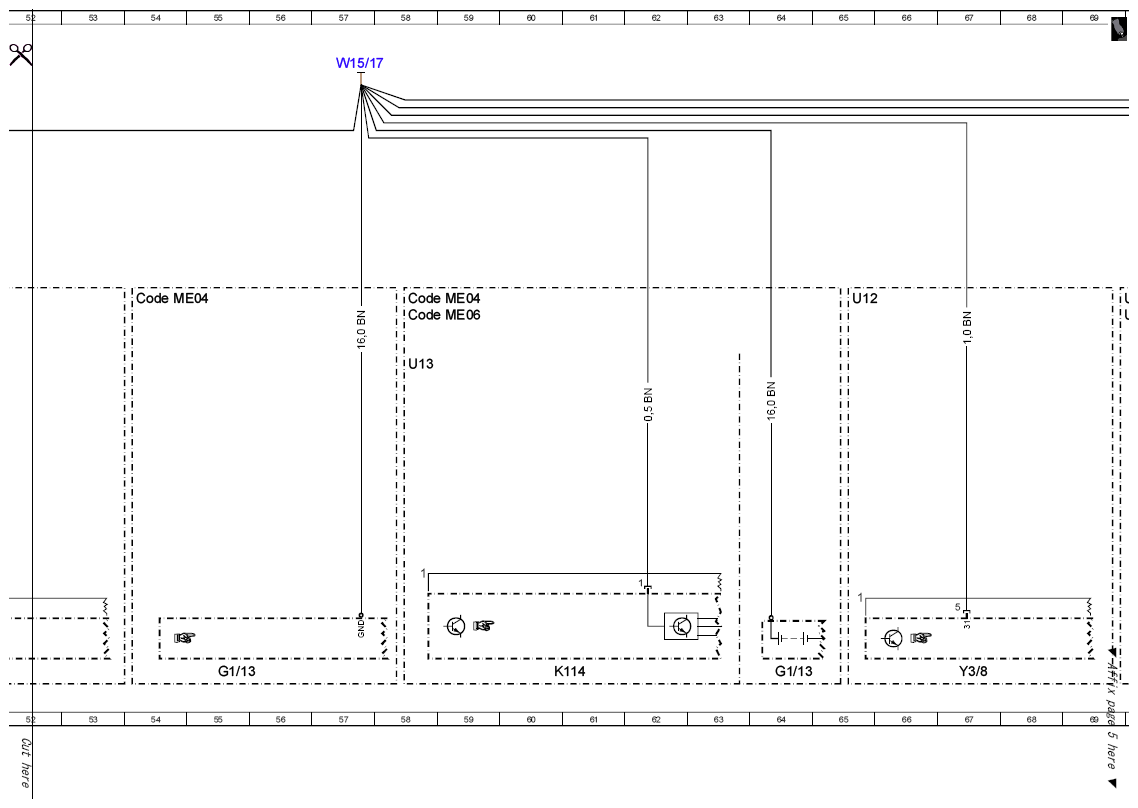

| W15/17 |
Additional battery ground point |
57A |
| X28/29 |
Driver airbag electrical connector |
33H |
| X28/30 |
Front passenger airbag electrical connector |
39H |
| Y3/8 |
Fully integrated transmission control unit |
67L |
| Z6/104z1 |
Driver seat lumbar support ground line connector sleeve |
33L |
| Z6/105z1 |
Front passenger seat lumbar support ground line connector sleeve |
39L |
| Z6/30 |
Circuit 31 connector sleeve |
35H |
| Z6/30 |
Circuit 31 connector sleeve |
42H |
