| A0 |
Use of wiring diagrams |
64L |
| A1 |
Instrument cluster |
42A |
| A32 |
AC housing |
33L |
| A50/6 |
Dedicated Short-Range Communications control unit |
37A |
| Code 238 |
Active Lane Keeping Assist |
6C |
| Code 476 |
Lane Keeping Assist |
6C |
| Code 498 |
Japan version |
35A |
| Code 581 |
THERMOTRONIC automatic air conditioning |
40F |
| Code 581 |
THERMOTRONIC automatic air conditioning |
44F |
| Code 876 |
Interior lights package |
4F |
| Code 876 |
Interior lights package |
19F |
| Code 877 |
Ambiance illumination |
4G |
| Code 877 |
Ambiance illumination |
13F |
| Code 887 |
Valet parking |
8F |
| Code P21 |
AIR-BALANCE package |
30H |
| Code P21 |
AIR-BALANCE package |
25H |
| E13/3 |
Stowage compartment illumination |
6L |
| E17/15 |
Right front footwell lamp |
24L |
| E17/16 |
Left front footwell lamp |
21L |
| E17/37 |
Left front footwell lamp |
18L |
| E17/38 |
Right front footwell lamp |
15L |
| M2/1 |
Rear blower motor |
47L |
| M2/1x1 |
Rear blower motor electrical connector |
47H |
| N22/1 |
Climate control unit |
47A |
| N22/4 |
Rear climate control operating unit |
42L |
| N59 |
Perfume atomizer generator |
28L |
| N72/1 |
Upper control panel control unit |
32A |
| N73 |
Electronic ignition switch control unit |
11A |
| N80 |
Steering column module control unit |
7A |
| S17/9 |
Glove box lamp switch |
38L |
| S76/15 |
Electric parking brake switch |
51L |
| S88/6 |
Separate trunk lid lock switch |
10L |
| U12 |
Valid for left-hand drive vehicles |
44F |
| U12 |
Valid for left-hand drive vehicles |
35A |
| U12 |
Valid for left-hand drive vehicles |
35F |
| U12 |
Valid for left-hand drive vehicles |
30J |
| U12 |
Valid for left-hand drive vehicles |
40F |
| U12 |
Valid for left-hand drive vehicles |
25J |
| U12 |
Valid for left-hand drive vehicles |
44A |
| U13 |
Valid for right-hand drive vehicles |
1A |
| U13 |
Valid for right-hand drive vehicles |
40A |
| U13 |
Valid for right-hand drive vehicles |
50F |
| U986 |
Not valid for AMG |
50F |

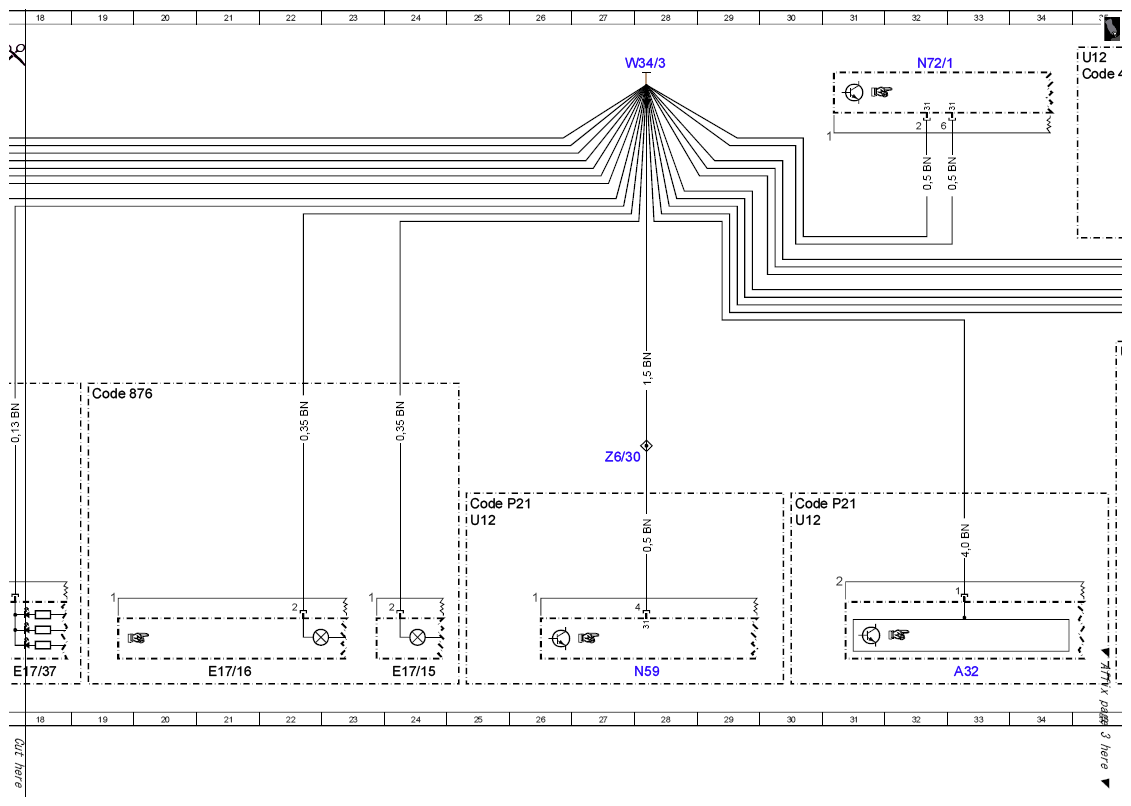

| W34/3 |
Right footwell ground point |
28A |

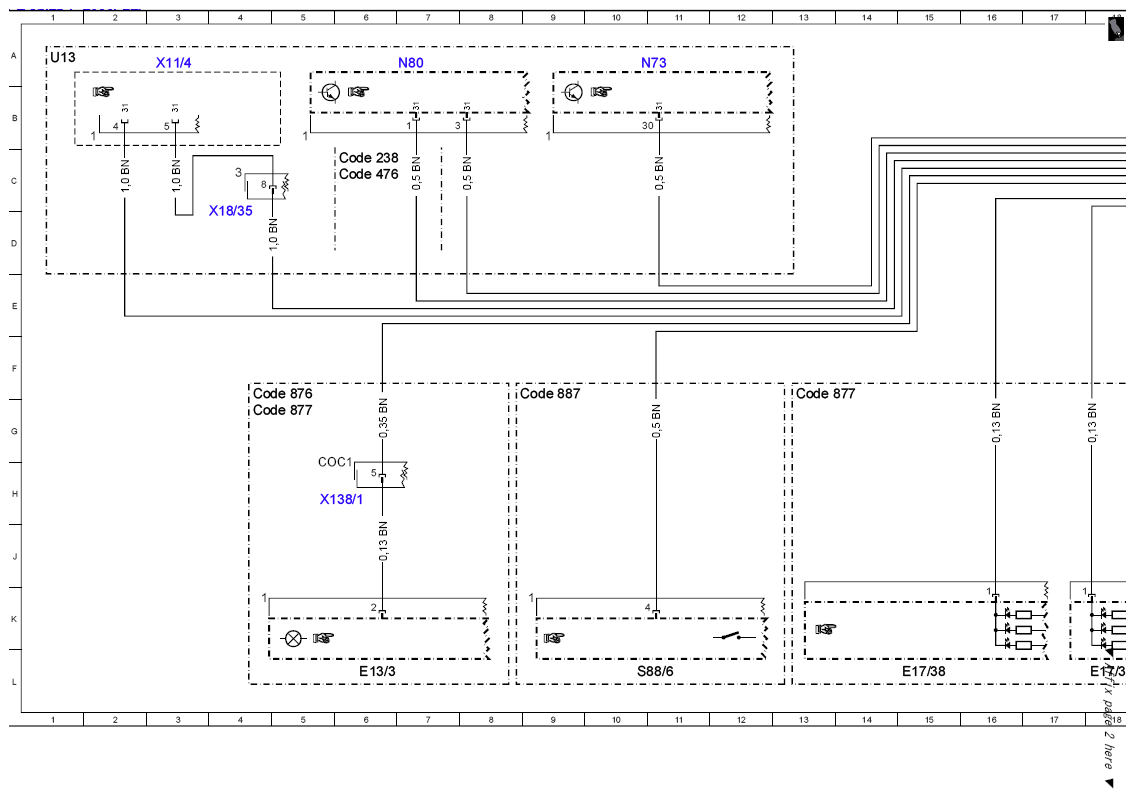

| X11/4 |
Diagnostic connector |
3A |
| X138/1 |
Front center console electrical connector |
42H |
| X138/1 |
Front center console electrical connector |
6H |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
4D |
| X29/1 |
Glove compartment electrical connector |
38H |
| Z6/30 |
Circuit 31 connector sleeve |
27G |
