| A0 |
Use of wiring diagrams |
48L |
| A40/11 |
Mono multifunction camera |
7A |
| A40/13 |
Stereo multifunction camera |
7L |
| A80 |
Intelligent servo module for DIRECT SELECT |
3L |
| Code B03 |
ECO start/stop function |
36K |
| N10/6 |
Front SAM control unit |
25L |
| N127 |
Drivetrain control unit |
21A |
| N69/1 |
Left front door control unit |
16A |
| N69/2 |
Right front door control unit |
12A |
| N89 |
Transmission oil auxiliary oil pump control unit |
3A |

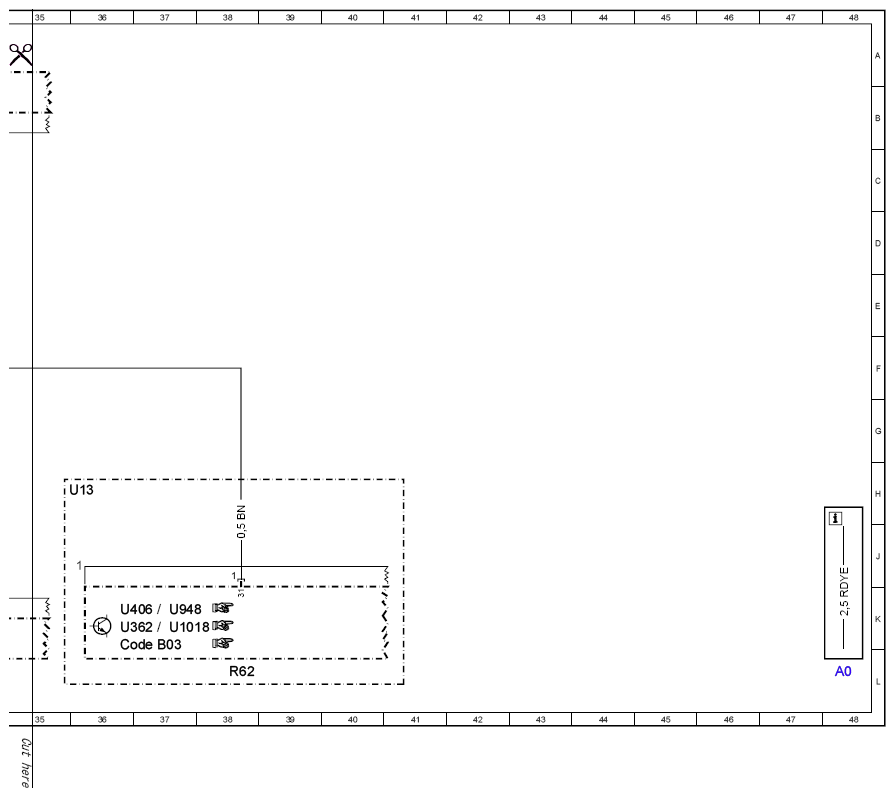

| R62 |
Voltage dip limiter |
38L |
| U1018 |
Valid for gasoline engine 276 |
37K |
| U12 |
Valid for left-hand drive vehicles |
22H |
| U12 |
Valid for left-hand drive vehicles |
14A |
| U12 |
Valid for left-hand drive vehicles |
10A |
| U13 |
Valid for right-hand drive vehicles |
35H |
| U362 |
Valid for gasoline engine 274 |
36K |
| U406 |
Valid for diesel engine 626 |
36K |
| U948 |
Valid for diesel engine 651 |
37K |

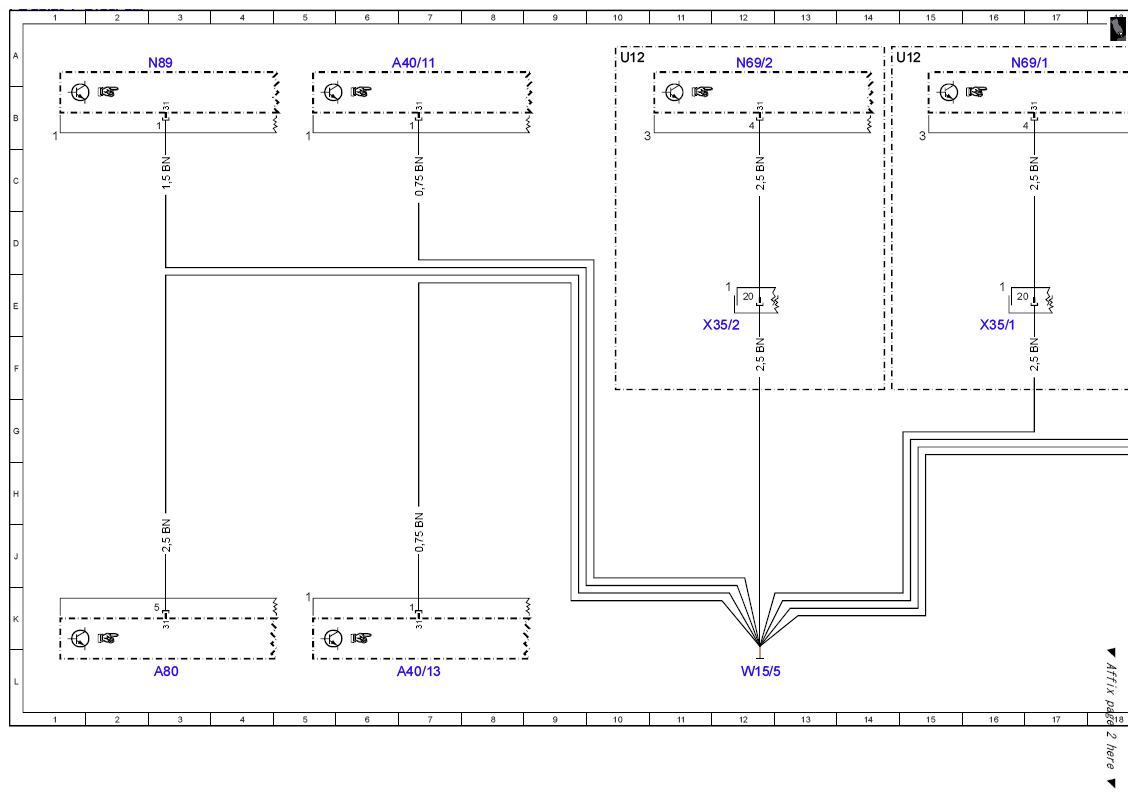

| W15/5 |
Left front footwell ground point |
12L |
| W15/6 |
Left front footwell ground point (CAN) |
33E |

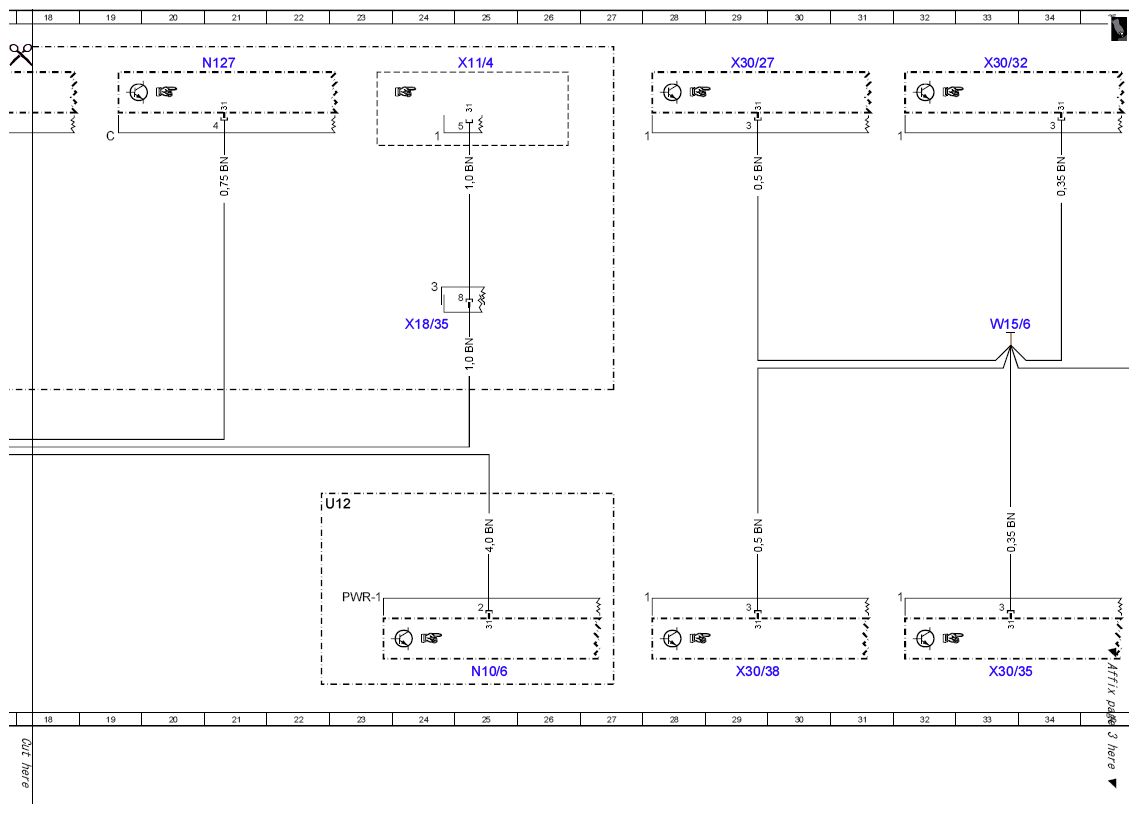

| X11/4 |
Diagnostic connector |
25A |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
24E |
| X30/27 |
Peripherals CAN (CAN PER) potential distributor electrical connector |
29A |
| X30/32 |
Left interior CAN (CAN B) potential distributor electrical connector |
33A |
| X30/35 |
Telematics CAN (CAN A) potential distributor electrical connector |
33L |
| X30/38 |
Drive train sensor CAN (CAN I) potential distributor electrical connector |
29L |
| X35/1 |
Left front door electrical connector |
16E |
| X35/2 |
Right front door electrical connector |
12E |
