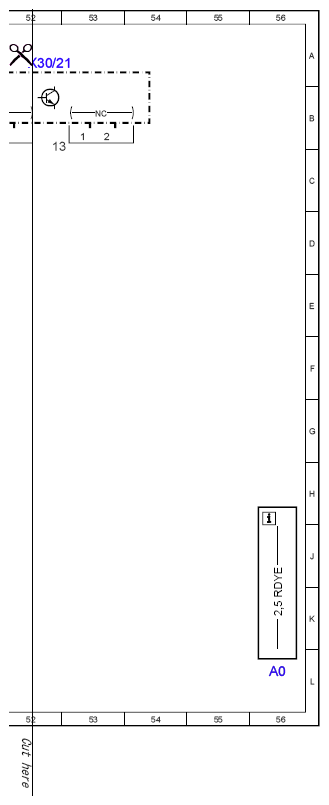

| A0 |
Use of wiring diagrams |
56L |
| A80 |
Intelligent servo module for DIRECT SELECT |
34L |
| B37 |
Accelerator pedal sensor |
42L |

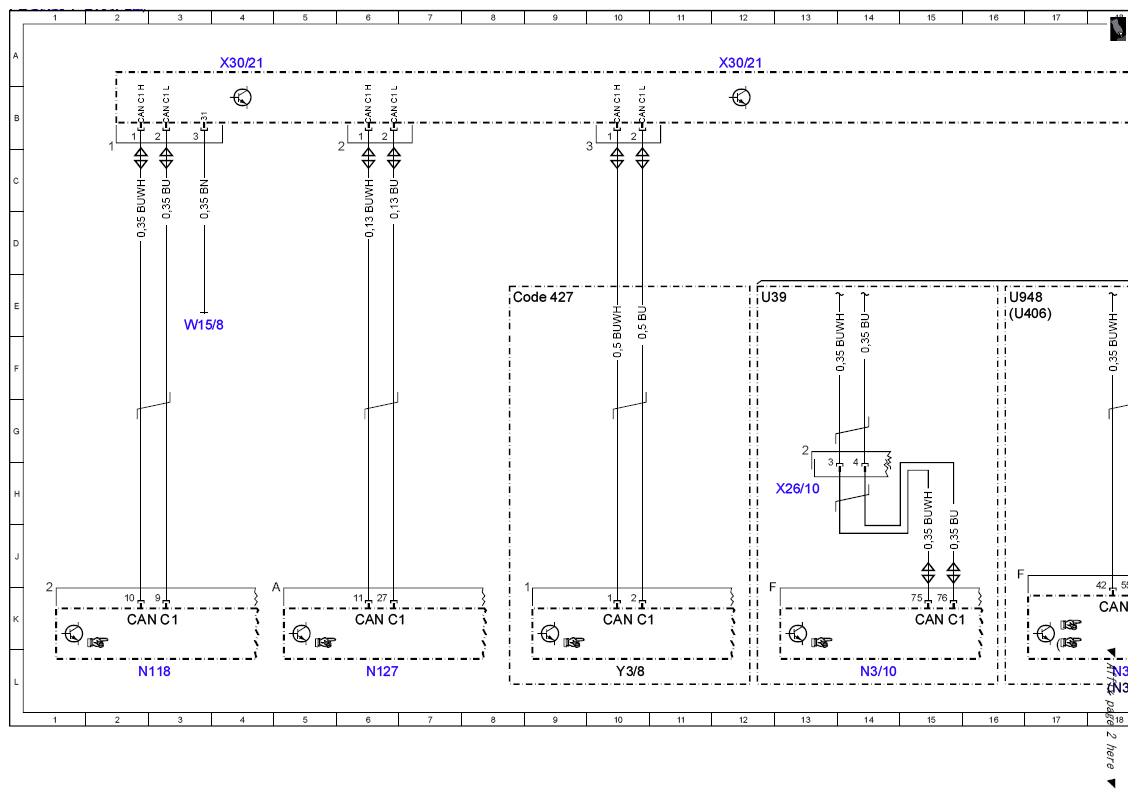

| CAN C1 |
Drive train CAN |
2K |
| CAN C1 |
Drive train CAN |
6K |
| CAN C1 |
Drive train CAN |
22K |
| CAN C1 |
Drive train CAN |
18K |
| CAN C1 |
Drive train CAN |
10K |
| CAN C1 |
Drive train CAN |
15K |
| CAN C1 |
Drive train CAN |
30K |
| CAN C1 |
Drive train CAN |
34K |
| CAN C1 |
Drive train CAN |
38K |
| CAN C1 |
Drive train CAN |
41K |
| CAN C1 |
Drive train CAN |
45K |
| CAN C1 |
Drive train CAN |
49K |
| CAN C1 |
Drive train CAN |
26K |

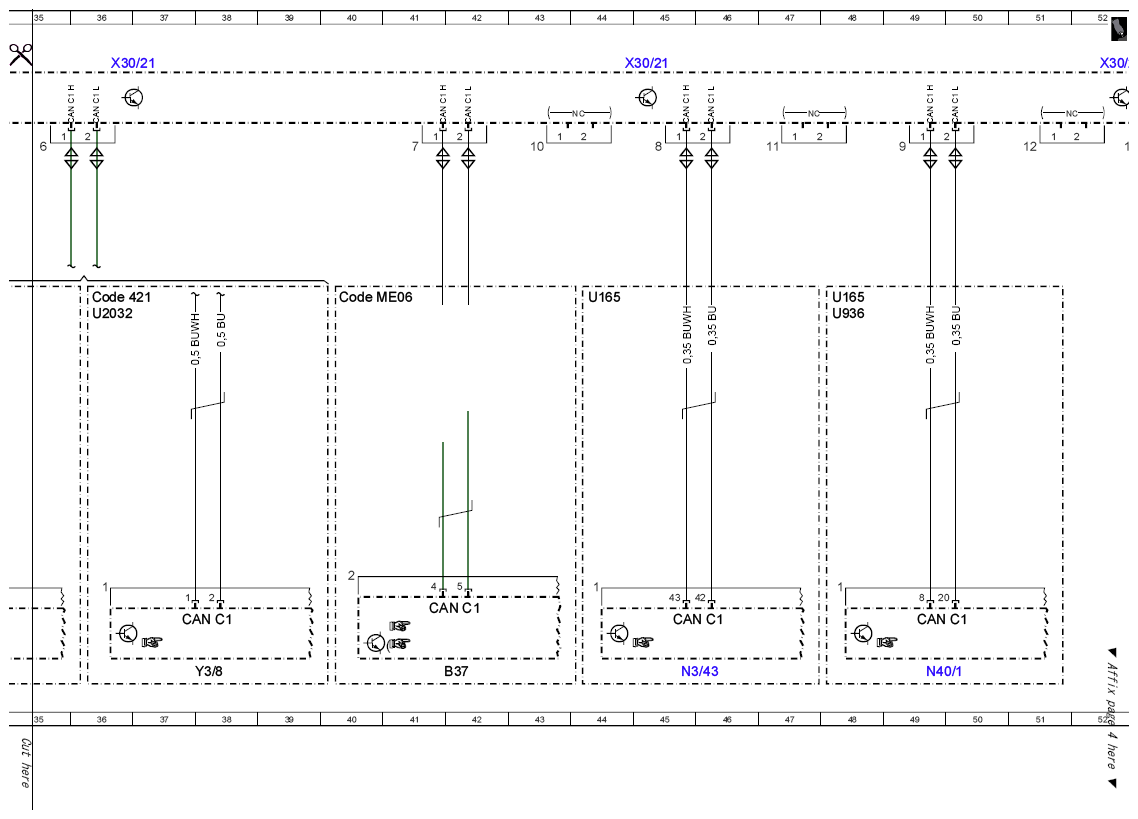

| Code 421 |
9G-TRONIC |
36E |
| Code 427 |
7G-TRONIC |
28E |
| Code 427 |
7G-TRONIC |
8E |
| Code 427 |
7G-TRONIC |
32E |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
40E |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
40E |
| N118 |
Fuel pump control unit |
2L |
| N127 |
Drivetrain control unit |
6L |
| N3/10 |
ME-SFI [ME] control unit |
14L |
| N3/10 |
ME-SFI [ME] control unit |
22L |
| N3/10 |
ME-SFI [ME] control unit |
26L |
| N3/43 |
AMG suspension control unit |
45L |

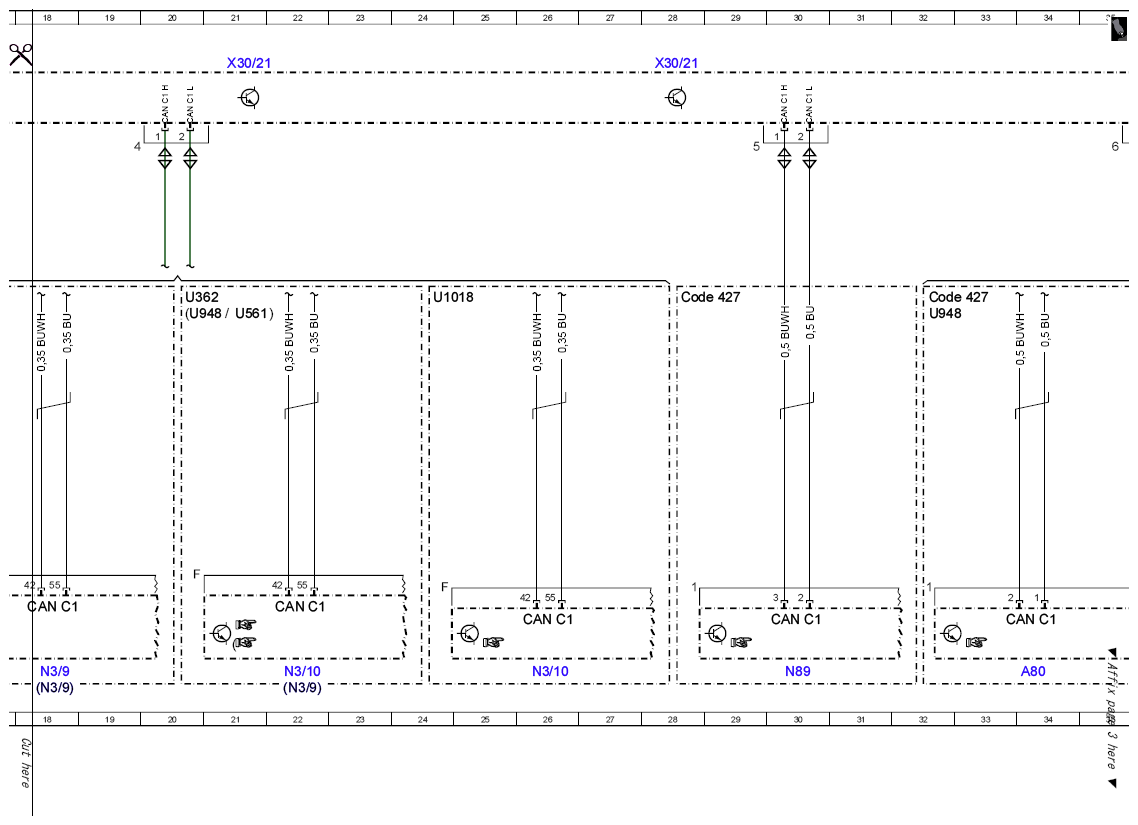

| N3/9 |
CDI control unit |
18L |
| N3/9 |
CDI control unit |
18L |
| N3/9 |
CDI control unit |
22L |
| N40/1 |
Engine sound control unit |
49L |
| N89 |
Transmission oil auxiliary oil pump control unit |
30L |
| U1018 |
Valid for gasoline engine 276 |
24E |
| U165 |
Valid for AMG |
44E |
| U165 |
Valid for AMG |
48E |
| U2032 |
Valid for transmission 722 |
36E |
| U362 |
Valid for gasoline engine 274 |
20E |
| U39 |
Valid for gasoline engine 177 |
12E |
| U406 |
Valid for diesel engine 626 |
16E |
| U561 |
Valid for Delphi system |
21E |
| U936 |
|
48E |
| U948 |
Valid for diesel engine 651 |
16E |
| U948 |
Valid for diesel engine 651 |
20E |
| U948 |
Valid for diesel engine 651 |
32E |
| W15/8 |
Right front footwell ground point (CAN) |
3E |
| X26/10 |
Vehicle interior/engine electrical connector |
13H |
| X30/21 |
Drive train CAN (CAN C1) potential distributor electrical connector |
4A |
| X30/21 |
Drive train CAN (CAN C1) potential distributor electrical connector |
12A |
| X30/21 |
Drive train CAN (CAN C1) potential distributor electrical connector |
21A |
| X30/21 |
Drive train CAN (CAN C1) potential distributor electrical connector |
28A |
| X30/21 |
Drive train CAN (CAN C1) potential distributor electrical connector |
36A |
| X30/21 |
Drive train CAN (CAN C1) potential distributor electrical connector |
45A |
| X30/21 |
Drive train CAN (CAN C1) potential distributor electrical connector |
52A |
| Y3/8 |
Fully integrated transmission control unit |
10L |
| Y3/8 |
Fully integrated transmission control unit |
38L |
