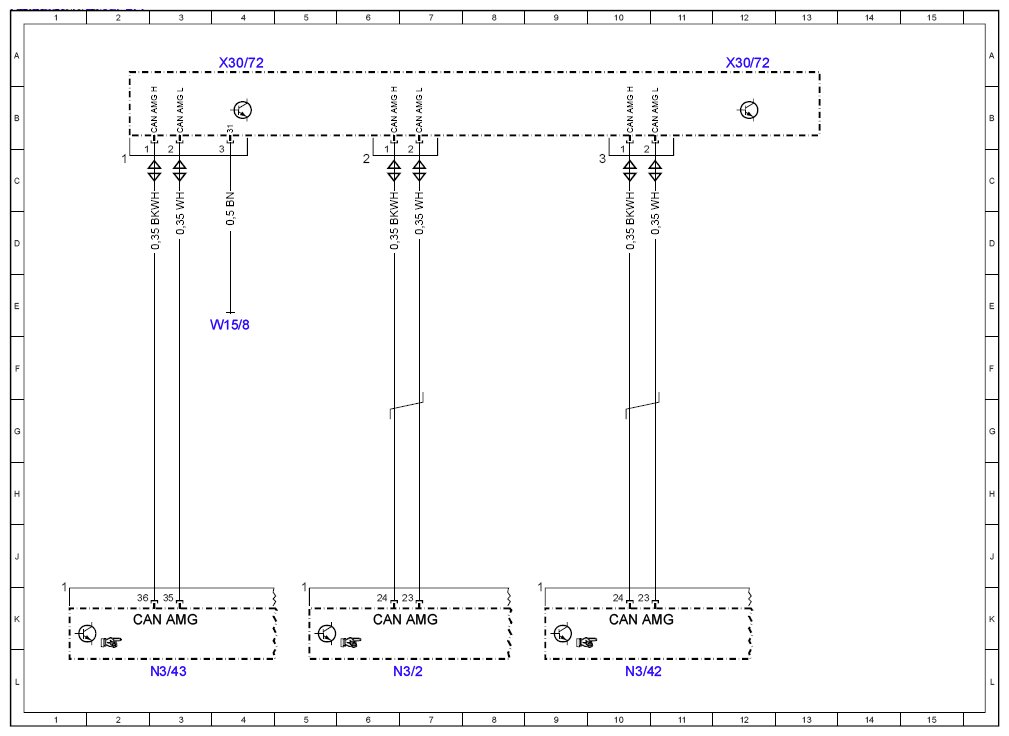

AMG CAN wiring diagram - PE00.19-P-2191-97FBA
| Code: | Designation: | Position: |
|---|---|---|
| CAN AMG | AMG CAN | 3K |
| CAN AMG | AMG CAN | 6K |
| CAN AMG | AMG CAN | 10K |
| N3/2 | Electronic differential control unit | 7L |
| N3/42 | Active engine mounts control unit | 10L |
| N3/43 | AMG suspension control unit | 3L |
| W15/8 | Right front footwell ground point (CAN) | 4E |
| X30/72 | AMG CAN potential distributor electrical connector | 4A |
| X30/72 | AMG CAN potential distributor electrical connector | 12A |
