| A0 |
Use of wiring diagrams |
96L |

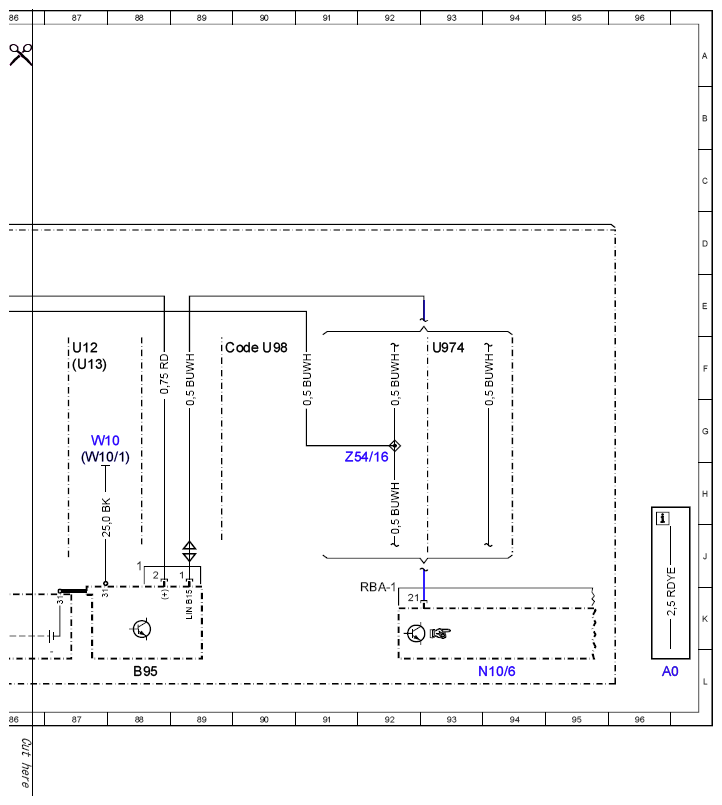

| B95 |
Battery sensor |
68L |
| B95 |
Battery sensor |
88L |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
54D |
| Code U98 |
LITHIUM-ION STARTER BATTERY (LISB) |
84F |
| Code U98 |
LITHIUM-ION STARTER BATTERY (LISB) |
89F |

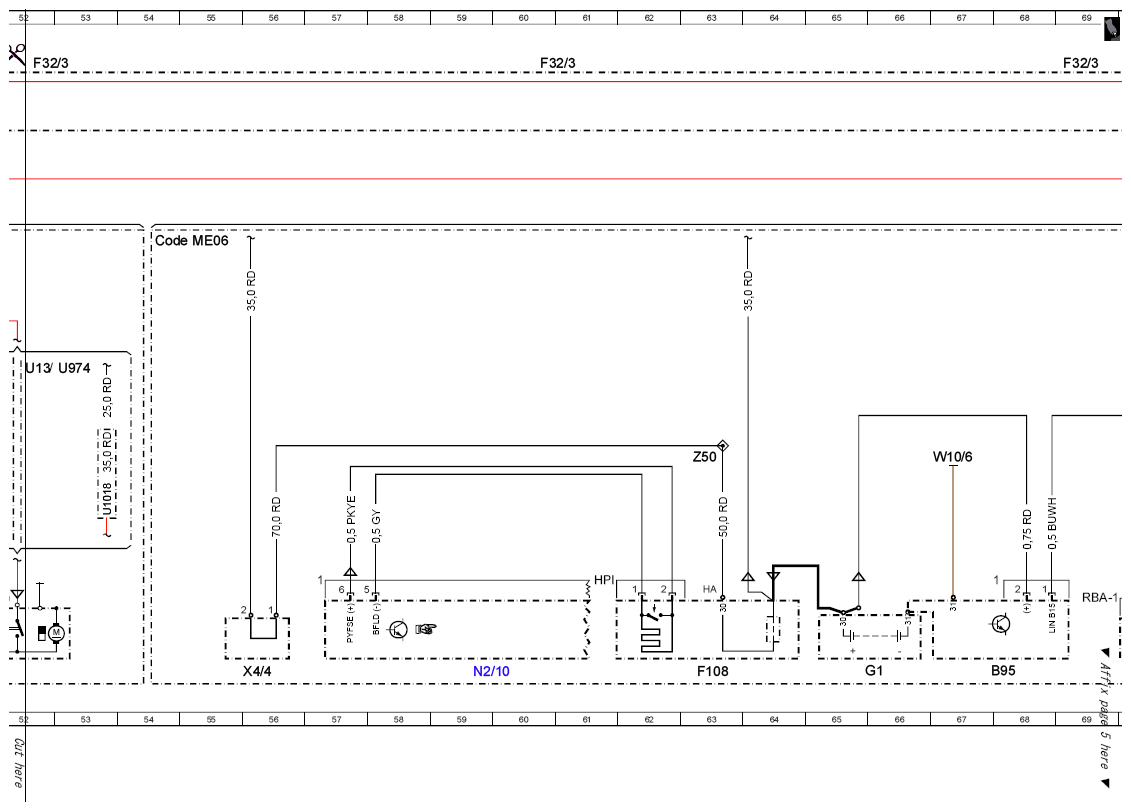

| F108 |
Battery clamp fuse |
63L |
| F32/3 |
Engine compartment prefuse box |
20A |
| F32/3 |
Engine compartment prefuse box |
28A |
| F32/3 |
Engine compartment prefuse box |
36A |
| F32/3 |
Engine compartment prefuse box |
44A |
| F32/3 |
Engine compartment prefuse box |
52A |
| F32/3 |
Engine compartment prefuse box |
60A |
| F32/3 |
Engine compartment prefuse box |
69A |
| F32/3 |
Engine compartment prefuse box |
76A |
| G1 |
On-board electrical system battery |
66L |
| G1 |
On-board electrical system battery |
85L |

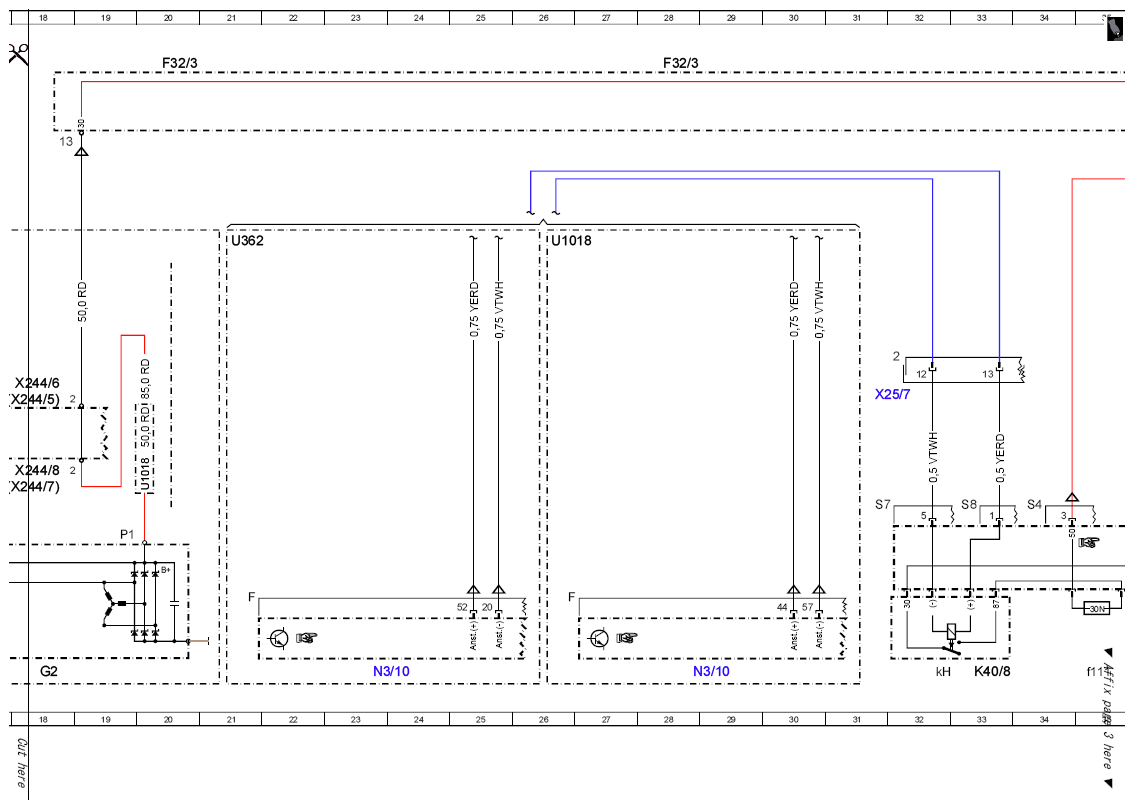

| G2 |
Alternator |
18L |
| K40/8 |
Engine fuse and relay module |
33L |
| K40/8 |
Engine fuse and relay module |
77L |
| K40/8f111 |
Fuse 111 |
35L |
| K40/8f127 |
Fuse 127 |
76L |
| K40/8kH |
Starter circuit 50 relay |
32L |

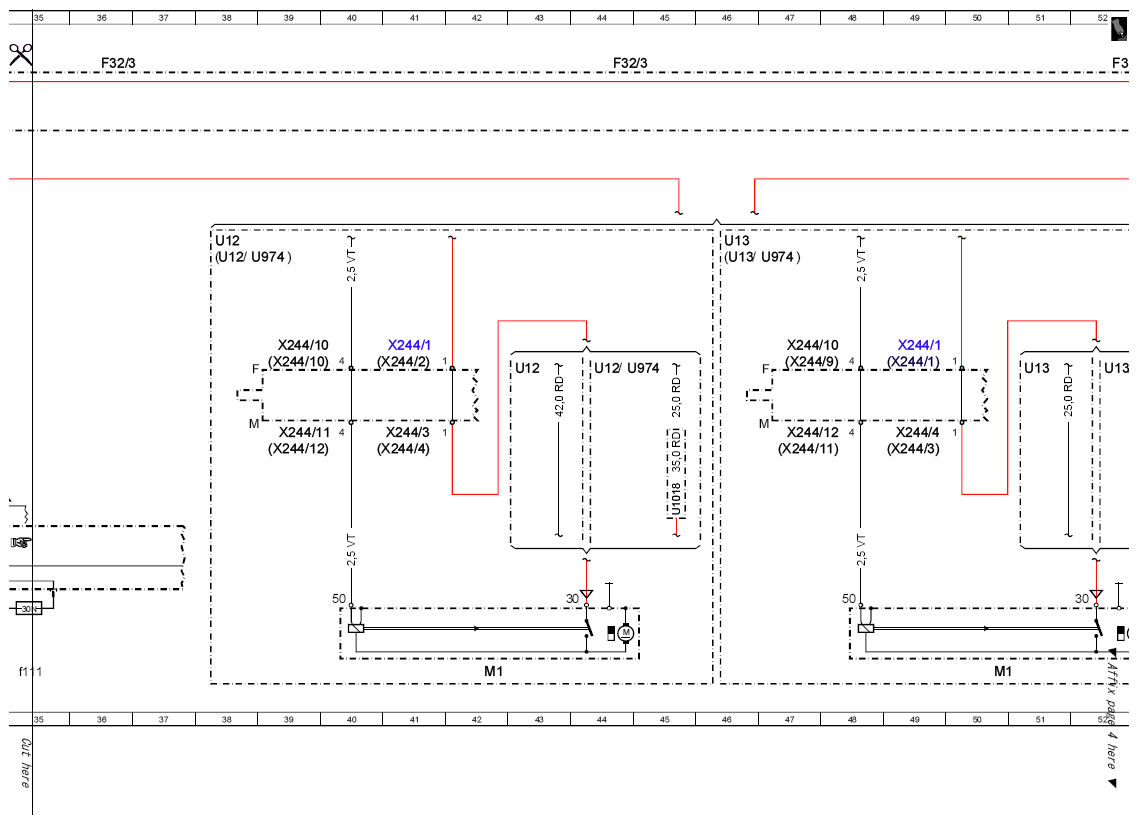

| M1 |
Starter |
42L |
| M1 |
Starter |
50L |

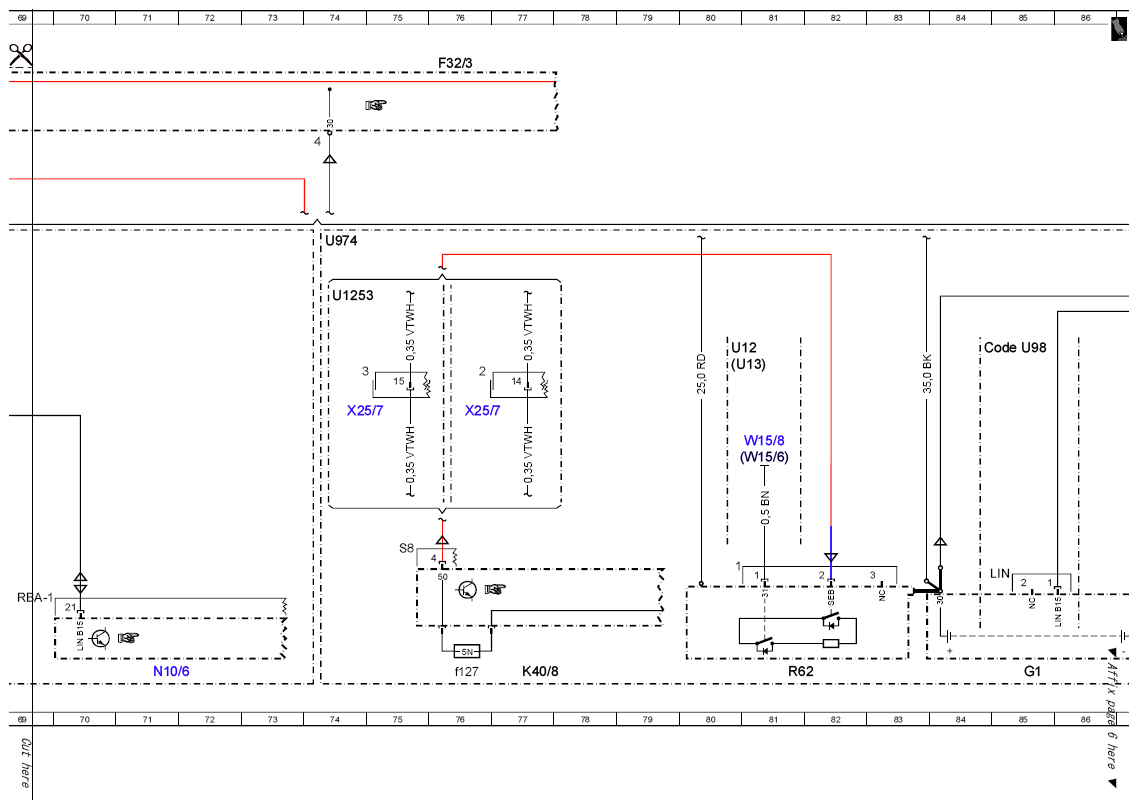

| N10/6 |
Front SAM control unit |
71L |
| N10/6 |
Front SAM control unit |
94L |
| N2/10 |
Supplemental restraint system control unit |
59L |

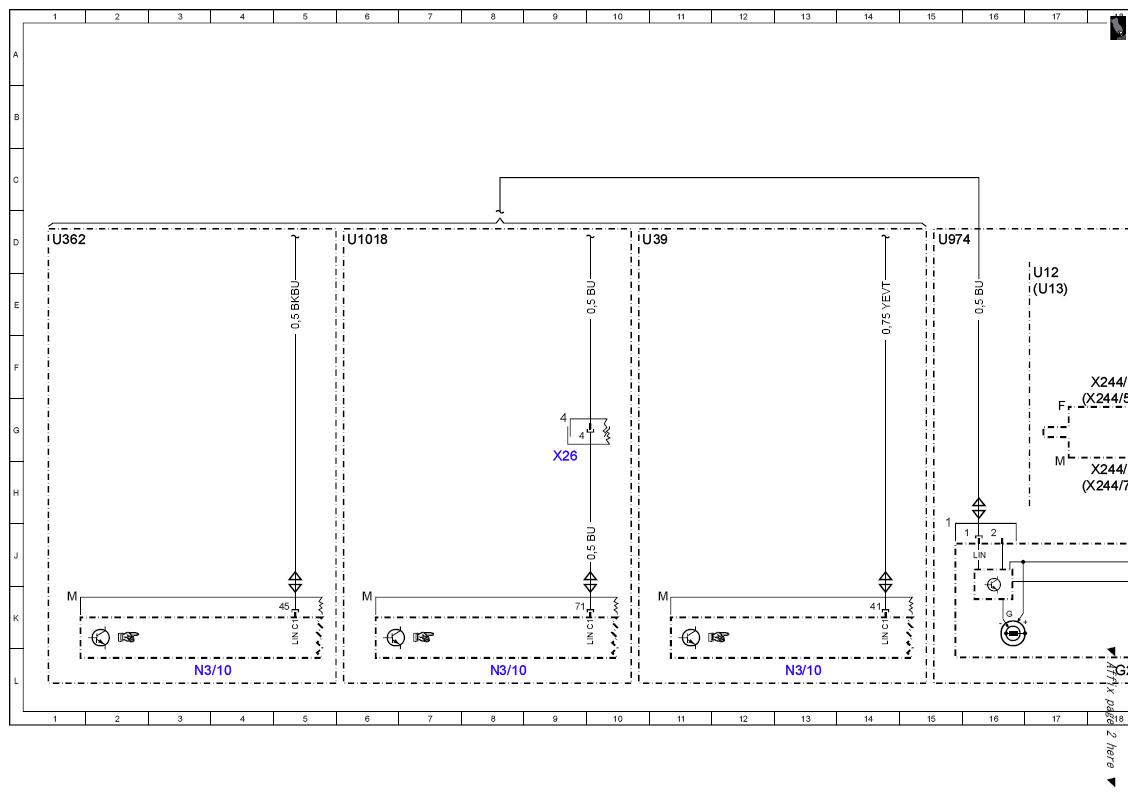

| N3/10 |
ME-SFI [ME] control unit |
3L |
| N3/10 |
ME-SFI [ME] control unit |
13L |
| N3/10 |
ME-SFI [ME] control unit |
8L |
| N3/10 |
ME-SFI [ME] control unit |
29L |
| N3/10 |
ME-SFI [ME] control unit |
23L |
| R62 |
Voltage dip limiter |
81L |
| U1018 |
Valid for gasoline engine 276 |
20H |
| U1018 |
Valid for gasoline engine 276 |
53H |
| U1018 |
Valid for gasoline engine 276 |
45H |
| U1018 |
Valid for gasoline engine 276 |
6D |
| U1018 |
Valid for gasoline engine 276 |
26D |
| U12 |
Valid for left-hand drive vehicles |
44F |
| U12 |
Valid for left-hand drive vehicles |
43F |
| U12 |
Valid for left-hand drive vehicles |
17E |
| U12 |
Valid for left-hand drive vehicles |
38D |
| U12 |
Valid for left-hand drive vehicles |
38D |
| U12 |
Valid for left-hand drive vehicles |
80F |
| U12 |
Valid for left-hand drive vehicles |
87F |
| U1253 |
Valid for model 253 |
74E |
| U13 |
Valid for right-hand drive vehicles |
51F |
| U13 |
Valid for right-hand drive vehicles |
52F |
| U13 |
Valid for right-hand drive vehicles |
17E |
| U13 |
Valid for right-hand drive vehicles |
46D |
| U13 |
Valid for right-hand drive vehicles |
46D |
| U13 |
Valid for right-hand drive vehicles |
80F |
| U13 |
Valid for right-hand drive vehicles |
87F |
| U362 |
Valid for gasoline engine 274 |
1D |
| U362 |
Valid for gasoline engine 274 |
21D |
| U39 |
Valid for gasoline engine 177 |
10D |
| U974 |
Not valid for hybrid drive |
53F |
| U974 |
Not valid for hybrid drive |
44F |
| U974 |
Not valid for hybrid drive |
15D |
| U974 |
Not valid for hybrid drive |
47D |
| U974 |
Not valid for hybrid drive |
38D |
| U974 |
Not valid for hybrid drive |
74D |
| U974 |
Not valid for hybrid drive |
93F |
| W10 |
Battery ground point |
87G |
| W10/1 |
Battery ground point |
87G |
| W10/6 |
Rear battery ground point |
67G |
| W15/6 |
Left front footwell ground point (CAN) |
81G |
| W15/8 |
Right front footwell ground point (CAN) |
81G |
| X244/1 |
Firewall through-hole plating electrical connector |
41F |
| X244/1 |
Firewall through-hole plating electrical connector |
49F |
| X244/1 |
Firewall through-hole plating electrical connector |
49F |
| X244/10 |
Right vehicle-end busbar stud 4 |
39F |
| X244/10 |
Right vehicle-end busbar stud 4 |
39F |
| X244/10 |
Right vehicle-end busbar stud 4 |
47F |
| X244/11 |
Left engine-end busbar stud 4 |
39G |
| X244/11 |
Left engine-end busbar stud 4 |
47G |
| X244/12 |
Right engine-end busbar stud 4 |
39G |
| X244/12 |
Right engine-end busbar stud 4 |
47G |
| X244/2 |
Right vehicle-end busbar stud 1 |
41F |
| X244/3 |
Left engine-end busbar stud 1 |
41G |
| X244/3 |
Left engine-end busbar stud 1 |
49G |
| X244/4 |
Right engine-end busbar stud 1 |
41G |
| X244/4 |
Right engine-end busbar stud 1 |
49G |
| X244/5 |
Left vehicle-end busbar stud 2 |
18G |
| X244/6 |
Right vehicle-end busbar stud 2 |
18F |
| X244/7 |
Left engine-end busbar stud 2 |
18H |
| X244/8 |
Right engine-end busbar stud 2 |
18H |
| X244/9 |
Left vehicle-end busbar stud 4 |
47F |
| X25/7 |
Engine compartment/frame floor assembly electrical connector |
32F |
| X25/7 |
Engine compartment/frame floor assembly electrical connector |
74G |
| X25/7 |
Engine compartment/frame floor assembly electrical connector |
76G |
| X26 |
Interior and engine wiring harness electrical connector |
9G |
| X4/4 |
Terminal block (circuit 30) |
56L |
| Z50 |
Tml. 30 connector sleeve |
63G |
| Z54/16 |
Connector sleeve in battery sensor wiring harness |
92G |
