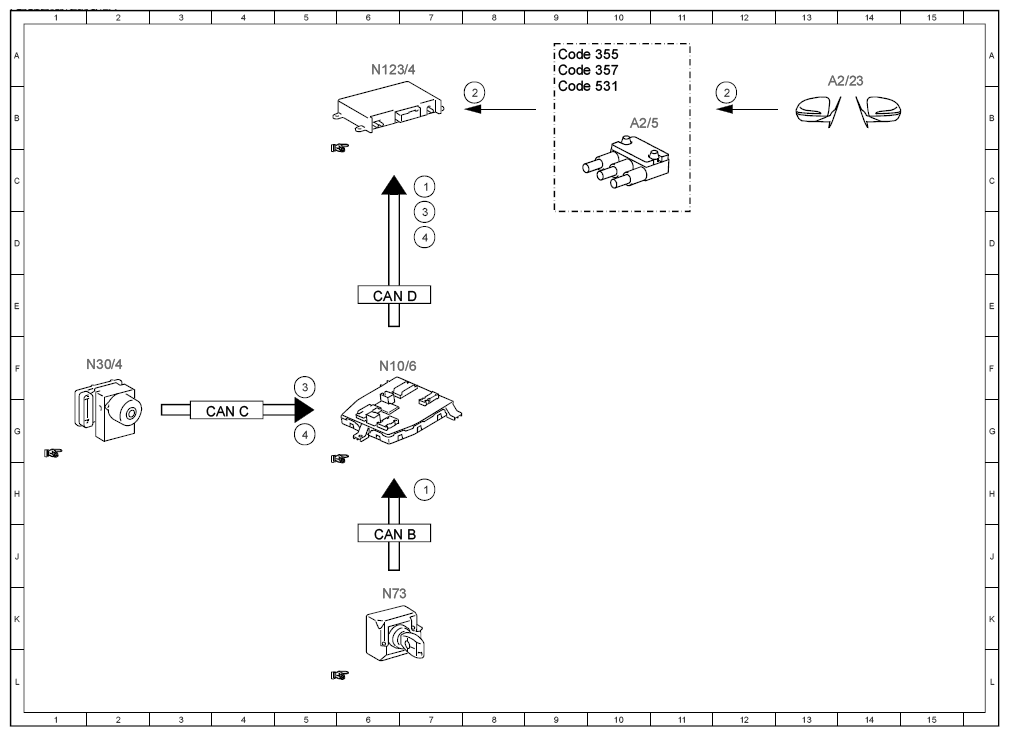

| 1 |
Circuit 15R, status |
7H |
| 1 |
Circuit 15R, status |
7C |
| 2 |
GPS, signal |
8B |
| 2 |
GPS, signal |
12B |
| 3 |
Wheel speed, signal |
5F |
| 3 |
Wheel speed, signal |
7D |
| 4 |
Yaw rate, signal |
5G |
| 4 |
Yaw rate, signal |
7D |
| A2/23 |
GPS antenna |
13A |
| A2/5 |
Global positioning system antenna splitter |
10B |
| CAN B |
Interior CAN |
6J |
| CAN C |
Engine CAN |
4G |
| CAN D |
Diagnostic CAN |
6E |
| Code 355 |
Preinstallation for navigation retrofit |
9A |
| Code 357 |
Card navigation |
9A |
| Code 531 |
COMAND APS |
9B |
| N10/6 |
Front SAM control unit |
6F |
| N123/4 |
Emergency call system control unit |
6A |
| N30/4 |
Electronic Stability Program control unit |
2F |
| N73 |
Electronic ignition switch control unit |
6K |
