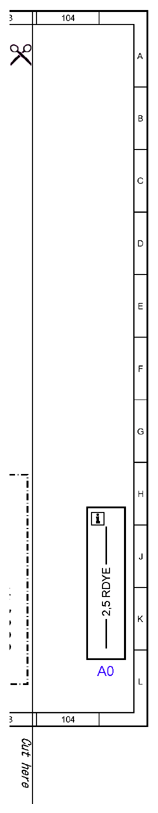

| A0 |
Use of wiring diagrams |
105L |

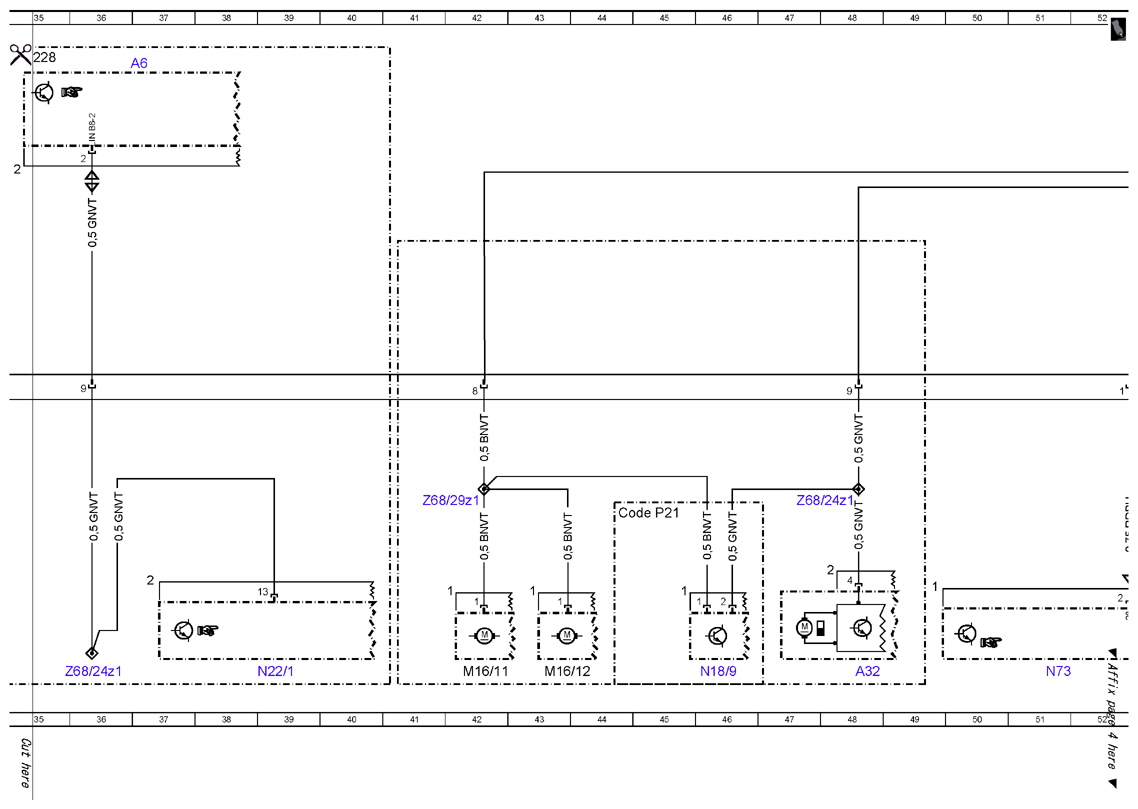

| A32 |
AC housing |
48L |

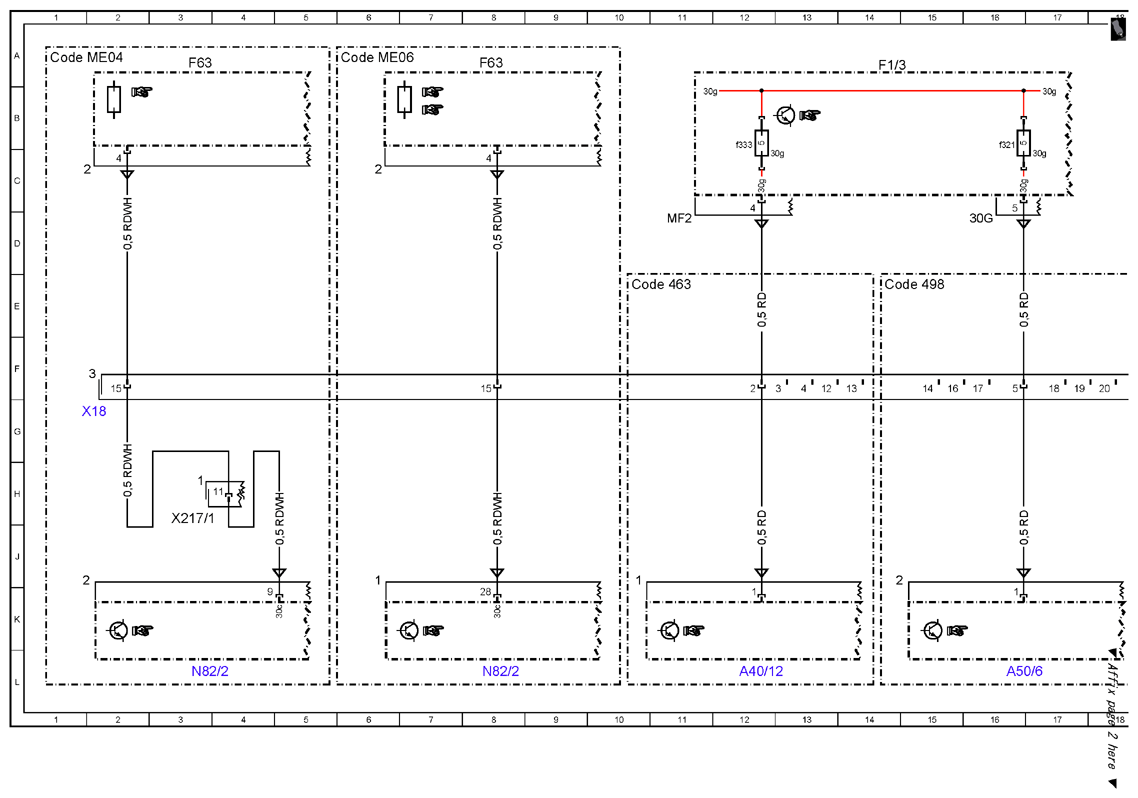

| A40/12 |
Head-up display |
12L |

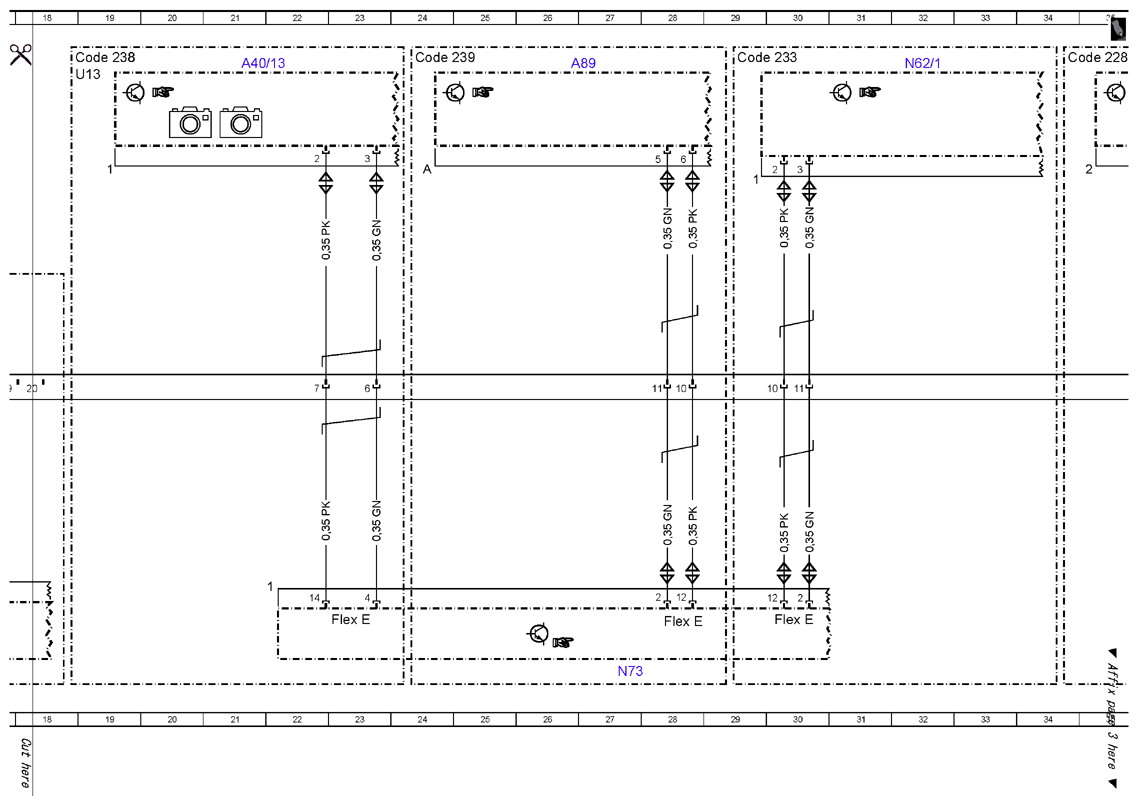

| A40/13 |
Stereo multifunction camera |
21A |
| A50/6 |
Dedicated Short-Range Communications control unit |
16L |
| A6 |
Stationary heater unit |
37A |
| A6 |
Stationary heater unit |
88A |
| A89 |
DISTRONIC electric controller unit |
26A |

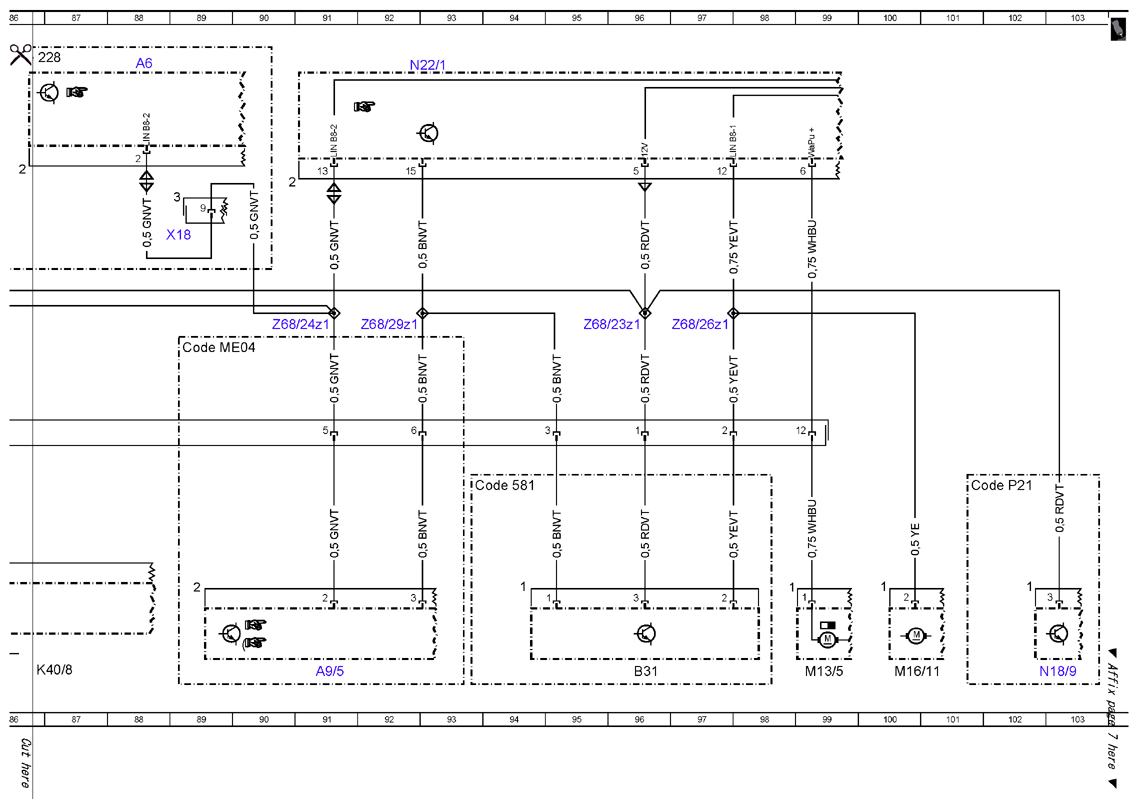

| A9/5 |
Electric refrigerant compressor |
91L |
| B31 |
Air quality sensor |
96L |

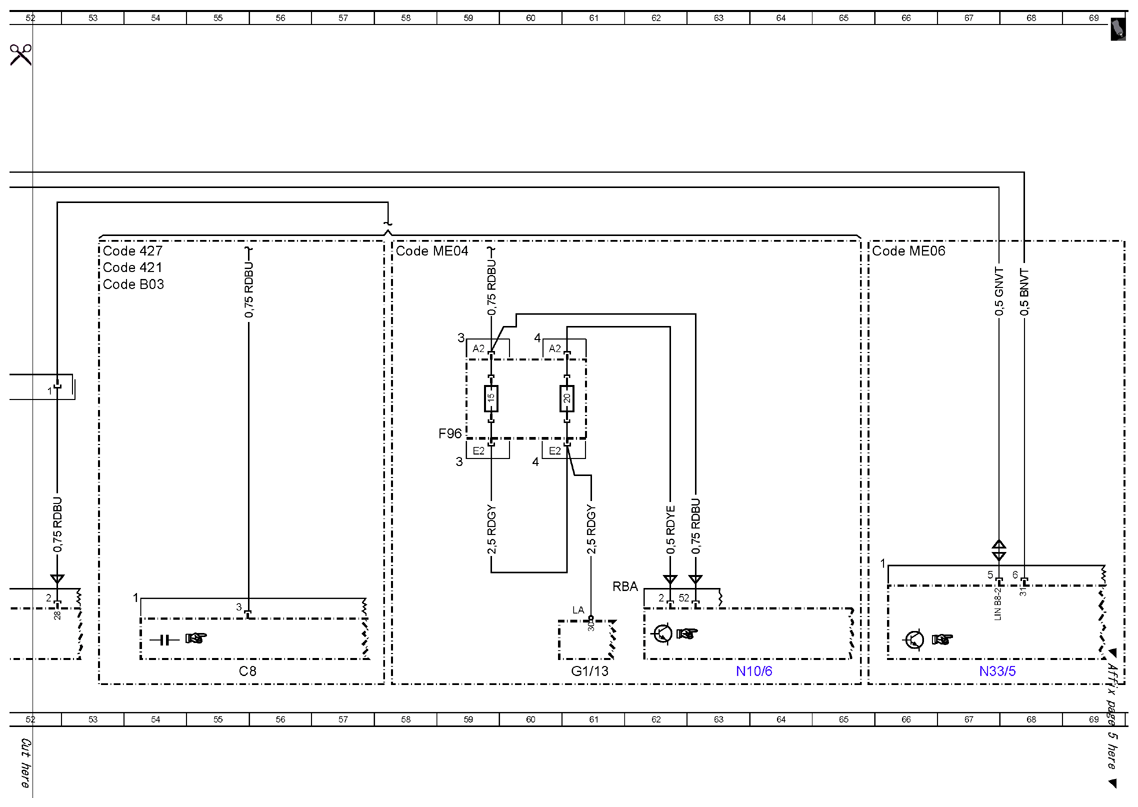

| C8 |
Park pawl capacitor |
55L |
| Code 228 |
Stationary heater |
34A |
| Code 228 |
Stationary heater |
86A |
| Code 233 |
AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS |
29A |
| Code 238 |
Active Lane Keeping Assist |
18A |
| Code 239 |
DISTRONIC PLUS |
24A |
| Code 421 |
9G-TRONIC |
53D |
| Code 427 |
7G-TRONIC |
53D |
| Code 463 |
Head-up display |
10E |
| Code 498 |
Japan version |
14E |
| Code 581 |
THERMOTRONIC automatic air conditioning |
76A |
| Code 581 |
THERMOTRONIC automatic air conditioning |
93H |
| Code B03 |
ECO start/stop function |
53E |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
1A |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
58D |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
89F |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
6A |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
65D |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
89F |
| Code P21 |
AIR-BALANCE package |
44H |
| Code P21 |
AIR-BALANCE package |
101H |
| Code P21 |
AIR-BALANCE package |
81A |

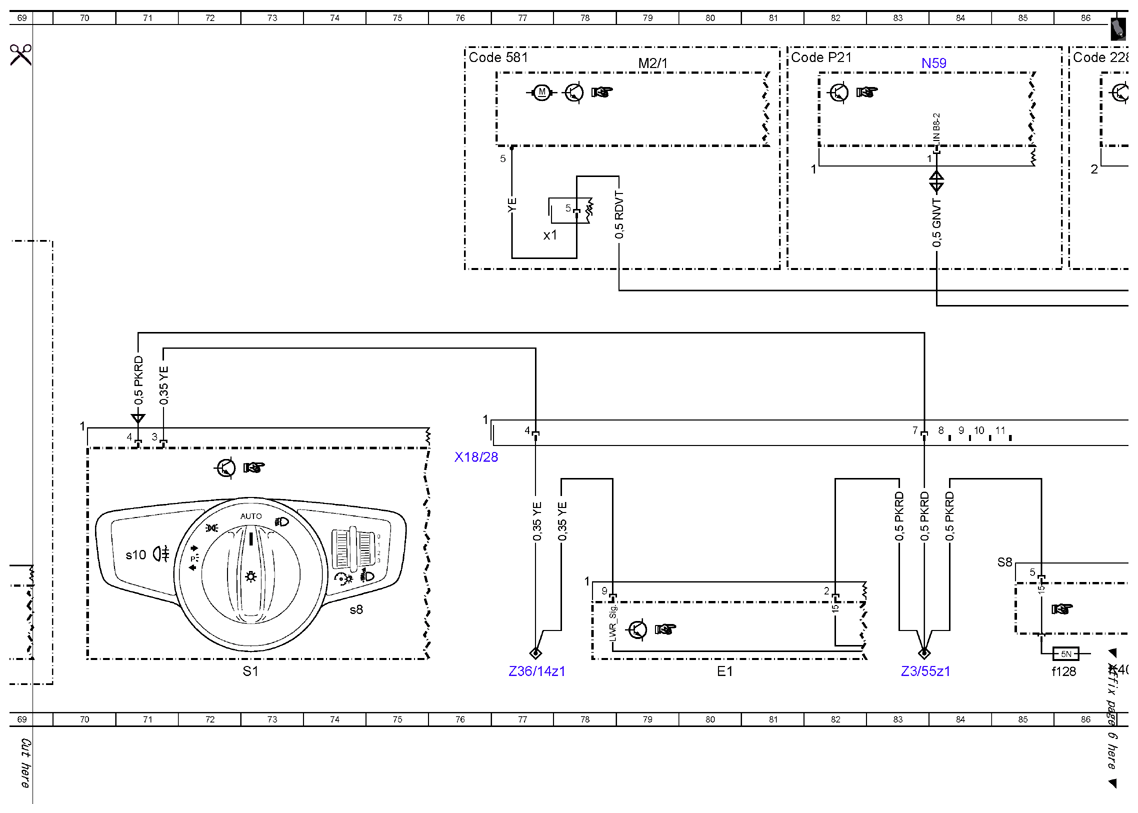

| E1 |
Left front lamp unit |
80L |
| F1/3 |
Right A-pillar fuse box |
14A |
| F1/3f321 |
Fuse 321 |
16B |
| F1/3f333 |
Fuse 333 |
12B |
| F63 |
Pyrofuse |
3A |
| F63 |
Pyrofuse |
8A |
| F96 |
Additional battery circuit 30 fuse |
59G |
| Flex E |
Chassis FlexRay |
23K |
| Flex E |
Chassis FlexRay |
30K |
| Flex E |
Chassis FlexRay |
28K |
| G1/13 |
ECO start/stop function additional battery |
61L |
| K40/8 |
Engine fuse and relay module |
87L |
| K40/8f128 |
Fuse 128 |
86L |
| M13/5 |
Coolant circulation pump |
99L |
| M16/11 |
Left A-pillar air distribution actuator motor |
42L |
| M16/11 |
Left A-pillar air distribution actuator motor |
100L |
| M16/12 |
Right A-pillar air distribution actuator motor |
43L |
| M2/1 |
Rear blower motor |
79A |
| M2/1x1 |
Rear blower motor electrical connector |
77D |
| N10/6 |
Front SAM control unit |
63L |
| N18/9 |
Driver side air vent ionizer |
46L |
| N18/9 |
Driver side air vent ionizer |
103L |
| N22/1 |
Climate control control unit |
39L |
| N22/1 |
Climate control control unit |
92A |
| N33/5 |
High-voltage PTC heater |
67L |
| N59 |
Perfume atomizer generator |
83A |
| N62/1 |
Radar sensors control unit |
32A |
| N73 |
Electronic ignition switch control unit |
27L |
| N73 |
Electronic ignition switch control unit |
51L |
| N82/2 |
Battery management system control unit |
3L |
| N82/2 |
Battery management system control unit |
8L |
| S1 |
Exterior lights switch |
73L |
| S1s10 |
Rear fog light button |
71J |
| S1s8 |
Headlamp range controller |
74K |
| U13 |
Valid for right-hand drive vehicles |
18A |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
2G |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
89D |
| X18/28 |
Left cockpit/engine compartment electrical connector |
76G |
| X217/1 |
Battery management system electrical connector |
3H |
| Z3/55z1 |
Tml. 15 connector sleeve |
83L |
| Z36/14z1 |
Headlamp range adjustment signal connector sleeve |
77L |
| Z68/23z1 |
Connector sleeve, 12V climate control LIN 2 |
96E |
| Z68/24z1 |
Connector sleeve, data line for climate control LIN 2 |
36L |
| Z68/24z1 |
Connector sleeve, data line for climate control LIN 2 |
48H |
| Z68/24z1 |
Connector sleeve, data line for climate control LIN 2 |
91E |
| Z68/26z1 |
Climate control LIN 1 connector sleeve |
97E |
| Z68/29z1 |
Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 |
42H |
| Z68/29z1 |
Connector sleeve, ground line for climate control LIN 1 and climate control LIN |
292E |
