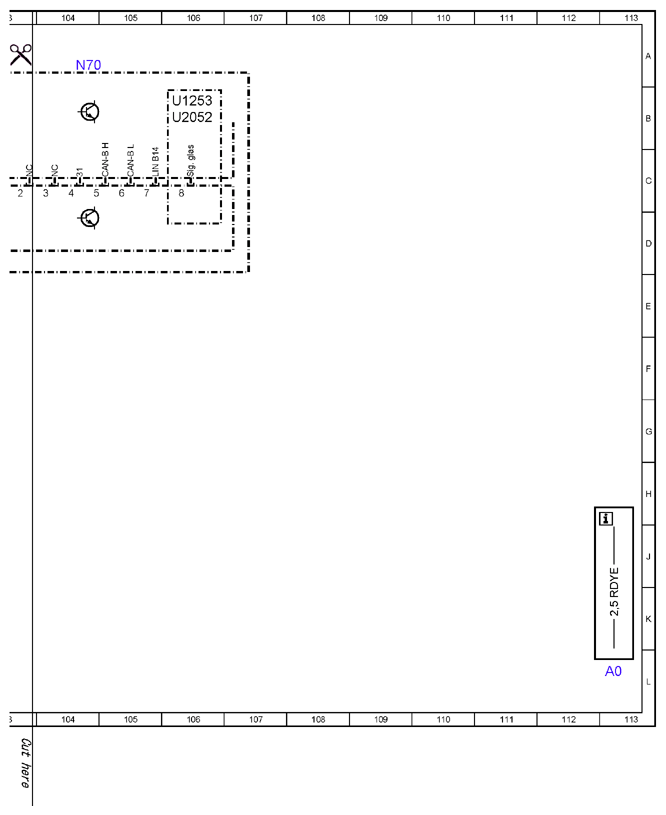

| A0 |
Use of wiring diagrams |
113L |

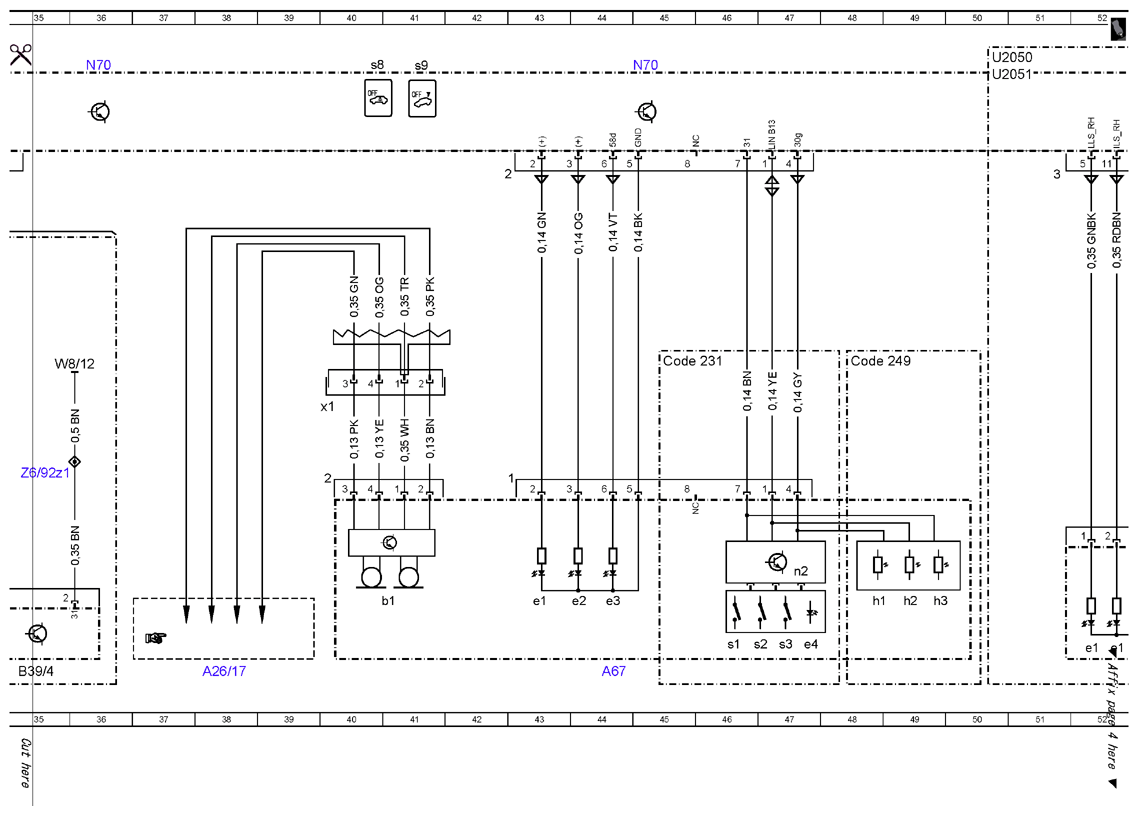

| A26/17 |
Head unit |
38L |
| A67 |
Inside rearview mirror |
44L |
| A67b1 |
Hands-free system microphone |
41K |
| A67e1 |
Left reading lamp |
43K |
| A67e2 |
Right reading lamp |
44K |
| A67e3 |
Ambient lamp |
44K |
| A67e4 |
Garage door opener indicator lamp |
47K |
| A67h1 |
Forward automatic dimming mirror light sensor |
48K |
| A67h2 |
Rearward automatic dimming mirror light sensor |
49K |
| A67h3 |
Inside rearview mirror dimming |
49K |
| A67n2 |
Garage door opener |
47J |
| A67s1 |
Garage door opener button 1 |
46K |
| A67s2 |
Garage door opener button 2 |
46K |
| A67s3 |
Garage door opener button 3 |
47K |
| A67x1 |
Inside rearview mirror electrical connector 1 |
40G |
| B38/2 |
Rain/light sensor with additional functions |
9L |

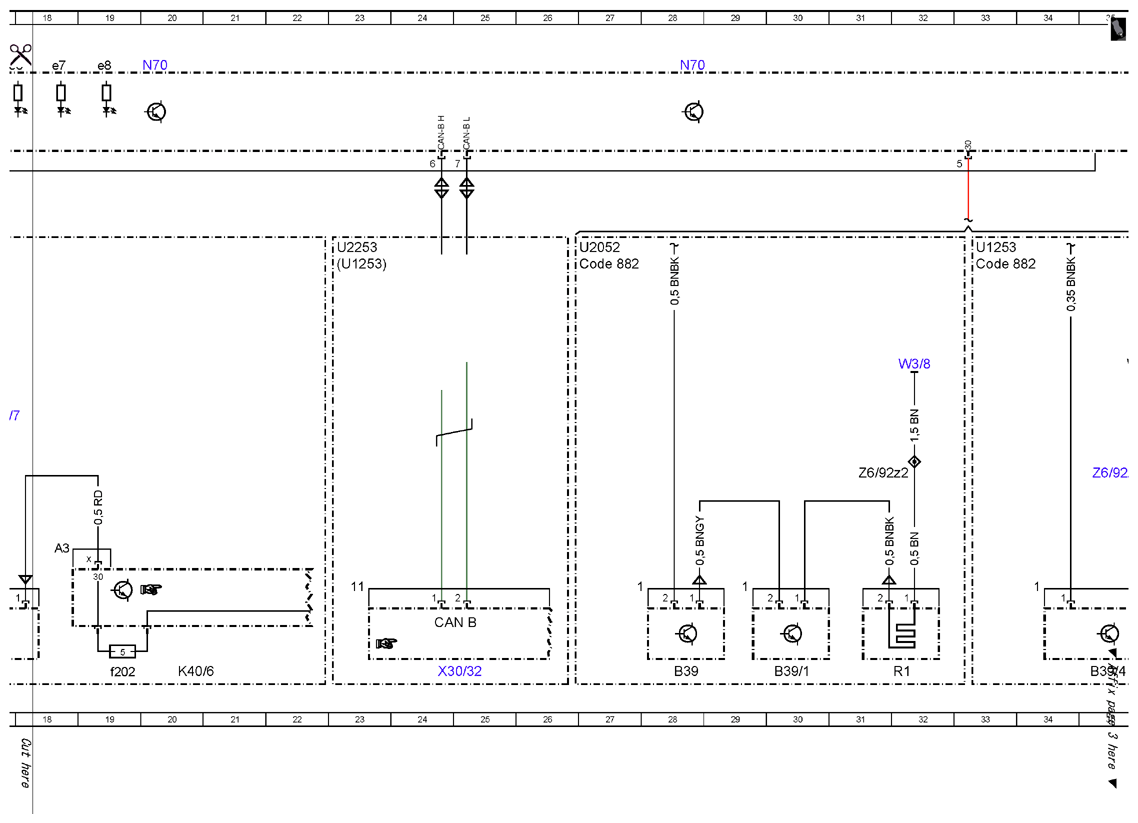

| B39 |
Left rear window glass breakage sensor |
28L |
| B39/1 |
Right rear window glass breakage sensor |
30L |
| B39/4 |
Rear window glass breakage sensor |
35L |
| CAN B |
Interior CAN |
24K |
| Code 231 |
Garage door opener |
45F |
| Code 249 |
Automatically dimming mirror |
48F |
| Code 348 |
Emergency call/assistance system |
87A |
| Code 413 |
Panoramic sliding sunroof |
10A |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
15D |
| Code 876 |
Interior lights package |
62A |
| Code 876 |
Interior lights package |
79A |
| Code 882 |
Interior protection and tow-away protection |
15D |
| Code 882 |
Interior protection and tow-away protection |
27D |
| Code 882 |
Interior protection and tow-away protection |
33D |
| Code U63 |
Driving school package |
62B |

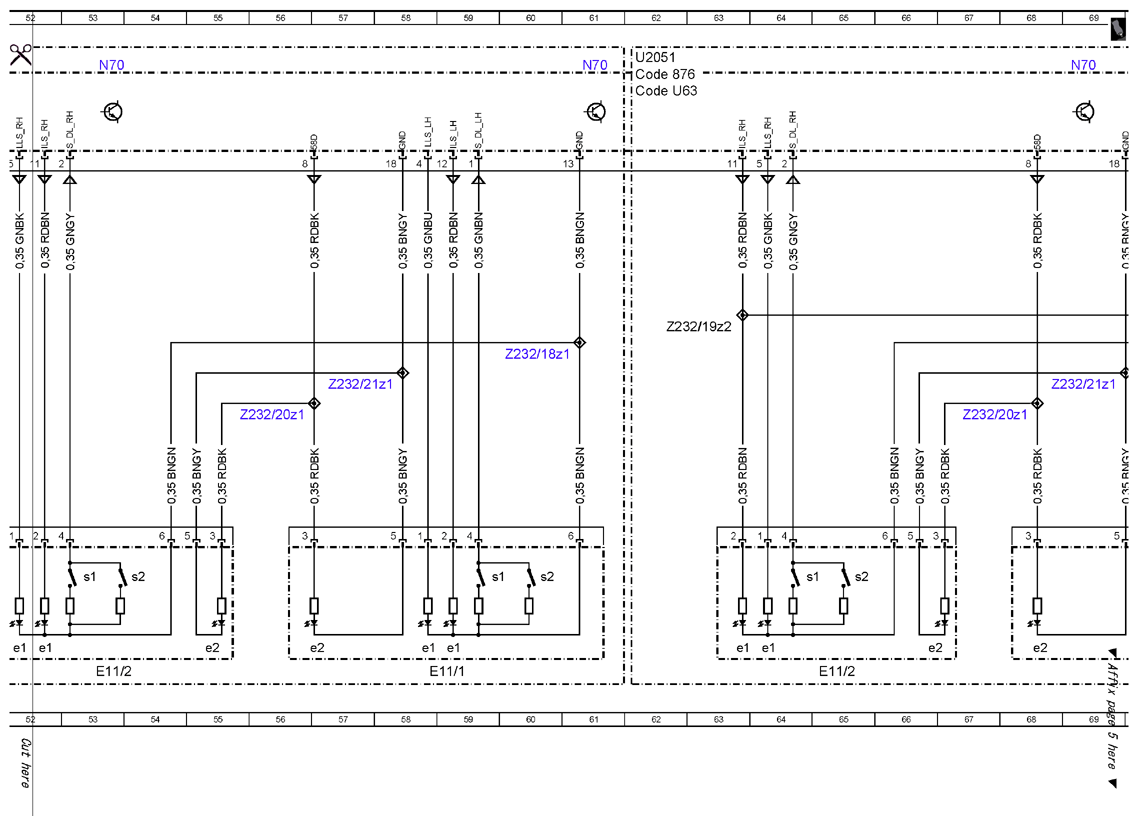

| E11/1 |
Left rear dome lamp |
59L |
| E11/1 |
Left rear dome lamp |
70L |
| E11/1e1 |
Left rear reading lamp |
59L |
| E11/1e1 |
Left rear reading lamp |
58L |
| E11/1e1 |
Left rear reading lamp |
72L |
| E11/1e1 |
Left rear reading lamp |
71L |
| E11/1e2 |
Left rear interior lamp |
57L |
| E11/1e2 |
Left rear interior lamp |
68L |
| E11/1s1 |
Left rear dome lamp button |
59J |
| E11/1s1 |
Left rear dome lamp button |
72J |
| E11/1s2 |
Left rear reading lamp button |
60J |
| E11/1s2 |
Left rear reading lamp button |
73J |
| E11/2 |
Right rear dome lamp |
53L |
| E11/2 |
Right rear dome lamp |
65L |
| E11/2e1 |
Right rear reading lamp |
52L |
| E11/2e1 |
Right rear reading lamp |
52L |
| E11/2e1 |
Right rear reading lamp |
64L |
| E11/2e1 |
Right rear reading lamp |
63L |
| E11/2e2 |
Right rear interior lamp |
55L |
| E11/2e2 |
Right rear interior lamp |
66L |
| E11/2s1 |
Right rear dome lamp button |
53J |
| E11/2s1 |
Right rear dome lamp button |
64J |
| E11/2s2 |
Right rear reading lamp button |
54J |
| E11/2s2 |
Right rear reading lamp button |
65J |
| E14/1 |
Left sun visor mirror lamp |
85L |
| E14/2 |
Right sun visor mirror lamp |
89L |

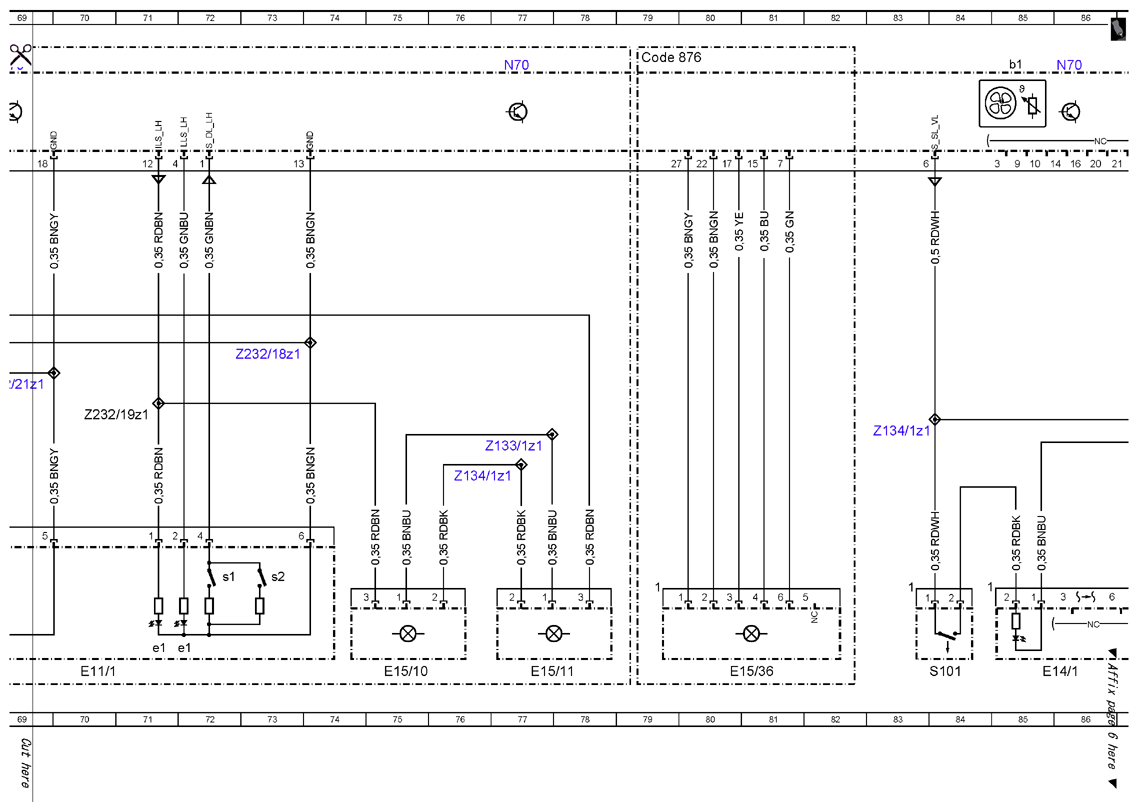

| E15/10 |
Left rear vanity mirror unit |
75L |
| E15/11 |
Right rear vanity mirror unit |
77L |
| E15/36 |
Rear ambient lamp |
80L |

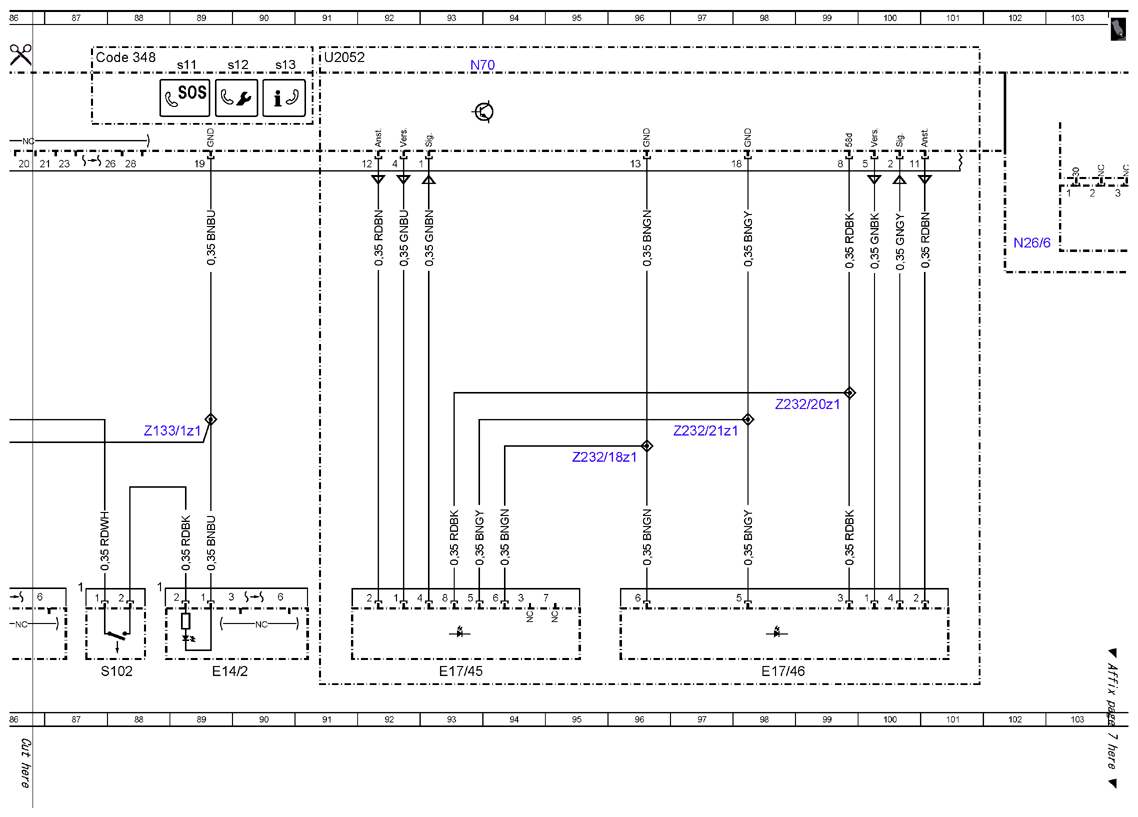

| E17/45 |
Left rear door ambiance illumination |
93L |
| E17/46 |
Right rear door ambiance illumination |
98L |

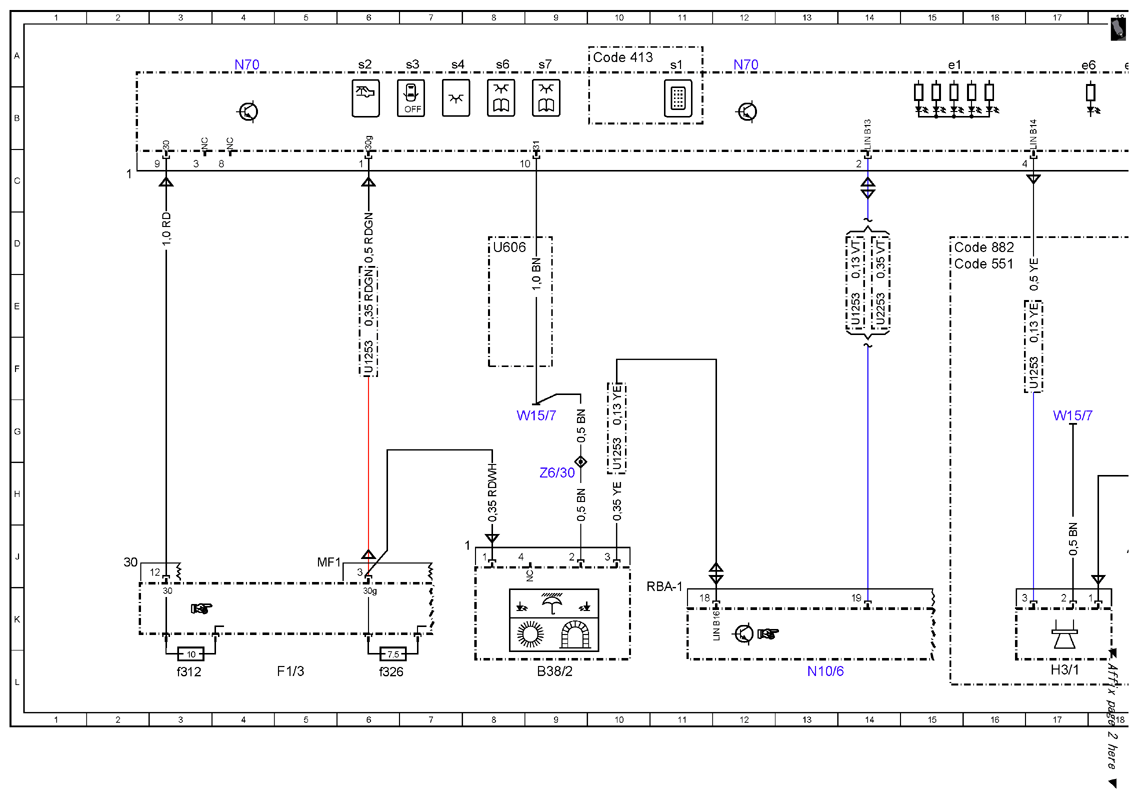

| F1/3 |
Right A-pillar fuse box |
5L |
| F1/3f312 |
Fuse 312 |
3L |
| F1/3f326 |
Fuse 326 |
6L |
| H3/1 |
Alarm siren |
17L |
| K40/6 |
Left fuse and relay module |
20L |
| K40/6f202 |
Fuse 202 |
19L |
| N10/6 |
Front SAM control unit |
13L |
| N26/6 |
ATA [EDW]/towing sensor/interior motion sensor control unit |
102D |
| N70 |
Overhead control panel control unit |
4A |
| N70 |
Overhead control panel control unit |
12A |
| N70 |
Overhead control panel control unit |
20A |
| N70 |
Overhead control panel control unit |
36A |
| N70 |
Overhead control panel control unit |
45A |
| N70 |
Overhead control panel control unit |
53A |
| N70 |
Overhead control panel control unit |
61A |
| N70 |
Overhead control panel control unit |
69A |
| N70 |
Overhead control panel control unit |
77A |
| N70 |
Overhead control panel control unit |
86A |
| N70 |
Overhead control panel control unit |
93A |
| N70 |
Overhead control panel control unit |
104A |
| N70 |
Overhead control panel control unit |
28A |
| N70b1 |
Interior temperature sensor with integrated fan |
85A |
| N70e1 |
Front dome lamp |
15A |
| N70e6 |
Left mounting console incident illumination |
17A |
| N70e7 |
Right mounting console incident illumination |
18A |
| N70e8 |
Eyeglass box illumination |
19A |
| N70s1 |
Roof switch |
11A |
| N70s11 |
SOS button |
89A |
| N70s12 |
Breakdown assistance button |
89A |
| N70s13 |
MB-Info button |
90A |
| N70s2 |
Rear dome lamp button |
6A |
| N70s3 |
Interior lamp automatic function button |
7A |
| N70s4 |
Front dome lamp button |
7A |
| N70s6 |
Left front reading lamp button |
8A |
| N70s7 |
Right front reading lamp button |
9A |
| N70s8 |
Interior protection switch |
40A |
| N70s9 |
Towing sensor button |
41A |
| R1 |
Rear window heater |
32L |
| S101 |
Left front mirror lamp switch |
84L |
| S102 |
Right front mirror lamp switch |
88L |
| U1253 |
Valid for model 253 |
17F |
| U1253 |
Valid for model 253 |
10H |
| U1253 |
Valid for model 253 |
14E |
| U1253 |
Valid for model 253 |
23D |
| U1253 |
Valid for model 253 |
106B |
| U1253 |
Valid for model 253 |
6F |
| U1253 |
Valid for model 253 |
33D |
| U2050 |
Valid for model 205.0 |
50A |
| U2051 |
Valid for model 205.1 |
50A |
| U2051 |
Valid for model 205.1 |
62A |
| U2052 |
Valid for model 205.2 |
91A |
| U2052 |
Valid for model 205.2 |
106B |
| U2052 |
Valid for model 205.2 |
27D |
| U2253 |
Not valid for model series 253 |
14E |
| U2253 |
Not valid for model series 253 |
23D |
| U606 |
Not valid for convertible |
8D |
| W15/7 |
Right front footwell ground point |
9G |
| W15/7 |
Right front footwell ground point |
17G |
| W3/8 |
Right rear wheel well ground point |
32F |
| W8/12 |
Upper right liftgate ground point |
35F |
| X30/32 |
Left interior CAN (CAN B) potential distributor electrical connector |
24L |
| Z133/1z1 |
Connector sleeve, ground connection for vanity mirror unit in rear |
77G |
| Z133/1z1 |
Connector sleeve, ground connection for vanity mirror unit in rear |
89G |
| Z134/1z1 |
Connector sleeve, power supply for vanity mirror unit in rear |
76H |
| Z134/1z1 |
Connector sleeve, power supply for vanity mirror unit in rear |
83G |
| Z232/18z1 |
Rear passenger compartment center console ambiance illumination connector sleeve (red) |
95G |
| Z232/18z1 |
Rear passenger compartment center console ambiance illumination connector sleeve (red) |
60F |
| Z232/18z1 |
Rear passenger compartment center console ambiance illumination connector sleeve (red) |
73F |
| Z232/19z1 |
Dome lamp ambiance illumination connector sleeve |
71G |
| Z232/19z2 |
Dome lamp ambiance illumination connector sleeve |
63E |
| Z232/20z1 |
Left front door stowage compartment illumination ambiance illumination connector sleeve (yellow) |
56G |
| Z232/20z1 |
Left front door stowage compartment illumination ambiance illumination connector sleeve (yellow) |
67G |
| Z232/20z1 |
Left front door stowage compartment illumination ambiance illumination connector sleeve (yellow) |
99G |
| Z232/21z1 |
Left front door stowage compartment illumination ambiance illumination connector sleeve (blue) |
57F |
| Z232/21z1 |
Left front door stowage compartment illumination ambiance illumination connector sleeve (blue) |
69F |
| Z232/21z1 |
Left front door stowage compartment illumination ambiance illumination connector sleeve (blue) |
97G |
| Z6/30 |
Circuit 31 connector sleeve |
9H |
| Z6/92z1 |
Trunk lid ground line connector sleeve |
35H |
| Z6/92z2 |
Trunk lid ground connection connector sleeve |
31H |
