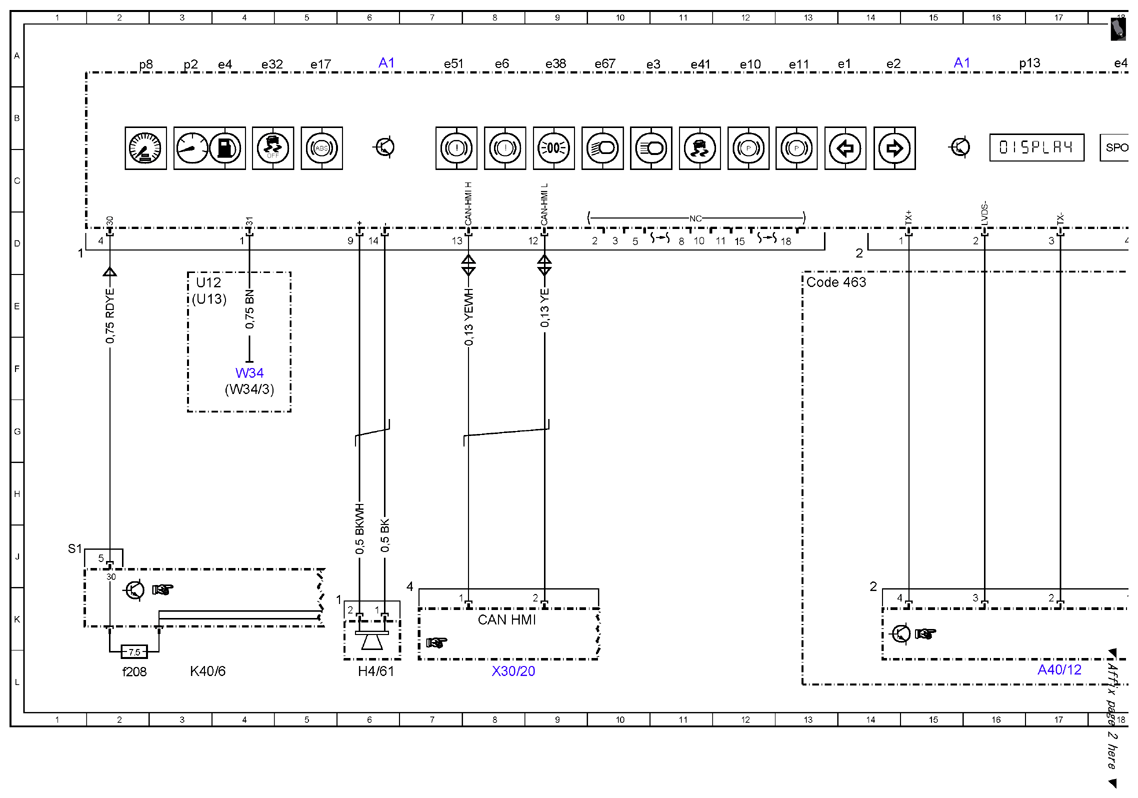

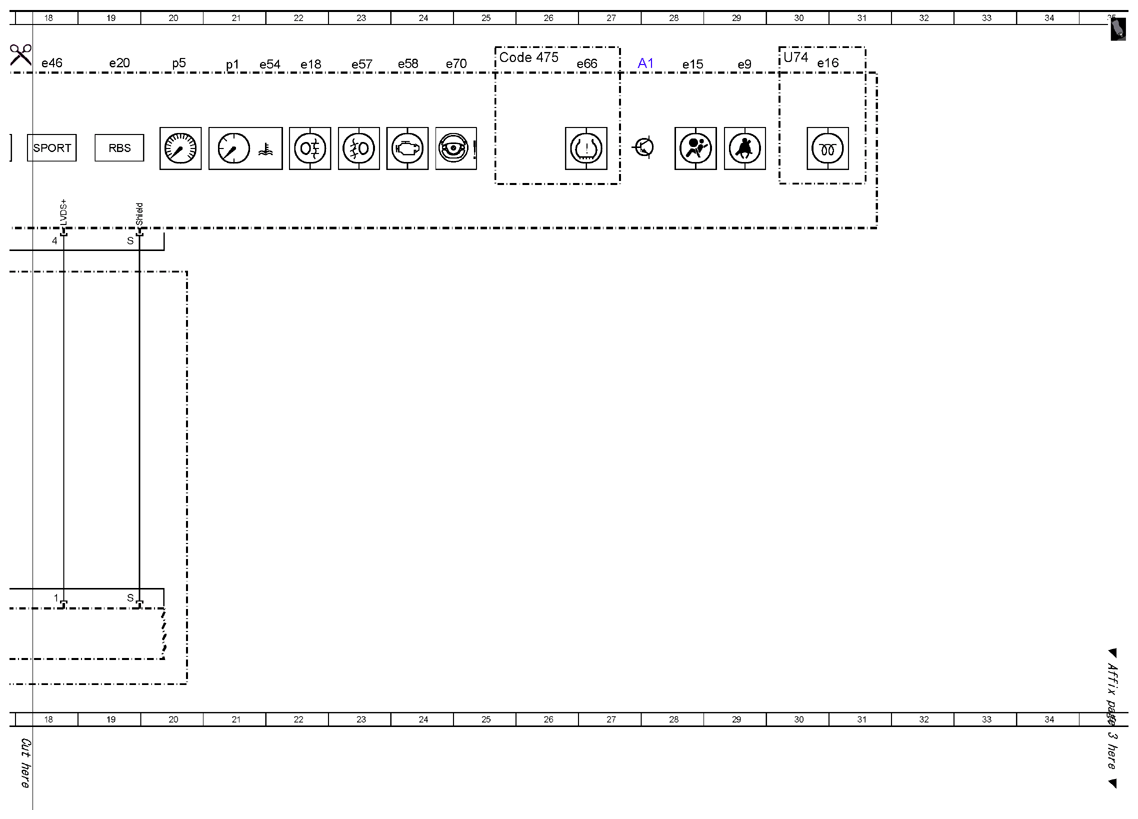

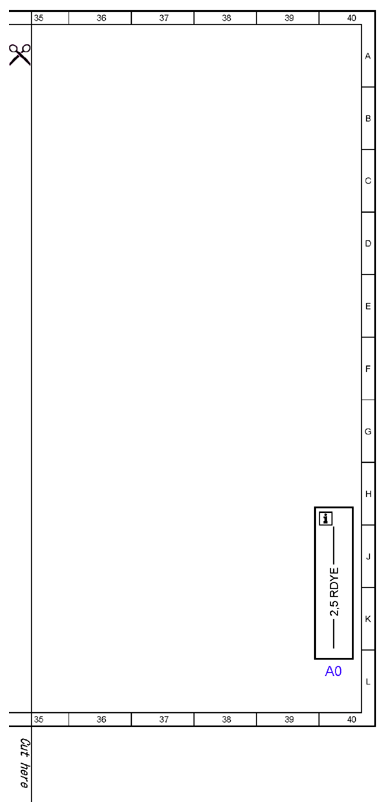

| A0 |
Use of wiring diagrams |
40L |
| A1 |
Instrument cluster |
6A |
| A1 |
Instrument cluster |
15A |
| A1 |
Instrument cluster |
28A |
| A1e1 |
Left turn signal indicator light |
14A |
| A1e10 |
Parking brake indicator lamp |
12A |
| A1e11 |
Parking brake indicator lamp |
13A |
| A1e15 |
Supplemental restraint system indicator lamp |
28A |
| A1e16 |
Preglow indicator lamp |
30A |
| A1e17 |
Antilock brake system indicator lamp |
5A |
| A1e18 |
Rear fog lamp indicator lamp |
22A |
| A1e2 |
Right turn signal indicator light |
14A |
| A1e20 |
Regenerative braking system indicator lamp |
19A |
| A1e3 |
High beam indicator lamp |
10A |
| A1e32 |
ESP®/ASR OFF warning lamp |
4A |
| A1e38 |
Standing lamps indicator lamp |
9A |
| A1e4 |
Fuel reserve indicator lamp |
4A |
| A1e41 |
Electronic Stability Program warning lamp |
11A |
| A1e46 |
ESP SPORT indicator lamp |
18A |
| A1e51 |
Brake system warning lamp |
7A |
| A1e54 |
Coolant temperature warning lamp |
21A |
| A1e57 |
Front fog lamps indicator lamp |
23A |
| A1e58 |
Engine diagnosis indicator lamp |
24A |
| A1e6 |
Brake fluid and parking brake indicator lamp |
8A |
| A1e66 |
Tire pressure monitor warning lamp |
27A |
| A1e67 |
Low beam indicator lamp |
10A |
| A1e70 |
Power steering warning lamp |
24A |
| A1e9 |
Seat belt warning lamp |
29A |
| A1p1 |
Coolant temperature gauge |
21A |
| A1p13 |
Multifunction display |
16A |
| A1p2 |
Fuel level indicator |
3A |
| A1p5 |
Tachometer |
20A |
| A1p8 |
Speedometer |
2A |
| A40/12 |
Head-up display |
17L |
| CAN HMI |
User interface CAN |
8K |
| Code 463 |
Head-up display |
13E |
| Code 475 |
Tire pressure monitor |
25A |
| H4/61 |
Instrument cluster speaker |
6L |
| K40/6 |
Left fuse and relay module |
3L |
| K40/6f208 |
Fuse 208 |
2L |
| U12 |
Valid for left-hand drive vehicles |
3E |
| U13 |
Valid for right-hand drive vehicles |
3E |
| U74 |
Valid for diesel engines |
30A |
| W34 |
Left footwell ground point |
4F |
| W34/3 |
Right footwell ground point |
4F |
| X30/20 |
User interface CAN (CAN HMI) potential distributor electrical connector |
8L |
