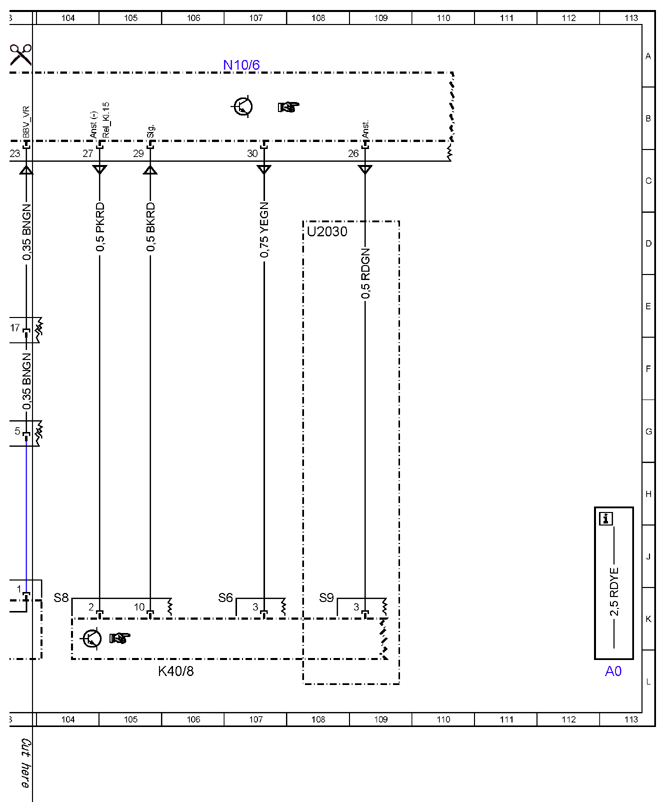

| A0 |
Use of wiring diagrams |
113L |

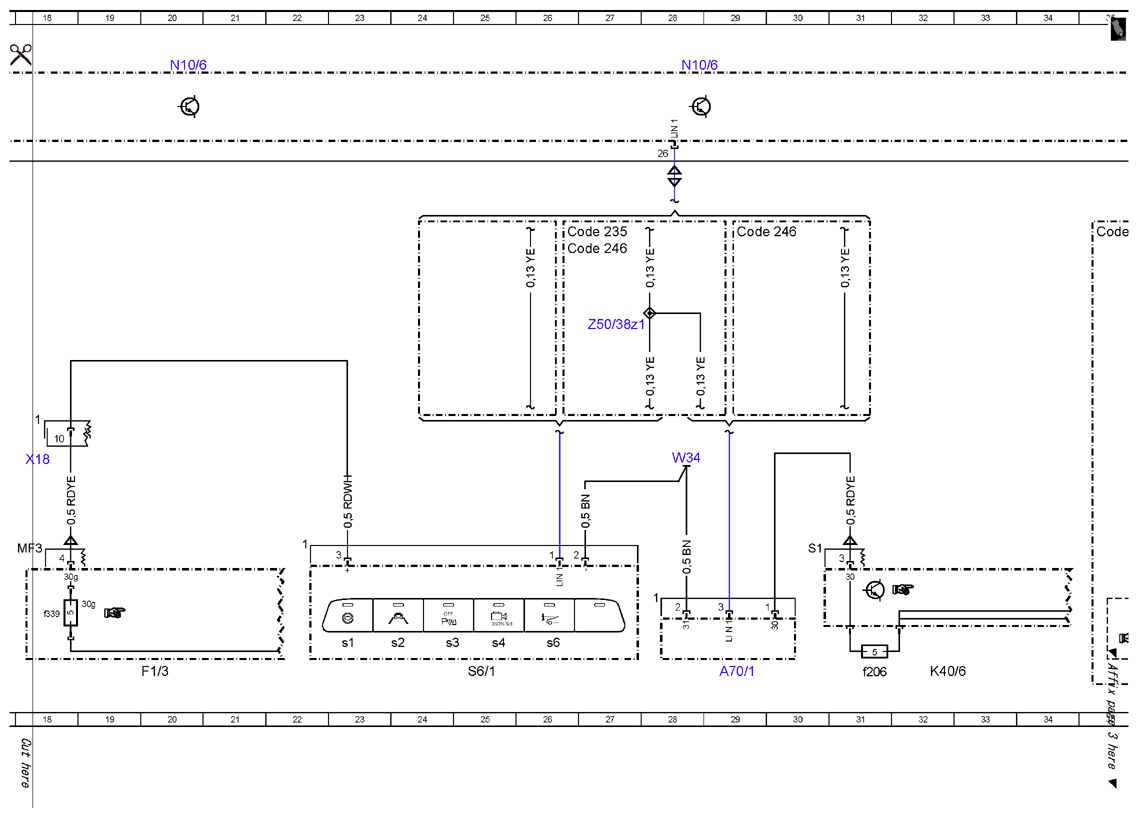

| A70/1 |
Analog clock |
29L |

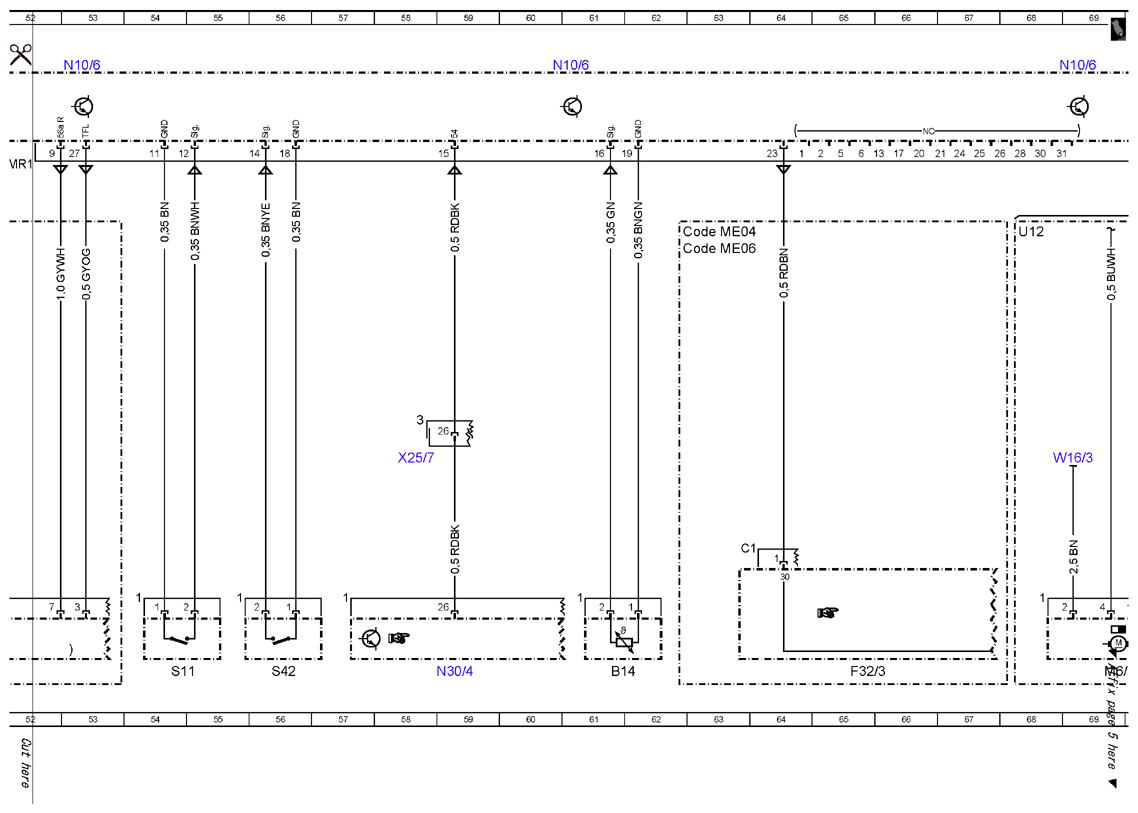

| B14 |
Outside temperature sensor |
61L |
| Code 235 |
Active Park Assist |
26D |
| Code 246 |
Analog clock |
26D |
| Code 246 |
Analog clock |
29D |

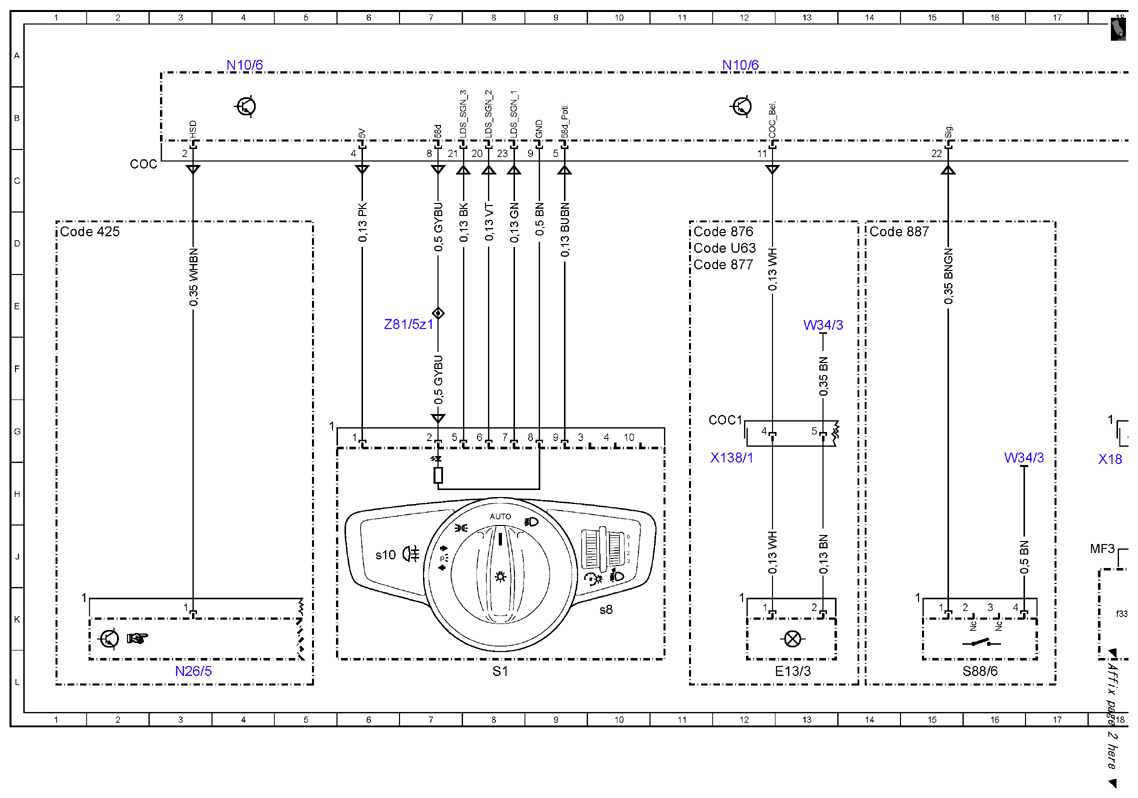

| Code 425 |
6-speed manual transmission |
1D |
| Code 460 |
Canada version |
46F |
| Code 460 |
Canada version |
95D |
| Code 460 |
Canada version |
87D |
| Code 494 |
USA version |
46G |
| Code 494 |
USA version |
95D |
| Code 494 |
USA version |
87D |
| Code 631 |
Static LED headlamp, left-hand traffic |
91D |
| Code 632 |
Static LED headlamp, right-hand traffic |
91D |
| Code 640 |
High Performance LED |
81D |
| Code 641 |
Dynamic LED headlamps, left-hand traffic |
81D |
| Code 642 |
Dynamic LED headlamps, right-hand traffic |
81D |

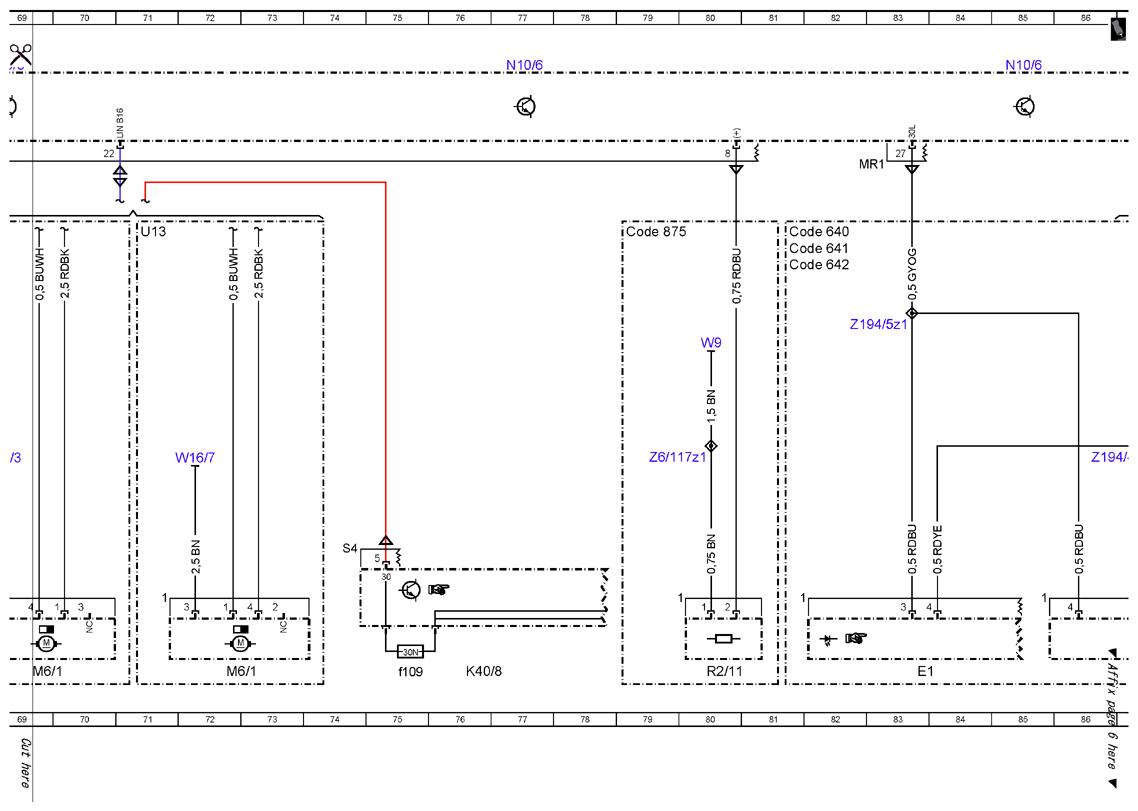

| Code 875 |
Heated windshield washer system |
79D |
| Code 876 |
Interior lights package |
11D |
| Code 877 |
Ambiance illumination |
11D |
| Code 887 |
Valet parking |
14D |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
62D |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
62D |
| Code P21 |
AIR-BALANCE package |
35D |
| Code U63 |
Driving school package |
11D |
| E1 |
Left front lamp unit |
46L |
| E1 |
Left front lamp unit |
83L |
| E1 |
Left front lamp unit |
93L |

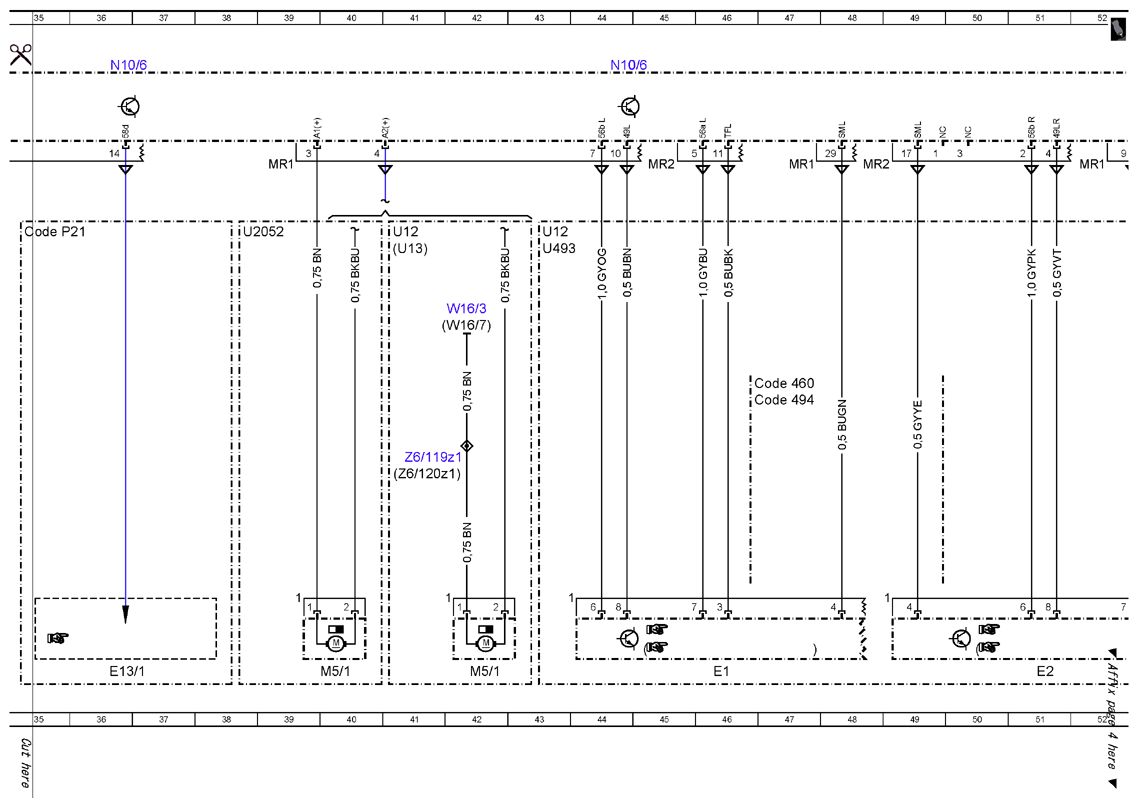

| E13/1 |
Glove box lamp |
36L |
| E13/3 |
Stowage compartment illumination |
13L |
| E2 |
Right front lamp unit |
51L |
| E2 |
Right front lamp unit |
88L |
| E2 |
Right front lamp unit |
97L |
| F1/3 |
Right A-pillar fuse box |
20L |
| F1/3f339 |
Fuse 339 |
18K |
| F32/3 |
Engine compartment prefuse box |
65L |
| K40/6 |
Left fuse and relay module |
32L |
| K40/6f206 |
Fuse 206 |
31L |
| K40/8 |
Engine fuse and relay module |
76L |
| K40/8 |
Engine fuse and relay module |
106L |
| K40/8f109 |
Fuse 109 |
75L |
| M5/1 |
Windshield washer system pump |
42L |
| M5/1 |
Windshield washer system pump |
40L |
| M6/1 |
Wiper motor |
69L |
| M6/1 |
Wiper motor |
72L |
| N10/6 |
Front SAM control unit |
4A |
| N10/6 |
Front SAM control unit |
12A |
| N10/6 |
Front SAM control unit |
20A |
| N10/6 |
Front SAM control unit |
28A |
| N10/6 |
Front SAM control unit |
36A |
| N10/6 |
Front SAM control unit |
44A |
| N10/6 |
Front SAM control unit |
53A |
| N10/6 |
Front SAM control unit |
61A |
| N10/6 |
Front SAM control unit |
69A |
| N10/6 |
Front SAM control unit |
77A |
| N10/6 |
Front SAM control unit |
85A |
| N10/6 |
Front SAM control unit |
93A |
| N10/6 |
Front SAM control unit |
101A |
| N10/6 |
Front SAM control unit |
107A |
| N26/5 |
Electric steering lock control unit |
3L |
| N30/4 |
Electronic Stability Program control unit |
59L |
| R2/11 |
Spray nozzle hose heater |
80L |
| S1 |
Exterior lights switch |
8L |

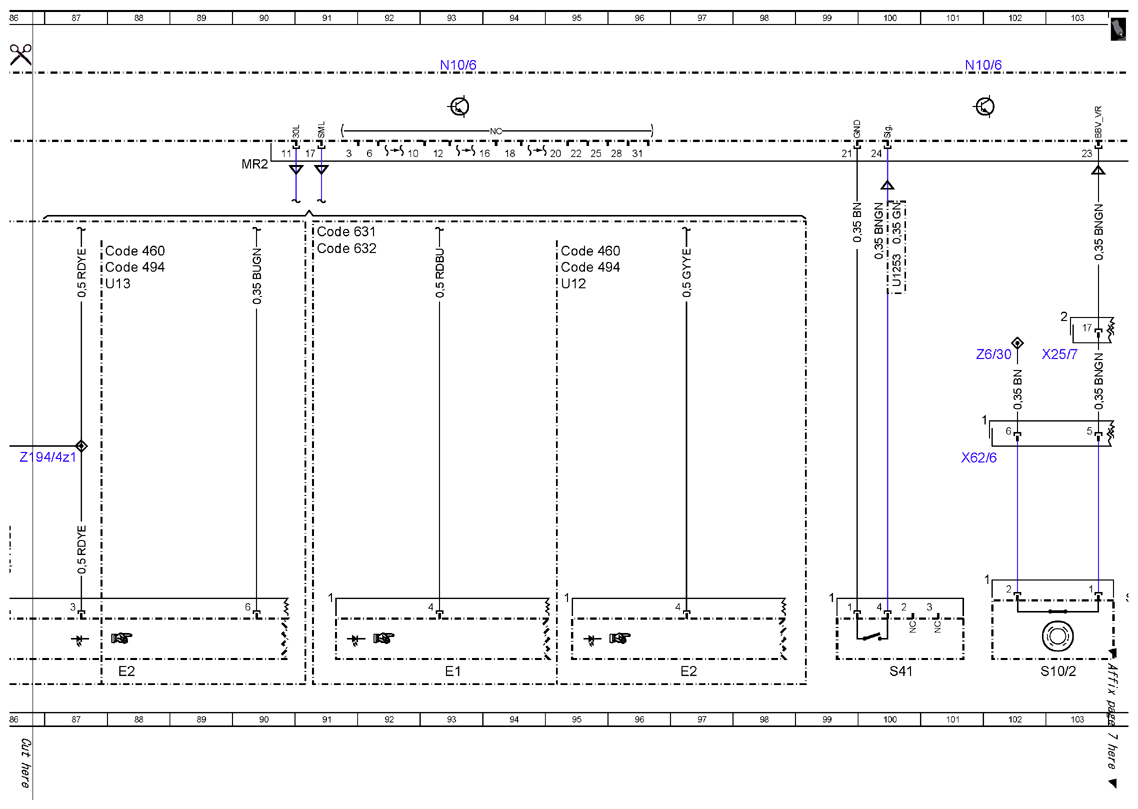

| S10/2 |
Right front brake wear sensor |
103L |
| S11 |
Brake fluid level switch |
54L |
| S1s10 |
Rear fog light button |
6J |
| S1s8 |
Headlamp range controller |
10K |
| S41 |
Coolant level switch |
100L |
| S42 |
Windshield washer system washer fluid level switch |
56L |
| S6/1 |
Driver-side instrument panel button group |
25L |
| S6/1s1 |
Steer Assist button |
23K |
| S6/1s2 |
Active Lane Keeping Assist button |
24K |
| S6/1s3 |
Parking system button |
24K |
| S6/1s4 |
360° camera button |
25K |
| S6/1s6 |
Head-up display button |
26K |
| S88/6 |
Separate trunk lid lock switch |
16L |
| U12 |
Valid for left-hand drive vehicles |
41D |
| U12 |
Valid for left-hand drive vehicles |
43D |
| U12 |
Valid for left-hand drive vehicles |
68D |
| U12 |
Valid for left-hand drive vehicles |
95E |
| U13 |
Valid for right-hand drive vehicles |
41D |
| U13 |
Valid for right-hand drive vehicles |
71D |
| U13 |
Valid for right-hand drive vehicles |
87E |
| U2030 |
Valid for auxiliary oil pump |
108D |
| U2052 |
Valid for model 205.2 |
38D |
| U493 |
Valid for halogen lamp unit |
43D |
| W16/3 |
Left major assembly compartment ground point |
42E |
| W16/3 |
Left major assembly compartment ground point |
69H |
| W16/7 |
Right major assembly compartment electronics ground point |
42E |
| W16/7 |
Right major assembly compartment electronics ground point |
72H |
| W34 |
Left footwell ground point |
28H |
| W34/3 |
Right footwell ground point |
16H |
| W34/3 |
Right footwell ground point |
13E |
| W9 |
Left front ground point (at lamp unit) |
80F |
| X138/1 |
Front center console electrical connector |
12H |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
18H |
| X25/7 |
Engine compartment/frame floor assembly electrical connector |
58H |
| X25/7 |
Engine compartment/frame floor assembly electrical connector |
103F |
| X62/6 |
Front axle electrical connector, right distributor |
101H |
| Z194/4z1 |
Left front lamp unit circuit 30 connector sleeve |
87G |
| Z194/5z1 |
Right front lamp unit circuit 30 connector sleeve |
83E |
| Z50/38z1 |
Instrument panel LIN connector sleeve |
27E |
| Z6/117z1 |
Left front ground point connector sleeve (on lamp unit) |
79G |
| Z6/119z1 |
Left engine ground connection connector sleeve |
41G |
| Z6/120z1 |
Right engine ground connection connector sleeve |
41H |
| Z6/30 |
Circuit 31 connector sleeve |
102F |
| Z81/5z1 |
Circuit 58d connector sleeve |
7E |
