| A0 |
Use of wiring diagrams |
96L |
| A2/18 |
FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier |
30L |
| A40/13 |
Stereo multifunction camera |
78L |
| A80 |
Intelligent servo module for DIRECT SELECT |
34L |
| A89 |
DISTRONIC electric controller unit |
69L |

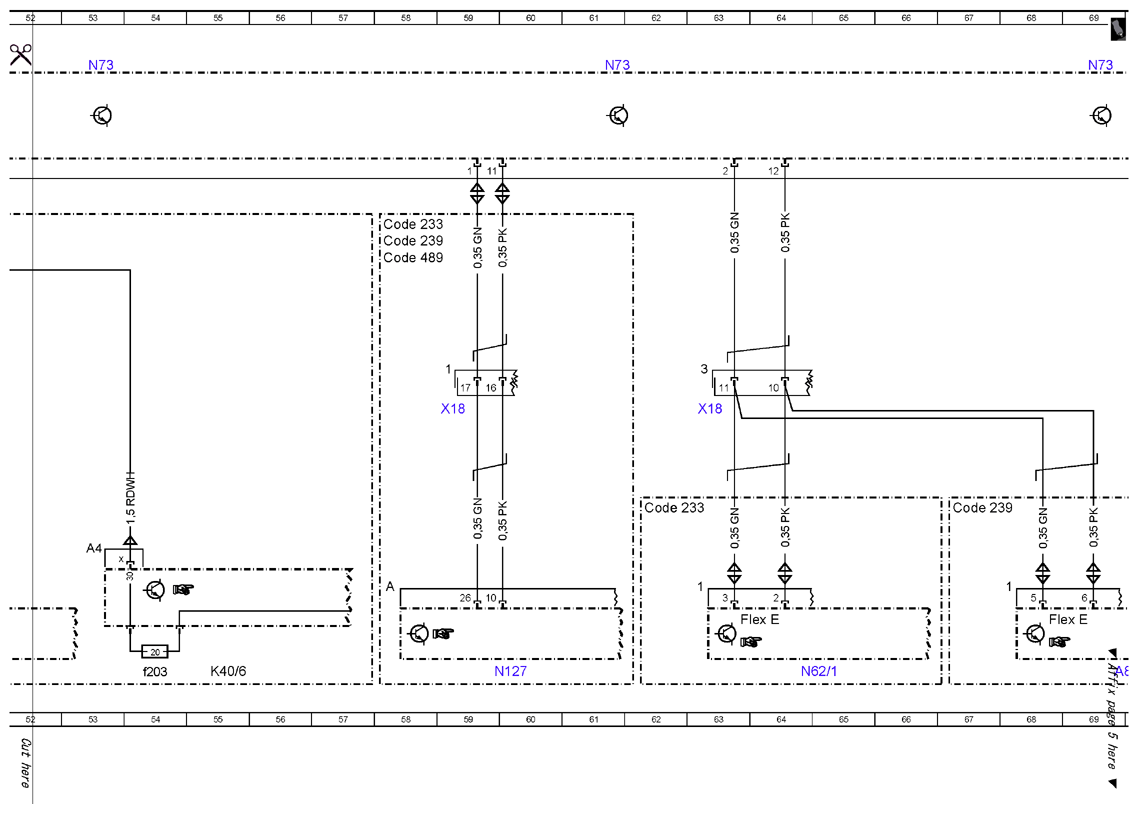

| Code 233 |
AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS |
62H |
| Code 233 |
AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS |
58D |

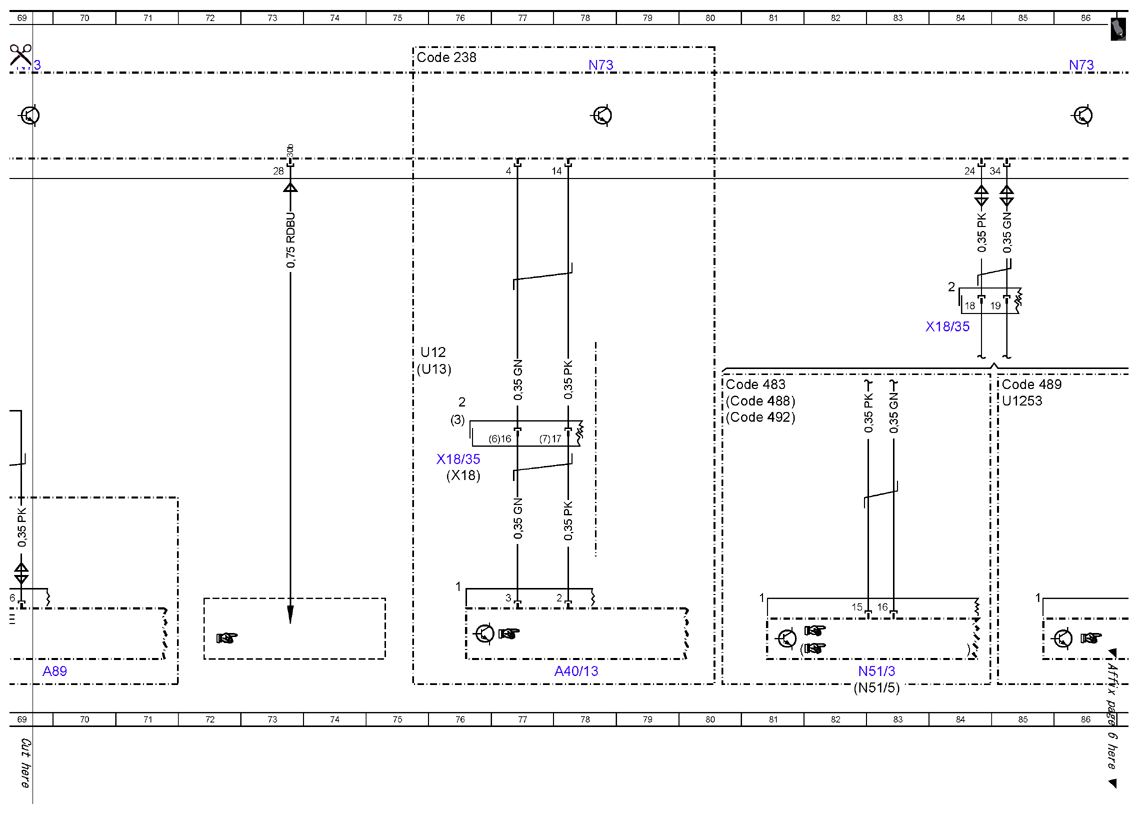

| Code 238 |
Active Lane Keeping Assist |
75A |
| Code 239 |
DISTRONIC PLUS |
67H |
| Code 239 |
DISTRONIC PLUS |
58D |
| Code 348 |
Emergency call/assistance system |
12H |

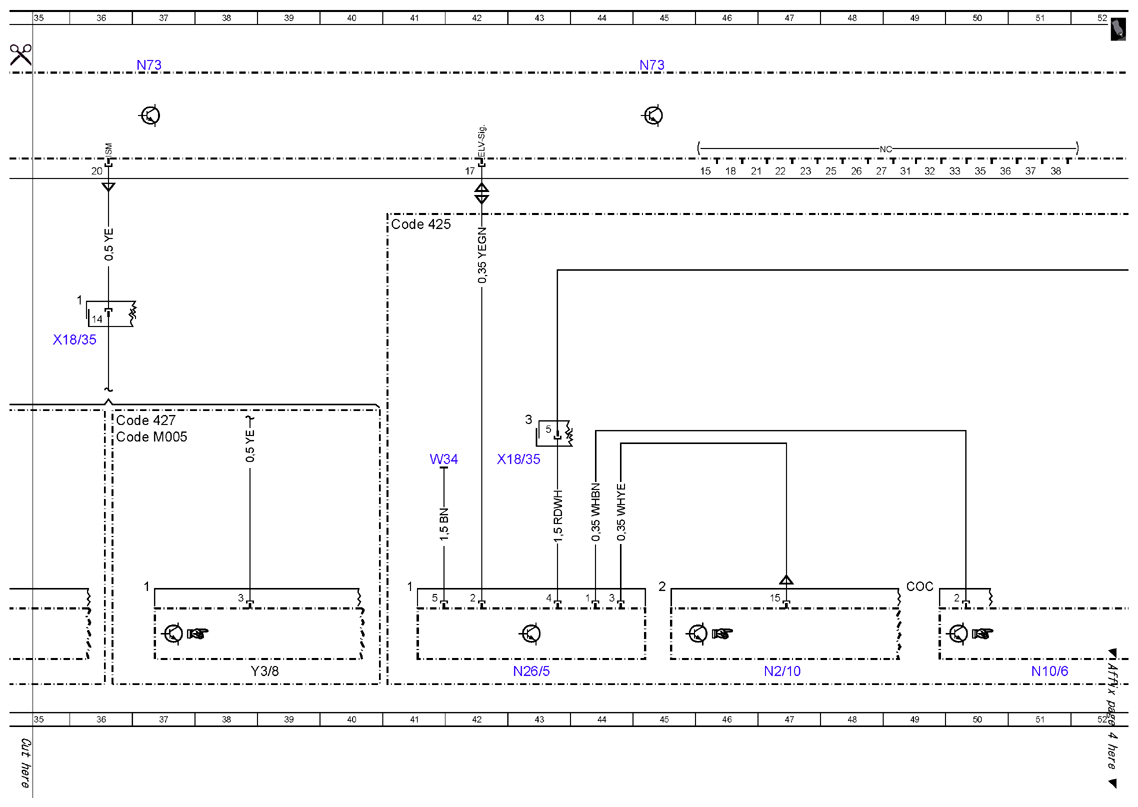

| Code 425 |
6-speed manual transmission |
41D |
| Code 427 |
7G-TRONIC PLUS automatic transmission |
32G |
| Code 427 |
7G-TRONIC PLUS automatic transmission |
36G |
| Code 483 |
Dynamic handling package 2.0 incl. ADS+ |
80F |
| Code 488 |
Chassis with steel/air suspension |
80G |
| Code 489 |
AIR BODY CONTROL |
85F |
| Code 489 |
AIR BODY CONTROL |
58D |
| Code 492 |
AMG Performance suspension |
80G |
| Code 9U1 |
ECALL RUSSIA (GLONASS) preinstallation |
12J |
| Code 9U1 |
ECALL RUSSIA (GLONASS) preinstallation |
9D |
| Code B54 |
Live Traffic Information |
12H |
| Code E64 |
ECALL RUSSIA (GLONASS) |
12J |
| Code E64 |
ECALL RUSSIA (GLONASS) |
9D |
| Code M005 |
VEHICLES WITH 4MATIC/ALL-WHEEL DRIVE |
36G |
| Flex E |
Chassis FlexRay |
7K |
| Flex E |
Chassis FlexRay |
63K |
| Flex E |
Chassis FlexRay |
68K |

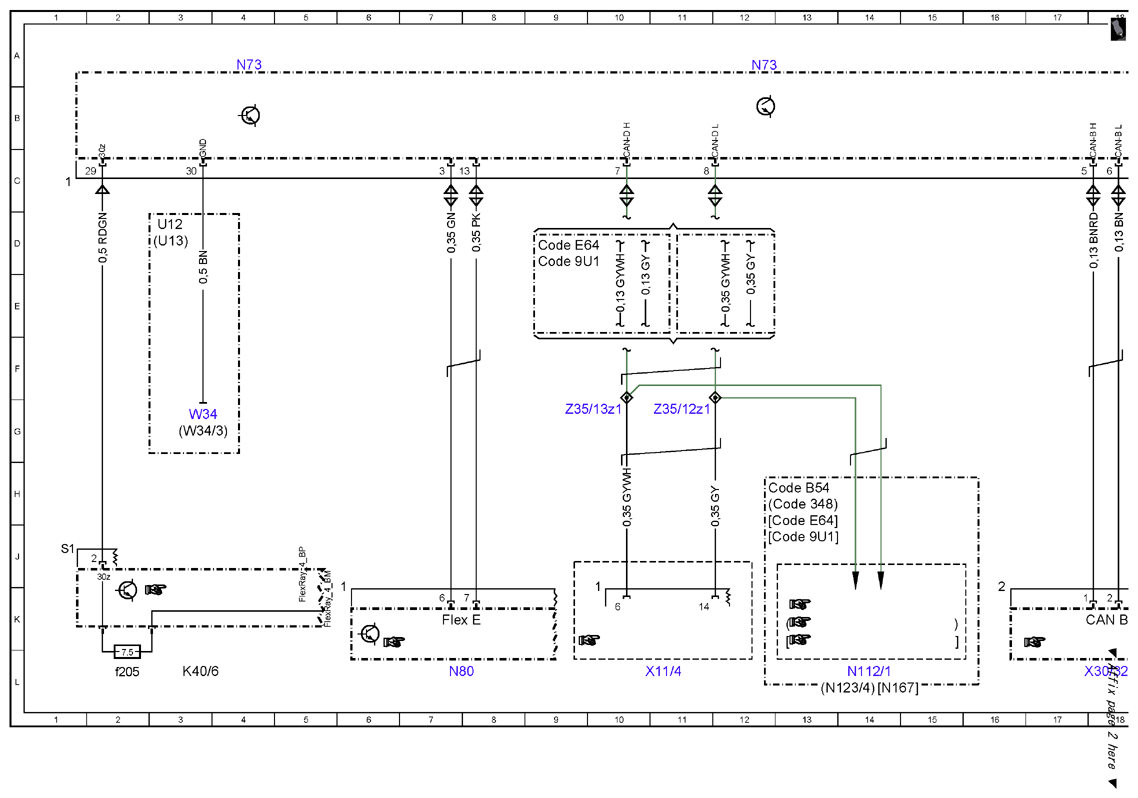

| K40/6 |
Left fuse and relay module |
3L |
| K40/6 |
Left fuse and relay module |
55L |
| K40/6f203 |
Fuse 203 |
54L |
| K40/6f205 |
Fuse 205 |
2L |
| N10/6 |
Front SAM control unit |
51L |
| N112/1 |
Telematics services communication module |
14L |
| N123/4 |
Emergency call system control unit |
13L |
| N127 |
Drivetrain control unit |
60L |
| N167 |
E-Call Russia (GLONASS) control unit |
14L |
| N2/10 |
Supplemental restraint system control unit |
47L |
| N26/5 |
Electric steering lock control unit |
43L |
| N51/3 |
AIR BODY CONTROL control unit |
87L |
| N51/3 |
AIR BODY CONTROL control unit |
83L |
| N51/5 |
Adaptive damping system control unit |
82L |
| N62/1 |
Radar sensors control unit |
64L |
| N69/1 |
Left front door control unit |
22L |
| N69/2 |
Right front door control unit |
22L |

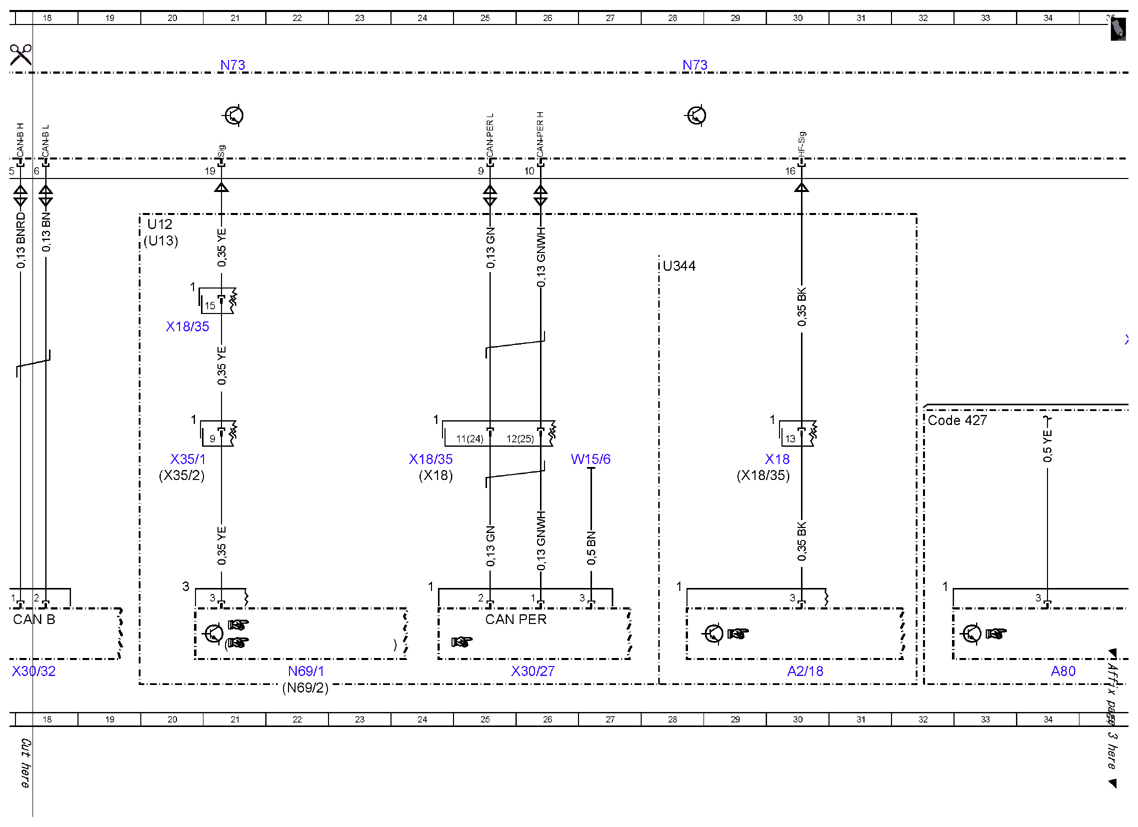

| N73 |
Electronic ignition switch control unit |
4A |
| N73 |
Electronic ignition switch control unit |
12A |
| N73 |
Electronic ignition switch control unit |
21A |
| N73 |
Electronic ignition switch control unit |
28A |
| N73 |
Electronic ignition switch control unit |
37A |
| N73 |
Electronic ignition switch control unit |
45A |
| N73 |
Electronic ignition switch control unit |
53A |
| N73 |
Electronic ignition switch control unit |
61A |
| N73 |
Electronic ignition switch control unit |
69A |
| N73 |
Electronic ignition switch control unit |
78A |
| N73 |
Electronic ignition switch control unit |
86A |
| N80 |
Steering column module control unit |
7L |
| U12 |
Valid for left-hand drive vehicles |
3D |
| U12 |
Valid for left-hand drive vehicles |
20D |
| U12 |
Valid for left-hand drive vehicles |
75F |
| U1253 |
Valid for model 253 |
85G |
| U13 |
Valid for right-hand drive vehicles |
3D |
| U13 |
Valid for right-hand drive vehicles |
20D |
| U13 |
Valid for right-hand drive vehicles |
75F |
| U344 |
Not valid for KEYLESS GO |
28D |
| W15/6 |
Left front footwell ground point (CAN) |
27H |
| W34 |
Left footwell ground point |
3G |
| W34 |
Left footwell ground point |
41H |
| W34/3 |
Right footwell ground point |
3G |
| X11/4 |
Diagnostic connector |
11L |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
24H |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
30H |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
59G |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
63G |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
76H |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
24H |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
29H |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
43H |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
20E |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
36F |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
76H |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
84E |

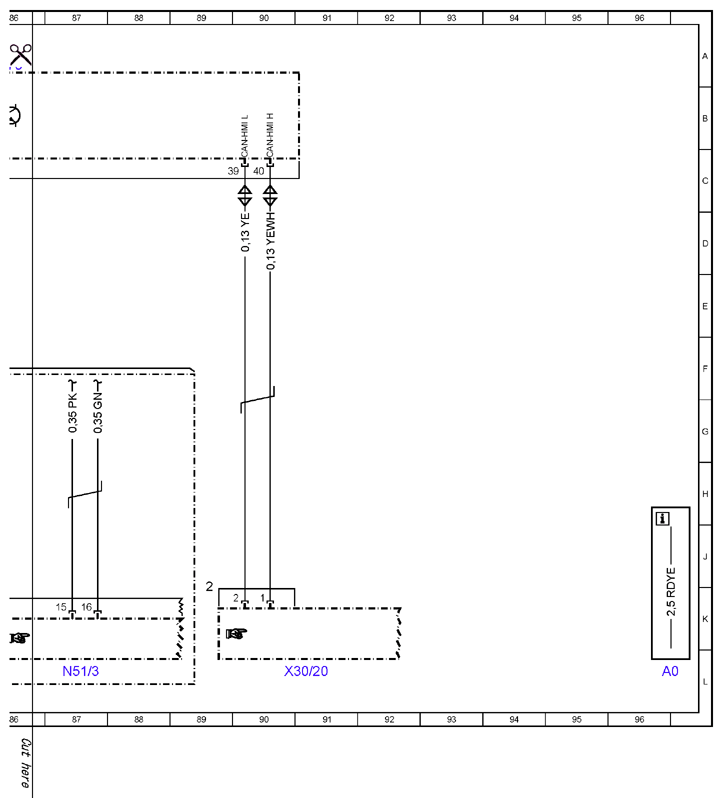

| X30/20 |
User interface CAN (CAN HMI) potential distributor electrical connector |
91L |
| X30/27 |
Peripherals CAN (CAN PER) potential distributor electrical connector |
26L |
| X30/32 |
Left interior CAN (CAN B) potential distributor electrical connector |
18L |
| X35/1 |
Left front door electrical connector |
20H |
| X35/2 |
Right front door electrical connector |
20H |
| Y3/8 |
Fully integrated transmission control unit |
39L |
| Z35/12z1 |
Diagnostic CAN (CAN D) low connector sleeve |
11G |
| Z35/13z1 |
Diagnostic CAN (CAN D) high connector sleeve |
10G |
