| A0 |
Use of wiring diagrams |
40L |
| A44/3 |
Rear parking system indicator |
6L |
| B8/1 |
Outer left front parking system distance sensor |
30L |
| B8/10 |
Outer left rear parking system distance sensor |
13L |
| B8/11 |
Center left rear parking system distance sensor |
8L |
| B8/12 |
Center right rear parking system distance sensor |
16L |
| B8/2 |
Center left front parking system distance sensor |
35L |
| B8/3 |
Inner left front parking system distance sensor |
32L |
| B8/4 |
Inner right front parking system distance sensor |
37L |
| B8/5 |
Center right front parking system distance sensor |
33L |
| B8/6 |
Outer right front parking system distance sensor |
38L |
| B8/7 |
Outer right rear parking system distance sensor |
11L |
| B8/8 |
Inner right rear parking system distance sensor |
10L |
| B8/9 |
Inner left rear parking system distance sensor |
15L |
| Code 233 |
AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS |
21D |
| Code 235 |
Active Park Assist |
24D |
| Code 489 |
AIRMATIC |
21D |
| F1/3 |
Right A-pillar fuse box |
3L |
| F1/3f323 |
Electrical fuse 323 |
2L |
| Flex E |
Chassis FlexRay |
26K |
| N127 |
Drivetrain control unit |
19L |
| N30/4 |
Electronic Stability Program control unit |
26L |
| N30/4 |
Electronic Stability Program control unit |
26L |

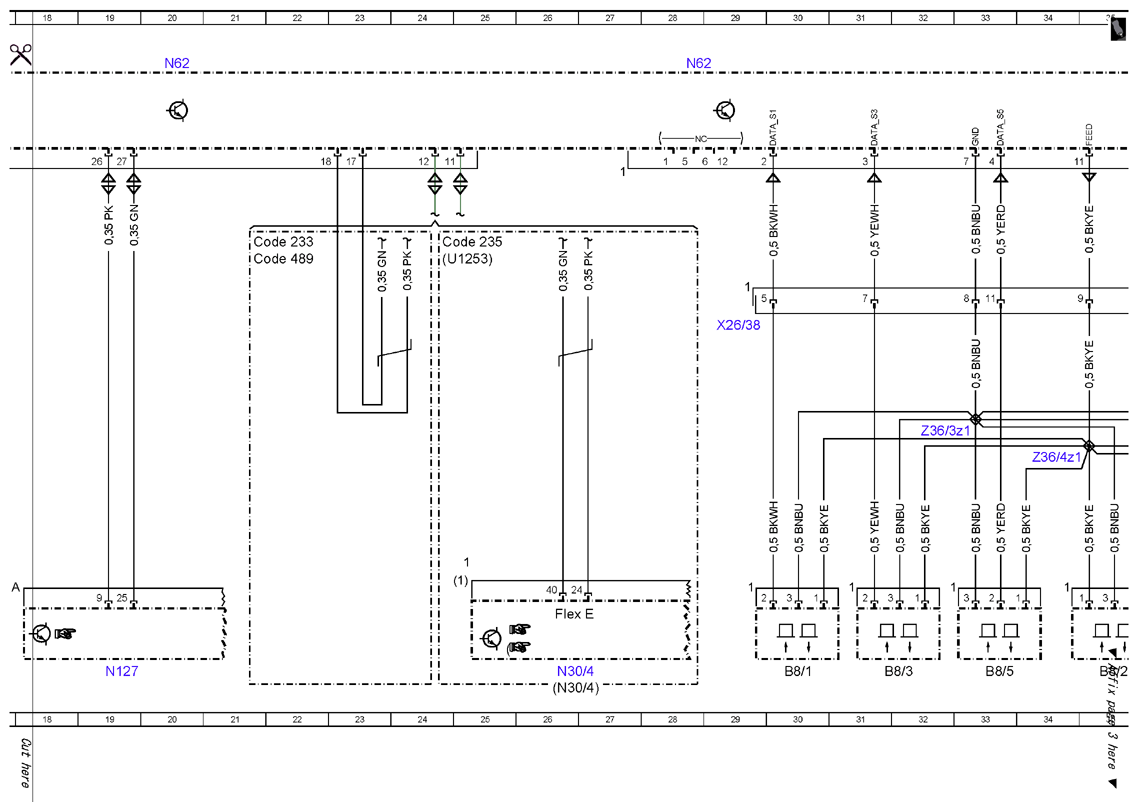

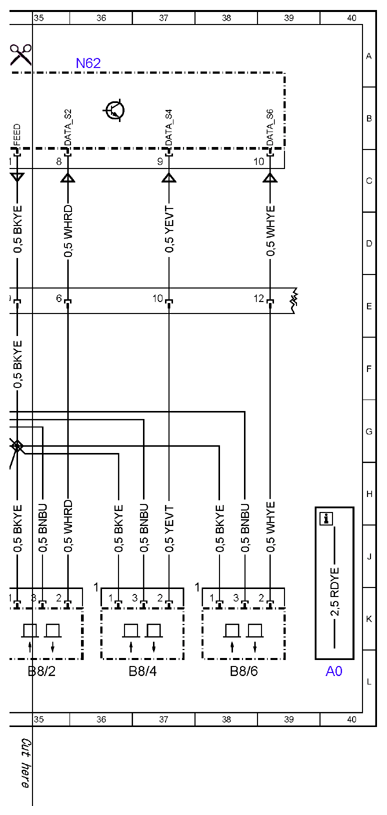

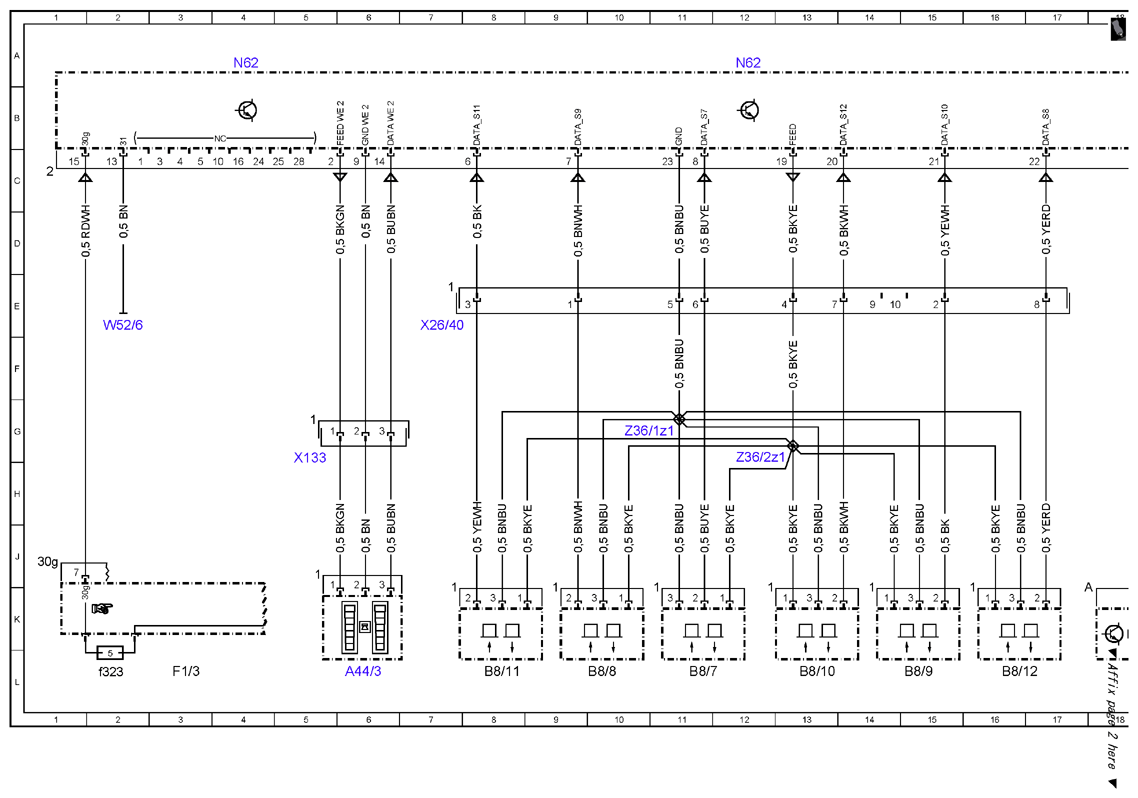

| N62 |
Parking system control unit |
4A |
| N62 |
Parking system control unit |
12A |
| N62 |
Parking system control unit |
20A |
| N62 |
Parking system control unit |
28A |
| N62 |
Parking system control unit |
36A |
| U1253 |
Valid for model 253 |
24D |
| W52/6 |
Right center longitudinal member ground point |
2E |
| X133 |
Roof/vehicle interior electrical connector |
5H |
| X26/38 |
Front bumper and frame wiring harness electrical connector |
29E |
| X26/40 |
Rear frame floor assembly/bumper electrical connector |
7E |
| Z36/1z1 |
Rear parking system sensors ground line connector sleeve |
10G |
| Z36/2z1 |
Rear parking system sensors power supply connector sleeve |
12G |
| Z36/3z1 |
Front parking system sensors ground line connector sleeve |
32G |
| Z36/4z1 |
Front parking system sensors positive line connector sleeve |
34G |
