| A0 |
Use of wiring diagrams |
32L |
| CAN AMG |
AMG CAN |
22K |
| CAN C1 |
Drive train CAN |
7K |
| CAN H |
Vehicle dynamics CAN |
15K |
| CAN H |
Vehicle dynamics CAN |
11K |
| CAN HMI |
User interface CAN |
18K |
| K40/5 |
Rear fuse and relay module |
4L |
| K40/5f459 |
Fuse 459 |
3L |
| N2/10 |
Supplemental restraint system control unit |
15L |

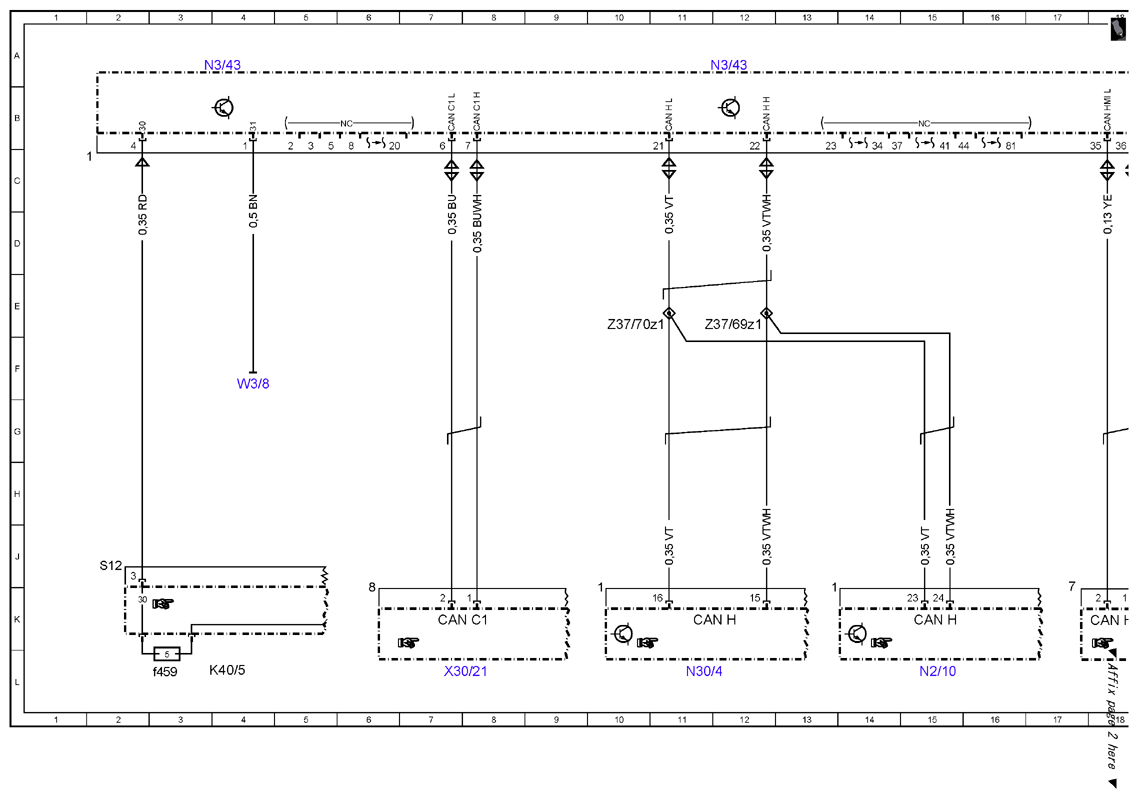

| N3/43 |
AMG suspension control unit |
4A |
| N3/43 |
AMG suspension control unit |
12A |
| N3/43 |
AMG suspension control unit |
20A |
| N30/4 |
Electronic Stability Program control unit |
11L |
| W3/8 |
Right rear wheel well ground point |
4F |

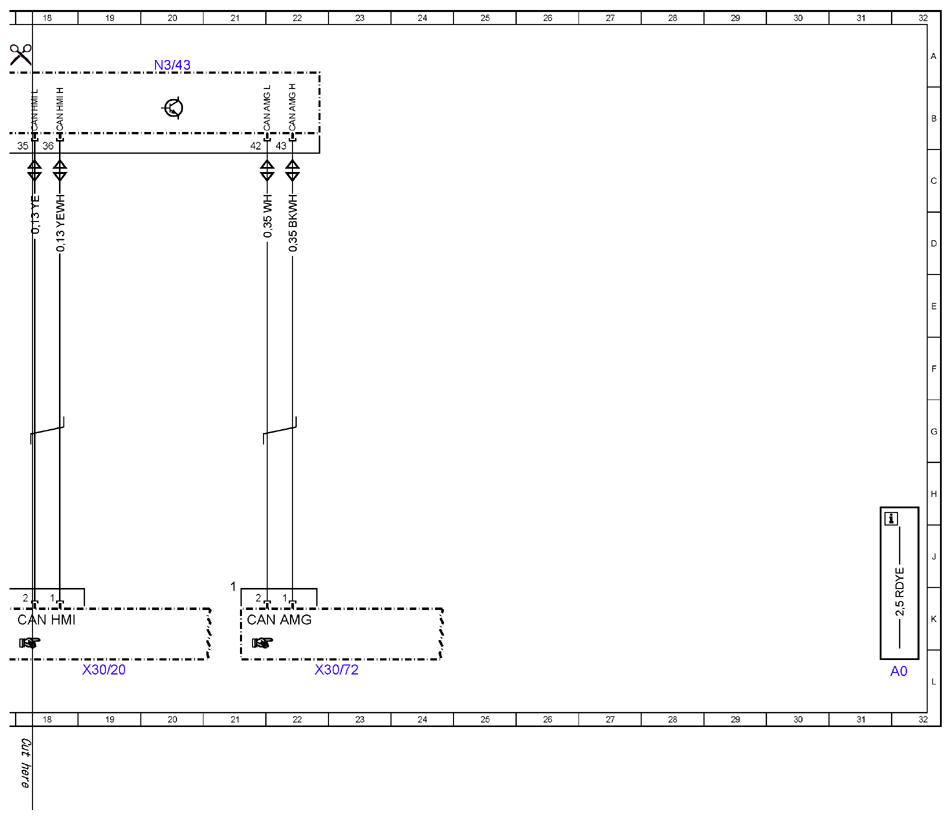

| X30/20 |
User interface CAN (CAN HMI) potential distributor electrical connector |
19L |
| X30/21 |
Drive train CAN (CAN C1) potential distributor electrical connector |
7L |
| X30/72 |
AMG CAN potential distributor electrical connector |
22L |
| Z37/69z1 |
Vehicle dynamics CAN (high) connector sleeve |
12E |
| Z37/70z1 |
Vehicle dynamics CAN (low) connector sleeve |
10E |
