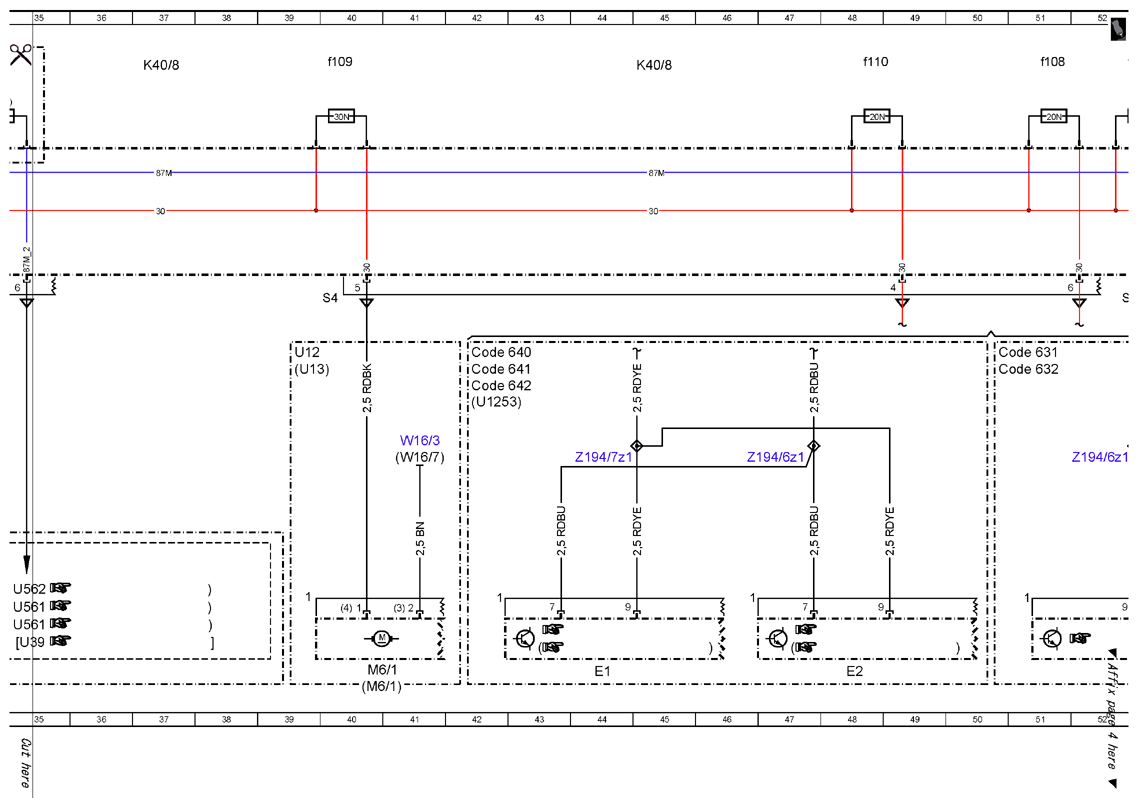

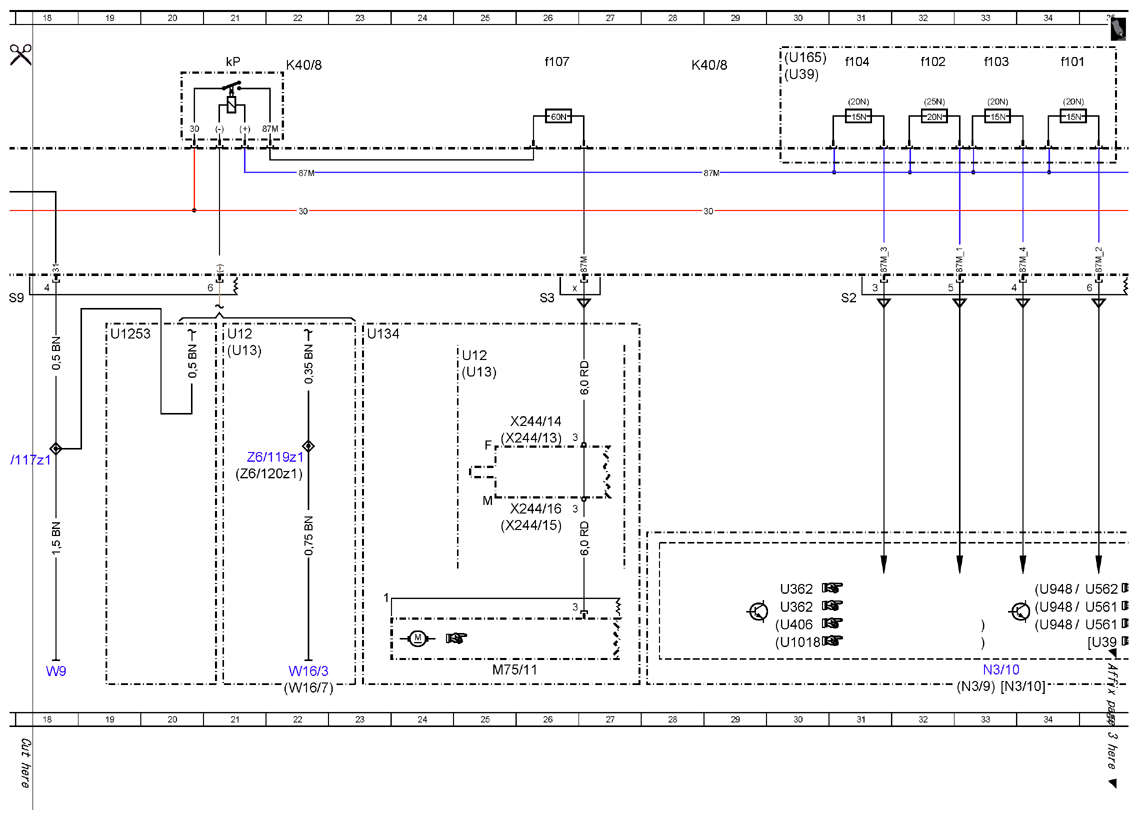

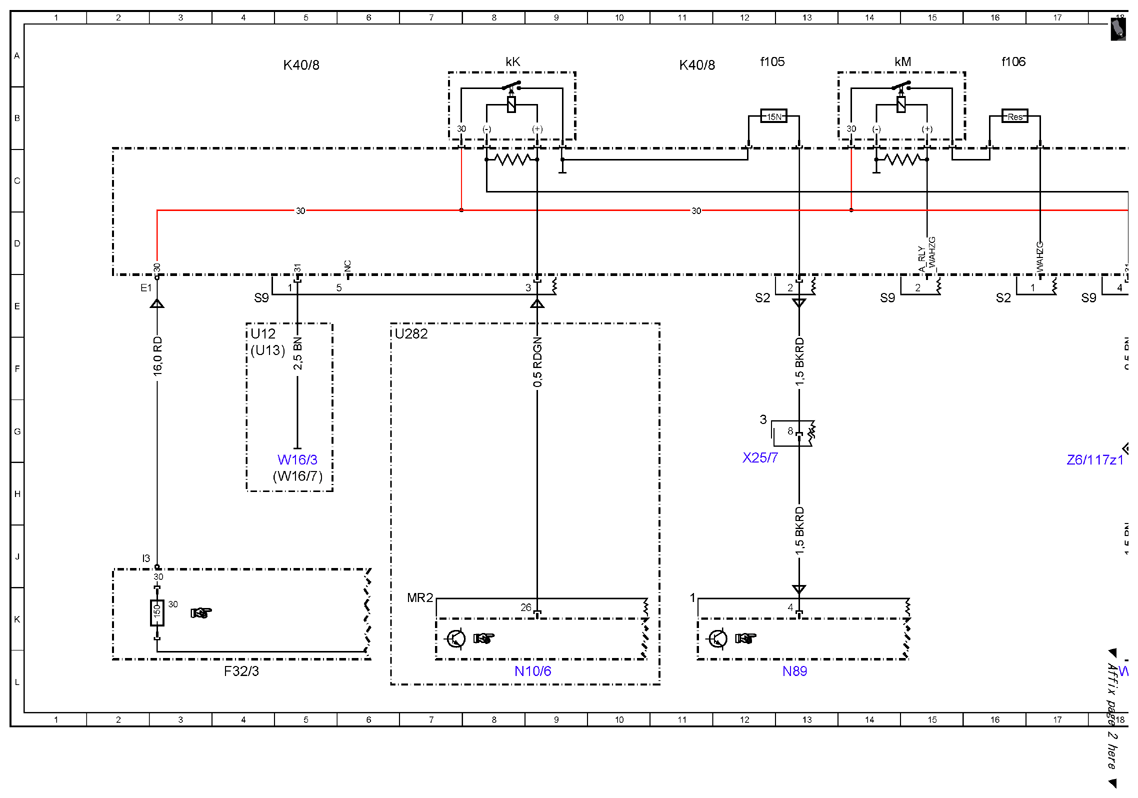

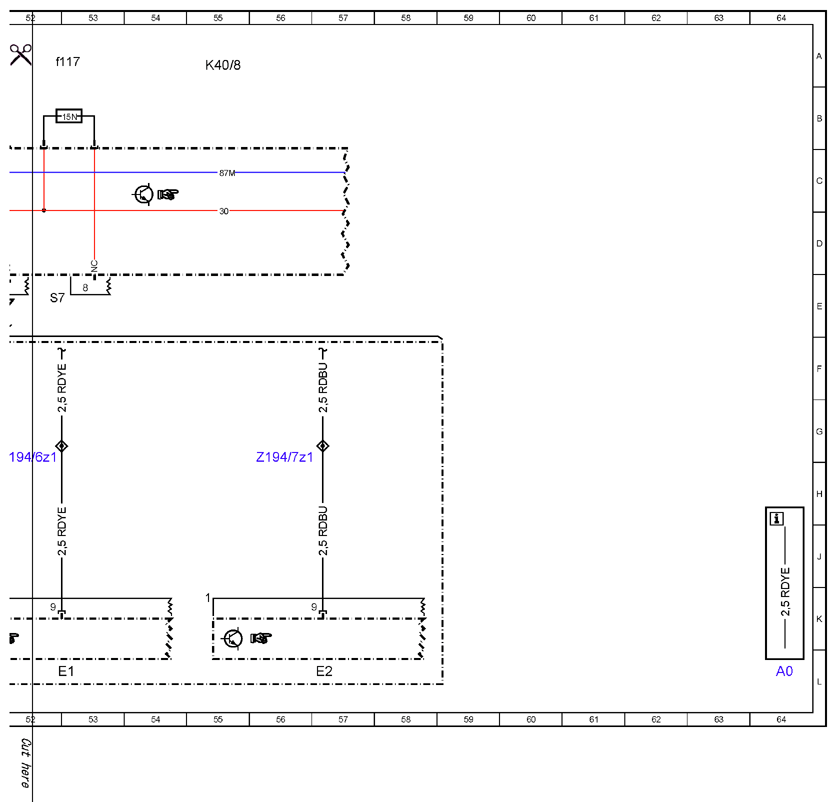

| A0 |
Use of wiring diagrams |
64L |
| Code 631 |
Static LED headlamp, left-hand traffic |
50F |
| Code 632 |
Static LED headlamp, right-hand traffic |
50F |
| Code 640 |
High Performance LED |
42F |
| Code 641 |
Dynamic LED headlamps, left-hand traffic |
42F |
| Code 642 |
Dynamic LED headlamps, right-hand traffic |
42F |
| E1 |
Left front lamp unit |
44L |
| E1 |
Left front lamp unit |
53L |
| E2 |
Right front lamp unit |
48L |
| E2 |
Right front lamp unit |
57L |
| F32/3 |
Engine compartment prefuse box |
4L |
| K40/8 |
Engine fuse and relay module |
22A |
| K40/8 |
Engine fuse and relay module |
5A |
| K40/8 |
Engine fuse and relay module |
11A |
| K40/8 |
Engine fuse and relay module |
55A |
| K40/8 |
Engine fuse and relay module |
37A |
| K40/8 |
Engine fuse and relay module |
28A |
| K40/8 |
Engine fuse and relay module |
45A |
| K40/8f101 |
Fuse 101 |
34A |
| K40/8f102 |
Fuse 102 |
32A |
| K40/8f103 |
Fuse 103 |
33A |
| K40/8f104 |
Fuse 104 |
31A |
| K40/8f105 |
Fuse 105 |
12A |
| K40/8f106 |
Fuse 106 |
16A |
| K40/8f107 |
Fuse 107 |
26A |
| K40/8f108 |
Fuse 108 |
51A |
| K40/8f109 |
Fuse 109 |
40A |
| K40/8f110 |
Fuse 110 |
48A |
| K40/8f117 |
Fuse 117 |
52A |
| K40/8kK |
Oil pump relay |
8A |
| K40/8kM |
Wiper park position heater relay |
14A |
| K40/8kP |
Coolant pump relay |
21A |
| M6/1 |
Wiper motor |
40L |
| M6/1 |
Wiper motor |
40L |
| M75/11 |
Electric coolant pump |
25L |
| N10/6 |
Front SAM control unit |
8L |
| N3/10 |
ME-SFI [ME] control unit |
33L |
| N3/10 |
ME-SFI [ME] control unit |
33L |
| N3/9 |
CDI control unit |
33L |
| N89 |
Transmission oil auxiliary oil pump control unit |
13L |
| U1018 |
Valid for gasoline engine 276 |
30K |
| U12 |
Valid for left-hand drive vehicles |
39F |
| U12 |
Valid for left-hand drive vehicles |
4F |
| U12 |
Valid for left-hand drive vehicles |
21F |
| U12 |
Valid for left-hand drive vehicles |
25F |
| U1253 |
Valid for model 253 |
42G |
| U1253 |
Valid for model 253 |
19F |
| U13 |
Valid for right-hand drive vehicles |
39F |
| U13 |
Valid for right-hand drive vehicles |
4F |
| U13 |
Valid for right-hand drive vehicles |
21F |
| U13 |
Valid for right-hand drive vehicles |
25F |
| U134 |
Not valid for M274 (175 kW) |
23F |
| U165 |
Valid for AMG |
30A |
| U282 |
Valid for trunk lid/remote liftgate closing |
6F |
| U362 |
Valid for gasoline engine 274 |
30K |
| U362 |
Valid for gasoline engine 274 |
30K |
| U39 |
Valid for gasoline engine 177 |
35K |
| U39 |
Valid for gasoline engine 177 |
30A |
| U406 |
Valid for diesel engine 626 |
30K |
| U561 |
Valid for Delphi system |
35K |
| U561 |
Valid for Delphi system |
35K |
| U562 |
Valid for Bosch system |
35K |
| U948 |
Valid for diesel engine 651 |
34K |
| U948 |
Valid for diesel engine 651 |
34K |
| W16/3 |
Left major assembly compartment ground point |
41G |
| W16/3 |
Left major assembly compartment ground point |
5H |
| W16/3 |
Left major assembly compartment ground point |
22L |
| W16/7 |
Right major assembly compartment electronics ground point |
41G |
| W16/7 |
Right major assembly compartment electronics ground point |
5H |
| W16/7 |
Right major assembly compartment electronics ground point |
22L |
| W9 |
Left front ground point (at lamp unit) |
18L |
| X244/13 |
Left vehicle-end busbar stud 3 |
26G |
| X244/14 |
Right vehicle-end busbar stud 3 |
26G |
| X244/15 |
Left engine-end busbar stud 3 |
26J |
| X244/16 |
Right engine-end busbar stud 3 |
26H |
| X25/7 |
Engine compartment/frame floor assembly electrical connector |
12H |
| Z194/6z1 |
Left position lamp connector sleeve |
47G |
| Z194/6z1 |
Left position lamp connector sleeve |
52G |
| Z194/7z1 |
Right position lamp connector sleeve |
44G |
| Z194/7z1 |
Right position lamp connector sleeve |
56G |
| Z6/117z1 |
Left front ground point connector sleeve (on lamp unit) |
18H |
| Z6/119z1 |
Left engine ground connection connector sleeve |
22G |
| Z6/120z1 |
Right engine ground connection connector sleeve |
22H |
