Wiring diagram of engine compartment fuse and relay box - PE54.15-P-2106-97FBA

Code: Designation: Position:
A0 Use of wiring diagrams 137L
A9/1 AIR BODY CONTROL compressor 18L
A9/1 AIR BODY CONTROL compressor 18L
A9/1m1 Electric motor 20L
B37 Accelerator pedal sensor 89L
Code 483 Dynamic handling package 2.0 incl. ADS+ 7F
Code 483 Dynamic handling package 2.0 incl. ADS+ 16F
Code 489 AIR BODY CONTROL 16F
Code 489 AIR BODY CONTROL 12F
Code B03 ECO start/stop function 79J
Code B03 ECO start/stop function 69J
Code ME04 Hybrid drive 20 KW VARIANT 33F
Code ME04 Hybrid drive 20 KW VARIANT 116F
Code ME05 HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) 29F
Code ME05 HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) 86F
Code ME06 Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) 33F
Code ME06 Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) 116F
Code ME06 Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) 86F
E1 Left front lamp unit 93L
E2 Right front lamp unit 93L
F32/3 Engine compartment prefuse box 4L
F32/3f3 Fuse 3 3K
F32/3f5 Fuse 5 2K
H2 Left fanfare horn 100L
H2/1 Right fanfare horn 95L
K40/8 Engine fuse and relay module 69A
K40/8 Engine fuse and relay module 4A
K40/8 Engine fuse and relay module 13A
K40/8 Engine fuse and relay module 21A
K40/8 Engine fuse and relay module 33A
K40/8 Engine fuse and relay module 29A
K40/8 Engine fuse and relay module 45A
K40/8 Engine fuse and relay module 53A
K40/8 Engine fuse and relay module 60A
K40/8 Engine fuse and relay module 77A
K40/8 Engine fuse and relay module 87A
K40/8 Engine fuse and relay module 93A
K40/8 Engine fuse and relay module 102A
K40/8 Engine fuse and relay module 109A
K40/8 Engine fuse and relay module 118A
K40/8 Engine fuse and relay module 128A
K40/8f100 Fuse 100 120A
K40/8f111 Fuse 111 84A
K40/8f112 Fuse 112 88A
K40/8f113 Fuse 113 85A
K40/8f114 Fuse 114 19A
K40/8f115 Fuse 115 100A
K40/8f116 Fuse 116 126A
K40/8f118 Fuse 118 112A
K40/8f119 Fuse 119 37A
K40/8f120 Fuse 120 36A
K40/8f121 Fuse 121 107A
K40/8f122 Fuse 122 22A
K40/8f123 Fuse 123 94A
K40/8f124 Fuse 124 95A
K40/8f125 Fuse 125 103A
K40/8f126 Fuse 126 73A
K40/8f127 Fuse 127 74A
K40/8f128 Fuse 128 92A
K40/8f129a Fuse 129a 90A
K40/8kG Engine compartment terminal 15 relay 105A
K40/8kH Starter circuit 50 relay 82A
K40/8kI Vacuum pump relay (+) 114A
K40/8kJ CPC relay 26A
K40/8kL Fanfare horn relay 96A
K40/8kN Circuit 87M relay 43A
K40/8kO Starter terminal 15 relay 39A
K40/8kQ Vacuum pump relay (-) 123A
K40/8kR AIR BODY CONTROL relay 12A
M1 Starter 84L
M56 Vacuum pump 121L
N10/6 Front SAM control unit 103L
N127 Drivetrain control unit 26L
N127 Drivetrain control unit 36L
N127 Drivetrain control unit 67L
N3/10 ME-SFI [ME] control unit 45L
N3/10 ME-SFI [ME] control unit 52L
N3/10 ME-SFI [ME] control unit 60L
N3/9 CDI control unit 41L
N3/9 CDI control unit 45L
N3/9 CDI control unit 52L
N3/9 CDI control unit 60L
N3/9 CDI control unit 75L
N30/4 Electronic Stability Program control unit 108L
N30/4 Electronic Stability Program control unit 108L
N30/4 Electronic Stability Program control unit 113L
N30/4 Electronic Stability Program control unit 118L
N30/4 Electronic Stability Program control unit 113L
N51/3 AIR BODY CONTROL control unit 14L
N51/3 AIR BODY CONTROL control unit 10L
R62 Voltage dip limiter 71L
R62 Voltage dip limiter 81L
U1018 Valid for gasoline engine 276 43F
U1018 Valid for gasoline engine 276 43K
U1018 Valid for gasoline engine 276 58K
U12 Valid for left-hand drive vehicles 48F
U12 Valid for left-hand drive vehicles 55F
U12 Valid for left-hand drive vehicles 3F
U12 Valid for left-hand drive vehicles 123F
U1253 Valid for model 253 12F
U1253 Valid for model 253 16F
U1253 Valid for model 253 21F
U1253 Valid for model 253 50F
U1253 Valid for model 253 57F
U1253 Valid for model 253 111F
U1253 Valid for model 253 73F
U13 Valid for right-hand drive vehicles 3F
U13 Valid for right-hand drive vehicles 48G
U13 Valid for right-hand drive vehicles 55G
U13 Valid for right-hand drive vehicles 123F
U165 Valid for AMG 106F
U165 Valid for AMG 34A
U165 Valid for AMG 36H
U2253 Not valid for model series 253 23F
U362 Valid for gasoline engine 274 51K
U362 Valid for gasoline engine 274 43J
U362 Valid for gasoline engine 274 58J
U362 Valid for gasoline engine 274 43F
U39 Valid for gasoline engine 177 43K
U406 Valid for diesel engine 626 43K
U406 Valid for diesel engine 626 58K
U406 Valid for diesel engine 626 43F
U561 Valid for Delphi system 59K
U561 Valid for Delphi system 40F
U562 Valid for Bosch system 44L
U562 Valid for Bosch system 51L
U562 Valid for Bosch system 59L
U562 Valid for Bosch system 43G
U74 Valid for diesel engines 79H
U74 Valid for diesel engines 69H
U75 Valid for gasoline engines 69H
U75 Valid for gasoline engines 79H
U948 Valid for diesel engine 651 43L
U948 Valid for diesel engine 651 58L
U948 Valid for diesel engine 651 58K
U948 Valid for diesel engine 651 51L
U948 Valid for diesel engine 651 43G
U948 Valid for diesel engine 651 39F
U978 Valid for hybrid drive 111F
U986 Not valid for AMG 106F
W16/3 Left major assembly compartment ground point 4H
W16/3 Left major assembly compartment ground point 56L
W16/3 Left major assembly compartment ground point 49L
W16/3 Left major assembly compartment ground point 123H
W16/7 Right major assembly compartment electronics ground point 4H
W16/7 Right major assembly compartment electronics ground point 49L
W16/7 Right major assembly compartment electronics ground point 56L
W16/7 Right major assembly compartment electronics ground point 123H
W2 Right front ground point (at lamp unit) 97L
W9 Left front ground point (at lamp unit) 7H
W9 Left front ground point (at lamp unit) 98L
X223 Vacuum pump electrical connector 120H
X25/7 Engine compartment/frame floor assembly electrical connector 26H
X25/7 Engine compartment/frame floor assembly electrical connector 9H
X25/7 Engine compartment/frame floor assembly electrical connector 13H
X25/7 Engine compartment/frame floor assembly electrical connector 30H
X25/7 Engine compartment/frame floor assembly electrical connector 41H
X25/7 Engine compartment/frame floor assembly electrical connector 44H
X25/7 Engine compartment/frame floor assembly electrical connector 52H
X25/7 Engine compartment/frame floor assembly electrical connector 57H
X25/7 Engine compartment/frame floor assembly electrical connector 62H
X25/7 Engine compartment/frame floor assembly electrical connector 75H
X25/7 Engine compartment/frame floor assembly electrical connector 88H
X25/7 Engine compartment/frame floor assembly electrical connector 107H
X25/7 Engine compartment/frame floor assembly electrical connector 118H
Y133/2 Battery coolant pump switchover valve 30L
Z141/1z1 Circuit 87 C1 connector sleeve 36J
Z141/1z2 Circuit 87 C1 connector sleeve 23H
Z141/2z1 Circuit 87/C2 connector sleeve 37J
Z50/5z1 Tml. 15 connector sleeve 64L
Z50/5z1 Tml. 15 connector sleeve 78L
Z56/8z1 Horn engine compartment connector sleeve 100H
Z6/117z1 Left front ground point connector sleeve (on lamp unit) 5H
Z6/117z1 Left front ground point connector sleeve (on lamp unit) 99L
Z6/118z1 Right front ground line connector sleeve (in wiring harness) 96L
Z6/119z1 Left engine ground connection connector sleeve 49H
Z6/120z1 Right engine ground connection connector sleeve 48H

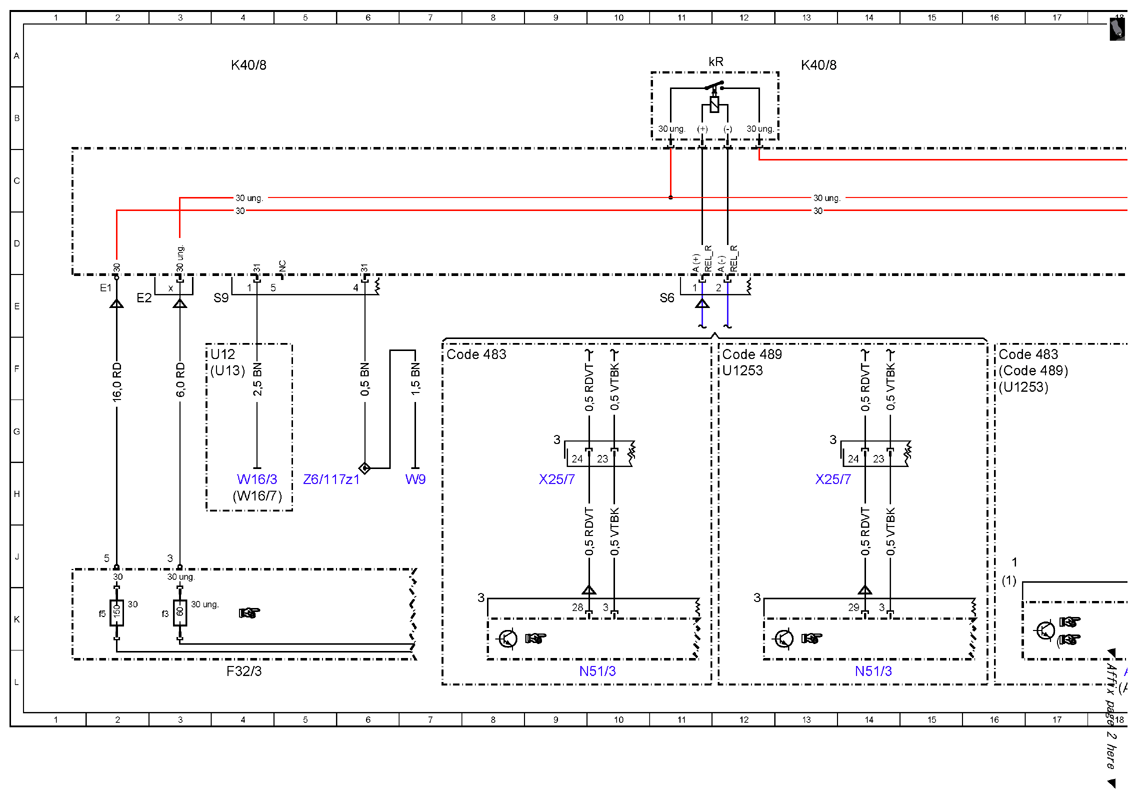

Fig 1: Engine Compartment Fuse And Relay Box Wiring Diagram (1 Of 8)
G10133867Courtesy of MERCEDES-BENZ USA

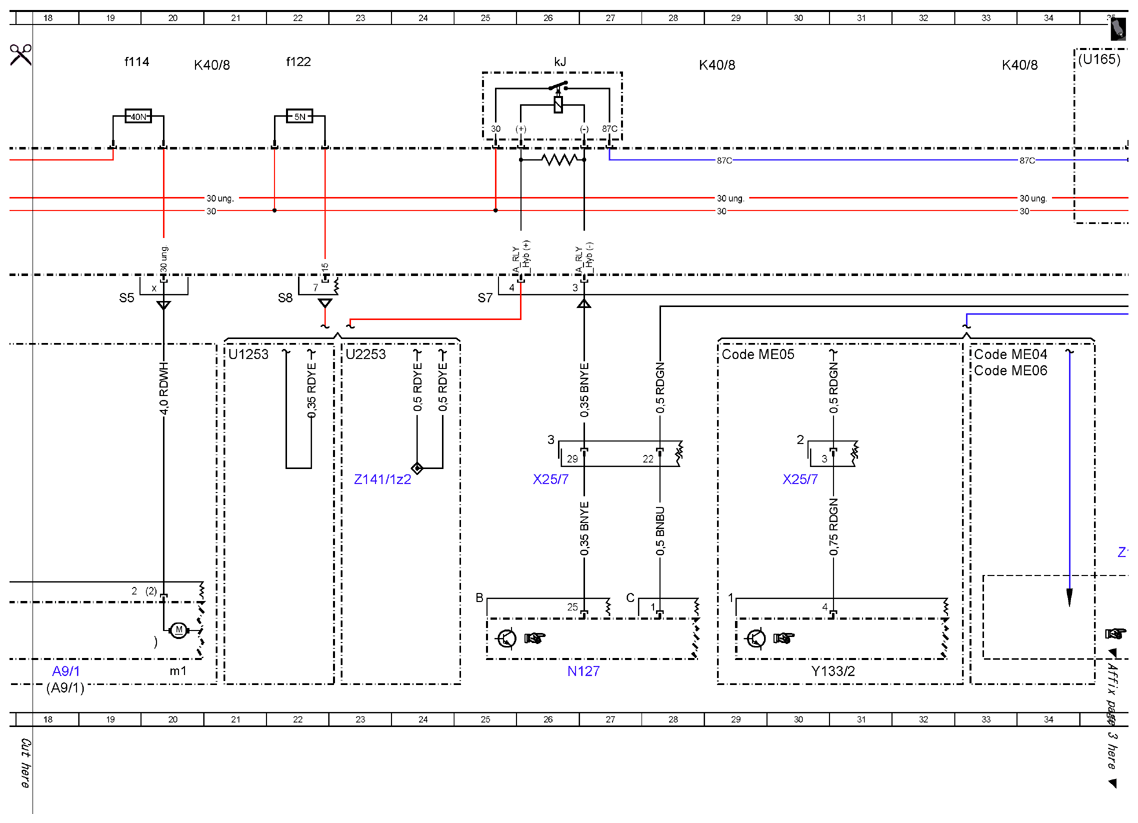

Fig 2: Engine Compartment Fuse And Relay Box Wiring Diagram (2 Of 8)
G10133868Courtesy of MERCEDES-BENZ USA

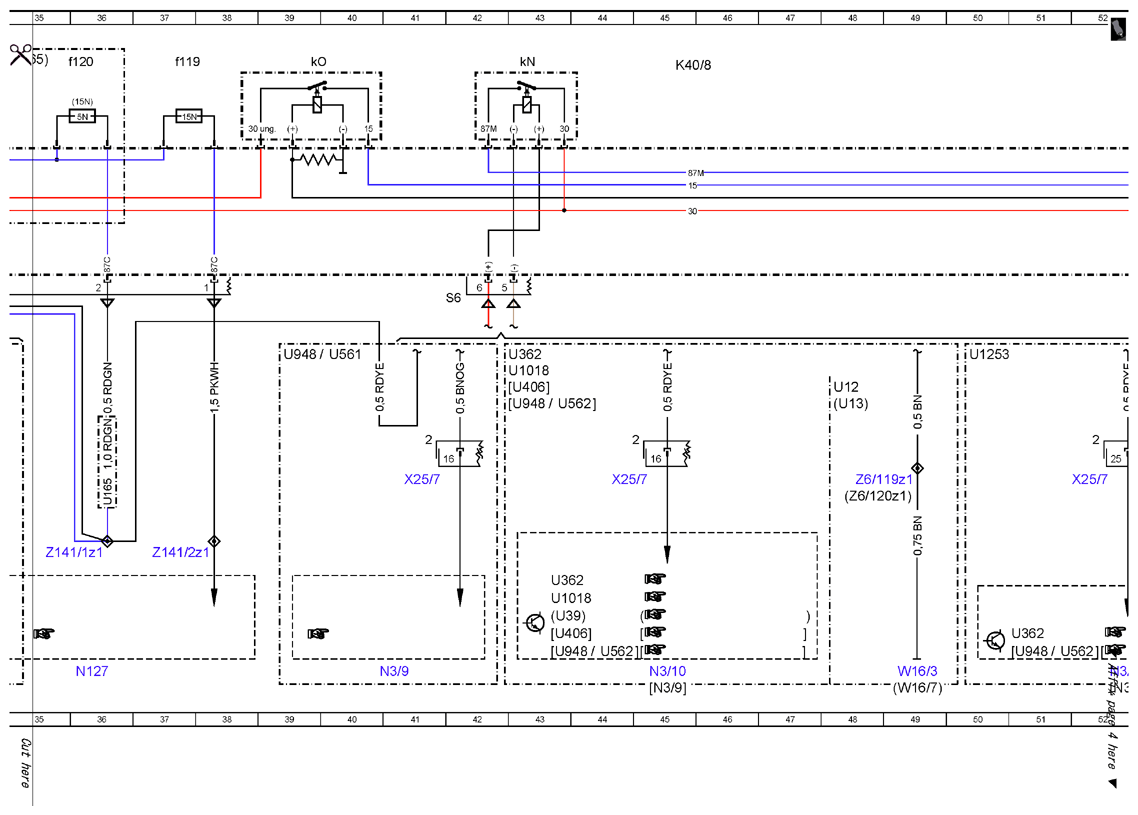

Fig 3: Engine Compartment Fuse And Relay Box Wiring Diagram (3 Of 8)
G10133869Courtesy of MERCEDES-BENZ USA

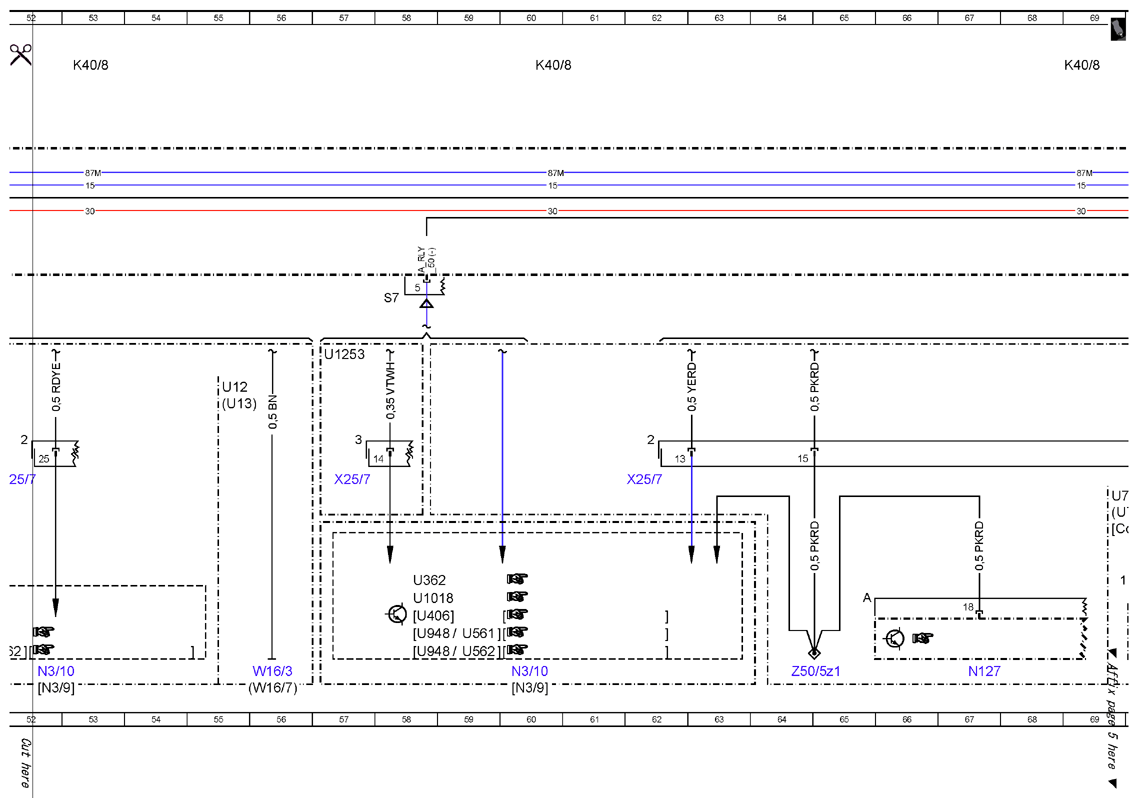

Fig 4: Engine Compartment Fuse And Relay Box Wiring Diagram (4 Of 8)
G10133870Courtesy of MERCEDES-BENZ USA

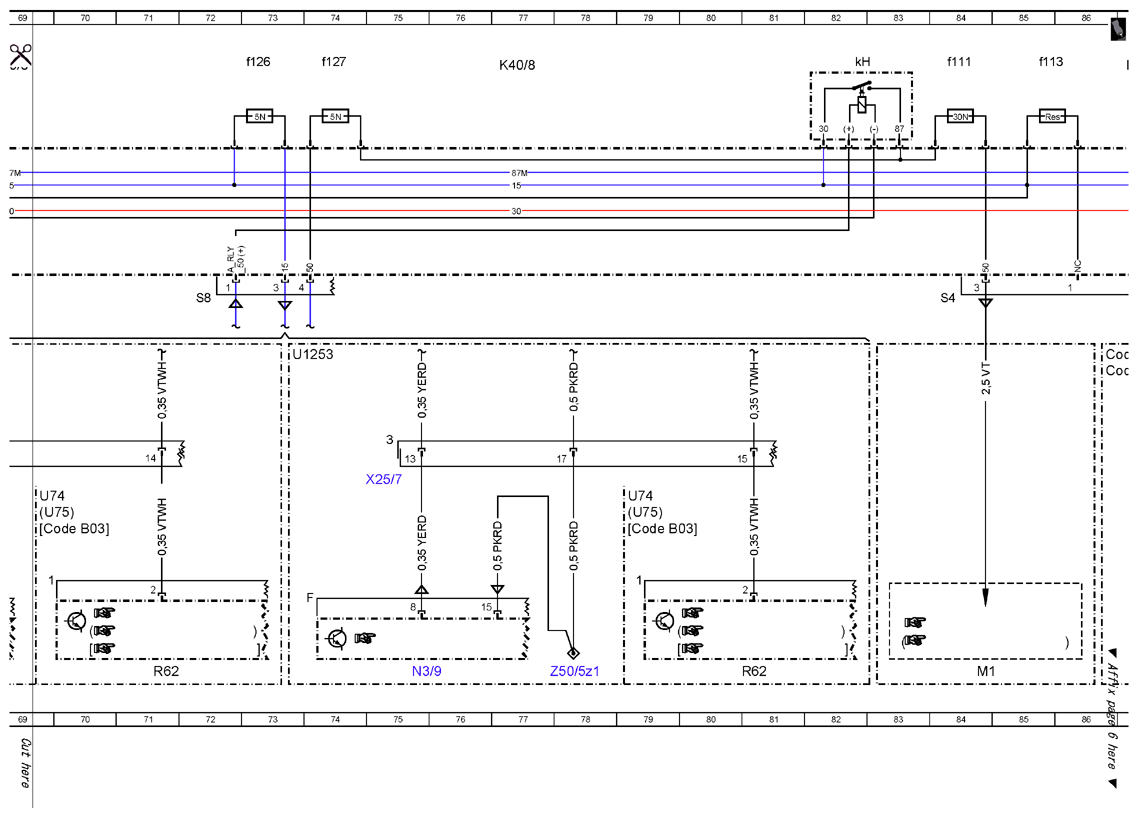

Fig 5: Engine Compartment Fuse And Relay Box Wiring Diagram (5 Of 8)
G10133871Courtesy of MERCEDES-BENZ USA

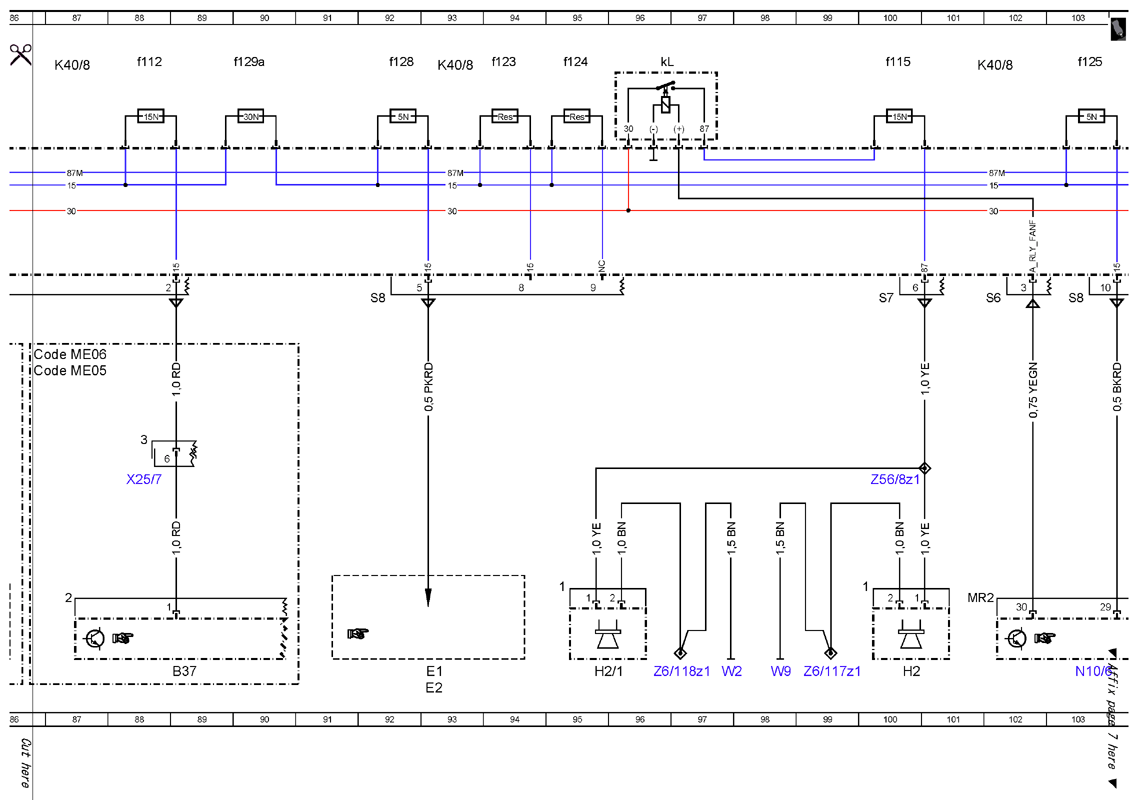

Fig 6: Engine Compartment Fuse And Relay Box Wiring Diagram (6 Of 8)
G10133872Courtesy of MERCEDES-BENZ USA

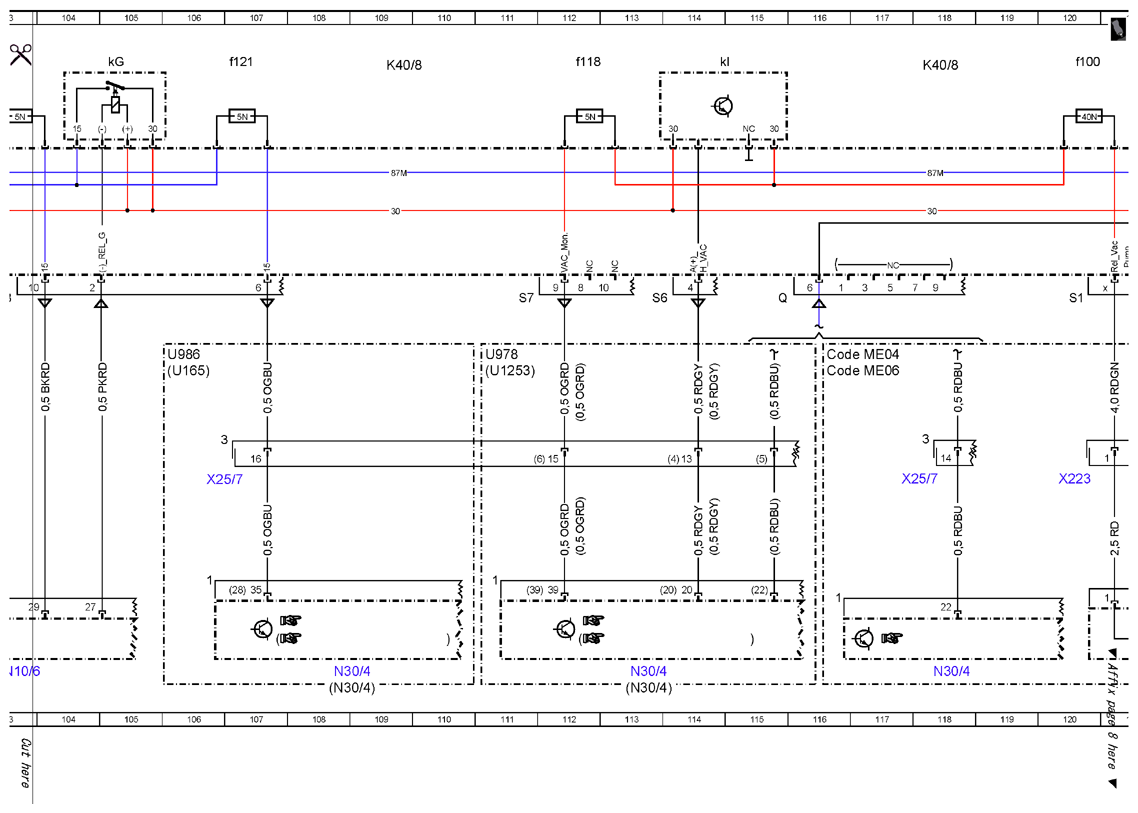

Fig 7: Engine Compartment Fuse And Relay Box Wiring Diagram (7 Of 8)
G10133873Courtesy of MERCEDES-BENZ USA

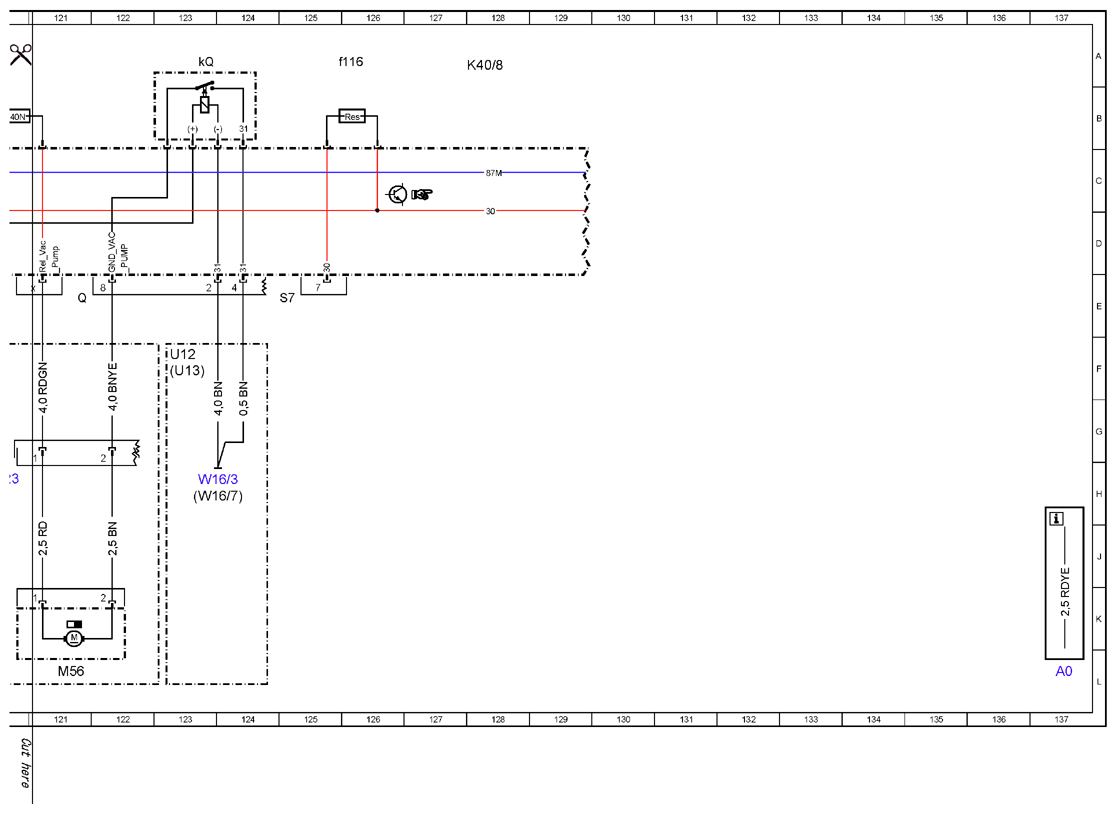

Fig 8: Engine Compartment Fuse And Relay Box Wiring Diagram (8 Of 8)
G10133874Courtesy of MERCEDES-BENZ USA
