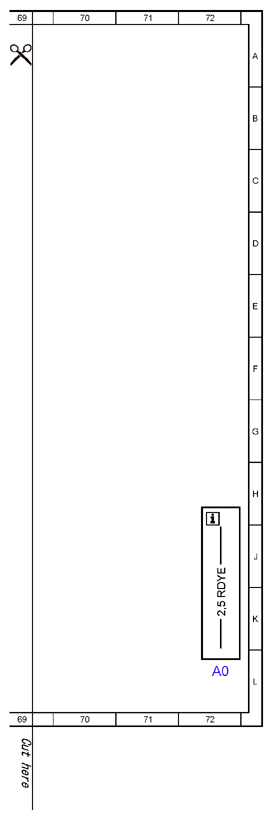

| A0 |
Use of wiring diagrams |
72L |
| A2/18 |
FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier |
20L |
| A76 |
Left front reversible emergency tensioning retractor |
8L |
| A76/1 |
Right front reversible emergency tensioning retractor |
3L |
| A90/4 |
Tuner unit |
12L |
| Code 299 |
PRE-SAFE® |
1F |
| Code 489 |
AIR BODY CONTROL |
52F |
| Code 536 |
SIRIUS satellite radio |
10F |
| Code 537 |
Digital radio (DAB) |
10F |
| Code 865 |
|
10F |
| Code 871 |
Sensor system for trunk lid opening/closing |
39F |
| Code 872 |
Seat heater in rear passenger compartment |
45F |
| Code U02 |
Belt extender, electric |
35F |

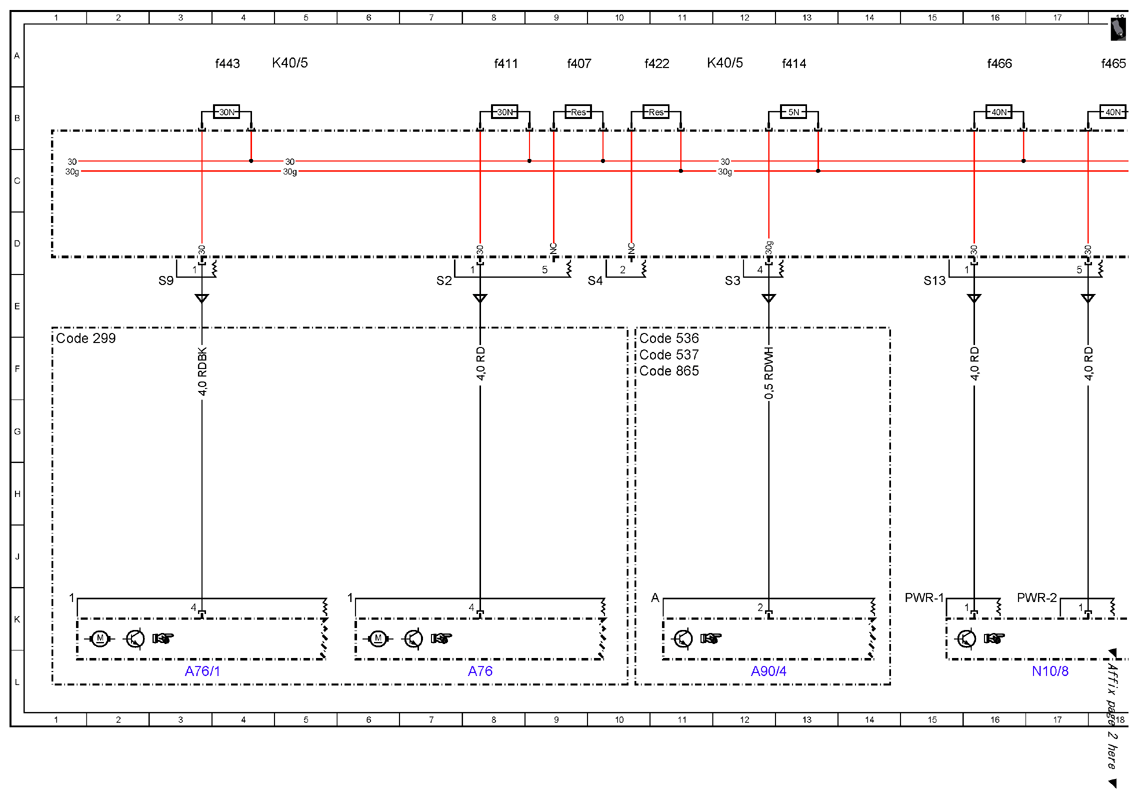

| K40/5 |
Rear fuse and relay module |
5A |
| K40/5 |
Rear fuse and relay module |
12A |
| K40/5 |
Rear fuse and relay module |
20A |
| K40/5 |
Rear fuse and relay module |
28A |
| K40/5 |
Rear fuse and relay module |
51A |
| K40/5 |
Rear fuse and relay module |
37A |
| K40/5 |
Rear fuse and relay module |
44A |
| K40/5 |
Rear fuse and relay module |
64A |
| K40/5f406 |
Fuse 406 |
29A |
| K40/5f407 |
Fuse 407 |
9A |
| K40/5f408 |
Fuse 408 |
35A |
| K40/5f409 |
Fuse 409 |
36A |
| K40/5f411 |
Fuse 411 |
8A |
| K40/5f414 |
Fuse 414 |
13A |
| K40/5f418 |
Fuse 418 |
48A |
| K40/5f422 |
Fuse 422 |
11A |
| K40/5f424 |
Fuse 424 |
56A |

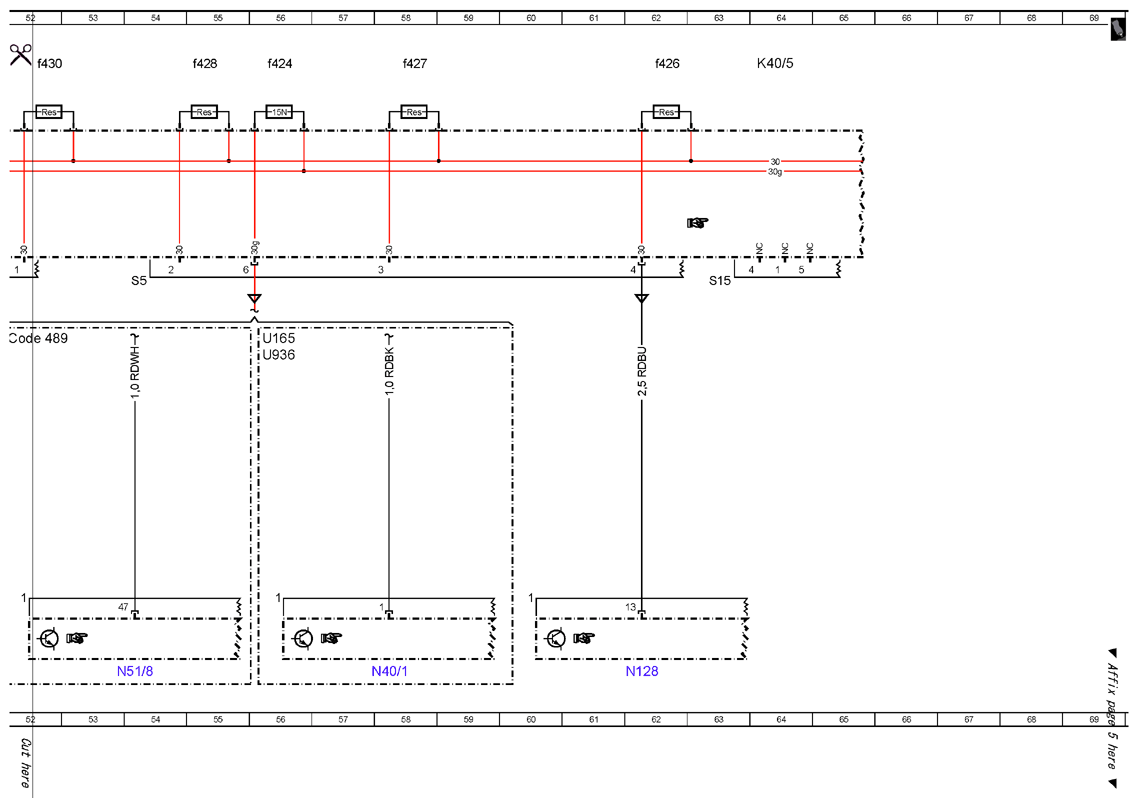

| K40/5f426 |
Fuse 426 |
62A |
| K40/5f427 |
Fuse 427 |
58A |
| K40/5f428 |
Fuse 428 |
55A |
| K40/5f429 |
Fuse 429 |
|
| K40/5f430 |
Fuse 430 |
52A |
| K40/5f440 |
Fuse 440 |
47A |
| K40/5f441 |
Fuse 441 |
45A |
| K40/5f443 |
Fuse 443 |
4A |

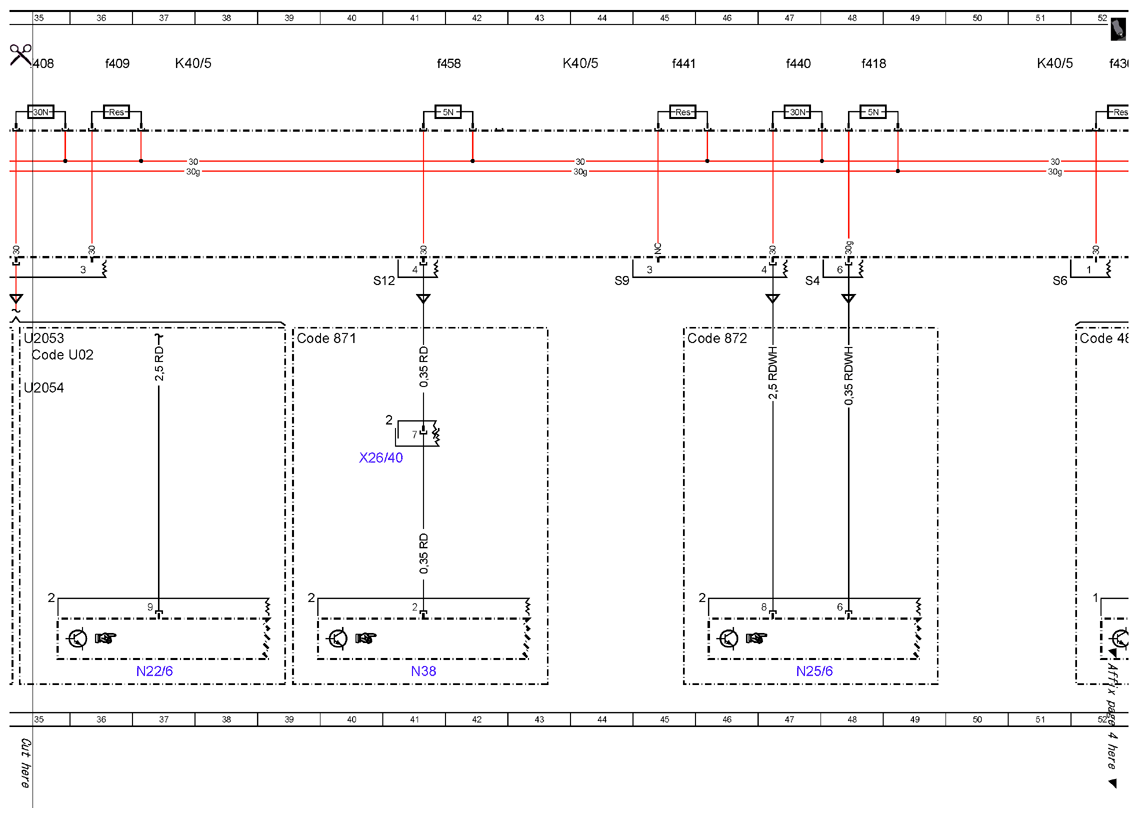

| K40/5f458 |
Fuse 458 |
41A |

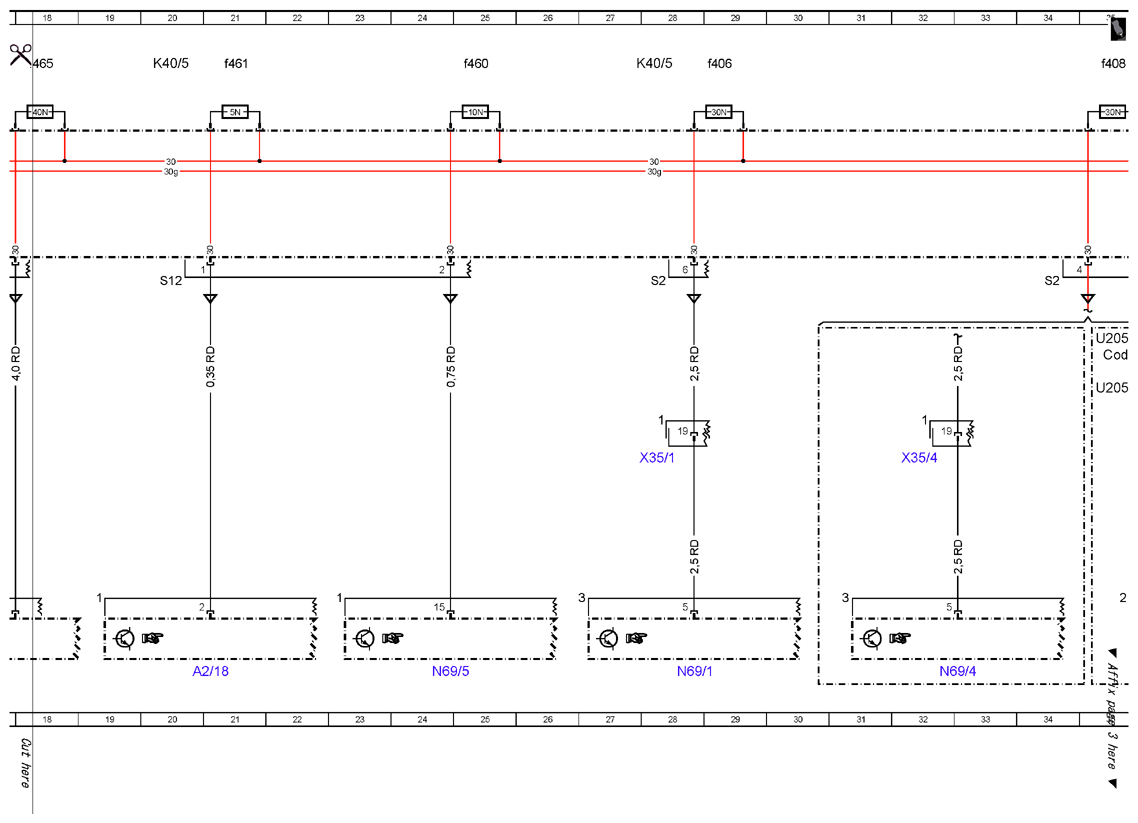

| K40/5f460 |
Fuse 460 |
25A |
| K40/5f461 |
Fuse 461 |
21A |
| K40/5f465 |
Fuse 465 |
18A |
| K40/5f466 |
Fuse 466 |
16A |
| N10/8 |
Rear SAM control unit |
17L |
| N128 |
Electric parking brake control unit |
62L |
| N22/6 |
Rear control unit |
37L |
| N25/6 |
Rear seat heaters control unit |
47L |
| N38 |
Rear switching module |
41L |
| N40/1 |
Engine sound control unit |
58L |
| N51/8 |
AIR BODY CONTROL Plus control unit |
54L |
| N69/1 |
Left front door control unit |
28L |
| N69/4 |
Right rear door control unit |
32L |
| N69/5 |
KEYLESS-GO control unit |
24L |
| U165 |
Valid for AMG |
56F |
| U2053 |
Valid for model 205.3 |
35F |
| U2054 |
Valid for model 205.4 |
35F |
| U936 |
Valid for increased engine power |
56F |
| X26/40 |
Rear frame floor assembly/bumper electrical connector |
40H |
| X35/1 |
Left front door electrical connector |
28H |
| X35/4 |
Right rear door electrical connector |
32H |
