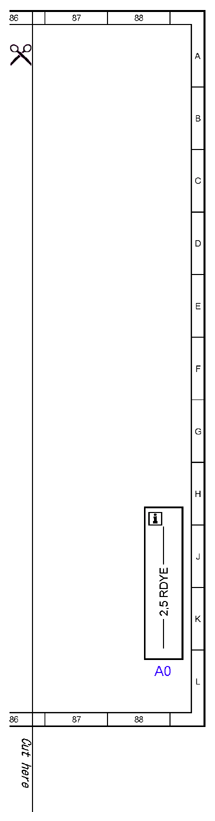

| A0 |
Use of wiring diagrams |
88L |
| A50 |
Taximeter |
70L |
| A50/1 |
Mirror taximeter |
66L |
| B20 |
Fuel filter element with integrated heater |
24L |
| Code 221 |
Fully electric driver seat adjustment without memory without electric head restraint adjustment |
31F |
| Code 222 |
Electrically adjustable right front seat |
35F |
| Code 241 |
All-electric front passenger seat with memory (left) |
35F |
| Code 242 |
All-electric front passenger seat with memory (right) |
35F |
| Code 275 |
Memory package |
31F |
| Code 550 |
Trailer hitch |
44F |
| Code 970 |
Police emergency vehicles |
74A |
| Code 970 |
Police emergency vehicles |
76F |
| Code 970 |
Police emergency vehicles |
52F |
| Code 974 |
|
74B |
| Code 974 |
|
76F |
| Code 974 |
|
52F |
| Code 975 |
|
74B |
| Code 975 |
|
76F |
| Code 975 |
|
52F |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
17F |
| Code P65 |
Seating comfort package |
31F |
| Code P65 |
Seating comfort package |
35F |
| Code Z97 |
|
56F |

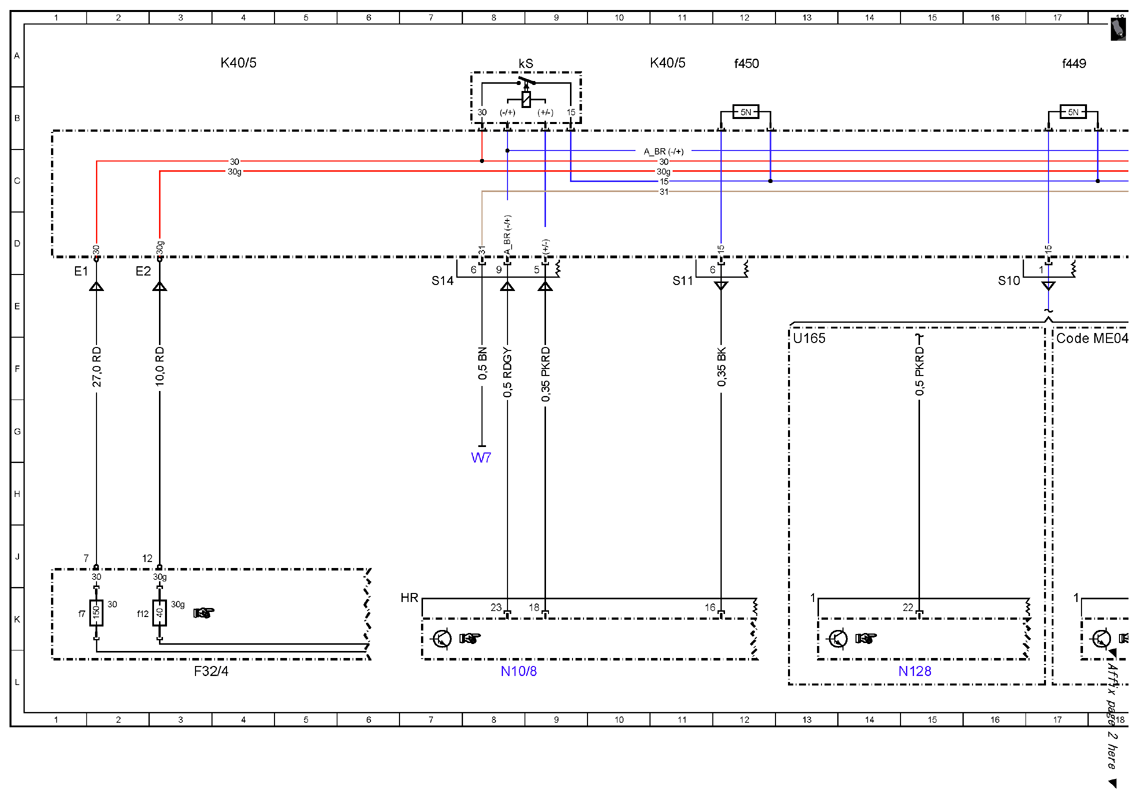

| F32/4 |
Vehicle interior prefuse box |
3L |
| F32/4f12 |
Fuse 12 |
2K |
| F32/4f7 |
Fuse 7 |
1K |
| H4/16 |
Sound generator |
19L |

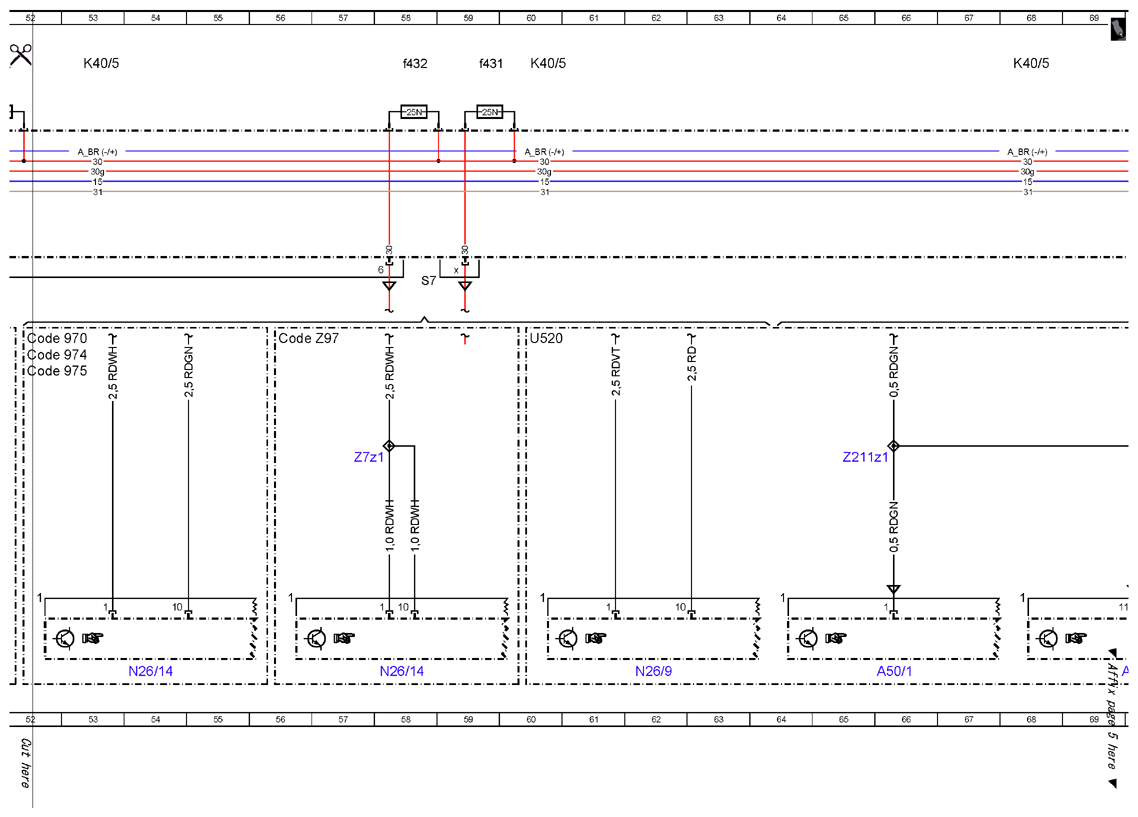

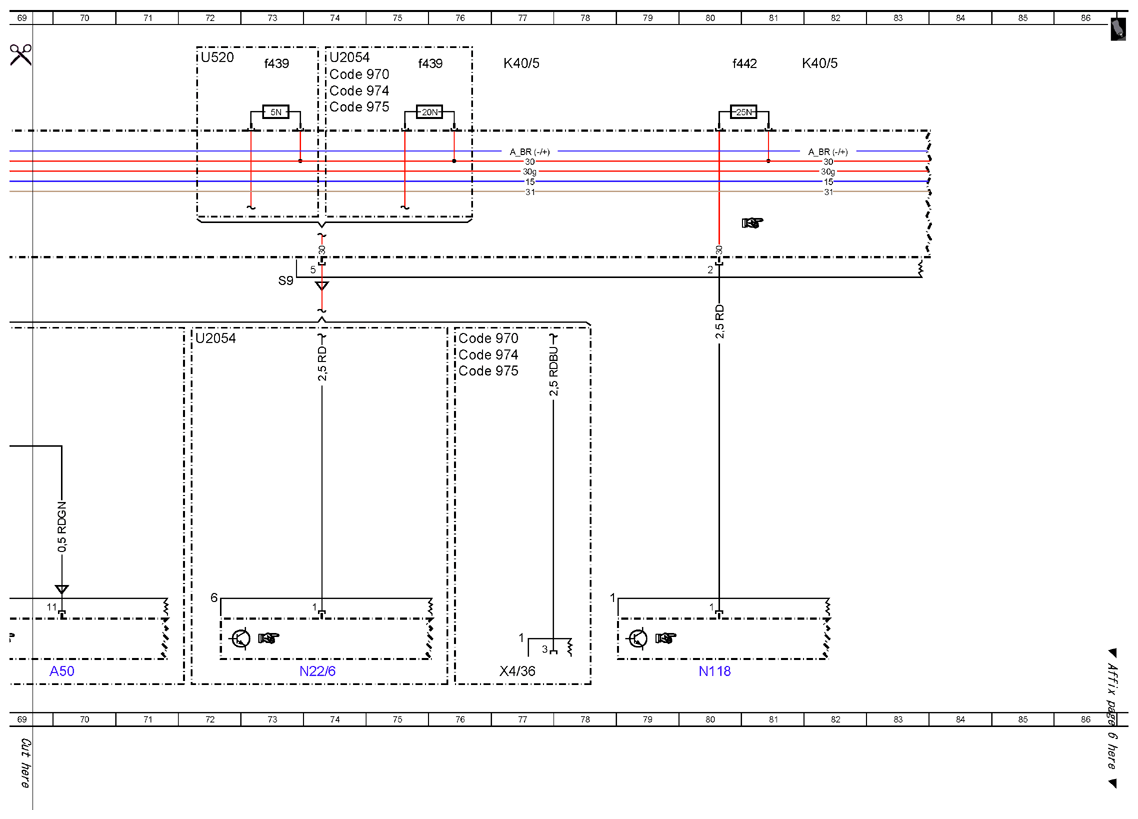

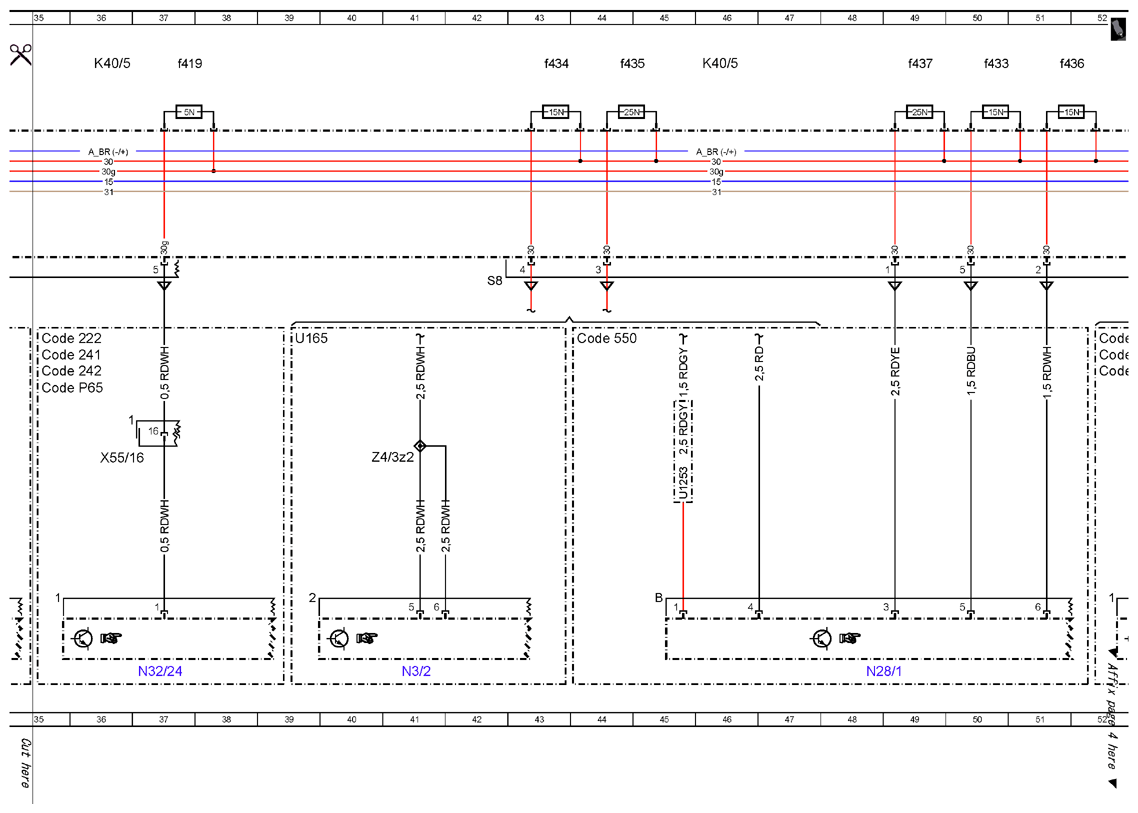

| K40/5 |
Rear fuse and relay module |
4A |
| K40/5 |
Rear fuse and relay module |
11A |
| K40/5 |
Rear fuse and relay module |
21A |
| K40/5 |
Rear fuse and relay module |
29A |
| K40/5 |
Rear fuse and relay module |
36A |
| K40/5 |
Rear fuse and relay module |
46A |
| K40/5 |
Rear fuse and relay module |
60A |
| K40/5 |
Rear fuse and relay module |
68A |
| K40/5 |
Rear fuse and relay module |
82A |
| K40/5 |
Rear fuse and relay module |
77A |
| K40/5 |
Rear fuse and relay module |
53A |
| K40/5f419 |
Fuse 419 |
37A |
| K40/5f420 |
Fuse 420 |
33A |
| K40/5f431 |
Fuse 431 |
59A |
| K40/5f432 |
Fuse 432 |
58A |
| K40/5f433 |
Fuse 433 |
50A |
| K40/5f434 |
Fuse 434 |
43A |
| K40/5f435 |
Fuse 435 |
44A |
| K40/5f436 |
Fuse 436 |
51A |
| K40/5f437 |
Fuse 437 |
49A |
| K40/5f439 |
Fuse 439 |
73A |
| K40/5f439 |
Fuse 439 |
75A |
| K40/5f442 |
Fuse 442 |
80A |
| K40/5f449 |
Fuse 449 |
17A |
| K40/5f450 |
Fuse 450 |
12A |
| K40/5f467 |
Fuse 467 |
27A |
| K40/5kS |
Vehicle interior terminal 15 relay |
8A |

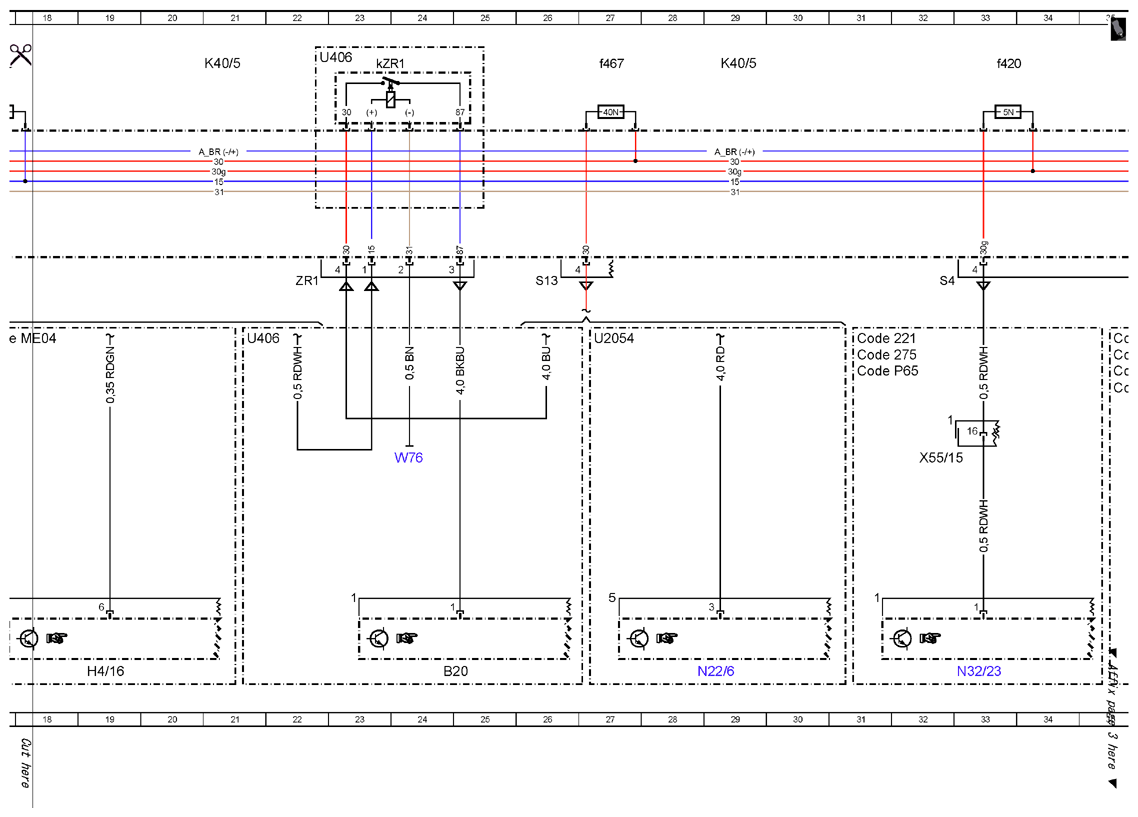

| K40/5kZR1 |
Fuel filter heater relay |
23A |
| N10/8 |
Rear SAM control unit |
8L |
| N118 |
Fuel pump control unit |
80L |
| N128 |
Electric parking brake control unit |
15L |
| N22/6 |
Rear control unit |
29L |
| N22/6 |
Rear control unit |
74L |
| N26/14 |
Special vehicle multifunction control unit (SVMCU [MSS]) |
54L |
| N26/14 |
Special vehicle multifunction control unit (SVMCU [MSS]) |
58L |
| N26/9 |
Special-purpose vehicle multifunction control unit |
62L |
| N28/1 |
Trailer recognition control unit |
48L |
| N3/2 |
Electronic differential control unit |
41L |
| N32/23 |
Driver seat lumbar support adjustment control unit |
33L |
| N32/24 |
Front passenger seat lumbar support adjustment control unit |
37L |
| U1253 |
Valid for model 253 |
45H |
| U165 |
Valid for AMG |
13F |
| U165 |
Valid for AMG |
39F |
| U2054 |
Valid for model 205.4 |
27F |
| U2054 |
Valid for model 205.4 |
72F |
| U2054 |
Valid for model 205.4 |
74A |
| U406 |
Valid for diesel engine 626 |
21F |
| U406 |
Valid for diesel engine 626 |
22A |
| U520 |
Valid for taxi |
60F |
| U520 |
Valid for taxi |
72A |
| W7 |
Right wheelhouse trunk ground point |
8H |
| W76 |
Fuel pump ground point |
24H |
| X4/36 |
Vehicle socket electrical connector |
77L |
| X55/15 |
Left seat separation point |
32H |
| X55/16 |
Right seat separation point |
36H |
| Z211z1 |
Circuit 30 power supply connector sleeve |
65G |
| Z4/3z2 |
Tml. 30 connector sleeve |
41G |
| Z7z1 |
Ground line connector sleeve |
57G |
