Remove/install touchpad control unit - AR54.21-P-0503LW
Model 205, 253 with code 522 (Audio 20 radio)
Model 205, 253 with code 531 (COMAND APS)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove Audio/COMAND control panel (A40/9) | AR54.21-P-0500LW | |

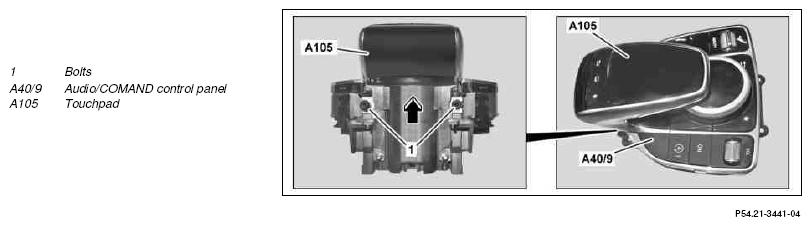

| 2 | Remove bolts (1) | ||
| 3 | Pull touchpad (A105) out of Audio/COMAND control panel (A40/9) in direction of arrow | ||
| 4 | Install in the reverse order |
