Remove/install radar sensors control unit - AR54.65-P-0040LW
MODEL 205.0/2 with CODE 233 (DISTRONIC PLUS)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of radar sensors control unit (N62/1) using diagnostic system | When replacing radar sensors control unit (N62/1). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition | ||
| 3 | Remove right front seat | AR91.10-P-1000LW | |
| 4 | Remove right door sills | AR68.30-P-4100LW | |

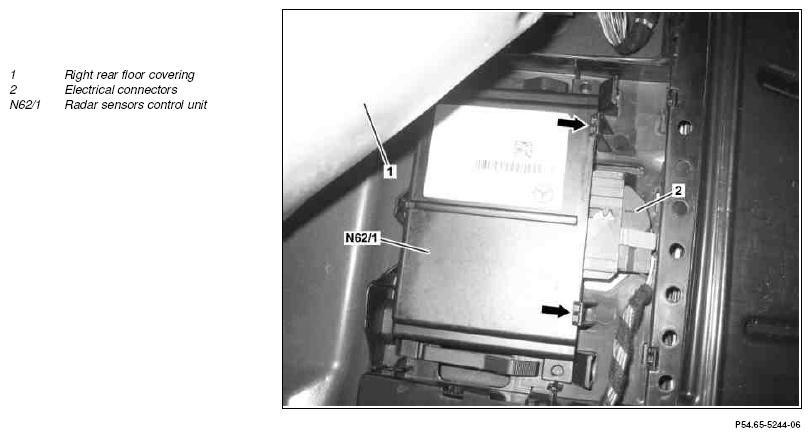

| 5 | Release right rear floor covering (1) and fold to one side | ||
| 6 | Unclip radar sensors control unit (N62/1) at the catch hooks (arrows) and lift up | ||
| 7 | Release and disconnect electrical connector (2) | ||
| 8 | Remove radar sensors control unit (N62/1) | ||
| 9 | Install in the reverse order |
