Remove/install park pawl capacitor - AR54.10-P-1126LW
Model 205 with transmission 722
Model 205 with transmission 725
Model 253 with transmission 724
Model 253 with transmission 725
| Remove/install | |||

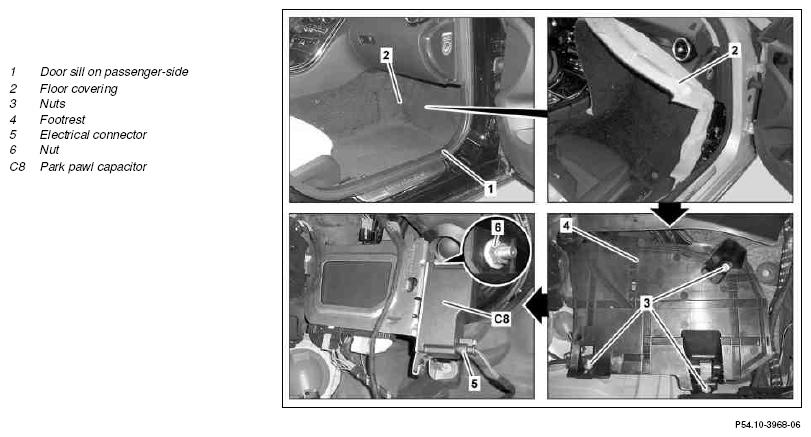

| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Remove floor covering (2) in front passenger footwell | AR68.20-P-2070LW | |
| 3 | Unscrew nuts (3) | ||
| 4 | Remove footrests (4) | ||
| 5 | Detach electrical connection (5) from park pawl condenser (C8) | ||
| 6 | Unscrew nut (6) and unhook park pawl condenser (C8) from bracket and remove | ||
| 7 | Install in the reverse order |
