Remove/install instrument cluster - AR54.30-P-6015LW

Model 205, 253

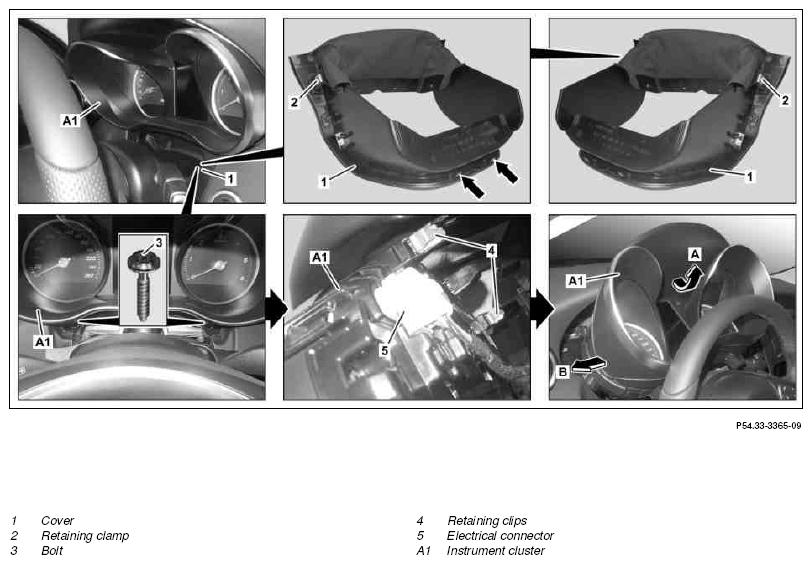

Fig 1: Identifying Instrument Cluster Remove/Install Components - Shown On Model 205

Courtesy of MERCEDES-BENZ USA

Shown on model 205

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Connect diagnostic system and perform initial startup of instrument cluster (A1)	When replacing the instrument cluster (A1).
			AD00.00-P-2000-04B
2	Position steering wheel rearwards and at the bottom
3	Switch off ignition and remove transmitter key
4	Unclip covering (1) at bottom (arrows) and detach at retaining clamps (2)	Mounting wedge	Figure
5	Remove bolts (3)
6	Pull instrument cluster (A1) off retaining clamps (4) to disengage it and pull out far enough until electrical connection (5) is accessible
7	Disconnect electrical connection (5)	The number can vary according to the equipment.
8	Swivel instrument cluster (A1) upwards (arrow A) and remove to the left (arrow B)
9	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
