Remove/install fuse and relay module in rear - AR54.15-P-0001LW

Model 205.0/1/2

Model 253

Shown on model 205.0 with code 881 (remote trunk lid closing)

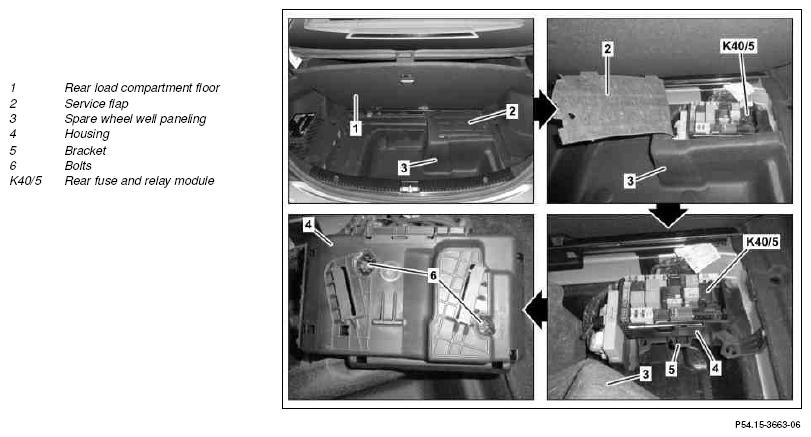

Fig 1: Identifying Fuse And Relay Module Remove/Install Components - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

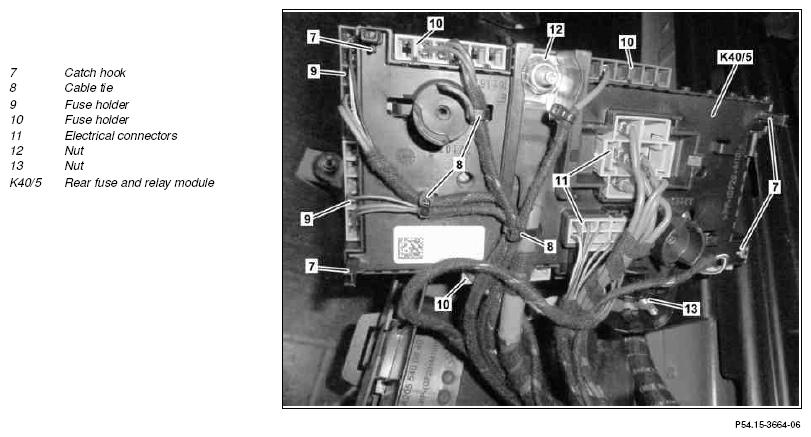

Fig 2: Identifying Fuse And Relay Module Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of death  when touching components on vehicles with high-voltage on-board electrical system	Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Note on high-voltage on-board electrical system		AH54.00-P-0010-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1.1	Fold up and hook in rear load compartment floor (1)	Model 205.0/1 except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin)) Model 253
1.2	Remove rear load compartment floor (1)	Model 205.2 except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin))
2	Detach ground line of on-board electrical system battery		AR54.10-P-0003LW
3	Open service flap (2) and push cover for spare wheel well (3) far enough to one side until the rear fuse and relay module (K40/5) is accessible	Model 205.0/1/2 except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin))
4	Remove spare wheel well paneling (3)	Model 253
5	Release housing (4) with rear fuse and relay module (K40/5) then remove from bracket (5)
6	Turn housing (4) with rear fuse and relay module (K40/5) and remove bolts (6)
7	Unclip rear fuse and relay module (K40/5) from the housing (4) using a suitable tool on catch hook (7) and remove housing (4)
8	Remove cable ties (8)	Replace cable tie (8).
9	Unclip fuse holder (9) in center and place to one side	The number of fuse holders (9) may vary depending on the vehicle equipment.
10	Unclip fuse holder (10) at side and place to one side	The number of fuse holders (10) may vary depending on the vehicle equipment.
11	Disconnect electrical connections (11) from rear fuse and relay module (K40/5)	The number of electrical connections (11) may vary, depending on the vehicle equipment involved.
12	Unscrew nut (12) and place electrical line to one side	Nut, positive line to rear fuse and relay module	*BA54.15-P-1001-01K
13	Unscrew nut (13) and place electrical line to one side	If installed.
		Nut, positive line to rear fuse and relay module	*BA54.15-P-1001-01K
14	Remove rear fuse and relay module (K40/5)
15	Install in the reverse order
