Remove/install fanfare horns - AR54.35-P-1555LW
Model 205 with engine 274, 276, 622, 626, 651
Model 253 with engine 274, 642, 651

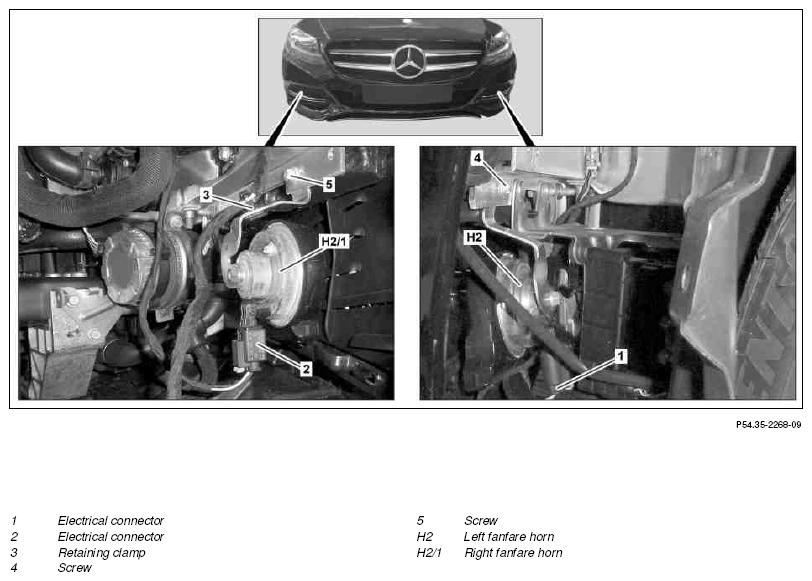

Shown on model 205
| Remove/install | |||
| 1 | Detach corresponding fender liner far enough until left horn (H2) or right horn (H2/1) is accessible | AR88.10-P-1300LW | |
| 2 | Detach electrical connection (1) or electrical connection (2) | ||
| 3 | Remove bolt (4) or bolt (5) and remove left horn (H2) or right horn (H2/1) | ||
| 4 | Install in the reverse order |
