Remove/install battery - AR54.10-P-0005LW

Model 205 (except 205.08/28/38) except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin))

Model 253

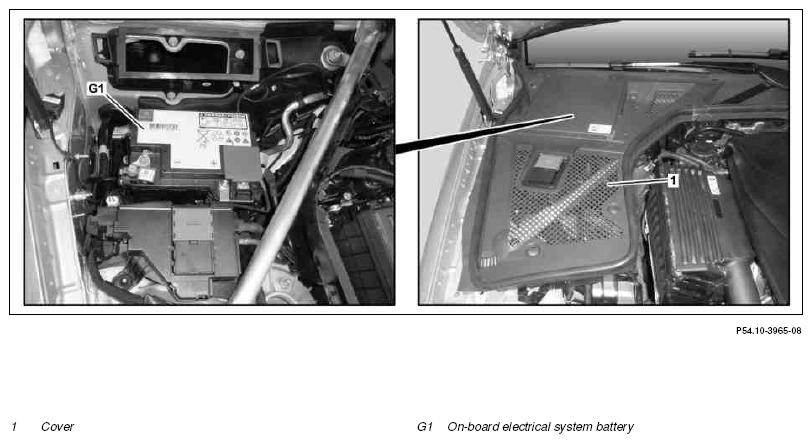

Fig 1: Identifying Battery Remove/Install Components - Shown On Model 205

Courtesy of MERCEDES-BENZ USA

Shown on model 205 except code P25 (BlueEFFICIENCY Edition) and except code U98 (LITHIUM-ION STARTER BATTERY (LISB))

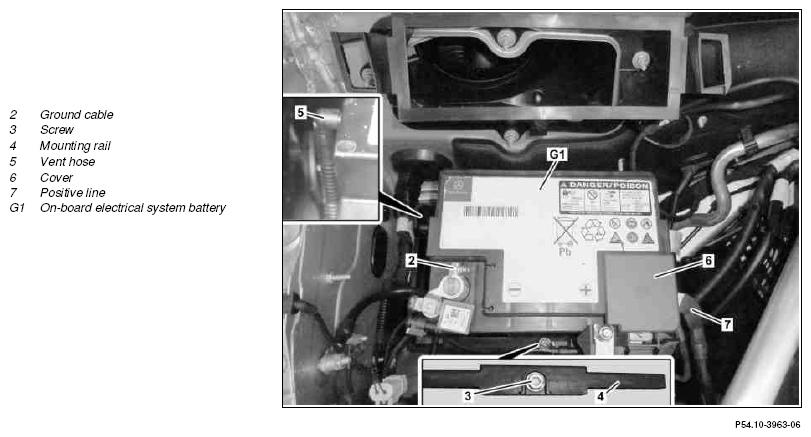

Fig 2: Identifying Battery Remove/Install Components - Shown On Model 205

Courtesy of MERCEDES-BENZ USA

Shown on model 205 except code P25 (BlueEFFICIENCY Edition) and except code U98 (LITHIUM-ION STARTER BATTERY (LISB))

	Risk of injury  caused by contact with battery gel when handling damaged lead-gelbatteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses.	AS54.10-Z-0001-02A
	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Risk of injury  caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte or due to short circuit. Risk of burn injuries  due to thermal changes. Risk of poisoning  from swallowing battery electrolyte.	Wear protective gloves, protective clothing and safety glasses. In the event of escaping battery electrolyte, battery vapors, battery mist, smoke or heat development, secure the area, leave it and alert the fire department.	AS54.10-Z-0001-04A
	Notes for 12-V lithium-ion battery		AH54.10-P-0004-01A
	Notes on battery		AH54.10-P-0001-01A
	Notes on AGM battery		AH54.10-P-0002-01A
	Remove/install
1	Print out checklist for transport safety of 12 V lithium-ion battery and fill out	Model 205 (except 205.08/28/38) with code P25 (BlueEFFICIENCY Edition) except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin)) Model 205 (except 205.08/28/38) with code U98 (LITHIUM-IONEN-STARTERBATTERIE (LISB)) except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin))
	Transport safety checklist for starter battery, form		OF54.10-P-3000-13A
2	Remove cover (1)
3	Disconnect ground line (2) from on-board electrical system battery (G1)		AR54.10-P-0003LW
4	Unscrew bolt (3) far enough (approx. 10 turns) until the mounting rail (4) can be folded away from the on-board electrical system battery (G1)	If the bolt (3) for the mounting rail (4) is removed, position the bolt (3) again when the on-board electrical system battery (G1) is removed.
		Screw/bolt, battery mounting rail to battery frame	*BA54.10-P-1001-01A
5.1	Disconnect vent hose (5) from on-board electrical system battery (G1)	Model 205 (except 205.08/28/38) except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin)) except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-IONEN-STARTERBATTERIE (LISB)) Model 253 Check bleed hose (5) is correctly seated. Otherwise leaking battery vapor may damage the vehicle.
5.2	Disconnect electrical connection on-board electrical system battery (G1)	Model 205 (except 205.08/28/38) with code P25 (BlueEFFICIENCY Edition) except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin)) Model 205 (except 205.08/28/38) with code U98 (LITHIUM-IONEN-STARTERBATTERIE (LISB)) except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin)) The electrical connection is located next to the ground line (2).
6	Remove cover (6)
7	Detach positive line (7) from on-board electrical system battery (G1)	Nut, electrical line to negative terminal/positive terminal for on-board electrical system battery	*BA54.10-P-1004-01A
8	Remove on-board electrical system battery (G1)
9	Install in the reverse order
10	Confirm battery change in front SAM control unit in "Actuations" menu item	Model 205 (except 205.08/28/38) except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin)) except code U98 (LITHIUM-IONEN-STARTERBATTERIE (LISB)) Model 253 When replacing the on-board electrical system battery (G1).
		Model 205 (except 205.08/28/38) except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin)) except code U98 (LITHIUM-IONEN-STARTERBATTERIE (LISB))	AD00.00-P-2000-04B
