Remove/install battery sensor - AR54.10-P-0002LWH

Model 205 with code ME04 (Mild hybrid drive)

Model 205 with code ME06 (Hybrid drive 50-KW variant (incl. plugin))

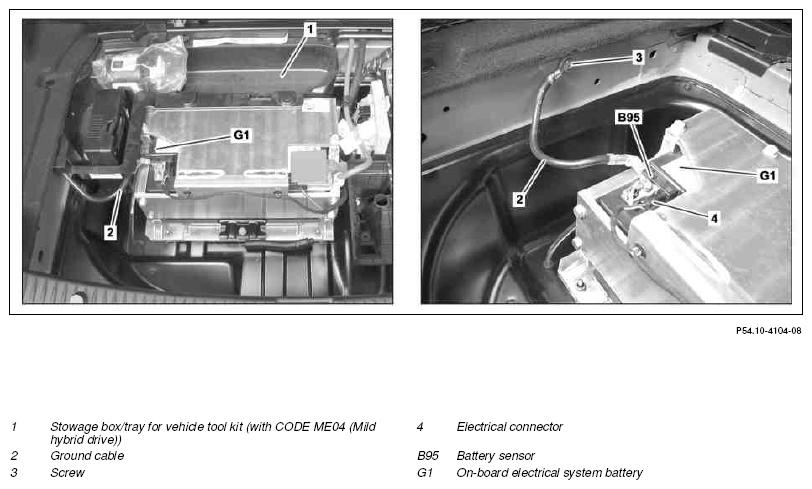

Fig 1: Identifying Battery Sensor Remove/Install Components - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205.0 with CODE ME04 (Mild hybrid drive)

	Risk of death  when touching components on vehicles with high-voltage on-board electrical system	Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Risk of injury  caused by contact with battery gel when handling damaged lead-gelbatteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses.	AS54.10-Z-0001-02A
	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Note on high-voltage on-board electrical system		AH54.00-P-0010-01A
	Notes on battery		AH54.10-P-0001-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Notes on AGM battery		AH54.10-P-0002-01A
	Remove/install
1	Disconnect ground line (2) from on-board electrical system battery (G1)		AR54.10-P-0003LW
2	Take out vehicle tool kit stowage bog/tray (1)	Model 205 with code ME04 (Mild hybrid drive)
3	Release and disconnect electrical connection (4)
4	Unscrew bolt (3)	Battery ground point	*BA00.19-P-1010-01E
5	Remove ground line (2) with battery sensor (B95)	The ground line (2) and the battery sensor (B95) are one component and cannot be replaced individually.
6	Install in the reverse order
