Remove/install Parktronic system (PTS) control unit - AR54.65-P-0006LW
MODEL 205.0/1/2 with CODE 235 (Active Parking Assist)
MODIFICATION NOTES
| 19.5.14 | Operation steps added | Operation step 3, 4 |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of parking system control unit (N62) using diagnostic system | When replacing the parking system control unit (N62). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition | ||
| 3 | Remove right front seat | AR91.10-P-1000LW | |
| 4 | Remove right door sills | AR68.30-P-4100LW | |

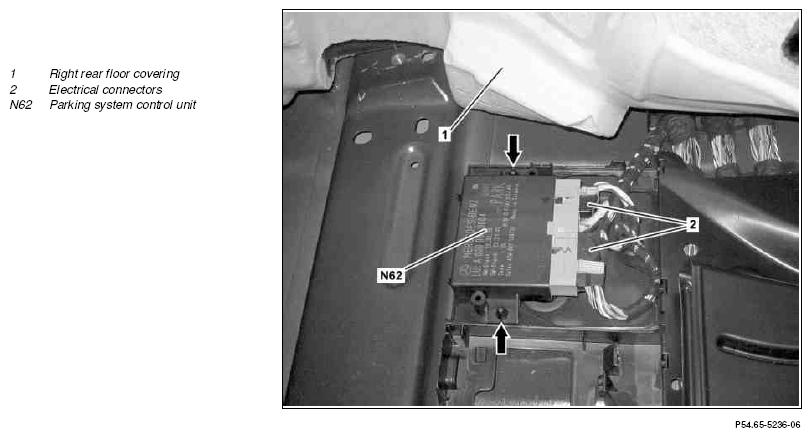

| 5 | Release right rear floor covering (1) and fold to one side | ||
| 6 | Release and disconnect electrical connectors (2) | ||
| 7 | Unclip parking system control unit (N62) from brackets (arrows) and remove | ||
| 8 | Install in the reverse order |
