Remove/install 360 degree camera control unit - AR54.65-P-0012LW
Model 205.0/1/2 with code 501 (360° camera)
MODIFICATION NOTES
| 27.8.15 | Calibrate all the cameras for the 360° camera system using the diagnostic system, added. | Operation step 8 |
Shown on model 205.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2.1 | Detach left luggage compartment lining until 360° camera control unit (N148) is accessible | Model 205.0/1 with code 501 (360° camera) |
|
| AR68.30-P-4600LW | |||
| 2.2 | Detach left side load compartment paneling in rear area until 360° camera control unit (N148) is accessible | Model 205.2 with code 501 (360° camera) |
|
| AR68.30-P-1180LWS | |||
| 3 | Remove vehicle tool kit bracket | Model 205.0/1/2 with code 501 (360° camera) with code ME06 (Hybrid drive 50-KW variant (incl. plugin)) |
|

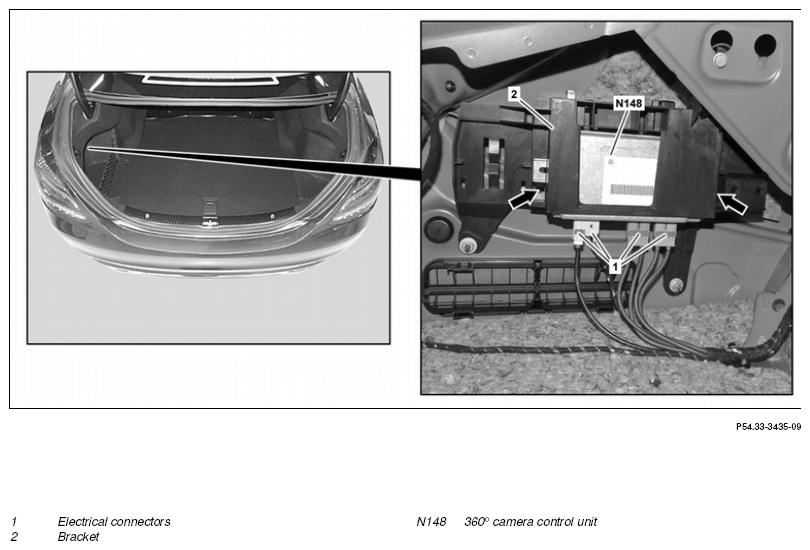

| 4 | Release catch hooks (arrows) and remove 360° camera control unit (N148) downwards out of the bracket (2) | ||
| 5 | Release and disconnect electrical connections (1) from 360° camera connection (N148) | ||
| 6 | Install in the reverse order | ||
| 7 | Commission the 360° camera control unit (N148) using the diagnostic system | If the 360° camera control unit (N148) was replaced. | |
| AD00.00-P-2000-04B | |||
| 8 | Calibrate all the cameras for the 360° camera system using the diagnostic system | If the 360° camera control unit (N148) was replaced. | |
| AD00.00-P-2000-04B |
