Remove/install 12V socket of rear center console - AR54.10-P-1004LW

MODEL 205.0/2 with CODE 301 (Package SMOKER)

MODEL 205.1

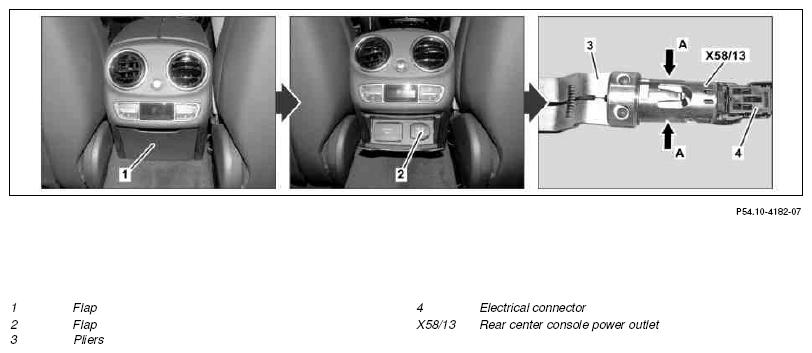

Fig 1: Identifying Rear Center Console 12V Socket Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and remove transmitter key
2	Open flap (1)
3	Open flap (2) of rear center console socket (X58/13)
4	Release rear center console socket (X58/13) using pliers (3) and pull out until the electrical connector (4) is accessible	Align flap (2). The studs of the pliers (3) must engage in the recesses of the housing for the rear center console socket (X58/13) (arrows A).
		Pliers	Figure
5	Detach electrical connection (4) and remove rear center console socket (X58/13)
6	Install in the reverse order

Fig 2: Identifying Pliers (169 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
