Remove and install DC/AC converter control unit - AR54.21-P-1600LW
MODEL 205 with CODE U67 (230 V socket in interior compartment)
MODIFICATION NOTES
| 29.1.15 | Method modified | Operation step 1.2 |
Shown on MODEL 205.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of death from touching live components with AC voltages over 30 V | Do not touch live parts. Persons who have electronic implants (e.g. cardiac pacemakers) must not perform any work on components conducting AC voltage greater than 30 V. | AS54.00-Z-0001-05A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove luggage compartment lining on right | MODEL 205.0/1 with CODE U67 (230 V socket in interior compartment) |
|
| AR68.30-P-4600LW | |||
| 1.2 | Detach right load compartment paneling far enough to gain access to the DC/AC converter control unit (N24/3) | MODEL 205.2 with CODE U67 (230 V socket in interior compartment) |
|
| AR68.30-P-1180LWS | |||
| 2 | Detach ground line of on-board electrical system battery | AR54.10-P-0003LW | |

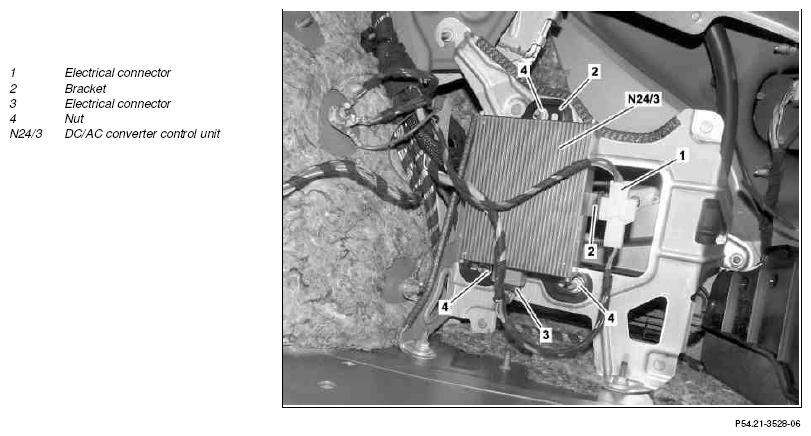

| 3 | Unclip electrical connector (1) from holder (2) | ||
| 4 | Detach electrical connection (3) from DC/AC converter control unit (N24/3) | ||
| 5 | Unscrew nuts (4) and remove DC/AC converter control unit (N24/3) | ||
| 6 | Detach DC/AC converter control unit (N24/3) from holder (2) | When replacing DC/AC converter control unit (N24/3). | |
| 7 | Install in the reverse order |
