Check condition of battery - AR54.10-P-1129LW
Model 205 except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-IONEN-STARTERBATTERIE (LISB))
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove | |||

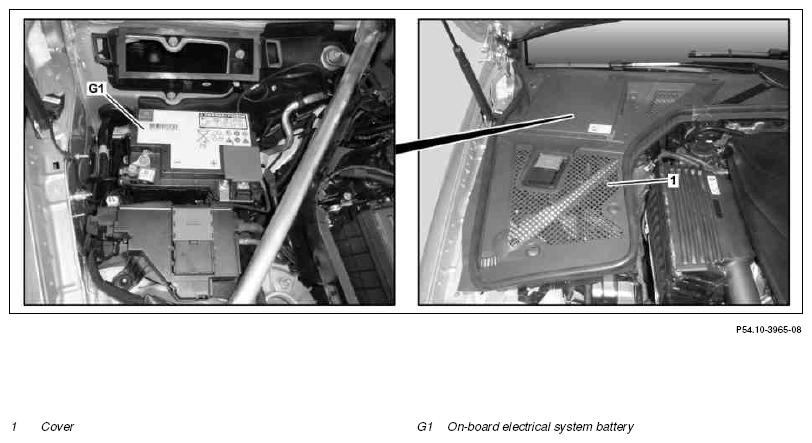

| 1 | Remove cover (1) | ||
| 2 | Perform visual inspection for external leakages | In the event of leaks: ↓ Replace on-board electrical system battery (G1). |
|
| Model 205 (except 205.08/28/38) except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin)) except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-IONEN-STARTERBATTERIE (LISB)) |
AR54.10-P-0005LW | ||
| 3 | Check on-board electrical system battery (G1) | AR54.10-P-1129-01A | |
| 000 588 02 19 00 Battery tester | WS54.00-N-3006B | ||
| Battery capacity 60 Ah VRLA | *BE54.10-P-1006-01A | ||
| Battery capacity 70 Ah VRLA | *BE54.10-P-1010-01A | ||
| Battery capacity 80 Ah VRLA | *BE54.10-P-1012-01A | ||
| Battery capacity 95 Ah VRLA | *BE54.10-P-1015-01A | ||
| 4 | Reduce increased voltage after charging process | For an on-board electrical system battery (G1) that is disconnected from the on-board electrical system and if the message "Surface voltage detected" is in the display of the Midtronics battery tester. | |
| AR54.10-P-1129-03A | |||
| 000 588 03 19 00 Load tester | WS15.00-P-0027B | ||
| 5 | Charge on-board electrical system battery (G1) | With the test code "Charge and check" on the Midtronics battery tester. | |
| AR54.10-P-1130LW | |||
| Install | |||
| 6 | Fit on cover (1) |
TEST AND ADJUSTMENT VALUES FOR BATTERY
| Number | Designation | Model all | ||||
|---|---|---|---|---|---|---|
| BE54.10-P-1006-01A | Battery capacity VRLA | 60 Ah | Cold cranking amps | As per EN | A | 680 |
TEST AND ADJUSTMENT VALUES FOR BATTERY
| Number | Designation | Model all | ||||
|---|---|---|---|---|---|---|
| BE54.10-P-1010-01A | Battery capacity VRLA | 70 Ah | Cold cranking amps | As per EN | A | 760 |
TEST AND ADJUSTMENT VALUES FOR BATTERY
| Number | Designation | Model all | ||||
|---|---|---|---|---|---|---|
| BE54.10-P-1012-01A | Battery capacity VRLA | 80 Ah | Cold cranking amps | As per EN | A | 800 |
TEST AND ADJUSTMENT VALUES FOR BATTERY
| Number | Designation | Model all | ||||
|---|---|---|---|---|---|---|
| BE54.10-P-1015-01A | Battery capacity VRLA | 95 Ah | Cold cranking amps | As per EN | A | 850 |
