Check condition of additional battery - AR54.10-P-1128LW
Model 205 with code ME04 (Mild hybrid drive)
Model 205 with code ME06 (Hybrid drive 50-KW variant (incl. plugin))
| Risk of injury caused by contact with battery gel when handling damaged lead-gelbatteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. | AS54.10-Z-0001-02A | |
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on AGM battery | AH54.10-P-0002-01A | ||
| Remove | |||

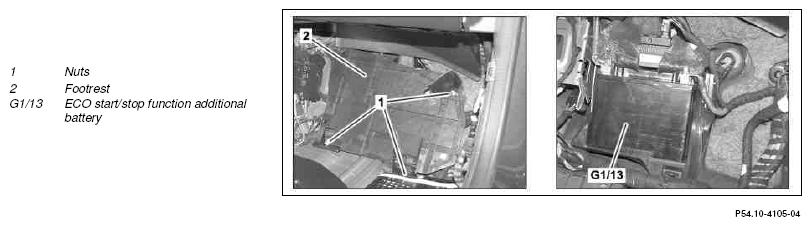

| 1 | Remove floor covering in front passenger footwell | AR68.20-P-2070LW | |
| 2 | Unscrew nuts (1) | ||
| 3 | Remove footrests (2) | ||
| Check | |||
| 4 | Visually inspect additional battery for ECO start/stop function (G1/13) for signs of external leaks | In event of leakage to additional battery for ECO start/stop function (G1/13). ↓ Replace additional battery for ECO start/stop function (G1/13). |
|
| AR54.10-P-0007LW | |||
| 5 | Check additional battery for ECO start/stop function (G1/13) | Model 205 with code ME04 (Mild hybrid drive) except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-IONEN-STARTERBATTERIE (LISB)) Model 205 with code ME06 (Hybrid drive 50-KW variant (incl. plugin)) except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-IONEN-STARTERBATTERIE (LISB)) |
AR54.10-P-1129-01A |
| 000 588 02 19 00 Battery tester | WS54.00-N-3006B | ||
| Battery capacity 12 Ah | *BE54.10-P-1001-01A | ||
| 6 | Charge additional battery for ECO start/stop function (G1/13) on the battery terminals | When "Charge and check" is shown on the battery tester/test equipment display. | |
| 7 | Check additional battery for ECO start/stop function (G1/13) again | When "Charge and check" is shown on the battery tester/test equipment display. | |
| Model 205 with code ME04 (Mild hybrid drive) except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-IONEN-STARTERBATTERIE (LISB)) Model 205 with code ME06 (Hybrid drive 50-KW variant (incl. plugin)) except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-IONEN-STARTERBATTERIE (LISB)) |
AR54.10-P-1129-01A | ||
| 000 588 02 19 00 Battery tester | WS54.00-N-3006B | ||
| Battery capacity 12 Ah | *BE54.10-P-1001-01A | ||
| Install | |||
| 8 | Position footrest (2) in front passenger footwell | ||
| 9 | Tighten nuts (1) | ||
| 10 | Install floor covering in front passenger footwell | AR68.20-P-2070LW |
TEST AND ADJUSTMENT VALUES FOR BATTERY
| Number | Designation | Model all | ||||
|---|---|---|---|---|---|---|
| BE54.10-P-1001-01A | Battery capacity | 12 Ah | Cold cranking amps | As per EN | A | 170 |
