Charge battery - AR54.10-P-1130LW
Model 205
| Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte or due to short circuit. Risk of burn injuries due to thermal changes. Risk of poisoning from swallowing battery electrolyte. | Wear protective gloves, protective clothing and safety glasses. In the event of escaping battery electrolyte, battery vapors, battery mist, smoke or heat development, secure the area, leave it and alert the fire department. | AS54.10-Z-0001-04A | |
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes for 12-V lithium-ion battery | AH54.10-P-0004-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Check | |||
| 1 | Check condition of on-board electrical system battery | Model 205 except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-IONEN-STARTERBATTERIE (LISB)) Not with active transport mode. |
|
| AR54.10-P-1129LW | |||
| Charging | |||

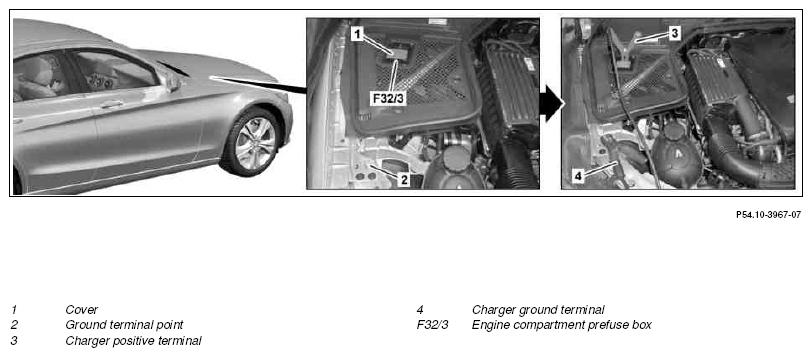

| 2 | Expose charging terminal point of engine compartment prefuse box (F32/3) by moving the cover (1) | With on-board electrical system battery installed. | |
| 3.1 | Connect charger to the on-board electrical system battery | With on-board electrical system battery removed. | |
| 000 588 00 81 00 Charger | WS54.00-P-0037B | ||
Do not reverse polarity. Risk of short-circuit. |
|||
| 3.2 | Connect positive terminal for charger (3) to charging terminal point of engine compartment prefuse box (F32/3) and ground terminal for charger (4) to ground terminal point (2) | With on-board electrical system battery installed. | |
| 000 588 00 81 00 Charger | WS54.00-P-0037B | ||
Do not reverse polarity. Risk of short-circuit. Check for correct installation position of bleed hose. Otherwise leaking battery vapor may damage the vehicle. |
|||
| 4 | Charge on-board electrical system battery | The on-board electrical system battery is sufficiently charged when the charging current reading is < 25 A. |
|
| 5.1 | Disconnect charger from on-board electrical system battery | With on-board electrical system battery removed. Switch off charger beforehand. Risk of arcing. |
|
| 5.2 | Disconnect positive terminal of charger (3) at the charging terminal point of the engine compartment prefuse box (F32/3) and the charger ground terminal (4) at the ground terminal point (2) | With on-board electrical system battery installed. Switch off charger beforehand. Risk of arcing. |
|
| Check | |||
| 6 | Check condition of on-board electrical system battery | Model 205 except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-IONEN-STARTERBATTERIE (LISB)) Not with active transport mode. |
|
| AR54.10-P-1129LW |
