Traffic Sign Assist, function - GF54.30-P-0010RF

MODEL 205, 253 with CODE 513 (Speed Limit Assist)

Function requirements, general

• Circuit 15R ON

The electronic ignition lock control unit sends the circuit 15 status over the chassis FlexRay to the stereo multifunction camera or over the periphery CAN to the mono multifunction camera.

Traffic Sign Assist, general

A camera on the inside of the windshield detects the signposted speed limits, e.g. at the edge of the road, on overhead signs or at construction sites. Their data is compared with the information of the navigation system and displayed both in the instrument cluster and in the navigation map view. "No passing" zones and the associated derestriction signs are also recorded and displayed. In the case of restricted access with corresponding signage, a visual and acoustic warning is additionally output in the instrument cluster.

Traffic Sign Assist is implemented to match the equipment into the mono multifunction camera or into the stereo multifunction camera.

The following traffic signs are recorded and evaluated on the stretch of road being driven on by the vehicle.:

• Speed limits including additional signs along with the corresponding termination signs
• No overtaking signs and their termination
• No entry signs

The registered traffic signs are shown on the multifunction display of the instrument cluster and on the Audio/COMAND display. The display on the instrument cluster multifunction display can be switched on or off using the "Assistance" menu in the instrument cluster.

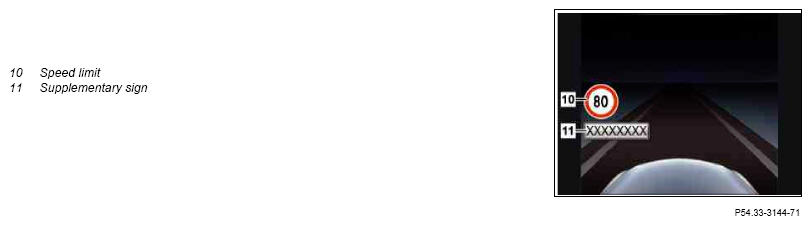

Display in instrument cluster (depiction of the detected traffic sign is country-specific)

A maximum of two speed limits and an additional traffic sign are shown at the same time. If several speed limits are detected, the lowest speed limit is displayed.

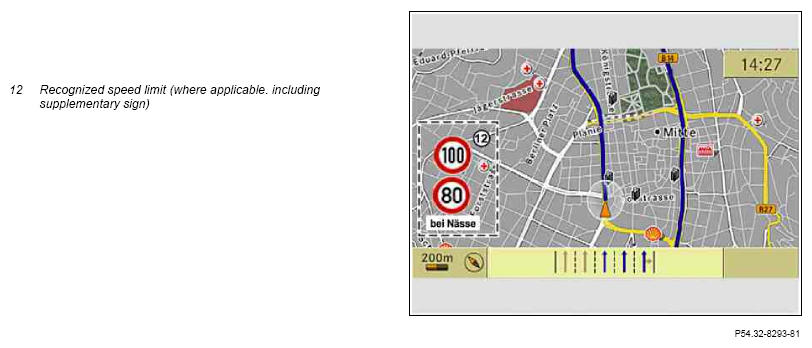

Shown on Audio/COMAND display, system language German (the detected traffic signs are shown on a country-specific basis)

The display in the Audio/COMAND display is only shown in the Navigation system map view, and it can be switched on or off using the head unit menu.

The mono multifunction camera or the stereo multifunction camera evaluates the following input factors among other things:

• Signal "Engine running" or "Drive train operational"
• GPS data
• Direction of travel, vehicle speed and yaw rate
• Steering wheel angle
• Windshield wiper active
• Outside temperature
• Trailer recognition (with CODE 550 (Trailer hitch))

"Engine running" or "Drive train operational" signal:

The CDI control unit or the ME-SFI [ME] control unit sends the "Engine running" or "Drive train operational" signal via drive train CAN, powertrain control unit and chassis FlexRay to the stereo multifunction camera or via drive train CAN, powertrain control unit and periphery CAN to the mono multifunction camera.

GPS data:

The GPS data is used for checking the plausibility of the object detected by the multifunction camera as well as for hiding displayed speed limits when the vehicle is driven into built-up areas. The GPS data are sent by the head unit over the user interface CAN, electronic ignition lock control unit and the chassis FlexRay to the stereo multifunction camera or over the user interface CAN, electronic ignition lock control unit and the periphery CAN to the mono multifunction camera.

Direction of travel, vehicle speed and yaw rate:

Information on direction of travel and vehicle speed are derived from the wheel speed and wheel rotation direction signals.

The yaw behavior is detected by the acceleration sensor integrated into the Supplemental Restraint System control unit. The supplemental restraint system control unit sends the corresponding values via the vehicle dynamics CAN to the Electronic Stability Program control unit. The Electronic Stability Program control unit sends all relevant information via chassis FlexRay to the stereo multifunction camera or via chassis FlexRay, electronic ignition lock control unit and periphery CAN to the mono multifunction camera.

Steering wheel angle:

The steering angle is recorded by the steering wheel angle sensor. The steering column tube module control unit reads in the signals from the steering wheel angle sensor directly and sends information about the steering wheel angle via the chassis FlexRay to the stereo multifunction camera or via the chassis FlexRay, electronic ignition lock control unit and periphery CAN to the mono multifunction camera.

Windshield wiper active:

The front SAM control unit controls the windshield wiper system. With the windshield wiper switched on, the front SAM control unit sends the "Windshield wiper active" status via the interior CAN, electronic ignition lock control unit and chassis FlexRay to the stereo multifunction camera or via the interior CAN, electronic ignition lock control unit and periphery CAN to the mono multifunction camera.

Outside temperature:

The outside temperature is recorded by the outside temperature sensor. The front SAM control unit reads in the outside temperature sensor signal directly, uses this to calculate the outside temperature and sends this via interior CAN, electronic ignition lock control unit and user interface CAN to the instrument cluster. The instrument cluster calculates the outside temperature displayed and sends this over the user interface CAN, electronic ignition lock control unit and chassis FlexRay to the stereo multifunction camera or over the user interface CAN, electronic ignition lock control unit and periphery CAN to the mono multifunction camera.

Trailer recognition (with CODE 550 (Trailer hitch)):

If a trailer is detected, the trailer recognition control unit sends the "Trailer detected" status over the interior CAN, electronic ignition lock control unit and the chassis FlexRay to the stereo multifunction camera or over the interior CAN, electronic ignition lock control unit and the periphery CAN to the mono multifunction camera.

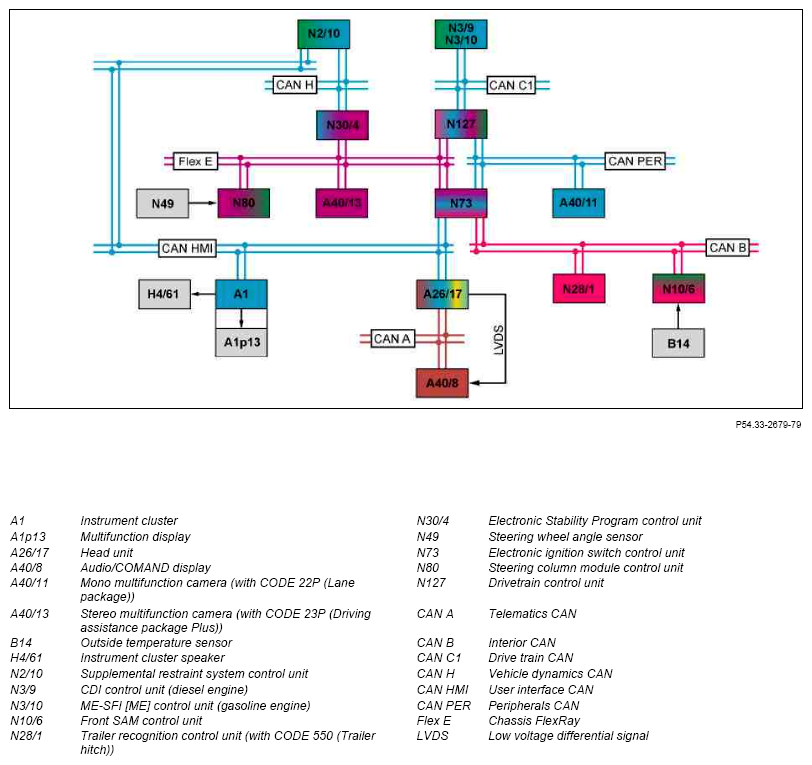

Function sequence for Traffic Sign Assist

At a horizontal angular coverage of ∠ = 46° the multifunction camera records pictures during the journey of the traffic signs over or at the side of the road. Traffic Sign Assist is continuously active in the background. In other words, the corresponding traffic signs are permanently recorded and evaluated by the multifunction camera [MFK]. The recorded picture data are sent to the integrated picture recognition module which compares them against the stored data records and assigns the traffic signs to the respective valid road traffic regulations. The multifunction camera's picture recognition module assigns credibility to all results.

The national regulations for the design and attachment of traffic signs are taken into account for this.

The multifunction camera records all picture objects and evaluates circular as well as square contours. Speed limits, prohibitory and derestriction signs including additional restrictions in countries with signage according to the Vienna convention are accordingly recorded. Non-relevant signs (supplementary signs that, e.g. are relevant for a turnoff lane) are suppressed. If the navigation system is active, supplementary signs will be shown immediately if they are relevant for the currently active navigation.

Possible additional signs include limits in wet conditions or when towing a trailer. If, for example, the "windshield wipers active" status is received by the multifunction camera and a speed limit with additional restriction "in the wet" is registered, the detected speed limit is shown in the instrument cluster. The speed limit is not viewed to be relevant as long as the "Windshield wipers active" status is not read in.

Supplementary signs not relevant for passenger cars (e.g. speed limits for trucks) will not be shown. The number of these traffic signs amounts to approx. 10% of all traffic signs. After evaluating the data, the detected traffic signs are shown on the instrument cluster's multifunction display and on the Audio/COMAND display. Information about the currently permissible speed or the currently valid prohibitions is thus available to the driver.

The multifunction camera also combines the information about speed limit to form an event if the information is contradictory.

The mono multifunction camera sends corresponding requests to display the currently detected traffic sign and a warning message via the periphery CAN, electronic ignition lock control unit and user interface CAN to the instrument cluster and the head unit.

The stereo multifunction camera sends corresponding requests to display the currently detected traffic sign and a warning message via the chassis FlexRay, electronic ignition lock control unit and user interface CAN to the instrument cluster and the head unit.

The head unit actuates the Audio/COMAND display via the telematics CAN and sends the corresponding data via the LVDS line.

If the multifunction camera detects a no entry sign if the vehicle is driven onto a freeway or expressway in the opposite direction to the direction of travel (wrong-way driver scenario), the no entry sign is shown in the multifunction display of the instrument cluster and in the Audio/COMAND display. A "Check direction of travel!" warning message is also shown in the multifunction display and an acoustic warning is issued by the instrument cluster speaker, which is actuated directly by the instrument cluster.

The acoustic warning message can be acknowledged after t = 5 s at the earliest.

In the event of a fault, the following messages are shown on the multifunction display:

• "System currently not available" (e.g. camera field of view fogged up)
• "System nonfunctional" (e.g. multifunction camera or navigation system malfunction)

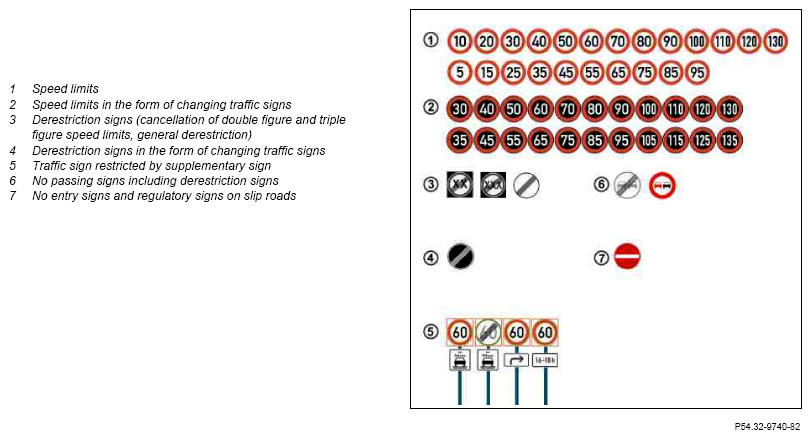

Traffic signs recognized by the multifunction camera (example displays)

Representation of derestriction signs

The following events cause the derestriction sign to be displayed (Fig 5):

• Passing by a derestriction sign (Fig 5)
• Passing by a derestriction sign with a speed value (Fig 5), if previously no traffic sign with a speed value has been recognized

The following event leads to the display of a derestriction sign (Fig 5):

• Passing a derestriction sign with speed value (Fig 5) which deviates from the speed value of the traffic sign recorded in prior history (Fig 5)

The following event leads to the display of a derestriction sign (Fig 5):

• Driving by a derestriction sign for no passing (Fig 5), if the no passing sign was previously detected (Fig 5)

When driving past a derestriction sign (speed limitation or no passing), the derestriction sign is shown for t = 5 s. The applicable traffic sign is then shown in the multifunction display and in the Audio/COMAND display.

In addition the multifunction camera evaluates information on the area around the vehicle and on the vehicle's own movement.

These include:

• Distance and angle to other road users and objects, detected by the multifunction camera
• Vehicle movement and yaw behavior
• GPS data of head unit

The attributes verified in the digital card of the navigation system are also evaluated.

The GPS data is used for checking the plausibility of the object detected by the multifunction camera as well as for hiding displayed speed limits when the vehicle is driven into built-up areas.

The GPS data is additionally used to evaluate the national availability. The national availability may be able to be extended and therefore it matches the current software release.

If the GPS data cannot be evaluated (e.g. no GPS signals or no country-specific map data), the Traffic Sign Assist system is switched off after a travel distance of s = 30 km. Additionally, the message "Traffic Sign Assist nonfunctional" is shown in the multifunction display. If the multifunction camera does not detect any speed limits (e.g. if the windshield is dirty), the values verified in the digital map of the navigation system are shown. If this condition is maintained for t > 10 minutes, the multifunction camera changes to the "Blockade" mode and the traffic signs display is deactivated. Additionally, the message "Traffic Sign Assist nonfunctional" is shown in the multifunction display. If, later on, a traffic sign is detected again (e.g. owing to a reduction in the degree of windshield fogging), the "Blockade" mode is deactivated again.

Because speed limits are subject to alteration, the digital map data has to be regularly updated.

Information on the classification of roads and regional development is deduced from the GPS data provided by the head unit. By this means the system recognizes that the vehicle is leaving a road for which a speed limit identified earlier was displayed. Since the picture recognition is unable to cancel the display of a speed limit identified outside a town/village when passing a town/village entry sign, use is made of the map data.

With a change from a non-built-up area to a built-up area as defined by the markings for buildings on the navigation map, the display of the last identified speed limit is canceled. As the town/village limits do not always match the built-up area markings from the navigation map, the display showing the last detected speed limit may disappear too soon or may continue to be shown in the built-up area.

Situations which lead to a failed cancellation or superfluous cancellation of this display are shown in the following pictures:

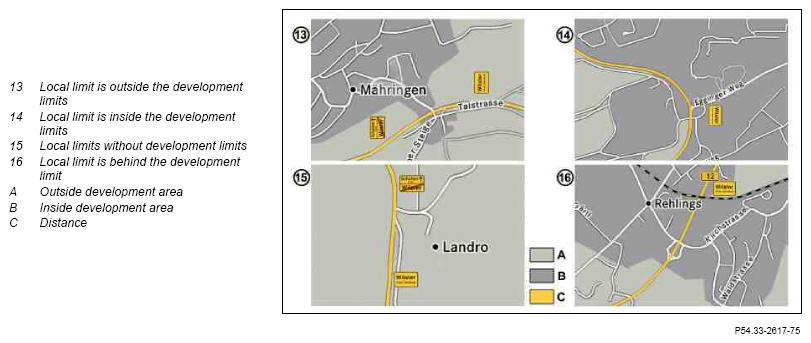

Representation of town/village limits and built-up area limits

Function information and system limits

Below is a list of examples of situations in which the pictures recorded by the multifunction camera cannot be evaluated and cannot be used for display in the multifunction display and in the Audio/COMAND display

Speed limits marked by town/village entry and town/village exit signs or by freeway start and finish signs are not recorded. These traffic signs however, are filed through the road definition feature (e.g. freeway) in the digital navigation map.

Electronically actuated changing traffic signs can be "missed" or interpreted incorrectly. In the event of changing traffic signs that are actuated by pulses or flashes, there may be difference to the picture recording's permanent cycle time, depending on the actuated frequency of the changing traffic signs. As a result only fragments of the changing traffic signs will be recognized.

If the image cannot be uniquely identified as a traffic sign, the speed value that is stored in the digital navigation map is then shown.

To enable the detection of changing traffic signs on which the outer circular ring is missing, special detectors have been implemented in the multifunction camera. This type of display is mainly used in the United Kingdom, the Netherlands and Belgium.

The horizontal angle of vision of the multifunction camera is limited. Traffic signs erected immediately after junctions, turnoffs which the vehicle takes, can be "missed" by the multifunction camera. The horizontal recording angle (a) of the multifunction camera is ∠ = 46°.

The vertical angle of vision of the multifunction camera is limited. Traffic signs on sign gantries are only interpreted reliably up to a vehicle speed of v = 160 km/h.

In order to keep recognition certainty homogeneous over all vehicle speed ranges, the evaluation window of the multifunction camera is downsized as the vehicle speed increases. The consequence of limiting the evaluation window of the multifunction camera is that traffic signs installed low down, for example signs used in construction sites, are "missed" if they are passed at high speed.

The resolution of the multifunction camera is limited. Traffic signs on wide or multilane roads can be "missed" as they do not reach the size required for clear identification in the evaluation window of the multifunction camera.

The sensitivity and dynamics of the multifunction camera are limited.

This results in traffic signs not being recognized under the following conditions:

• Traffic signs with low contrast
• Extreme oncoming lights or lights from the rear
• Low levels of lighting, darkness

The focus and alignment of the multifunction camera are fixed. As a result recorded objects are represented with a movement blur depending on the exposure time.

This movement blur and sensitivity of the multifunction camera limit its usefulness at night. The result of the fixed focus and static alignment is that the traffic signs to be recorded must be completely visible in a small observation time window.

Unfavorably designed back-end sections of commercial vehicles may be interpreted as derestriction signs by mistake (left picture). Signage on the back-end section of commercial vehicles may be interpreted as traffic signs by mistake (right picture).

During an update or a reset procedure for the head unit, the navigation system data are not available so that fault messages may occur in an individual case.
