Fuse and relay box, as-built configuration - GF54.15-P-0800RF
Model 205, 253

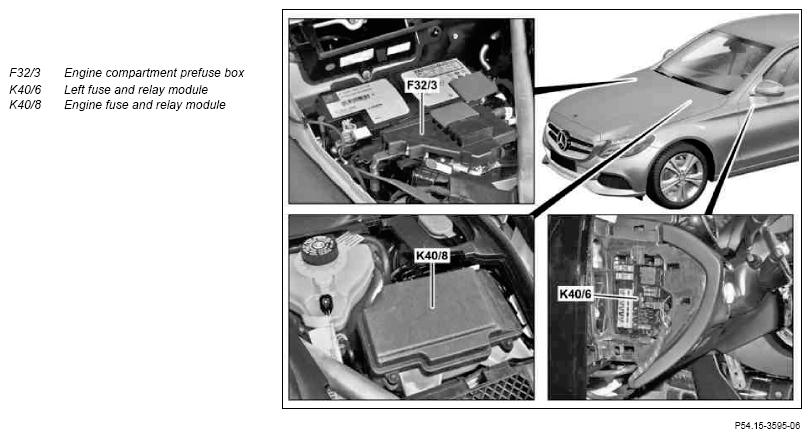

Shown on model 205.0

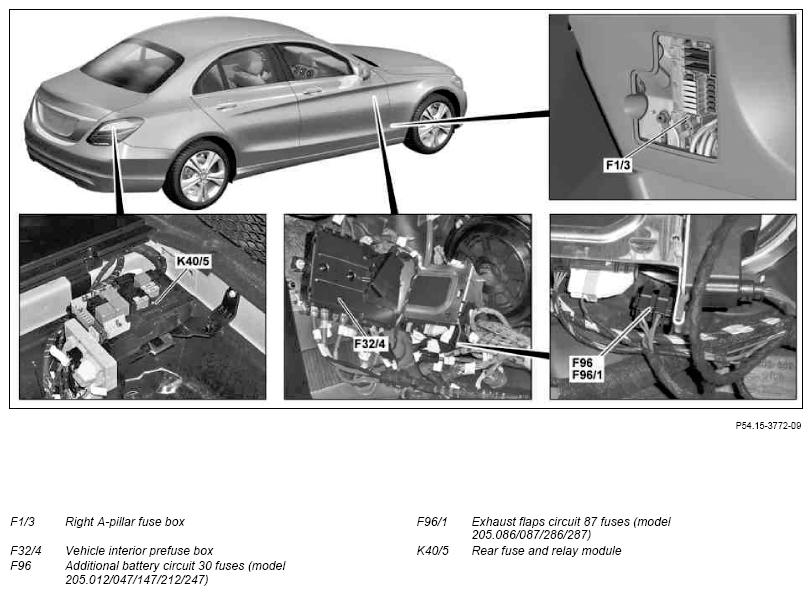

Shown on model 205.0

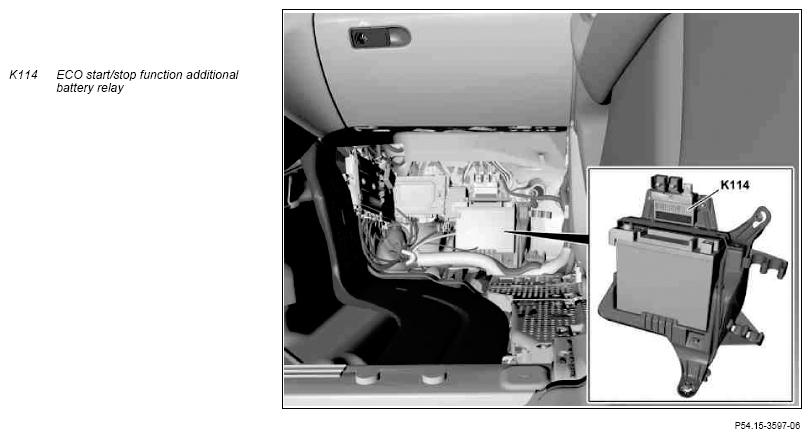

Model 205.012/047/147/212/247
The additional battery circuit 30 fuses protect the connection between the ECO start/stop function additional battery (G1/13) and the front SAM control unit (N10/6) and the electronic ignition lock control unit (N73) with 7.5 A.
Model 205.086/087/286/287
The exhaust flaps circuit 87 fuses protect the left exhaust flap actuator motor (M16/53), the right exhaust flap actuator motor (M16/54) and the center exhaust flap actuator motor (M16/55) with 10 A.
Model 205.012/047/147/212/247
| Assignment of right A-pillar fuse box | F1/3 | GF54.15-P-1256-44RF | |
| Fuse assignment of prefuse box in engine compartment | F32/3 | GF54.15-P-1256-25RF | |
| Assignment of prefuse box in vehicle interior | F32/4 | GF54.15-P-1256-37RF | |
| Assignment of rear fuse and relay module | K40/5 | GF54.15-P-1256-30RF | |
| Assignment of left fuse and relay module | K40/6 | GF54.15-P-1256-31RF | |
| Assignment of engine fuse and relay module | K40/8 | GF54.15-P-1256-32RF |
