DC/AC converter control unit, component description - GF54.21-P-4127RF
MODEL 205, 253 with CODE U67 (230 V socket in interior compartment)
Shown: Model 205.0

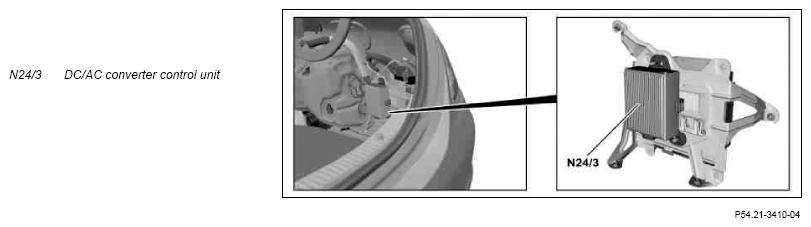

Location
The DC/AC converter control unit is located in the luggage compartment at the right, on a bracket behind the cover.
Task
A 230-V AC voltage will be made available via the 230V (X58/44) socket.
The DC/AC converter control unit converts the DC voltage of the on-board electrical system into AC voltage. Small electrical devices that require an AC voltage (e.g. video game consoles, mobile phone charger) can be connected to the socket supplied in this manner. The maximum available electrical continuous load is P = 150 W, for a short-term up to P = 300 W is permissible for t = 2 s.
The DC/AC converter control unit supplies the microswitch in the socket with voltage. If a consumer is connected to the socket, voltage is switched through to the control input of the DC/AC converter control unit. The DC/AC converter control unit then converts the DC voltage of the on-board electrical system into AC voltage.
| Wiring diagram for control unit DC/AC converter | PE54.10-P-2103-97FBA |
