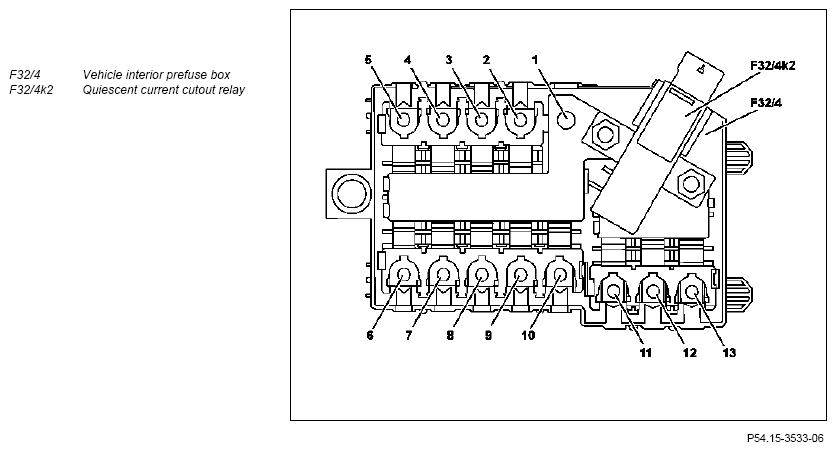

Assignment Of Pre-Fuse Box In Vehicle Interior - GF54.15-P-1256-37RF
Model 205, 253
| Connection | Fuse Identification | Circuit | Line ID (line fused) | Fused component | Rating in amperes (A) |
|---|---|---|---|---|---|
| 1 | - | 30 | 35.0 RD | Engine compartment prefuse box (F32/3) | - |
| 2 | Electrical fuse 2 (F32/4f2) | 30 | 16.0 BK | Valid for model 205.012/047/147/212/247: Additional battery relay for ECO start/stop function (K114) |
150 |
| 3 | Electrical fuse 3 (F32/4f3) | 30 | 4.0 RD | Blower regulator (A32n1) | 40 |
| 4 | Electrical fuse 4 (F32/4f4) | 30 | - | Spare | - |
| 5 | Electrical fuse 5 (F32/4f5) | 30 | 16.0 RD | Valid for diesel engine: PTC heater booster (R22/3) |
150 |
| 6 | Electrical fuse 6 (F32/4f6) | 30 | 10.0 BK | Right A-pillar fuse box (F1/3) | 80 |
| 7 | Electrical fuse 7 (F32/4f7) | 30 | 27.0 RD | Rear fuse and relay module (K40/5) | 150 |
| 8 | Electrical fuse 8 (F32/4f8) | 30 | - | Spare | - |
| 9 | Electrical fuse 9 (F32/4f9) | 30 | - | Spare | - |
| 10 | Electrical fuse 10 (F32/4f10) | 30 | 10.0 RD | Valid for model 205 (except 205.012/047/147/212/247) with transmission 722, 725 or for model 253 with transmission 725: Fully integrated transmission control unit (Y3/8n4) |
60 |
| Valid for model 205.012/047/147/212/247 with engine 724: Fully integrated transmission control unit (Y3/8n4) |
100 | ||||
| 11 | Electrical fuse 11 (F32/4f11) | 30g | - | Spare | - |
| 12 | Electrical fuse 12 (F32/4f12) | 30g | 10.0 RD | Rear fuse and relay module (K40/5) | 40 |
| 13 | Electrical fuse 13 (F32/4f13) | 30g | 6.0 RD | Right A-pillar fuse box (F1/3) | 50 |
