| A0 |
Use of wiring diagrams |
32L |
| A26/17 |
Head unit |
20L |
| CAN D |
Diagnostic CAN |
8K |
| Code 810 |
Sound system |
22F |
| Code E64 |

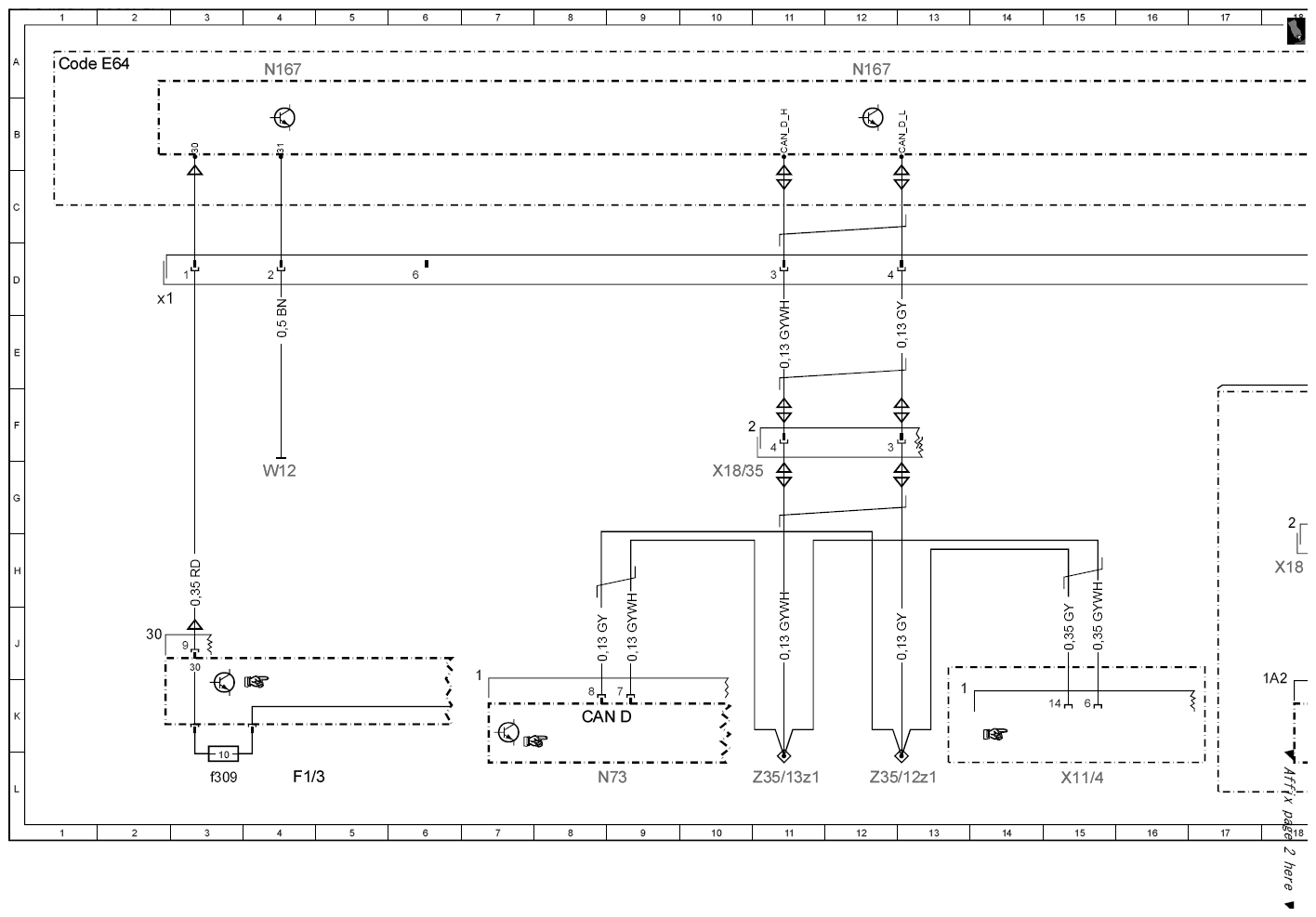

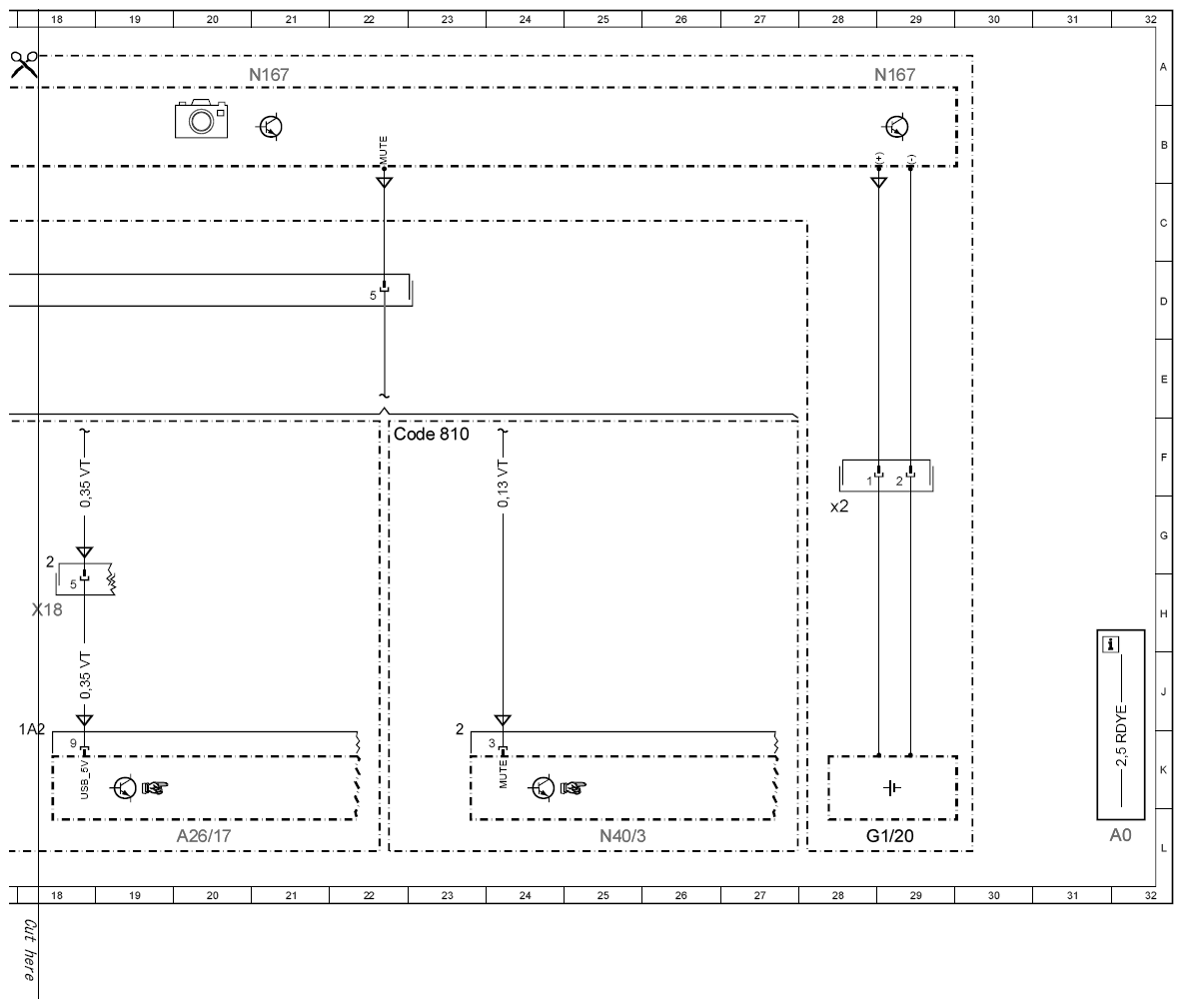

ECALL RUSSIA (GLONASS) |
1A |
| F1/3 |
Right A-pillar fuse box |
4L |
| F1/3f309 |
Fuse 309 |
3L |
| G1/20 |
E-Call Russia (GLONASS) backup battery |
29L |
| N167 |
E-Call Russia (GLONASS) control unit |
4A |
| N167 |
E-Call Russia (GLONASS) control unit |
12A |
| N167 |
E-Call Russia (GLONASS) control unit |
21A |
| N167 |
E-Call Russia (GLONASS) control unit |
29A |
| N167x1 |
E-Call Russia (GLONASS) control unit electrical connector 1 |
2D |
| N167x2 |
E-Call Russia (GLONASS) control unit electrical connector 2 |
28G |
| N40/3 |
Sound system amplifier control unit |
25L |
| N73 |
Electronic ignition switch control unit |
9L |
| W12 |
Ground point (center console) |
4G |
| X11/4 |
Diagnostic connector |
15L |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
18H |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
10G |
| Z35/12z1 |
Diagnostic CAN (CAN D) low connector sleeve |
12L |
| Z35/13z1 |
Diagnostic CAN (CAN D) high connector sleeve |
11L |
