Telephone (TEL) wiring diagram - PE82.70-P-2000-97FBA

Code:	Designation:	Position:
A0	Use of wiring diagrams	23L
A2/109	Telephone antenna splitter	18L
A26/17	Head unit	7L
A28/15	Cellular telephone system antenna amplifier/compensator	4A
A28/15	Cellular telephone system antenna amplifier/compensator	12A
A28/15	Cellular telephone system antenna amplifier/compensator	17A
K40/5	Rear fuse and relay module	3L
K40/5f416	Fuse 416	2L
W12/1	Right center console ground point	13E
X237/1	Mobile phone contact plate	12L
X237/1x1	Mobile phone contact plate electrical connector 1	10H
X237/1x2	Mobile phone contact plate electrical connector 2	14H
Z100/2z1	Wake-up signal connector sleeve	11E
Z6/30	Circuit 31 connector sleeve	13G

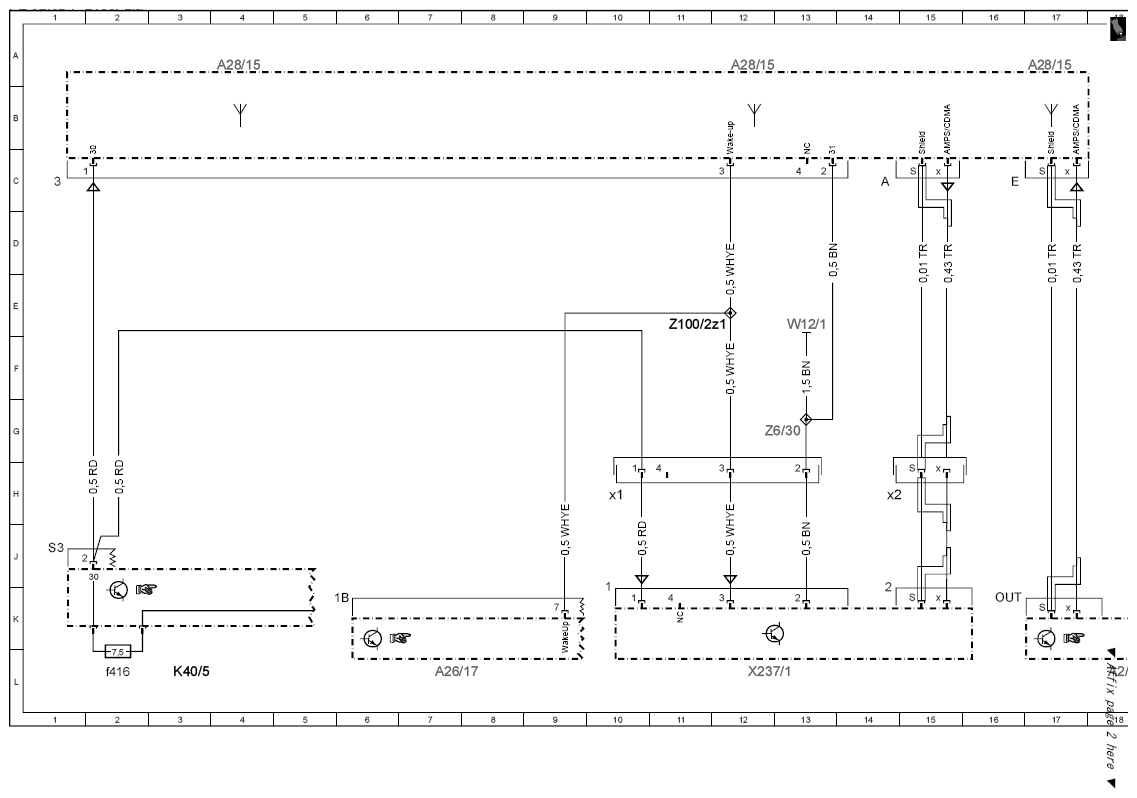

Fig 1: Telephone (TEL) - Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

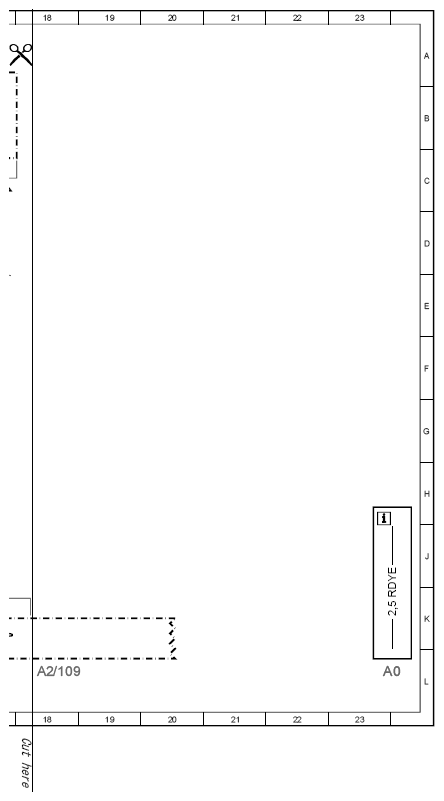

Fig 2: Telephone (TEL) - Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
