Remove/install left footwell bass speaker - AR82.62-P-7820LW
Model 205 with code 810 (Sound system)
Model 253 with code 810 (Sound system)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove cover below left of instrument panel | AR68.10-P-1500LW | |
| 2 | Remove left front floor covering | AR68.20-P-2050LW | |

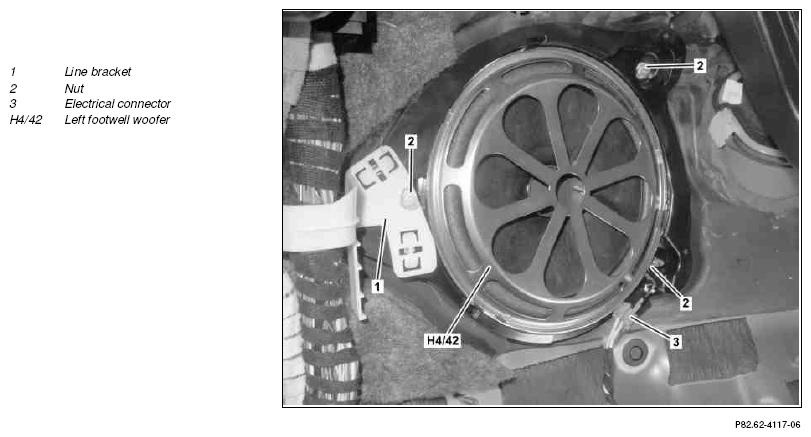

| 3 | Unclip line bracket (1) | ||
| 4 | Disconnect electrical connector (3) | ||
| 5 | Unscrew nuts (2) | ||
| 6 | Remove left footwell woofer (H4/42) | ||
| 7 | Install in the reverse order |
