Completely replace inner C-pillar side wall - AR63.10-P-0700LW
Model 205.0/1
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Note on high-voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Note on high-voltage battery | AH54.10-P-0006-01MEV | ||
| Pretreatment of bonding surfaces | AH60.00-P-0008-01SX | ||
| Evaluation of high-voltage components | AH54.00-P-6500-01SXH | ||
| General information on body repair | AH60.00-P-0001-01A | ||
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove detachable parts in area to be repaired | ||
| 2 | Cover all detachable parts remaining on vehicle with spark protection blanket | ||
| 3 | Remove C-pillar | AR63.20-P-0500LW | |
| 4 | Equip straightening bench with module members, cross members and straightening tool set | Straightening systems for passenger cars (Celette) Straightening systems for passenger cars (Car Bench) Straightening systems for passenger cars (Car-O-Liner) |
|
| 5 | Place vehicle on straightening bench and fasten | ||

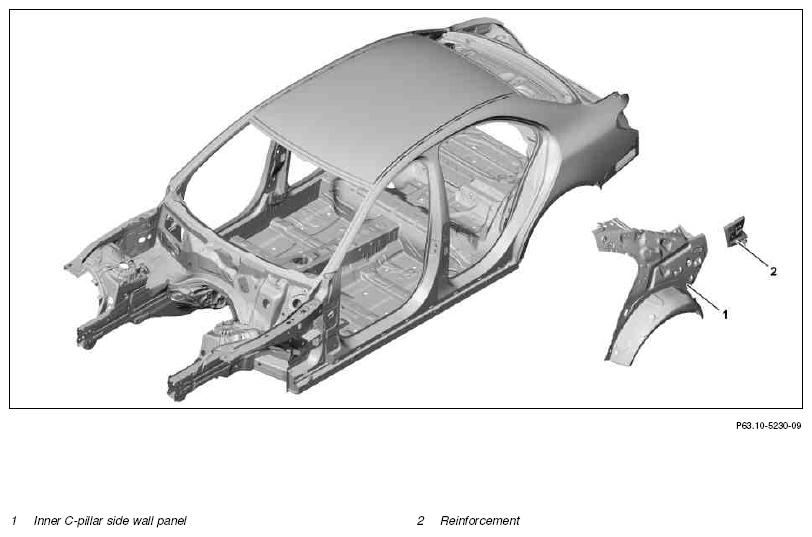

| 6 | Remove C-pillar inner side wall (1) and reinforcement (2) | AR63.10-P-0700-01LW | |
Round wire brush Body jig saw Spot weld milling machine Heat gun Wet/dry vacuum cleaner |
|||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| 7 | Prepare C-pillar inner side wall (1) and reinforcement (2) | AR63.10-P-0700-02LW | |
Round wire brush Body jig saw |
|||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly flammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| Risk of poisoning caused by inhaling vapors or swallowing adhesive. Risk of injury caused by adhesive coming into contact with skin and eyes | Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only. | AS00.00-Z-0016-01A | |
| Measures for preventing damage to components when performing electric welding and soldering work | AH60.00-P-0001-02A | ||
| General information on riveting | AH60.00-P-0003-01N | ||
| 8 | Install C-pillar inner side wall (1) and reinforcement (2) | AR63.10-P-0700-04LW | |
| 000 588 02 39 00 Rivet press tool | WS60.00-P-0010B | ||
Round wire brush Manual temporary fastener, 6.35 mm Spot welder Inert gas welder Wet/dry vacuum cleaner |
|||
| Adhesive kit, body, 2-component adhesive | *BR00.45-Z-1092-02A | ||
| Blind rivet 6.4 X 12 (clamping range 1 mm to 3.5 mm) | *BR00.45-Z-1035-13A | ||
| Zinc dust paint suitable for spot welding Straightening systems for passenger cars (Celette) Straightening systems for passenger cars (Car Bench) Straightening systems for passenger cars (Car-O-Liner) |
*BR00.45-Z-1001-07A | ||
| 9 | Release vehicle from straightening bench, lift vehicle and remove straightening bench | ||
| 10 | Clean welds and sheet metal flange | Round wire brush |
|
| 11 | Install C-pillar | AR63.20-P-0500LW |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
| BR00.45-Z-1035-13A | Blind rivet 6.4 X 12 (clamping range 1 mm to 3.5 mm) | A 000 991 76 32 |
| BR00.45-Z-1092-02A | Adhesive kit, body, 2-component adhesive | A 009 989 36 71 |
