| 1 |
Circuit 15R, status |
16F |
| 10 |
Trunk lid/liftgate lock main catch switch, status |
28G |
| 10 |
Trunk lid/liftgate lock main catch switch, status |
26C |
| 10 |
Trunk lid/liftgate lock main catch switch, status |
31K |
| 11 |
Drivetrain operational, signal |
13D |
| 11 |
Drivetrain operational, signal |
15D |
| 12 |
Circuit 87, status |
28G |
| 12 |
Circuit 87, status |
18F |
| 13 |
Brake lights, request |
23F |
| 13 |
Brake lights, request |
33H |
| 13 |
Brake lights, request |
36G |
| 13 |
Brake lights, request |
36J |
| 13 |
Brake lights, request |
39J |
| 14 |
Dynamometer mode, status |
18F |
| 14 |
Dynamometer mode, status |
25E |
| 15 |
ESP®, status |
26E |
| 15 |
ESP®, status |
18F |
| 16 |
Seat belt buckle restraint system switch, status |
26D |
| 16 |
Seat belt buckle restraint system switch, status |
27E |
| 16 |
Seat belt buckle restraint system switch, status |
34B |
| 17 |
Parking brake indicator lamp, actuation |
17A |
| 18 |
Selector lever position, status |
26H |
| 18 |
Selector lever position, status |
19F |
| 19 |
Instrument cluster, message |
20D |
| 19 |
Instrument cluster, message |
23F |
| 2 |
Electric parking brake switch, status |
20C |
| 2 |
Electric parking brake switch, status |
24F |
| 2 |
Electric parking brake switch, status |
13F |
| 20 |
Engine running, signal |
13D |
| 20 |
Engine running, signal |
15D |
| 21 |
Speed, turn rate and lateral acceleration, signal |
27B |
| 22 |
Parking brake warning lamp, actuation |
17B |
| 3 |
Emergency stop, signal |
20D |
| 3 |
Emergency stop, signal |
26C |
| 3 |
Emergency stop, signal |
24F |
| 3 |
Emergency stop, signal |
26C |
| 4 |
Wheel speed, signal |
17F |
| 4 |
Wheel speed, signal |
26E |
| 4 |
Wheel speed, signal |
24B |
| 5 |
Diagnosis, communication |
27G |
| 5 |
Diagnosis, communication |
17F |
| 5 |
Diagnosis, communication |
24F |
| 5 |
Diagnosis, communication |
29F |
| 5 |
Diagnosis, communication |
27F |
| 6 |
Accelerator pedal sensor, signal |
6D |
| 6 |
Accelerator pedal sensor, signal |
15D |
| 6 |
Accelerator pedal sensor, signal |
13C |
| 7 |
Gear range, status |
6F |
| 7 |
Gear range, status |
15D |
| 7 |
Gear range, status |
13C |
| 8 |
Electric parking brake actuator motor, actuation |
12H |
| 8 |
Electric parking brake actuator motor, actuation |
15J |
| 9 |
Door rotary tumbler switch, status |
20K |
| 9 |
Door rotary tumbler switch, status |
24G |
| 9 |
Door rotary tumbler switch, status |
26C |

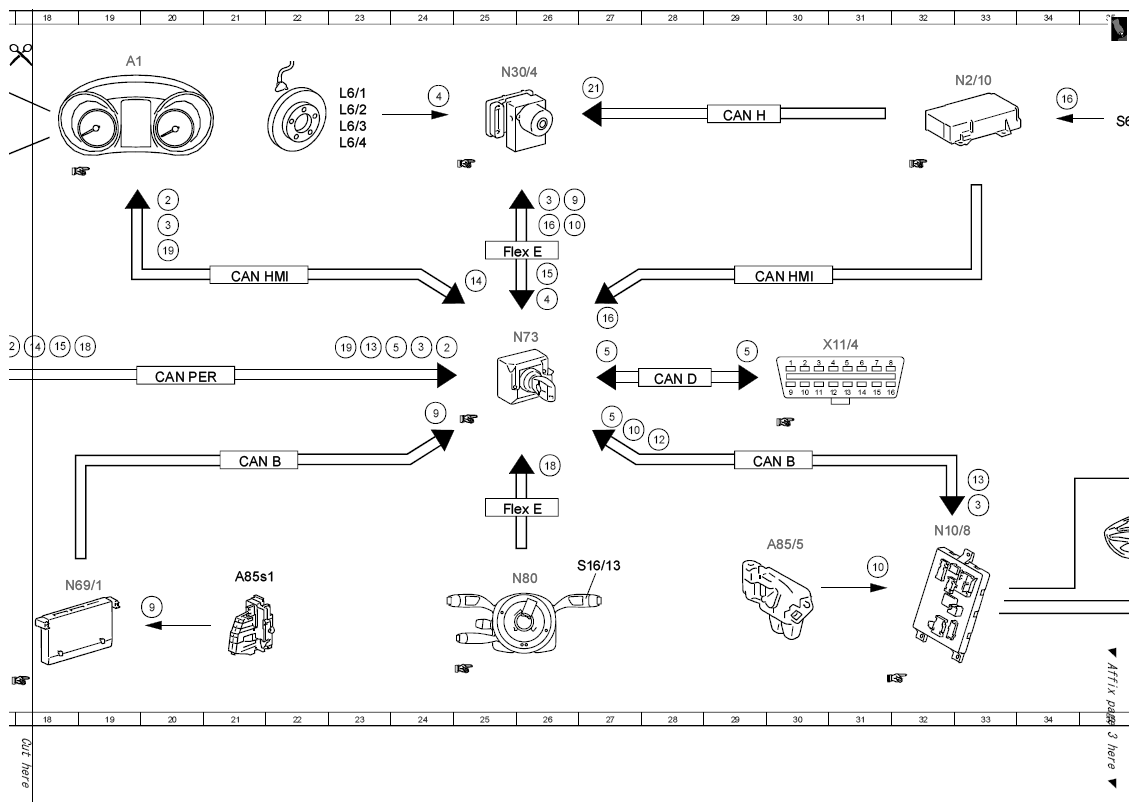

| A1 |
Instrument cluster |
19A |
| A1e10 |
Parking brake indicator lamp |
16A |
| A1e11 |
Parking brake indicator lamp |
16B |
| A85/5 |
Trunk lid/liftgate lock |
30J |
| A85s1 |
Left front door rotary tumbler switch |
21J |
| B37 |
Accelerator pedal sensor |
4D |
| CAN B |
Interior CAN |
21H |
| CAN B |
Interior CAN |
29H |
| CAN C |
Engine CAN |
11E |
| CAN C1 |
Drive train CAN |
5F |
| CAN D |
Diagnostic CAN |
28F |
| CAN H |
Vehicle dynamics CAN |
29B |
| CAN HMI |
User interface CAN |
21E |
| CAN HMI |
User interface CAN |
30E |
| CAN PER |
Peripherals CAN |
14D |
| CAN PER |
Peripherals CAN |
20F |

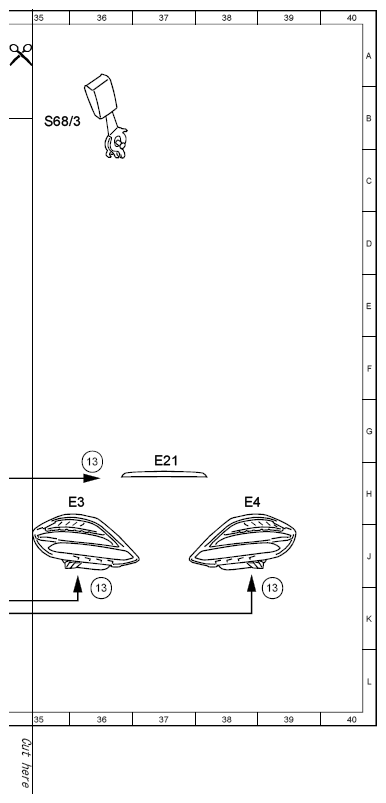

| E21 |
Center stop lamp |
37H |
| E3 |
Left rear lamp unit |
36H |
| E4 |
Right rear lamp unit |
38H |
| Flex E |
Chassis FlexRay |
25H |
| Flex E |
Chassis FlexRay |
25D |
| L6/1 |
Left front axle RPM sensor |
23B |
| L6/2 |
Right front axle RPM sensor |
23B |
| L6/3 |
Left rear axle RPM sensor |
23B |
| L6/4 |
Right rear axle RPM sensor |
23B |
| M76/1 |
Left electric parking brake actuator motor |
15J |
| M76/2 |
Right electric parking brake actuator motor |
12J |
| N10/8 |
Rear SAM control unit |
32J |
| N127 |
Drivetrain control unit |
14A |
| N128 |
Electric parking brake control unit |
14E |

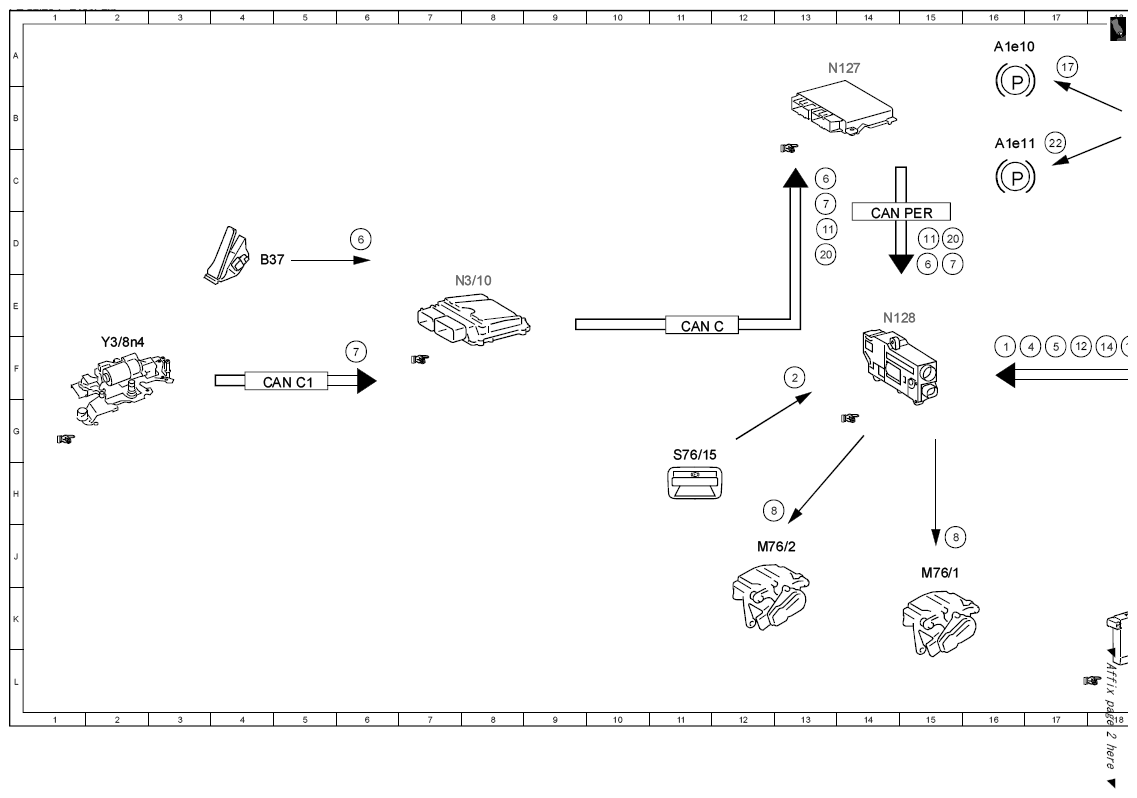

| N2/10 |
Supplemental restraint system control unit |
33A |
| N3/10 |
ME-SFI [ME] control unit |
8E |
| N30/4 |
Electronic Stability Program control unit |
25A |
| N69/1 |
Left front door control unit |
18K |
| N73 |
Electronic ignition switch control unit |
26F |
| N80 |
Steering column module control unit |
26J |
| S16/13 |
DIRECT SELECT lever |
27J |
| S68/3 |
Driver seat belt buckle switch |
35B |
| S76/15 |
Electric parking brake switch |
11G |
| X11/4 |
Diagnostic connector |
31F |
| Y3/8n4 |
Fully integrated transmission control unit |
2F |
